STEDI ST-04-G4-006 G4 Dual Colour Work Light White/Amber
STEDI ST-04-G4-006 G4 Dual Colour Work Light White/Amber
Combining a 5700K white flood beam and a soft, non-dazzling 1800K warm amber diffused beam in a single housing, the STEDI G4 Dual Colour delivers versatile multi-purpose lighting for camping, work, and off-road applications where two distinct lighting modes are needed from one light.
Product Overview
The ST-04-G4-006 is STEDI's G4 Dual Colour Work Light, powered by four CREE XP-L2 LEDs split equally between white and amber outputs. The white flood beam operates at 5700K, producing 2000 raw lumens and 1500 tested lumens with a flood zone 60 metres long and 26 metres wide at 1 LUX, suited to work tasks and area illumination requiring bright, high-contrast white light. The amber beam operates at 1800K, producing 1340 raw lumens and 1000 tested lumens with a soft, diffused zone reaching 24 metres in length and 23 metres in width at 1 LUX. The warm 1800K amber output is non-dazzling and prioritises diffusion over reach, making it ideal for campsite ambience, signalling, and situations where glare reduction and reduced impact on night vision are the priority. Each channel draws 1.6A at 13.5V independently, allowing white and amber to be used separately or simultaneously from the single housing via the included 3-pin DT connector. The G4 is rated IP68 and IP69K, shock tested at 30Gs and vibration tested at 5Gs, and CISPR 25 C3 certified for electromagnetic compatibility. Compatible with both 12V and 24V systems. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
Dual Colour White and Amber Output: The G4 Dual Colour houses two independent LED colour channels in a single unit. The 5700K white channel provides bright, high-contrast work illumination, and the 1800K amber channel provides a soft, warm, non-dazzling diffused light suited to camping, signalling, and reduced-glare environments.

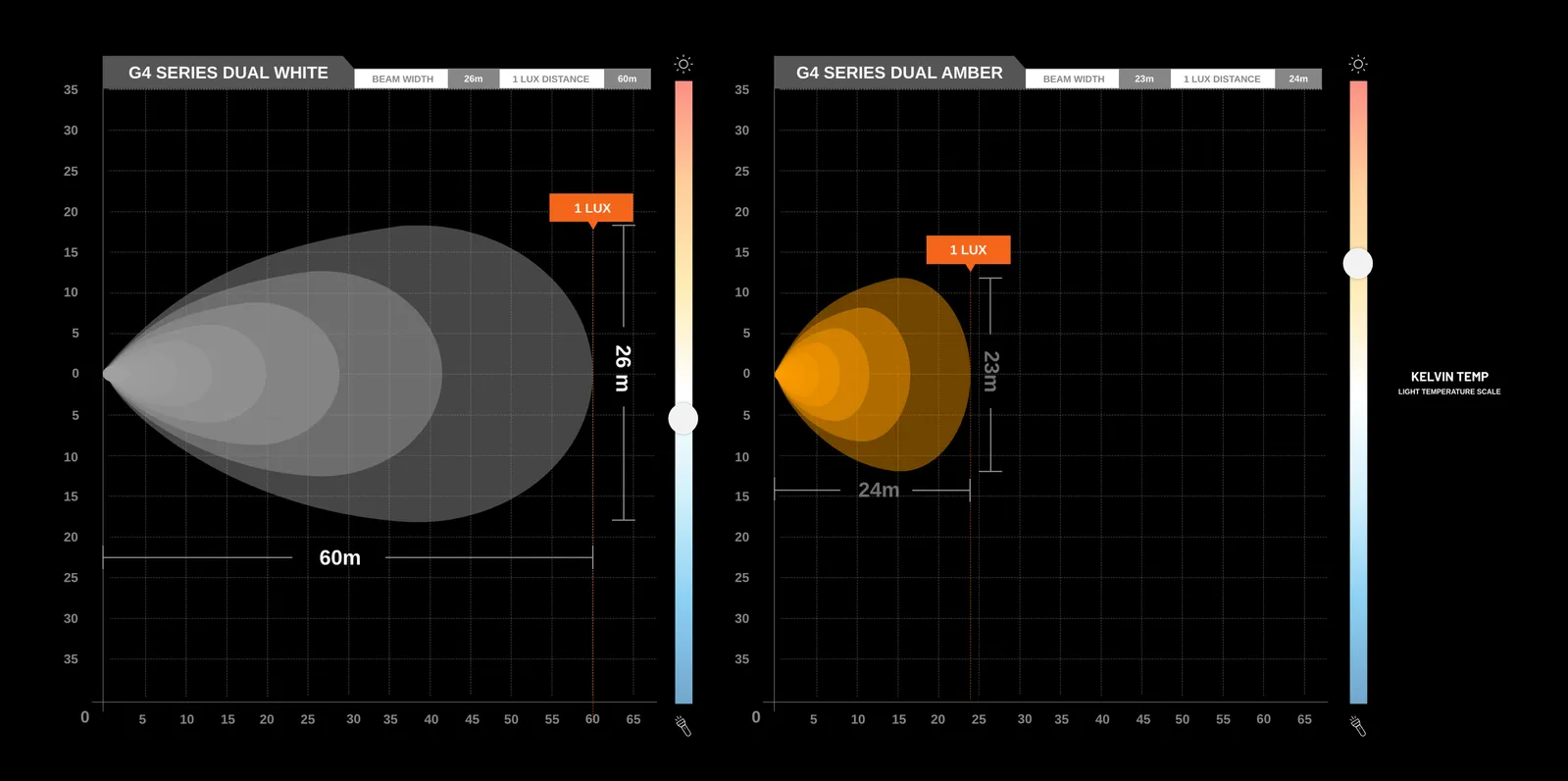

5700K White Flood at 60m x 26m at 1 LUX: The white channel delivers 1500 tested lumens in a flood beam covering 60 metres in length and 26 metres in width at the 1 LUX threshold, providing broad, even white light coverage for work and task illumination.
1800K Warm Amber at 24m x 23m at 1 LUX: The amber channel delivers 1000 tested lumens in an evenly diffused beam covering 24 metres in length and 23 metres in width at the 1 LUX threshold. The 1800K colour temperature produces a warm, soft light that does not trigger glare responses, preserves night vision, and creates a comfortable campsite ambience.
Non-Dazzling Amber Beam: The 1800K amber output is specifically described as soft and non-dazzling, making it suitable for use in campsite environments where maintaining the comfort of other people nearby and preserving the driver's own night vision is important.
Independent Channel Control via 3-Pin DT Connector: The 3-pin DT male connector allows white and amber channels to be controlled independently, enabling white-only, amber-only, or simultaneous operation depending on the installation wiring and switch configuration.
4x CREE XP-L2 LEDs: Two CREE XP-L2 LEDs per colour channel provide consistent optical performance and thermal management for both white and amber outputs throughout the rated 50,000-hour lifespan.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity under the mechanical demands of off-road and work vehicle applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with camping vehicles, 4WDs, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G4-006 |
| Brand | STEDI |
| LED | 4x CREE XP-L2 |
| LED Power Output (White) | 2 x 10W |
| LED Power Output (Amber) | 2 x 10W |
| Raw Lumens (White) | 2,000 lm |
| Raw Lumens (Amber) | 1,340 lm |
| Tested Lumens (White) | 1,500 lm |
| Tested Lumens (Amber) | 1,000 lm |
| Beam Type | Flood |
| 1 LUX Distance (White) | 60m length x 26m width |
| 1 LUX Distance (Amber) | 24m length x 23m width |
| Colour Temperature (White) | 5700K |
| Colour Temperature (Amber) | 1800K |
| Operating Voltage | 12V and 24V |
| Amp Draw (White) | 1.6A @ 13.5V |
| Amp Draw (Amber) | 1.6A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 1.002 kg |

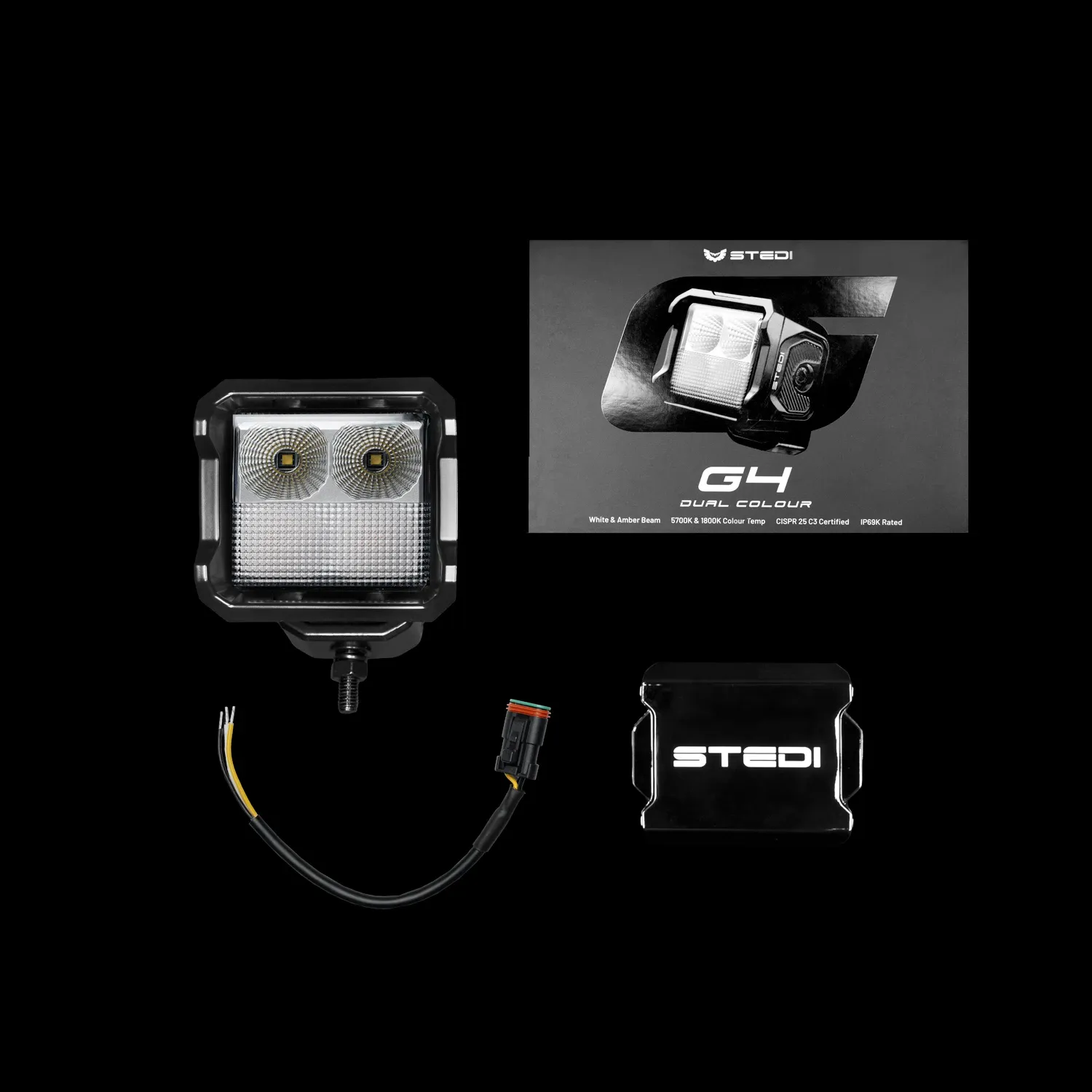

What's in the Box
- 1x STEDI G4 Dual Colour Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 3-Pin DT Male Connector
Goes Well With
The ST-04-G4-006 is the ideal single-light solution for touring and camping setups where both task lighting and campsite ambience are needed from a single mounting point. It pairs naturally with other STEDI G4 lights in the same range for multi-light installations, and with STEDI light bars and driving lights on the same vehicle. A dual-channel switch or relay harness is required to control white and amber channels independently, and a 3-pin DT female connector harness is needed to connect to the included 3-pin DT male connector on the light.
Frequently Asked Questions
Can the white and amber channels be operated independently?
Yes. The 3-pin DT connector provides separate circuit connections for the white and amber channels, allowing each to be switched on and off independently via a suitable dual-channel switch or relay harness. This allows white-only, amber-only, or simultaneous white and amber operation depending on the installation wiring configuration.
What is the 1800K amber beam suited for?
The 1800K warm amber beam is a soft, non-dazzling diffused output suited to campsite illumination, signalling, and any situation where reducing glare and preserving night vision are important. At 1800K, the amber light does not trigger the same glare response as white light and is generally more comfortable for people nearby in a campsite or work environment. It is not suited to long-range task lighting due to its shorter reach compared to the white channel.
How does the G4 Dual Colour differ from the other G4 variants?
The G4 Dual Colour (ST-04-G4-006) is the only variant in the G4 range with two independently controllable colour channels. All other G4 variants produce a single white 5700K output in spot, flood, hybrid, or ultra-flood beam patterns. The Dual Colour divides the four CREE XP-L2 LEDs between white and amber, so each channel has half the total output of a single-colour G4 variant at 1500 tested lumens white and 1000 tested lumens amber, compared to 3000 tested lumens across the single-colour variants.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles and equipment. The G4's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What connector type does the G4 Dual Colour use, and why is it different from the other G4 variants?
The G4 Dual Colour uses a 3-pin DT male connector rather than the 2-pin connector used on single-colour G4 variants. The additional pin provides the independent circuit connection required for the second colour channel. A compatible 3-pin DT female connector wiring harness is required to connect the light to the vehicle's electrical system and switch configuration.
