STEDI ST-04-G2-002 G2 Black Flush Flood Work Light CREE XP-L2
STEDI ST-04-G2-002 G2 Black Flush Flood Work Light
Delivering immense power in an incredibly compact flush-mount form factor, the STEDI G2 Black Flush produces 1500 tested lumens across a 30-metre by 28-metre flood zone at 1 LUX, suited for worksite lighting, camp illumination, and flush-mounted reverse lights.
Product Overview
The ST-04-G2-002 is STEDI's G2 Black Flush Work Light, powered by two CREE XP-L2 LEDs producing 2000 raw lumens and 1500 tested lumens through an optimised flood reflector and lens at 5700K white light. The compact flush-mount design is engineered for a factory-fit finish across a wide range of applications including worksite and camp lighting, flush-mounted reverse lighting, and auxiliary illumination in tight or recessed mounting locations where the larger G4 housing cannot be accommodated. The flood beam reaches 30 metres in length and 28 metres in width at the 1 LUX threshold, ensuring the critical near-field area is evenly and fully illuminated. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain for extended use. At just 0.328kg, the G2 Flush is the lightest and most compact model in the STEDI G Series. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing just 0.8A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens. Rated for 50,000 hours LED lifespan.
Features & Benefits
Flush-Mount Design for Factory-Fit Finish: The G2 Flush is specifically engineered for flush or recessed mounting applications, providing a clean, low-profile installation suited to vehicle panels, canopies, toolboxes, work vehicles, and any location where a surface-mounted light would protrude unacceptably.
2x CREE XP-L2 LEDs at 20W Total: Two premium CREE XP-L2 LED emitters produce 2000 raw lumens and 1500 independently tested lumens through the optimised flood reflector, delivering high-output performance from a compact two-LED housing.

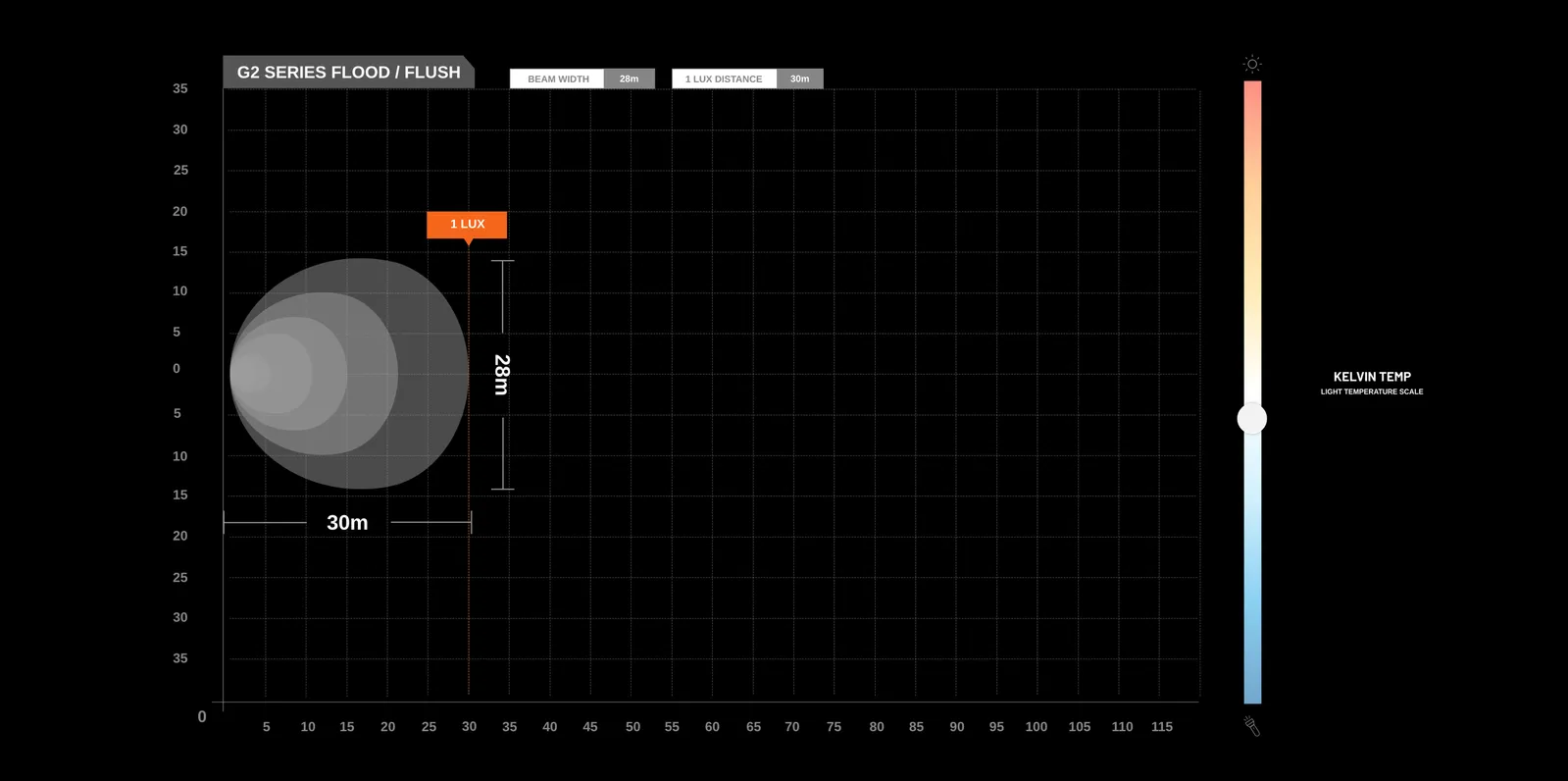

Flood Beam at 1 LUX, 30m x 28m: The flood reflector and lens produce a near-square illuminated zone of 30 metres in length and 28 metres in width at the 1 LUX threshold, providing broad, even near-field coverage across the work or campsite area directly around the vehicle.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, provides high contrast for detail work, and reduces glare and eye strain during extended use.
Ultra-Low Current Draw at 0.8A: Drawing just 0.8A at 13.5V, the G2 Flush is extremely efficient relative to its output, making it suitable for battery-sensitive installations and multi-light setups where total current draw must be kept low.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for work vehicle, off-road, and canopy-mounted applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Compact and Lightweight at 0.328kg: At 0.328kg, the G2 Flush is significantly lighter than the G4 range, making it well suited to weight-sensitive applications and canopy or toolbox mounting where multiple lights may be installed.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G2-002 |
| Brand | STEDI |
| LED | 2x CREE XP-L2 |
| LED Power Output | 2 x 10W (20W total) |
| Raw Lumens | 2,000 lm |
| Tested Lumens | 1,500 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 30m |
| 1 LUX Distance (Width) | 28m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 0.8A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 0.328 kg |

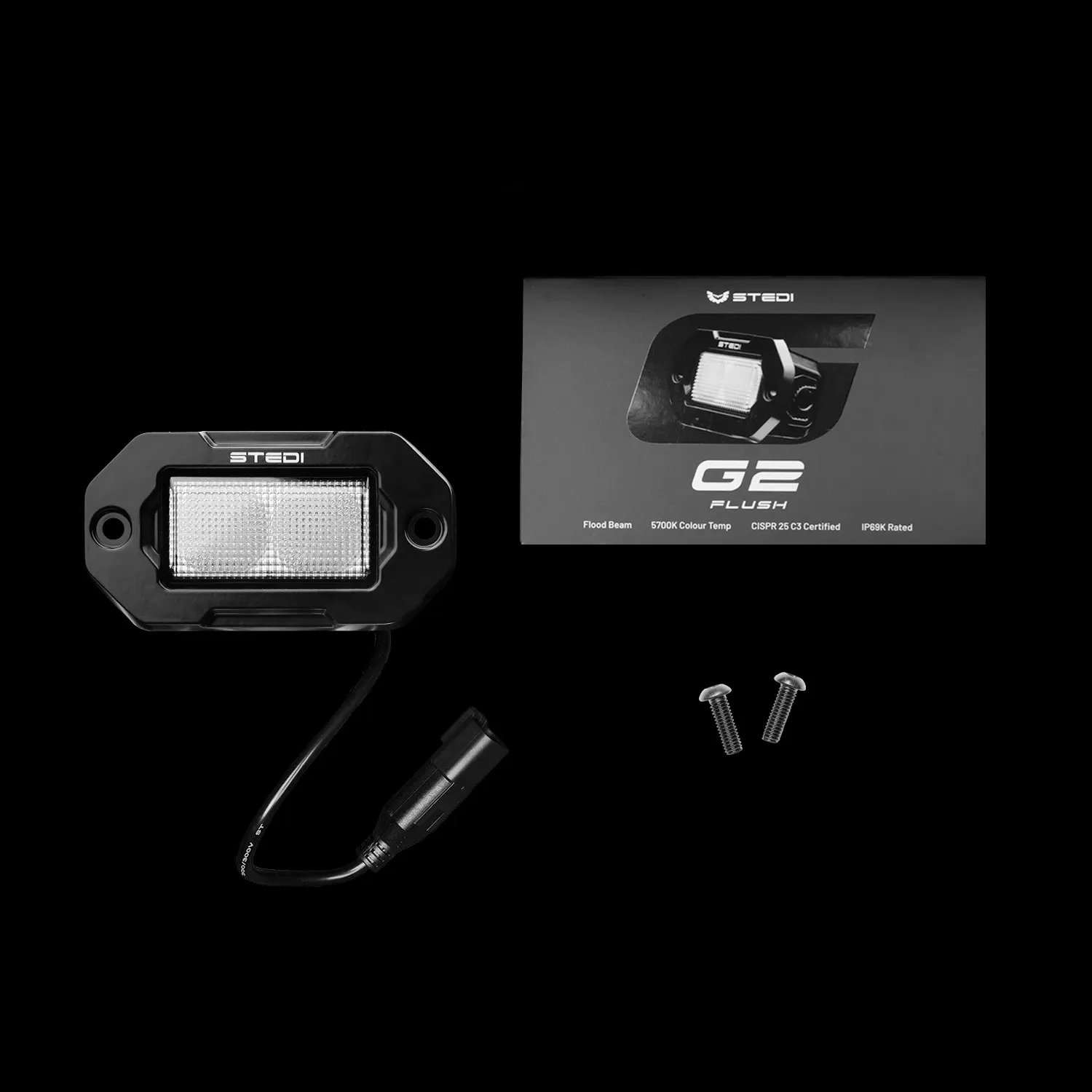

What's in the Box
- 1x STEDI G2 Flush Light
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G2-002 is well suited to flush-mounted reverse lighting, canopy and toolbox work lighting, and campsite illumination in compact or recessed mounting locations. It pairs naturally with other STEDI G2 and G4 lights for multi-light vehicle setups, and with STEDI light bars and driving lights where the G2 Flush fills specific mounting positions that larger lights cannot. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation. For applications requiring higher output from a similarly compact housing, the G4 range provides 3000 tested lumens in a slightly larger form factor.
Frequently Asked Questions
What does flush-mount mean, and how does the G2 Flush differ from surface-mount lights?
A flush-mount light is designed to sit recessed into a panel, canopy, or mounting surface so that the face of the light sits level with or slightly below the surrounding surface, rather than protruding outward. This provides a cleaner, lower-profile appearance and reduces the risk of the light being snagged or damaged by debris, branches, or equipment. The G2 Flush is engineered specifically for this installation style, making it ideal for vehicle canopies, toolboxes, underbody mounting, and any location where a low-profile footprint is required.
How does the G2 Flush compare to the G4 range in terms of output and size?
The G2 Flush uses two CREE XP-L2 LEDs at 20W total, producing 1500 tested lumens and weighing 0.328kg in a compact flush-mount form factor. The G4 range uses four CREE XP-L2 LEDs at 40W total, producing 3000 tested lumens and weighing 1.0kg in a surface-mount housing. The G2 Flush is the right choice when compact size, flush installation, low current draw, or low weight is the priority. The G4 range provides double the output for applications where maximum illumination is needed.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles, canopies, and equipment. The G2 Flush's dual IP68 and IP69K rating confirms it is protected against both scenarios.
Is the G2 Flush suitable as a reverse light replacement?
Yes. STEDI specifically lists flush-mounted reverse lighting as a primary application for the G2 Flush. The compact flush-mount form factor allows it to be integrated cleanly into the rear panel or bumper of a vehicle, and the 30-metre x 28-metre flood beam provides broad near-field reverse illumination. Confirm compliance with applicable Australian road vehicle standards before installing as a replacement or supplementary reverse light on a road-registered vehicle.
What is the rated lifespan of the CREE XP-L2 LEDs?
The CREE XP-L2 LEDs in the G2 Flush are rated for 50,000 hours of operating life. At typical work and auxiliary light usage, this equates to many years of service before the LEDs reach their rated end-of-life output level under normal use patterns.
