STEDI ST-04-G1-002 G1 Black Flush Work Light CREE XP-L2
STEDI ST-04-G1-002 G1 Black Flush Work Light
Engineered for a flush, factory-fit finish in the most compact housing in the STEDI G Series, the G1 Black Flush delivers 750 tested lumens across an 18-metre by 21-metre flood zone at 1 LUX from a single CREE XP-L2 LED.
Product Overview
The ST-04-G1-002 is STEDI's G1 Black Flush Work Light, the flush-mount variant of the G1 range, powered by a single CREE XP-L2 LED producing 1000 raw lumens and 750 tested lumens through an optimised flood reflector and lens at 5700K white light. Sharing the same output specification as the G1 Flood (ST-04-G1-001), the G1 Flush is differentiated by its flush-mount housing design, engineered to sit recessed into panels, canopies, and vehicle surfaces for a clean, factory-fit appearance. The flood beam reaches 18 metres in length and 21 metres in width at the 1 LUX threshold, with broader lateral spread than forward reach suited to flush-mounted reverse lighting, campsite illumination, and close-range work tasks. At just 0.290kg, it is the lightest model in the G Series. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 0.8A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, and stainless steel hardware and bracket are included. Rated for 50,000 hours LED lifespan.
Features & Benefits
Flush-Mount Design for Factory-Fit Finish: The G1 Flush is specifically engineered for flush or recessed mounting into panels, canopies, bumpers, and vehicle surfaces, providing a clean, low-profile installation that sits level with or below the surrounding surface for a factory-fit appearance.
Single CREE XP-L2 LED at 10W: One premium CREE XP-L2 LED produces 1000 raw lumens and 750 independently tested lumens through the optimised flood reflector, delivering meaningful work light output from the smallest possible flush-mount housing in the STEDI G Series.

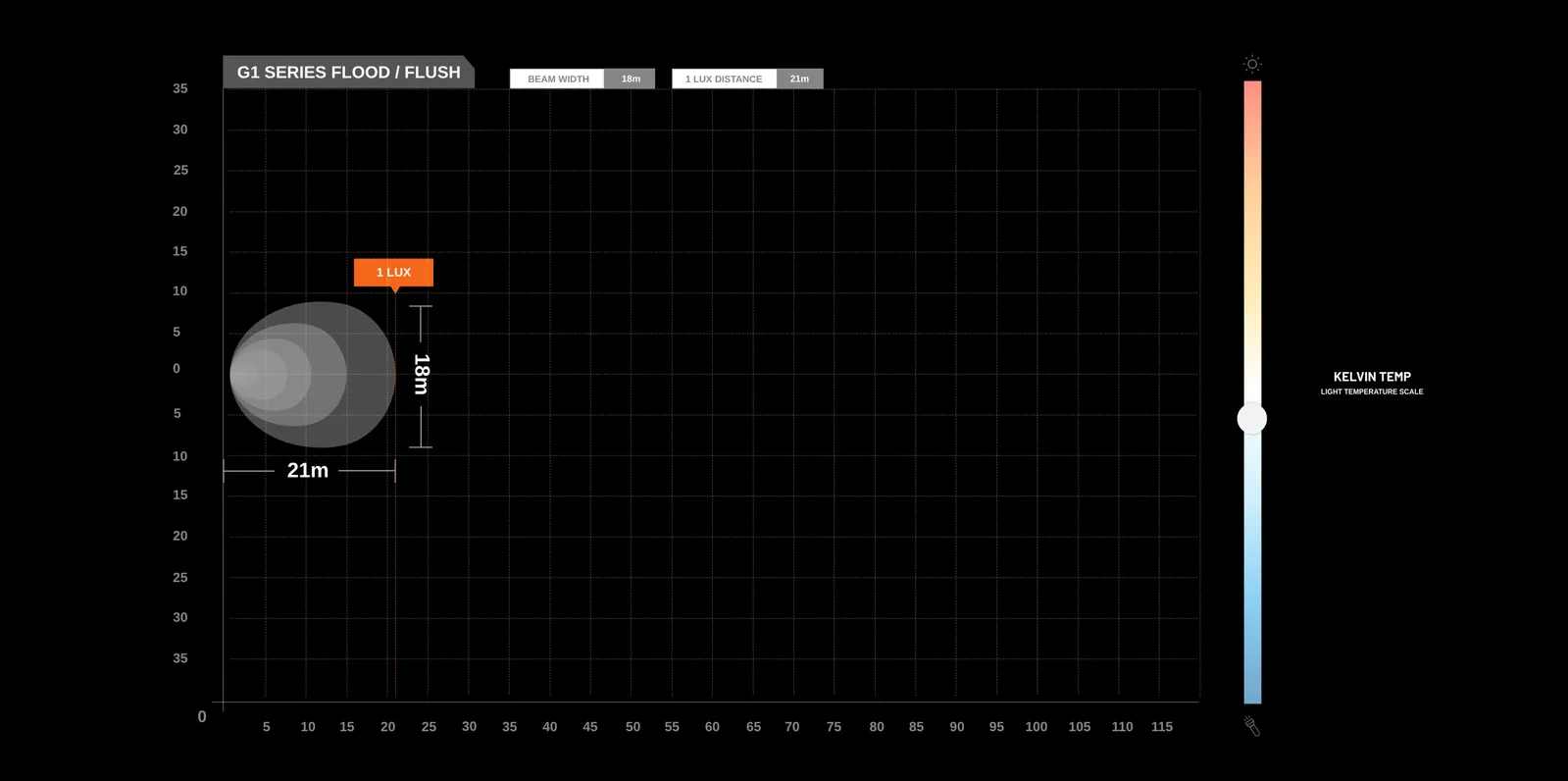

Flood Beam at 1 LUX, 18m x 21m: The flood reflector and lens produce an illuminated zone of 18 metres in length and 21 metres in width at the 1 LUX threshold, with broader lateral coverage than forward reach, suited to reverse lighting, campsite illumination, and close-range work tasks.
Ultra-Compact and Lightweight at 0.290kg: The G1 Flush is the smallest and lightest model in the G Series, suited to mounting in positions where even the G2 range cannot fit, including tight reverse light recesses, canopy mounting, and weight-critical installations.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, reduces glare and eye strain, and provides high contrast for task and reverse lighting applications.
Ultra-Low Current Draw at 0.8A: Drawing just 0.8A at 13.5V, the G1 Flush is the most power-efficient model in the G Series alongside the G2 Flush, suited to battery-sensitive installations and multi-light setups.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for work vehicle and off-road applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G1-002 |
| Brand | STEDI |
| LED | 1x CREE XP-L2 |
| LED Power Output | 1 x 10W |
| Raw Lumens | 1,000 lm |
| Tested Lumens | 750 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 18m |
| 1 LUX Distance (Width) | 21m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 0.8A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 0.290 kg |

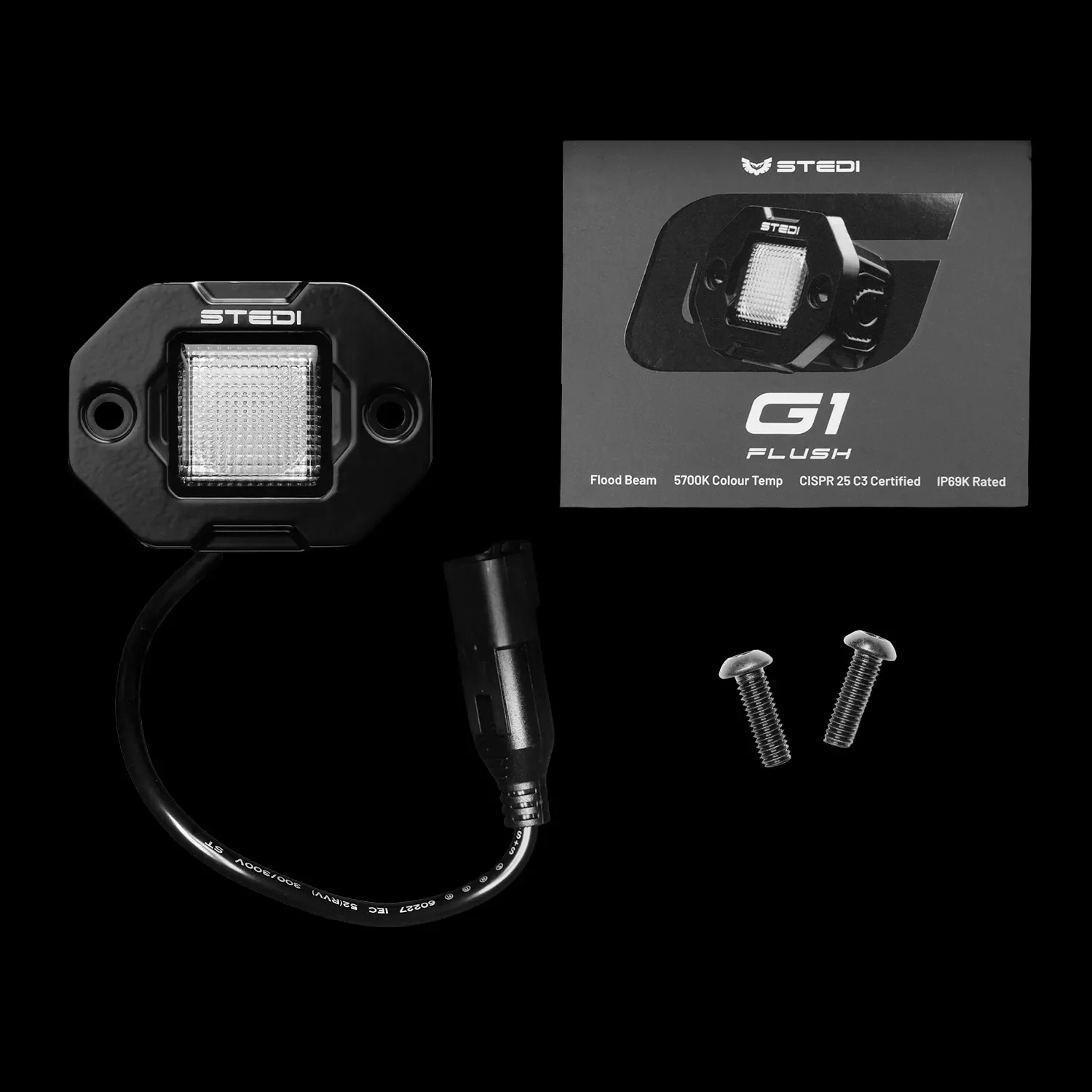

What's in the Box
- 1x STEDI G1 Flush Light
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G1-002 is well suited to flush-mounted reverse lighting, canopy and toolbox work lighting, and campsite illumination in the tightest or most weight-sensitive mounting positions in the G Series range. It pairs naturally with other STEDI G1, G2, and G4 lights for multi-light vehicle setups covering different mounting positions and output requirements. For applications requiring surface-mount installation rather than flush-mount in the same single-LED output class, the G1 Flood (ST-04-G1-001) is the direct alternative. For higher output in a flush-mount housing, the G2 Flush (ST-04-G2-002) provides 1500 tested lumens at the same 0.8A current draw. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
What is the difference between the G1 Flush (ST-04-G1-002) and the G1 Flood (ST-04-G1-001)?
Both the G1 Flush and G1 Flood use a single CREE XP-L2 LED, produce 750 tested lumens at 0.8A, share the same IP ratings and certifications, and deliver the same 18m x 21m flood zone at 1 LUX. The key difference is the housing design and mounting style. The G1 Flood is a surface-mount light with a STEDI cover included, suited to bracket-mounted applications on vehicles and equipment. The G1 Flush is designed for recessed mounting into panels and canopies for a factory-fit appearance, and does not include a cover.
Is the G1 Flush suitable as a reverse light replacement?
Yes. STEDI specifically lists flush-mounted reverse lighting as a primary application for the G1 Flush. The ultra-compact flush-mount housing can be installed directly into reverse light recesses or panel cutouts, and the 18m x 21m flood zone with broader lateral spread than forward reach is well suited to illuminating the area directly behind the vehicle during reversing. Confirm compliance with applicable Australian road vehicle standards before installing as a replacement or supplementary reverse light on a road-registered vehicle.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles, canopies, and equipment. The G1 Flush's dual IP68 and IP69K rating confirms it is protected against both scenarios.
How does the G1 Flush compare to the G2 Flush in output and size?
The G1 Flush uses a single CREE XP-L2 LED at 10W, producing 750 tested lumens and weighing 0.290kg, with a flood zone of 18m x 21m at 1 LUX. The G2 Flush uses two CREE XP-L2 LEDs at 20W, producing 1500 tested lumens and weighing 0.328kg, with a flood zone of 30m x 28m at 1 LUX. Both draw 0.8A at 13.5V. Choose the G1 Flush when the smallest possible flush-mount housing is the priority, and the G2 Flush when higher output is needed from a slightly larger flush-mount footprint.
What is the rated lifespan of the CREE XP-L2 LED?
The single CREE XP-L2 LED in the G1 Flush is rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many years of service before the LED reaches its rated end-of-life output level under normal use patterns.
