STEDI ST-04-G1-001 G1 Black Flood Work Light CREE XP-L2
STEDI ST-04-G1-001 G1 Black Flood Work Light
Small in size and mighty in power, the STEDI G1 Black Flood delivers 750 tested lumens from a single CREE XP-L2 LED across an 18-metre by 21-metre flood zone at 1 LUX, in the most compact housing in the STEDI G Series.
Product Overview
The ST-04-G1-001 is STEDI's G1 Black Flood Work Light, the smallest and most compact model in the STEDI G Series, powered by a single CREE XP-L2 LED producing 1000 raw lumens and 750 tested lumens through an optimised flood reflector and lens at 5700K white light. Despite its ultra-compact form factor, the G1 Flood reaches 18 metres in length and 21 metres in width at the 1 LUX threshold, providing a wide near-field flood zone from a single LED housing that weighs just 0.290kg. The versatile design suits a wide range of applications including work and camp lighting, rear-mounted reverse lights, and any position where the larger G2 or G4 housings cannot be accommodated. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing just 0.8A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
Single CREE XP-L2 LED at 10W: One premium CREE XP-L2 LED produces 1000 raw lumens and 750 independently tested lumens through the optimised flood reflector, delivering meaningful work light output from the most compact possible single-LED housing in the STEDI G Series.

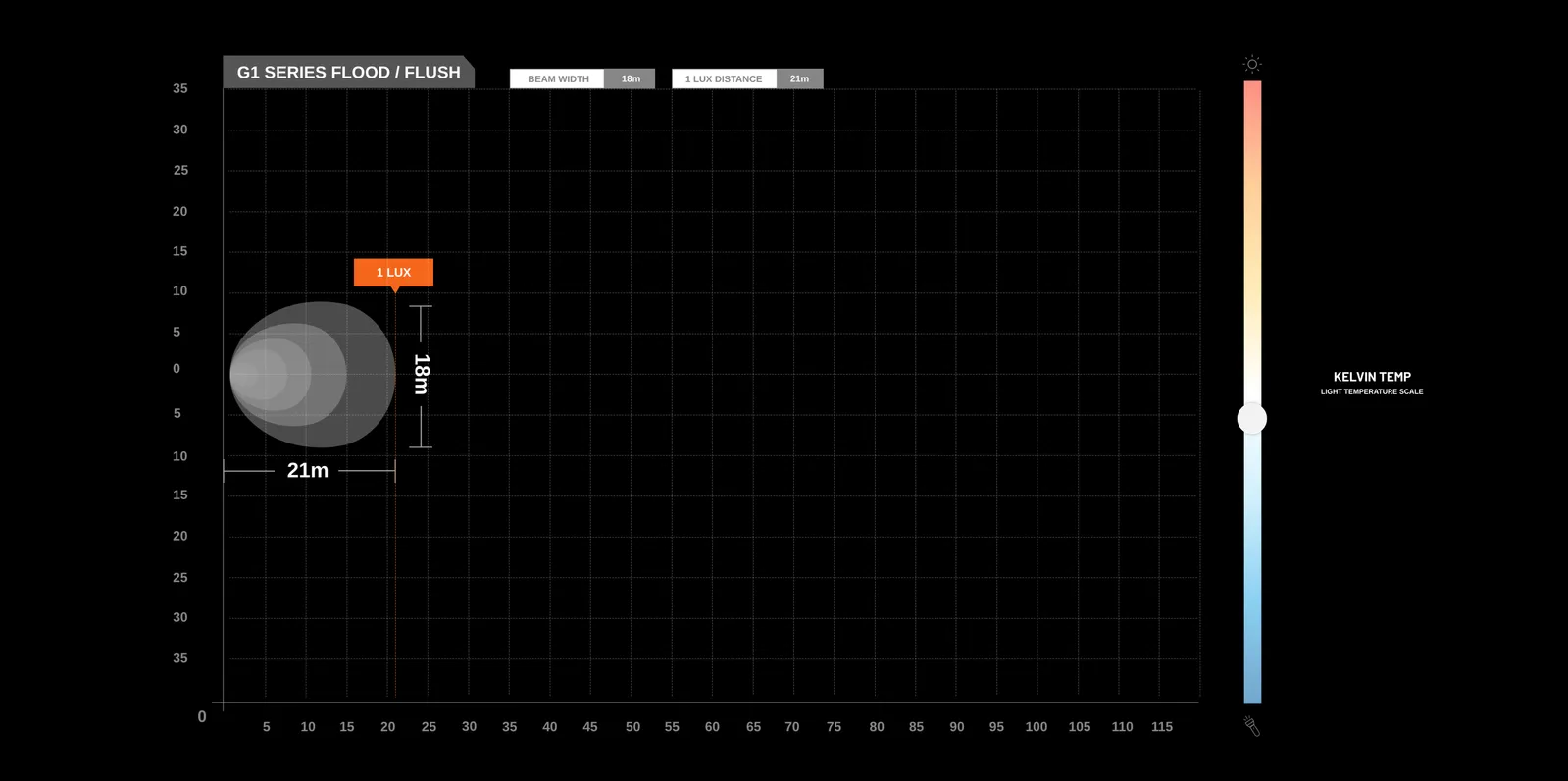

Flood Beam at 1 LUX, 18m x 21m: The flood reflector and lens produce an illuminated zone of 18 metres in length and 21 metres in width at the 1 LUX threshold, providing broader lateral coverage than forward reach, suited to reverse lighting, campsite illumination, and close-range task work.
Ultra-Compact and Lightweight at 0.290kg: At 0.290kg and in the smallest housing in the G Series, the G1 Flood can be mounted in positions where even the G2 range cannot fit, including tight reverse light recesses, compact bracket mounts, and weight-critical installations.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, reduces glare and eye strain, and provides high contrast for task and reverse lighting applications.
Ultra-Low Current Draw at 0.8A: Drawing just 0.8A at 13.5V, the G1 Flood is the most power-efficient model in the G Series, making it suitable for battery-sensitive installations and multi-light setups where total current draw must be minimised.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for work vehicle, off-road, and motorcycle applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G1-001 |
| Brand | STEDI |
| LED | 1x CREE XP-L2 |
| LED Power Output | 1 x 10W |
| Raw Lumens | 1,000 lm |
| Tested Lumens | 750 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 18m |
| 1 LUX Distance (Width) | 21m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 0.8A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 0.290 kg |

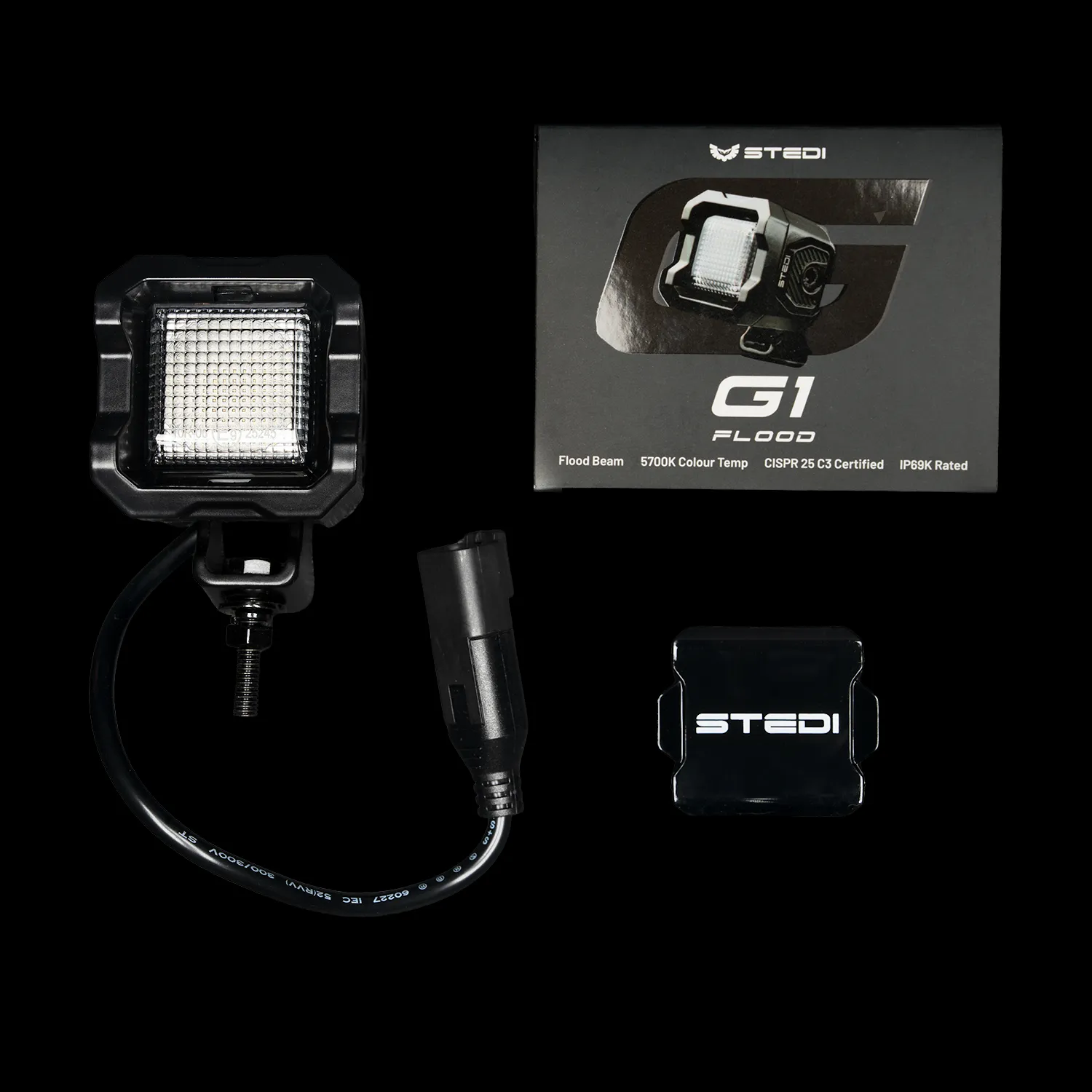

What's in the Box
- 1x STEDI G1 Flood Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G1-001 is well suited to rear-mounted reverse lighting, compact work and campsite illumination, and any position where the smaller G Series housing is required. It pairs naturally with other STEDI G1, G2, and G4 lights in multi-light vehicle setups for comprehensive coverage across different mounting positions and output requirements. For applications requiring greater output in a similarly compact form factor, the G2 Flood (ST-04-G2-001) provides 1500 tested lumens at 20W from a slightly larger housing. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
How does the G1 Flood compare to the G2 Flood and G2 Flush in the G Series?
The G1 Flood is the smallest and lightest model in the range with a single CREE XP-L2 LED producing 750 tested lumens at 0.8A and weighing 0.290kg, with a flood zone of 18m x 21m. The G2 Flood uses two CREE XP-L2 LEDs producing 1500 tested lumens at 1.6A and weighing 0.420kg, with a flood zone of 30m x 28m. The G2 Flush uses two CREE XP-L2 LEDs producing 1500 tested lumens at 0.8A and weighing 0.328kg with the same flood zone, but in a flush-mount housing. Choose the G1 when the smallest possible housing is the priority, the G2 Flood when higher output with surface-mount flexibility is needed, and the G2 Flush when flush-mount installation is required.
Is the G1 Flood suitable as a reverse light replacement?
Yes. STEDI specifically lists rear-mounted reverse lighting as a primary application for the G1 Flood. The ultra-compact housing can be installed in tight reverse light recesses, and the 18m x 21m flood zone with broader lateral spread than forward reach is well suited to illuminating the area directly behind the vehicle during reversing. Confirm compliance with applicable Australian road vehicle standards before installing as a replacement or supplementary reverse light on a road-registered vehicle.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles and equipment. The G1 Flood's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for vehicle installations?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle components. C3 is the highest performance class within CISPR 25, confirming the G1 Flood produces minimal electromagnetic interference that could affect onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
What is the rated lifespan of the CREE XP-L2 LED?
The single CREE XP-L2 LED in the G1 Flood is rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many years of service before the LED reaches its rated end-of-life output level under normal use patterns.
