STEDI ST-04-G2-001 G2 Black Flood Work Light CREE XP-L2
STEDI ST-04-G2-001 G2 Black Flood Work Light
Delivering blinding performance in a compact, flexible form factor, the STEDI G2 Black Flood produces 1500 tested lumens across a 30-metre by 28-metre flood zone at 1 LUX, suited to ditch lighting, camping, and motorcycle and ATV applications.
Product Overview
The ST-04-G2-001 is STEDI's G2 Black Flood Work Light, powered by two CREE XP-L2 LEDs producing 2000 raw lumens and 1500 tested lumens through an optimised flood reflector and lens at 5700K white light. Despite its compact form factor, the G2 Flood rivals larger auxiliary lights in output, reaching 30 metres in length and 28 metres in width at the 1 LUX threshold to ensure the critical near-field area is evenly and fully illuminated. The flexible mounting design suits a wide range of applications including ditch lighting, campsite illumination, and front-facing motorcycle and ATV lighting where the larger G4 housing would be impractical. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain for extended use. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 1.6A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
2x CREE XP-L2 LEDs at 20W Total: Two premium CREE XP-L2 LED emitters produce 2000 raw lumens and 1500 independently tested lumens through the optimised flood reflector, delivering high-output performance from a compact two-LED housing that rivals larger auxiliary light units.

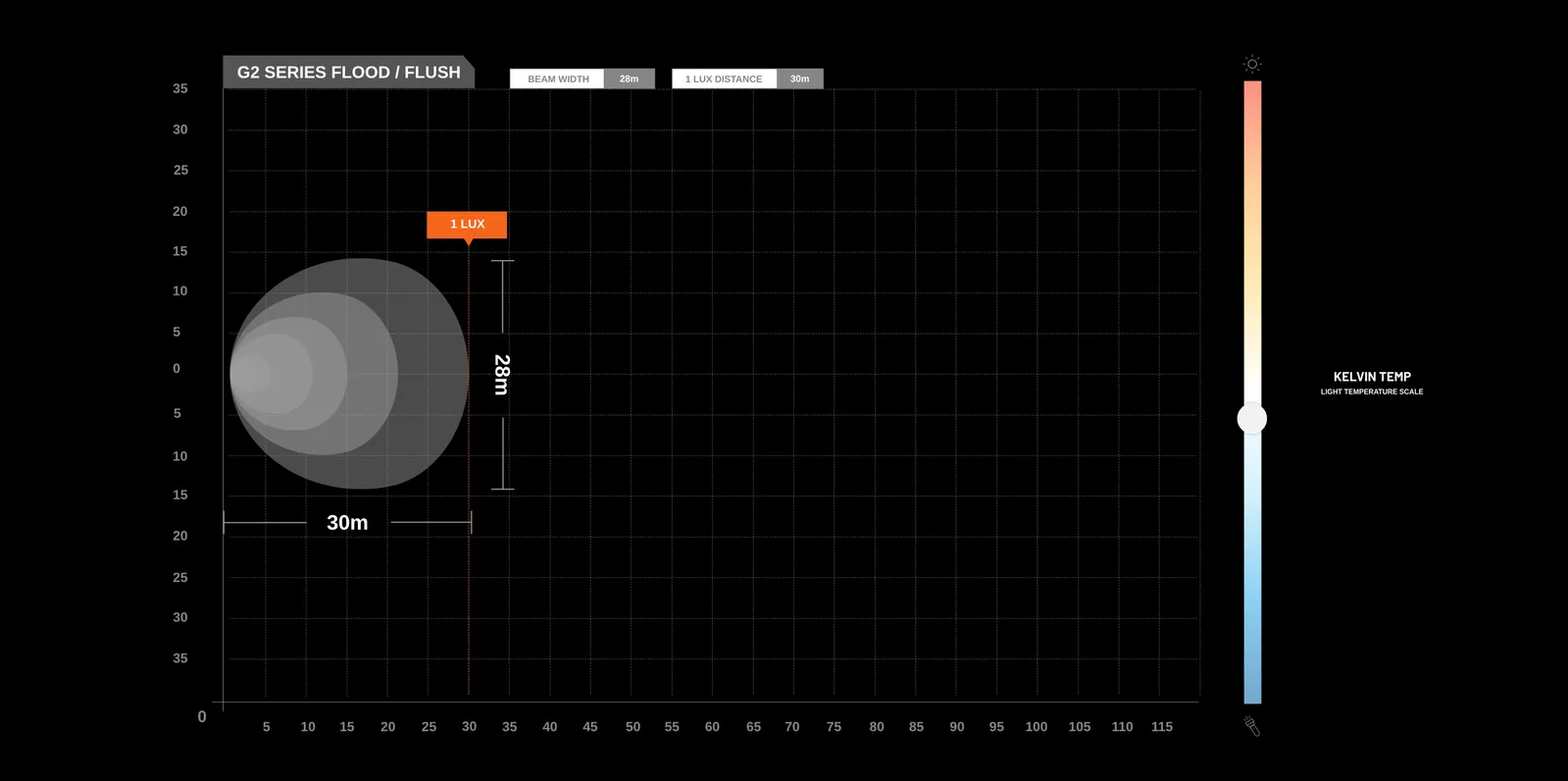

Flood Beam at 1 LUX, 30m x 28m: The flood reflector and lens produce a near-square illuminated zone of 30 metres in length and 28 metres in width at the 1 LUX threshold, providing broad, even near-field coverage across the work area, campsite, or roadside ditch zone directly around the vehicle.

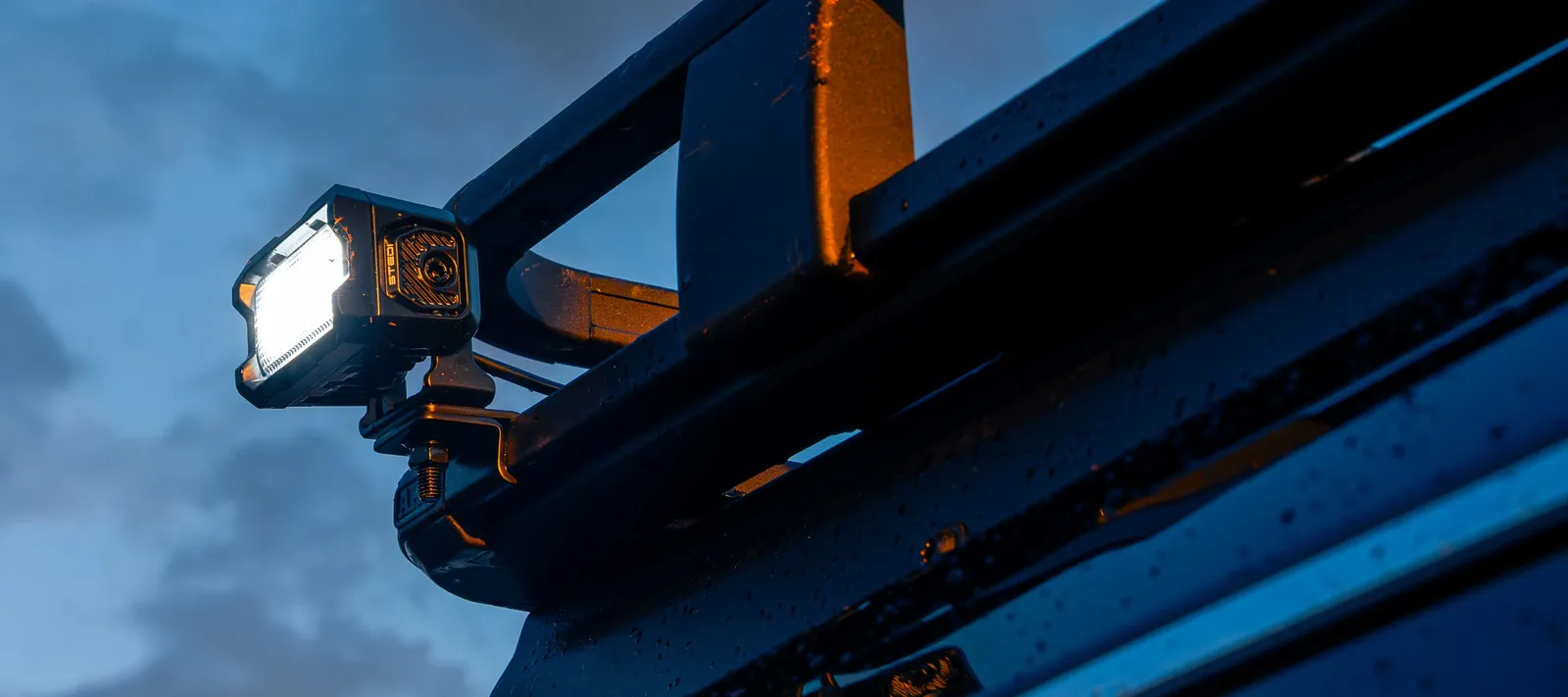

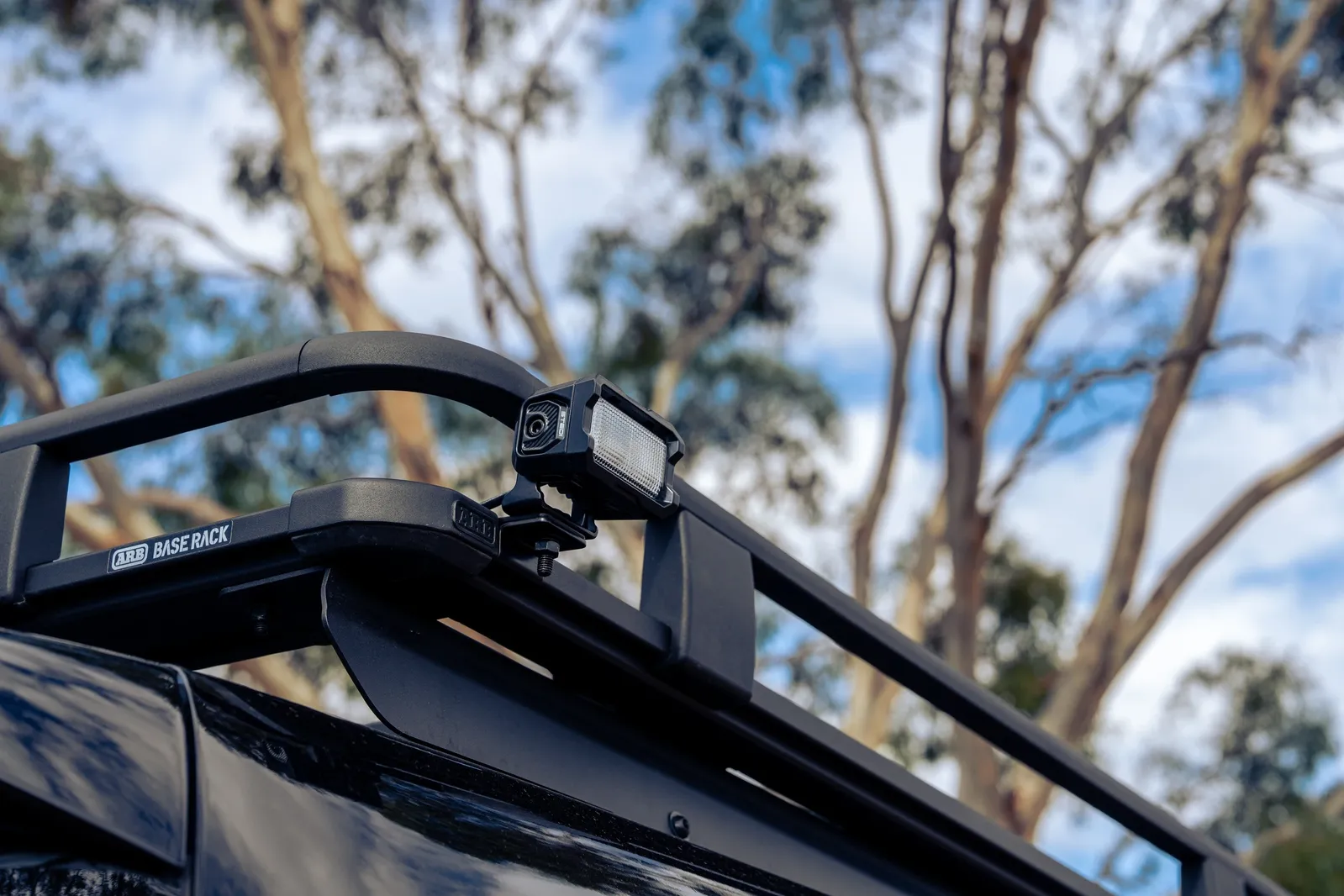

Compact Form Factor with Flexible Mounting: The G2's compact housing enables mounting in locations where the larger G4 would not fit, including motorcycle frames, ATV roll cages, ditch light mounting positions, and tight auxiliary light bars, while delivering output comparable to larger units.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, provides high contrast for detail work, and reduces glare and eye strain during extended use.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi, making the G2 Flood suitable for vehicles with sensitive communication equipment.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity under the mechanical demands of motorcycle, ATV, and off-road applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G2-001 |
| Brand | STEDI |
| LED | 2x CREE XP-L2 |
| LED Power Output | 2 x 10W (20W total) |
| Raw Lumens | 2,000 lm |
| Tested Lumens | 1,500 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 30m |
| 1 LUX Distance (Width) | 28m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 1.6A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 0.420 kg |

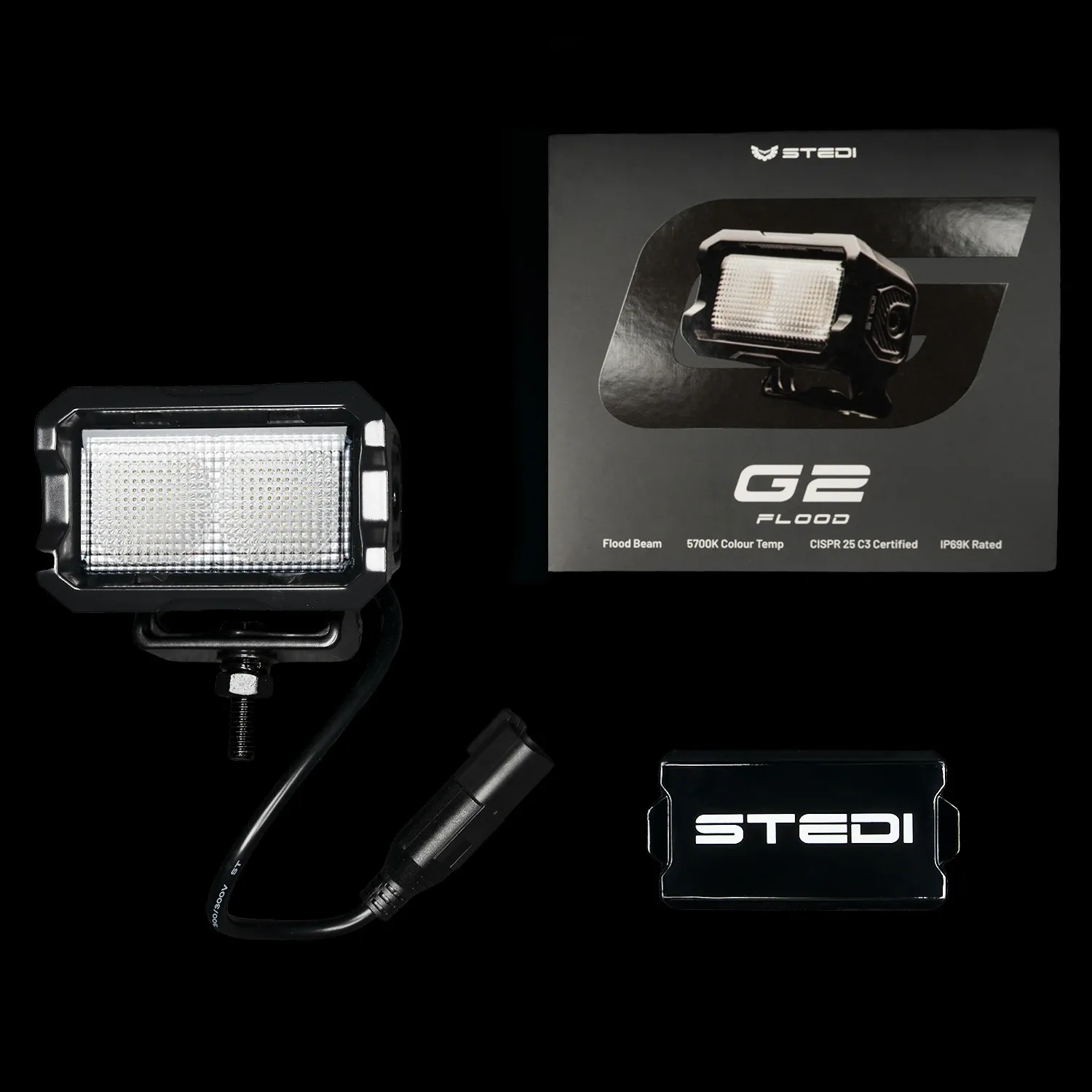

What's in the Box
- 1x STEDI G2 Flood Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G2-001 is well suited to ditch lighting setups, campsite illumination, and motorcycle and ATV auxiliary lighting where a compact, high-output flood light is needed in tight or weight-sensitive mounting positions. It pairs naturally with other STEDI G2 and G4 lights for multi-light vehicle setups, and with STEDI light bars and driving lights where the G2 Flood fills specific ditch light or supplementary flood positions. For applications requiring a flush-mount installation in recessed panels or canopies, the G2 Flush (ST-04-G2-002) is the alternative within the same G2 range. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
What is the difference between the G2 Flood (ST-04-G2-001) and the G2 Flush (ST-04-G2-002)?
Both the G2 Flood and G2 Flush use two CREE XP-L2 LEDs, produce 1500 tested lumens, share the same IP ratings and certifications, and deliver the same 30-metre by 28-metre flood zone at 1 LUX. The key difference is the housing design and mounting style: the G2 Flood is a surface-mount light with a STEDI cover included, suited to ditch lighting, camping, and motorcycle applications. The G2 Flush is designed for flush or recessed mounting into panels and canopies for a factory-fit appearance. The G2 Flood also draws 1.6A at 13.5V compared to the G2 Flush's 0.8A, and weighs 0.420kg compared to 0.328kg.
How does the G2 Flood compare to the G4 range in output and size?
The G2 Flood uses two CREE XP-L2 LEDs at 20W total, producing 1500 tested lumens and weighing 0.420kg. The G4 range uses four CREE XP-L2 LEDs at 40W total, producing 3000 tested lumens and weighing 1.0kg. The G2 Flood is the right choice when compact size, flexible mounting, or low weight is the priority. The G4 range provides double the output for applications where maximum illumination is the requirement.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles and equipment. The G2 Flood's dual IP68 and IP69K rating confirms it is protected against both scenarios.
Is the G2 Flood suitable for motorcycle use?
Yes. STEDI specifically lists motorcycle and ATV lighting as a primary application for the G2 Flood. The compact housing and flexible mounting options allow the G2 Flood to be mounted on motorcycle frames, handlebars, or crash bars where larger lights would not fit, and the 30G shock and 5G vibration testing confirms it is built to withstand motorcycle operation.
What is the rated lifespan of the CREE XP-L2 LEDs?
The CREE XP-L2 LEDs in the G2 Flood are rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many years of service before the LEDs reach their rated end-of-life output level under normal use patterns.
