STEDI ST-04-G4-001 G4 Black Spot Work Light CREE XP-L2 235m
STEDI ST-04-G4-001 G4 Black Spot Work Light
Delivering maximum beam distance and intensity from four CREE XP-L2 LEDs, the STEDI G4 Black Spot reaches 235 metres at 1 LUX with a near-field zone of 28 metres, all in a fully sealed IP68 and IP69K rated housing with CISPR 25 C3 certification.
Product Overview
The ST-04-G4-001 is STEDI's G4 Black Spot Work Light, powered by four CREE XP-L2 LEDs producing 4000 raw lumens and 3000 tested lumens through an optimised spot reflector at 5700K white light. The concentrated beam reaches 235 metres in length at the 1 LUX threshold while the optimised reflector simultaneously illuminates a near-field zone of 28 metres in width, ensuring the critical area immediately around the vehicle or worksite is covered alongside the long-range forward beam. The 5700K colour temperature delivers a brilliant white light that reduces glare and eye strain during extended use. The G4 Spot is a multipurpose auxiliary light suited to worksite and agricultural use, front-facing motorcycle and ATV lighting, and 4WD auxiliary driving light applications where maximum forward reach is the priority. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure and high-temperature wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 3.2A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens. Rated for 50,000 hours LED lifespan.
Features & Benefits
4x CREE XP-L2 LEDs at 40W Total: Four premium CREE XP-L2 LED emitters provide the optical efficiency and thermal management required for sustained high-output performance, producing 4000 raw lumens and 3000 independently tested lumens through the optimised spot reflector.

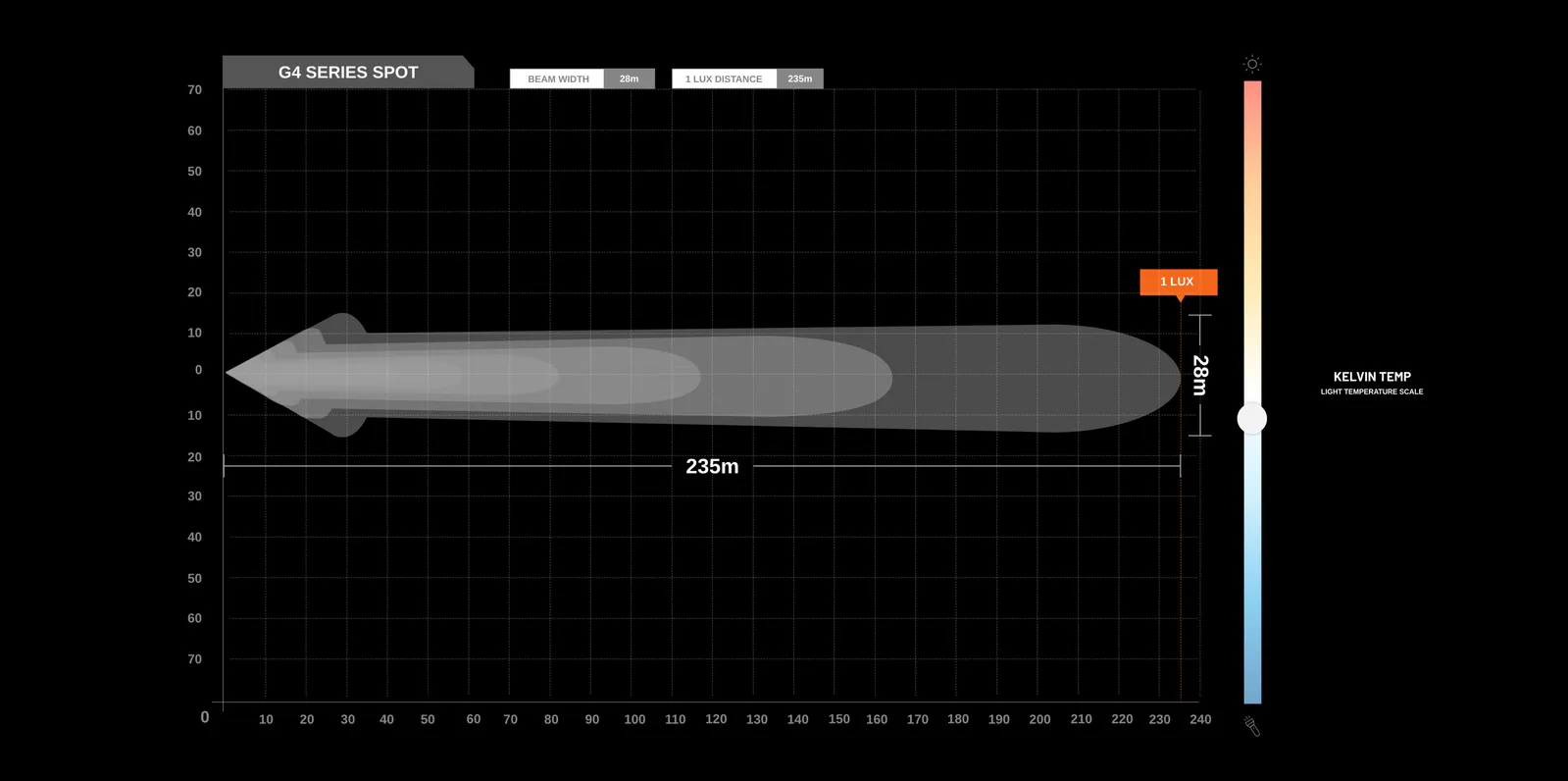

Concentrated Spot Beam at 1 LUX, 235m: The spot reflector concentrates output into a powerful forward beam reaching 235 metres at the 1 LUX threshold, providing the greatest forward reach of the G4 range and making the G4 Spot the right choice for applications where maximum distance illumination is the primary requirement.
28m Near-Field Width: The optimised reflector simultaneously illuminates a near-field zone of 28 metres wide, ensuring the critical area immediately around the vehicle or worksite is not left in darkness while the long-range beam is active.
5700K White Light with Reduced Glare: The 5700K colour temperature produces brilliant white light that reduces glare and eye strain during extended work sessions, providing high contrast and accurate colour rendering at distance.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down, guaranteeing performance even in the harshest environments.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with sensitive onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi, making the G4 Spot suitable for vehicles with critical communication equipment.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity under the mechanical demands of motorcycle, ATV, off-road, and agricultural machinery applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management for the LED array, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G4-001 |
| Brand | STEDI |
| LED | 4x CREE XP-L2 |
| LED Power Output | 4 x 10W (40W total) |
| Raw Lumens | 4,000 lm |
| Tested Lumens | 3,000 lm |
| Beam Type | Spot |
| 1 LUX Distance (Length) | 235m |
| 1 LUX Distance (Width) | 28m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 3.2A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 1.0 kg |

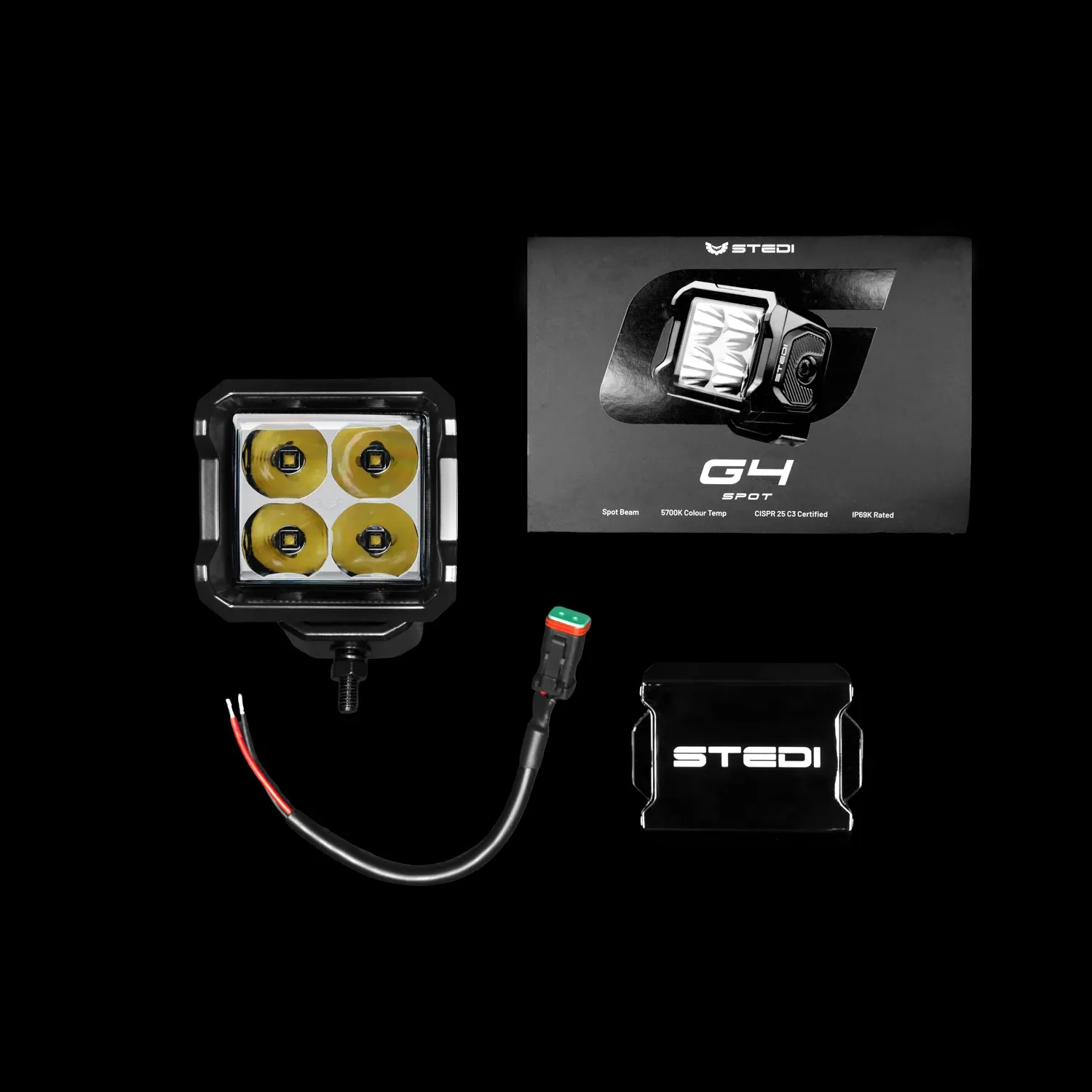

What's in the Box
- 1x STEDI G4 Spot Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With

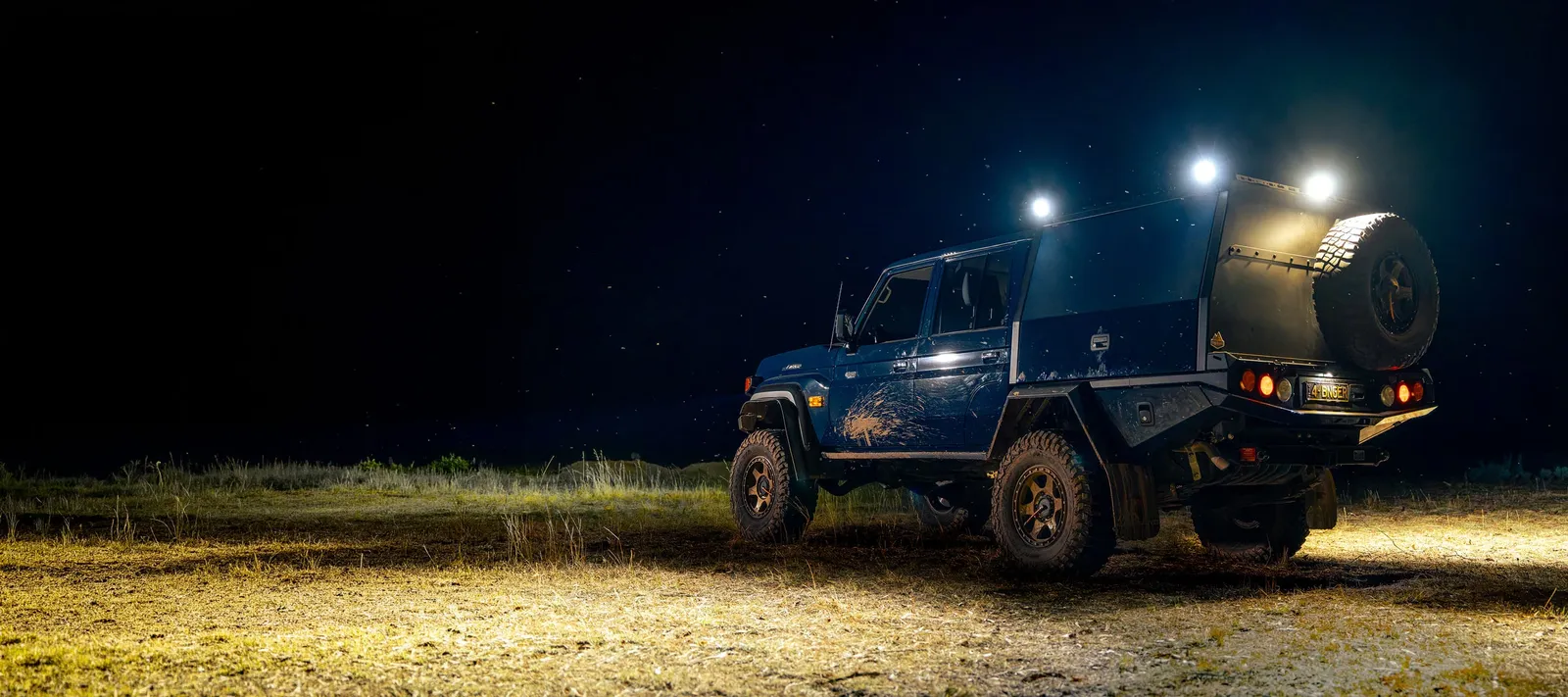

The ST-04-G4-001 is the long-range option in the STEDI G4 range, best suited to 4WD auxiliary driving light setups, front-facing motorcycle and ATV lighting, and worksite and agricultural applications where maximum forward beam distance is the priority. It pairs naturally with the G4 Flood (ST-04-G4-003) or G4 Ultra Flood (ST-04-G4-004) in a multi-light configuration, where the Spot covers distance and the Flood covers the near-field width the Spot's 28-metre beam leaves relatively narrow. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
How does the G4 Spot compare to the G4 Hybrid and G4 Flood in the same range?
All G4 variants use the same 4x CREE XP-L2 LEDs, 40W total power, 3000 tested lumens, housing, and certifications. The G4 Spot (ST-04-G4-001) delivers the greatest forward reach at 235 metres in length with a 28-metre near-field width, optimised for maximum distance illumination. The G4 Hybrid (ST-04-G4-002) combines spot and flood for 160 metres in length and 50 metres in width. The G4 Flood (ST-04-G4-003) reaches 81 metres at 60° and approximately 40 metres wide. The G4 Ultra Flood (ST-04-G4-004) delivers the broadest near-field coverage at 80° with a 37-metre-wide flood zone at 42 metres.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down agricultural machinery, motorcycles, and work vehicles. The G4's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for motorcycle and vehicle installations?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle components. C3 is the highest performance class within CISPR 25, confirming the G4 Spot produces minimal electromagnetic interference that could affect onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. This is particularly important for motorcycles using Bluetooth intercoms and 4WD vehicles relying on UHF CB communication.
Is the G4 Spot road-legal as an auxiliary driving light?
The source data does not specify road legality for the G4 Spot. Please verify compliance with Australian road vehicle standards and applicable state regulations before mounting the G4 Spot in a forward-facing driving light position on a road-registered vehicle.
What is the rated lifespan of the CREE XP-L2 LEDs?
The CREE XP-L2 LEDs in the G4 are rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many decades of service before the LEDs reach their rated end-of-life output level under normal use patterns.
