Ultra Vision UV-NPY62-KIT Behind Grille Light Bar Kit To Suit Nissan Patrol Y62 Series 5 2020-on

Ultra Vision Behind Grille Light Bar Kit To Suit Nissan Patrol Y62 Series 5 2020-on: Get the Power of Ultra Vision without A Bull Bar

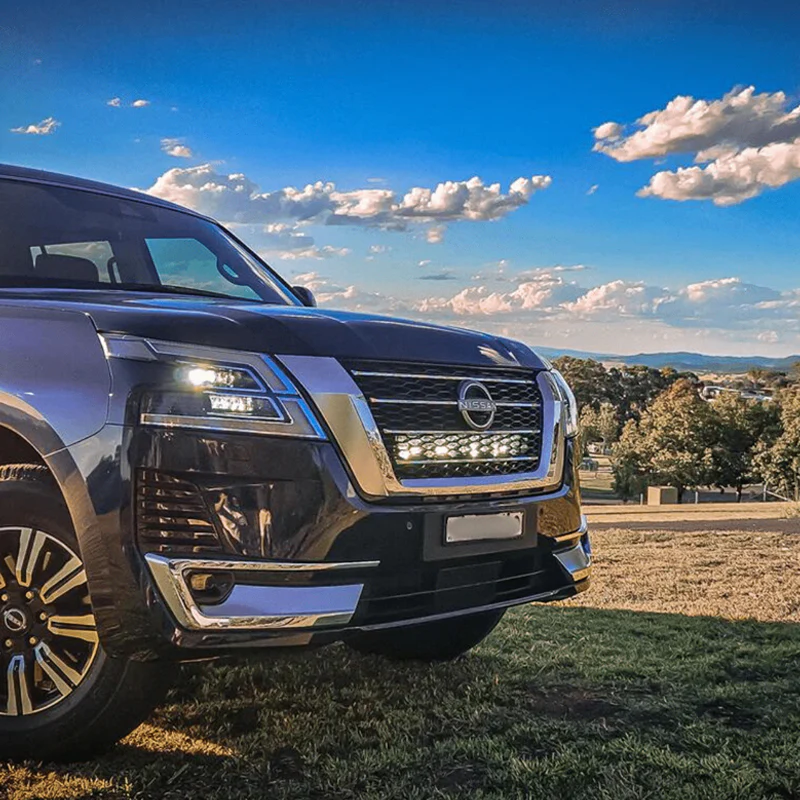

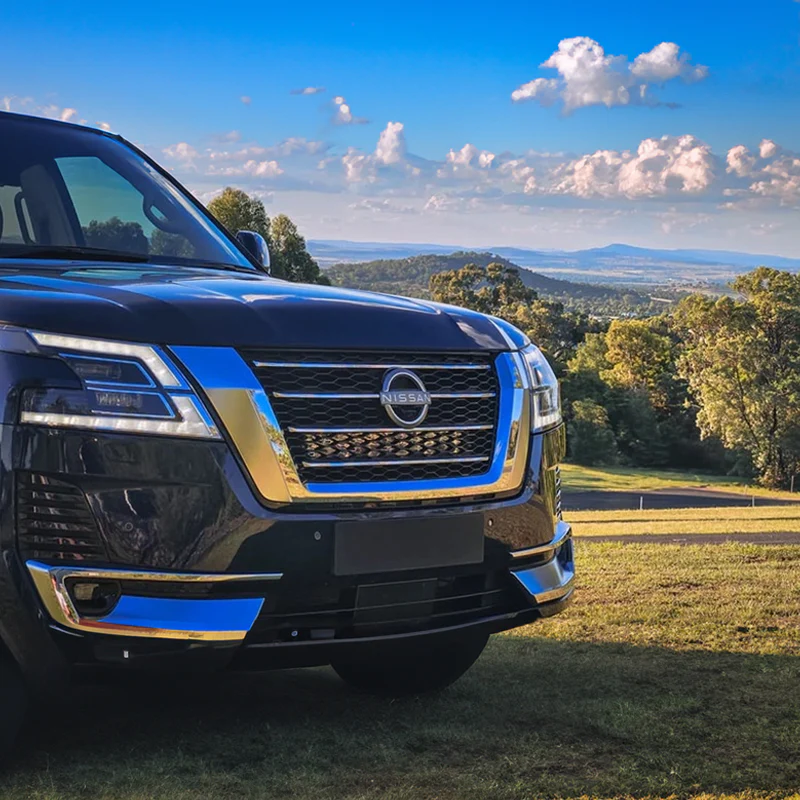

Our Behind Grille Light Bar kit is a simple bolt-in fitment solution for your Nissan Patrol Y62 Series 5, so you can get the power of Ultra Vision without a bull bar or removing parts of your vehicle.

The purpose-built Patrol Y62 light bar bracket mounts to the vehicle framework, not the grille or bumper, which creates a solid fitment that doesn’t shake on rough roads. The invisible bracket also incorporates stud plates, so the installation is simple and seamless!

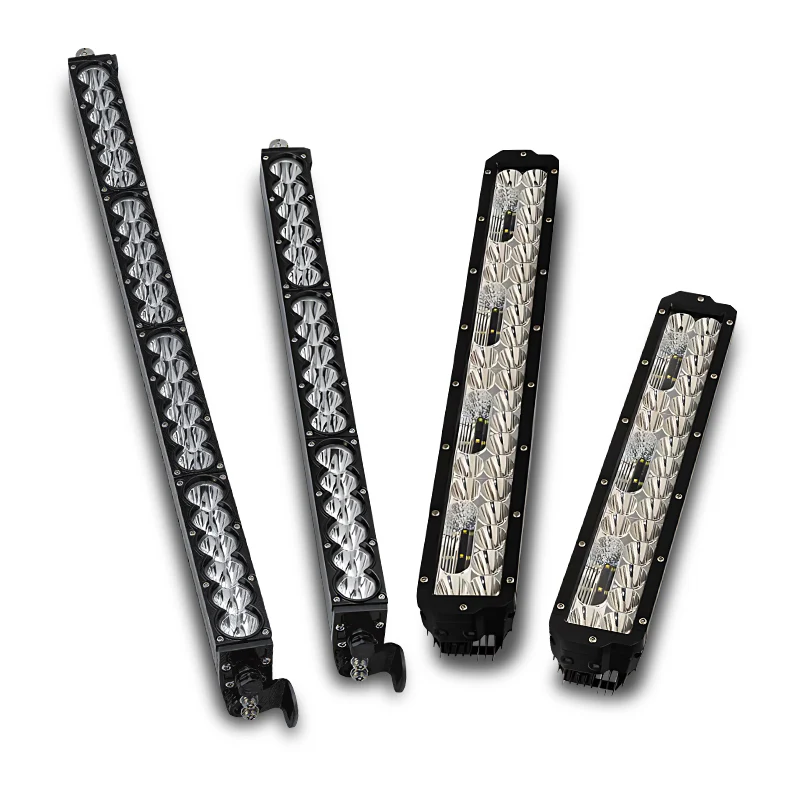

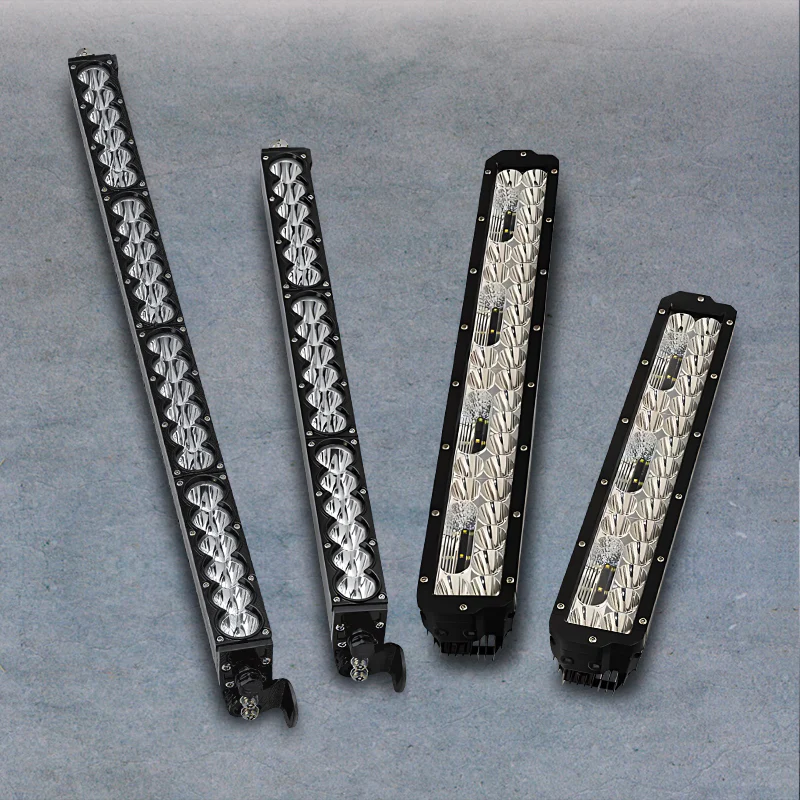

Choose from the below Light Bar Options (all 5700K colour temperature):

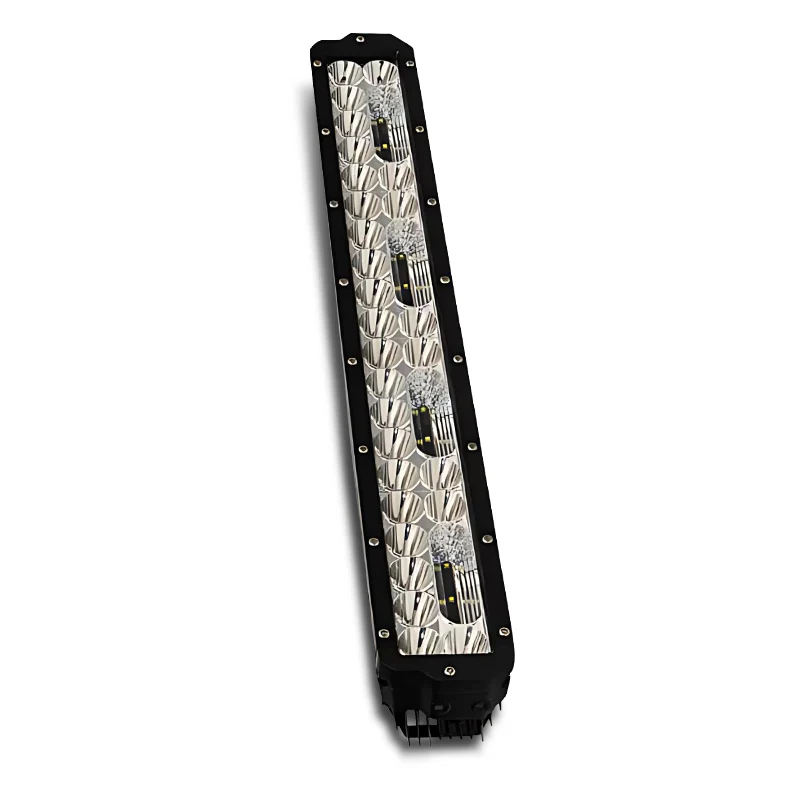

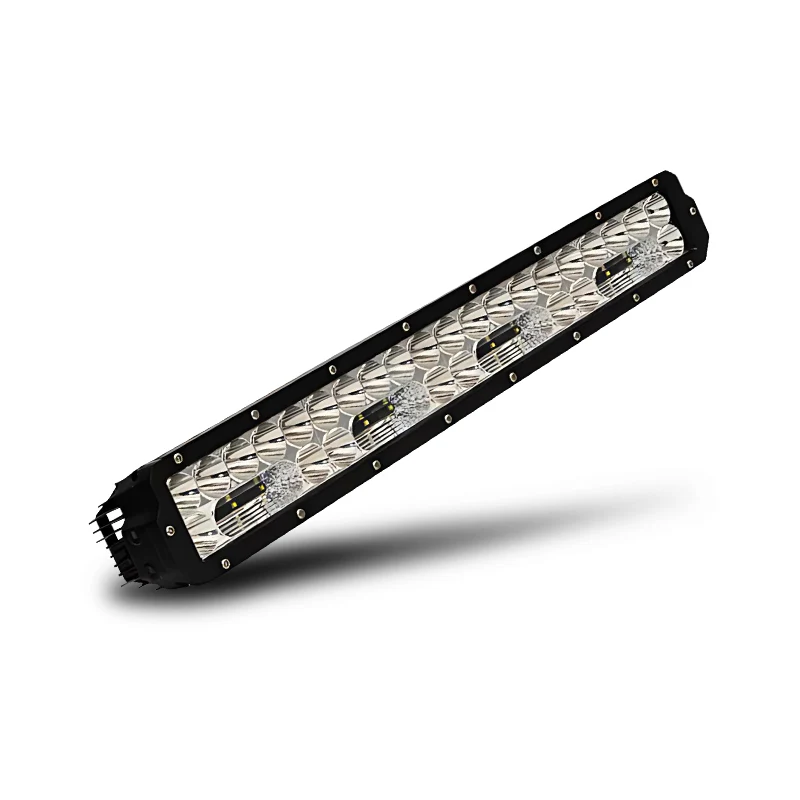

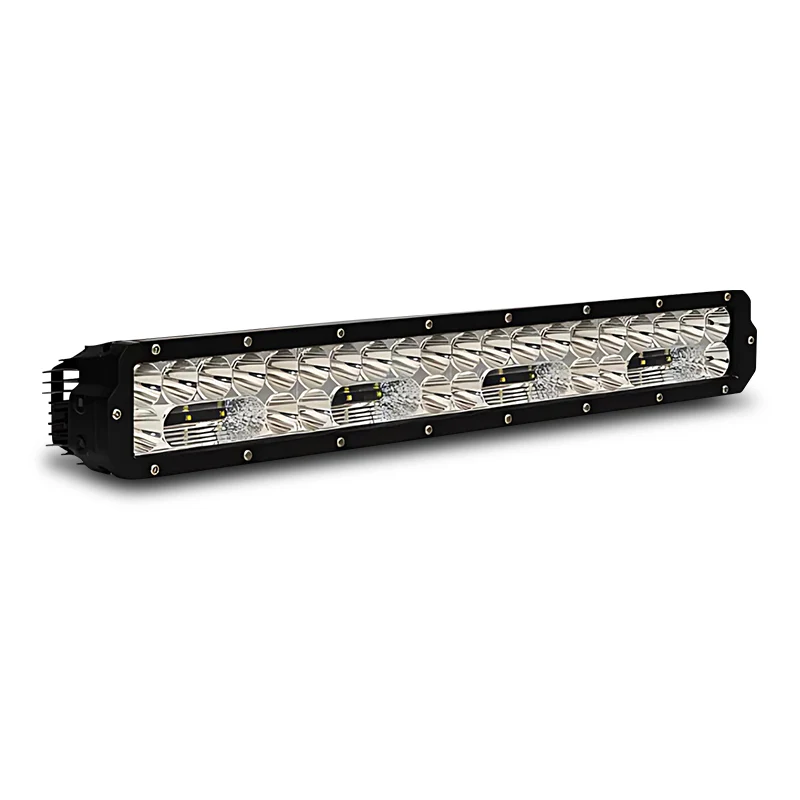

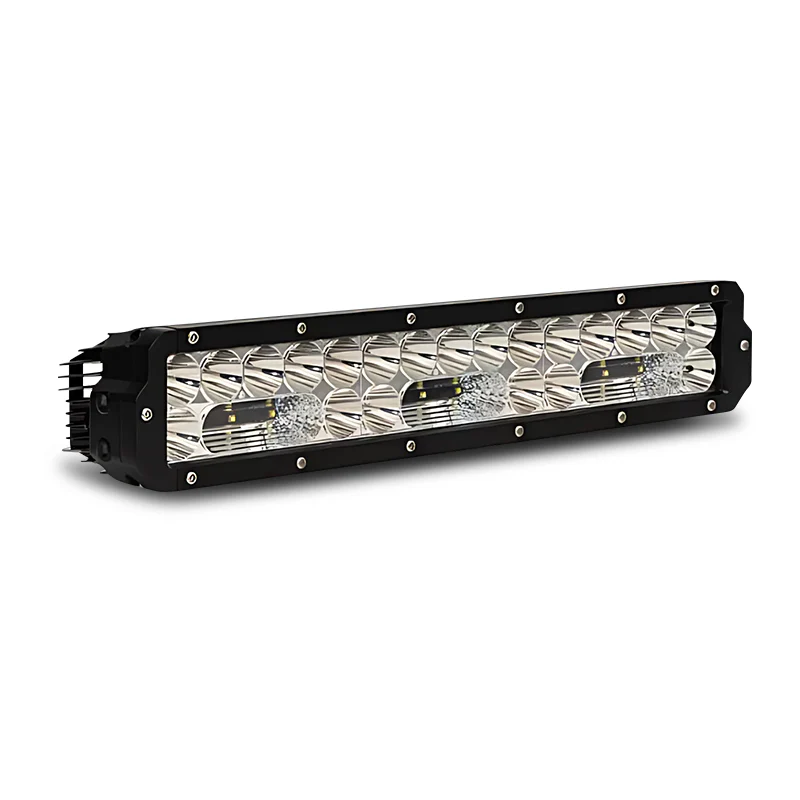

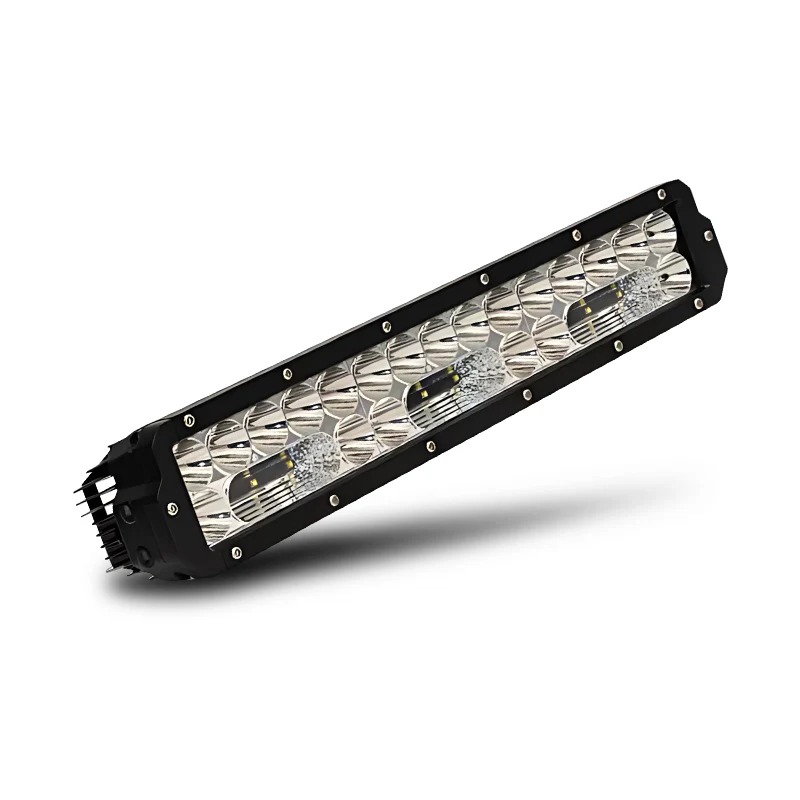

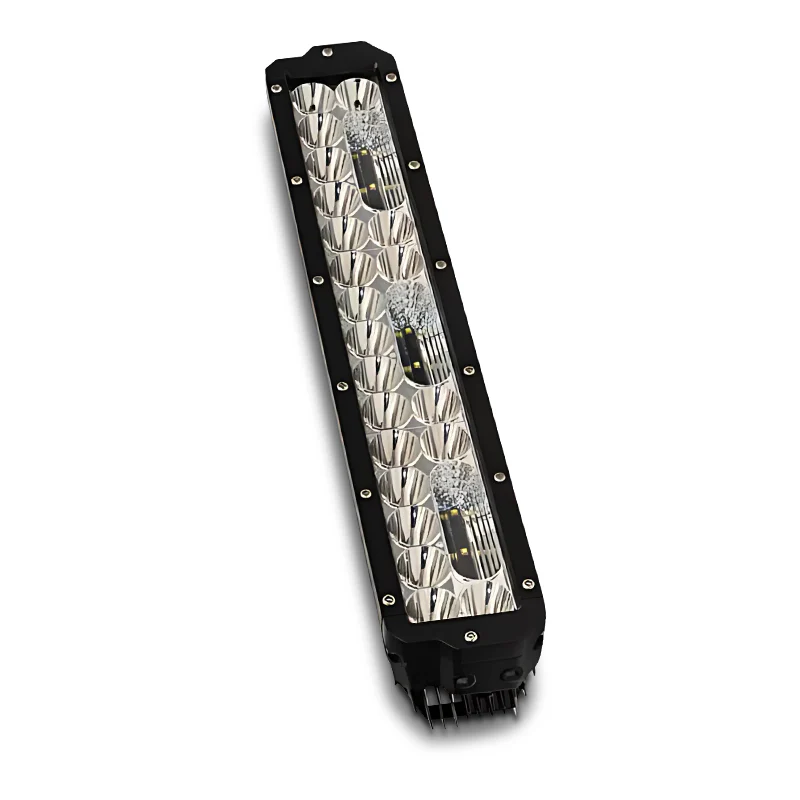

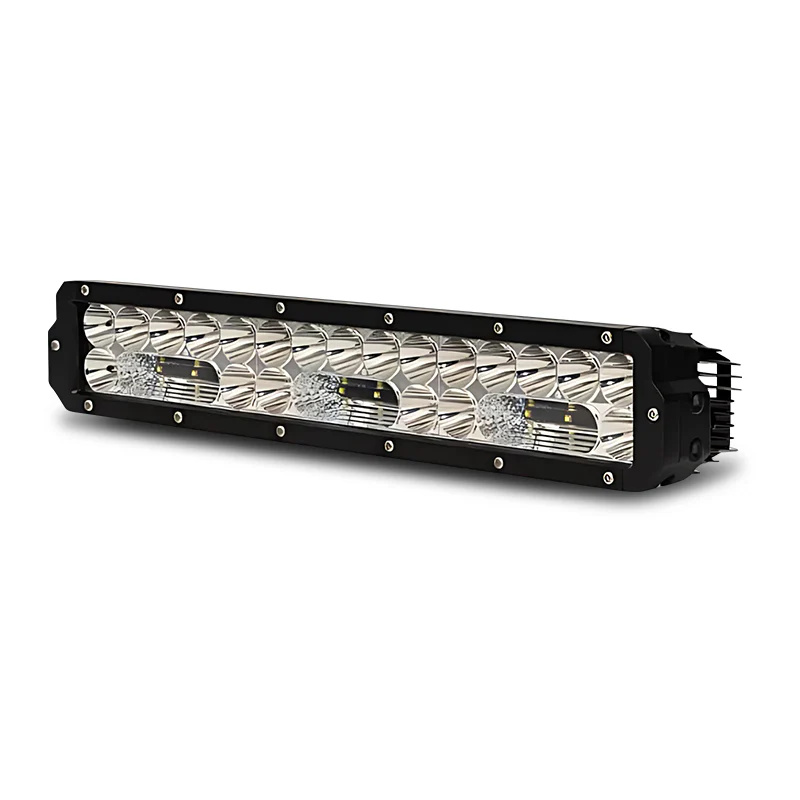

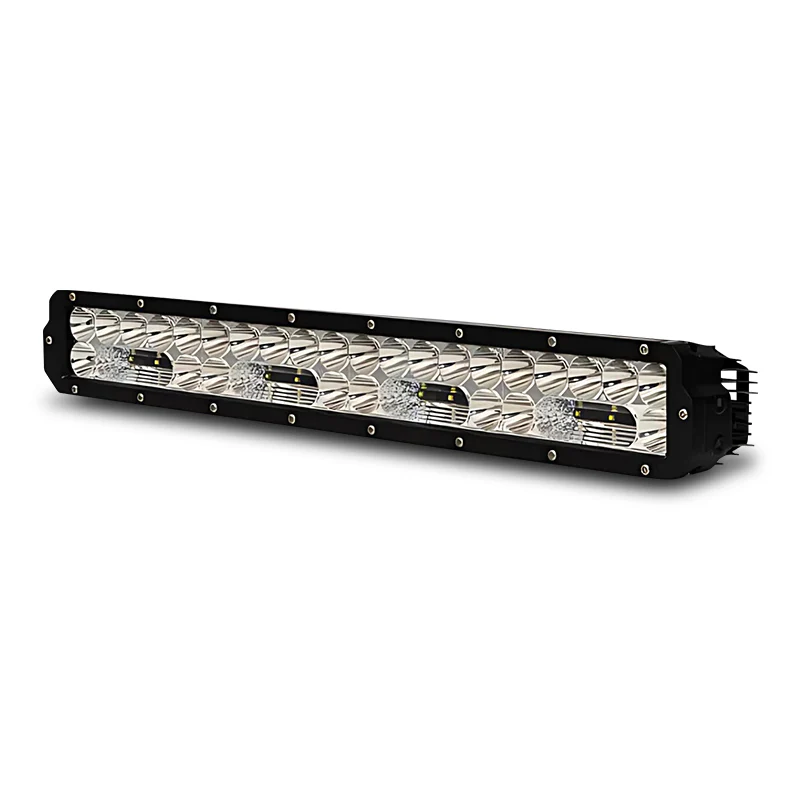

• 1 x Nitro Maxx 155w 18-Inch LED Light Bar
• 1 x Nitro Maxx 205w 24-Inch LED Light Bar

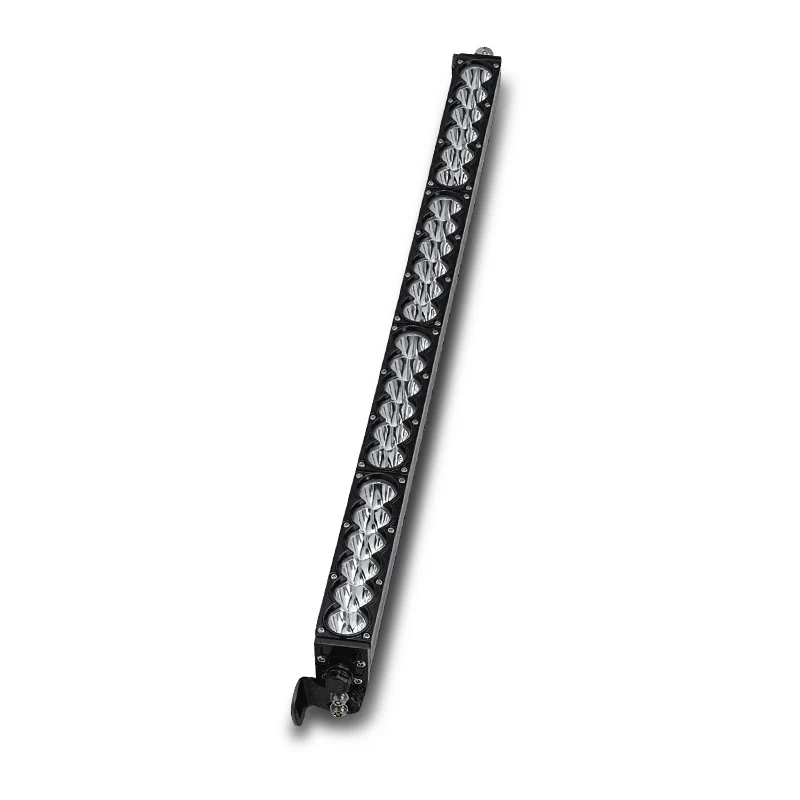

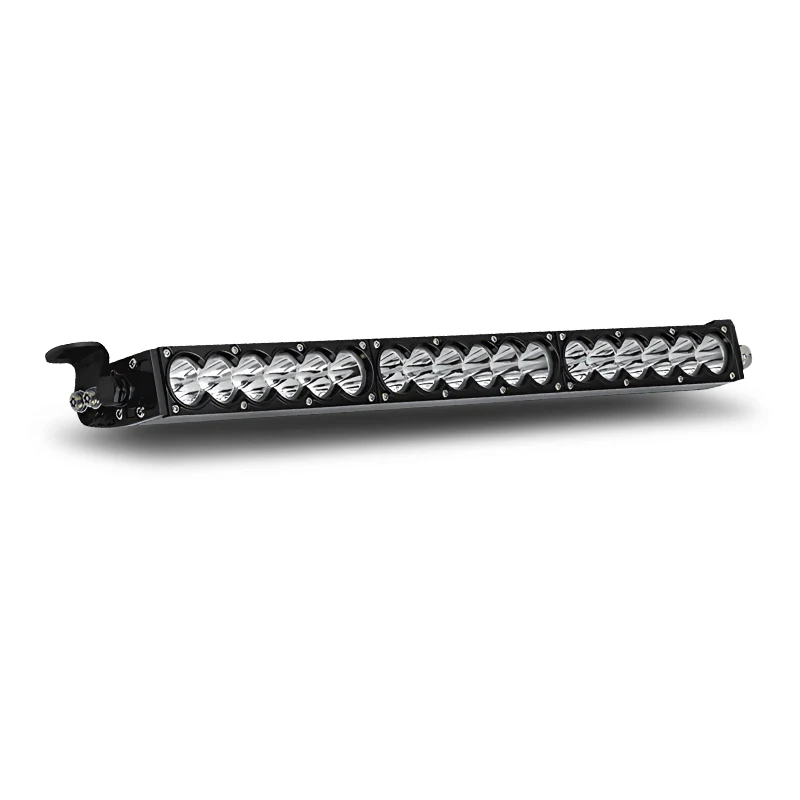

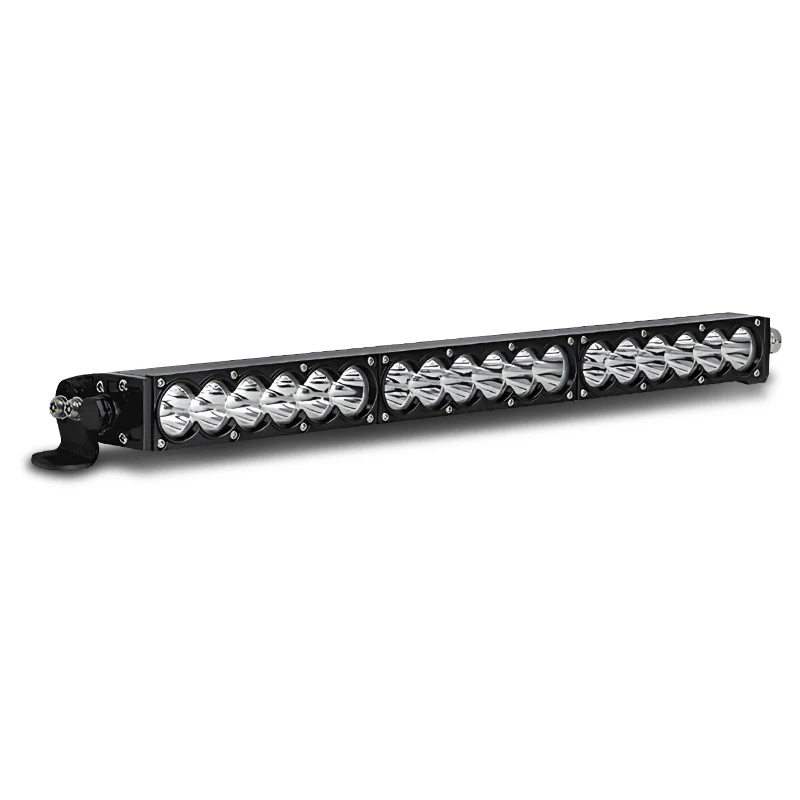

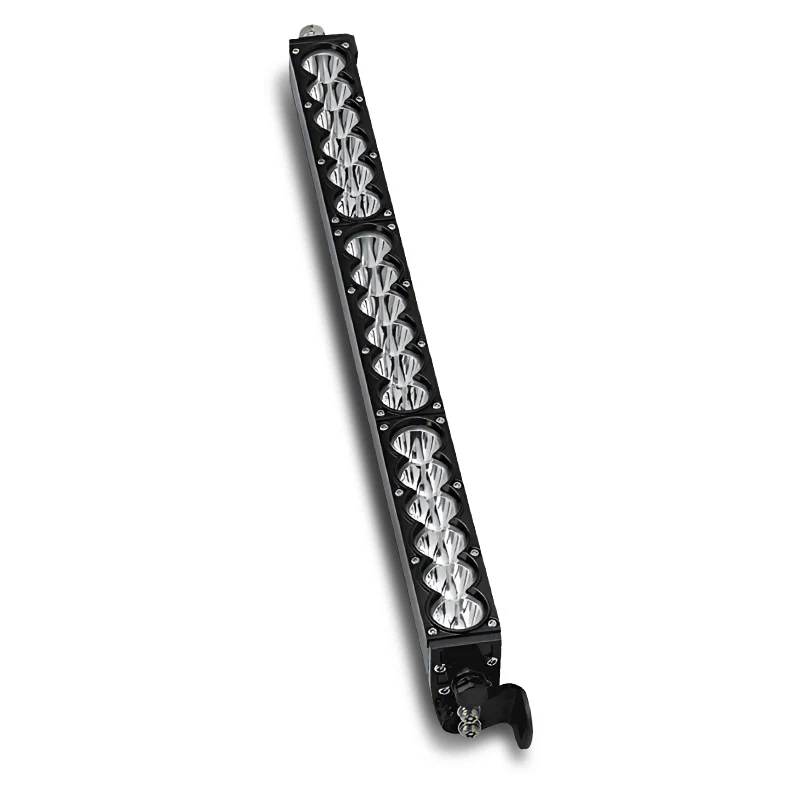

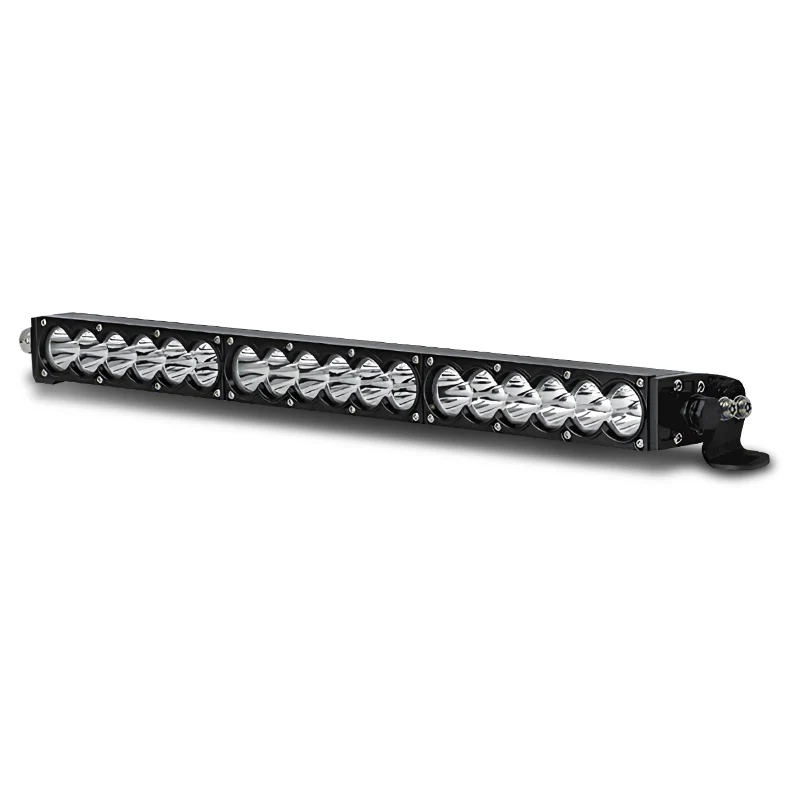

• 1 x Raptor 125w 20.5-Inch LED Light Bar

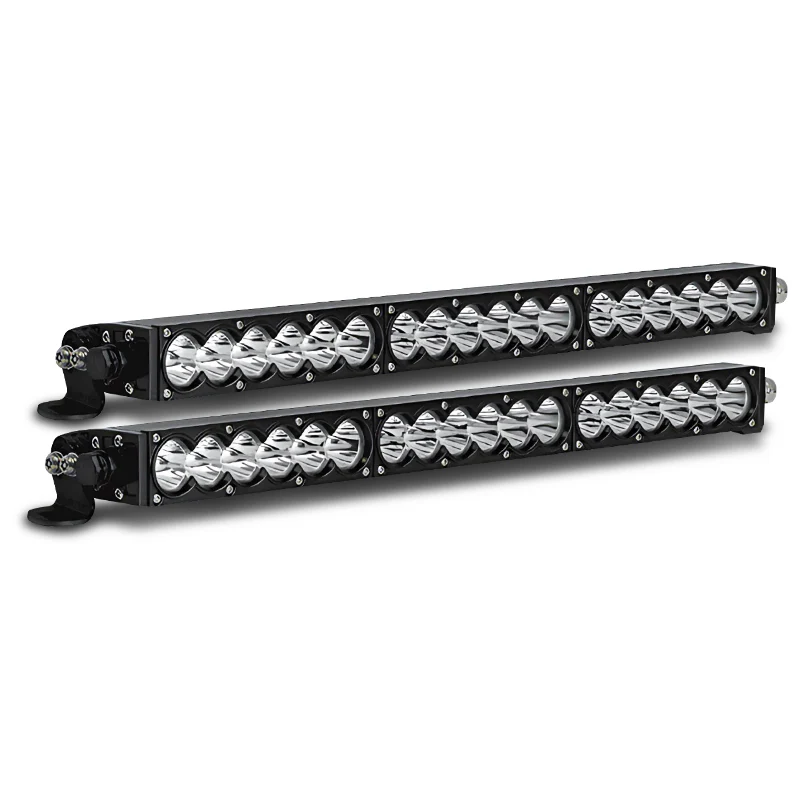

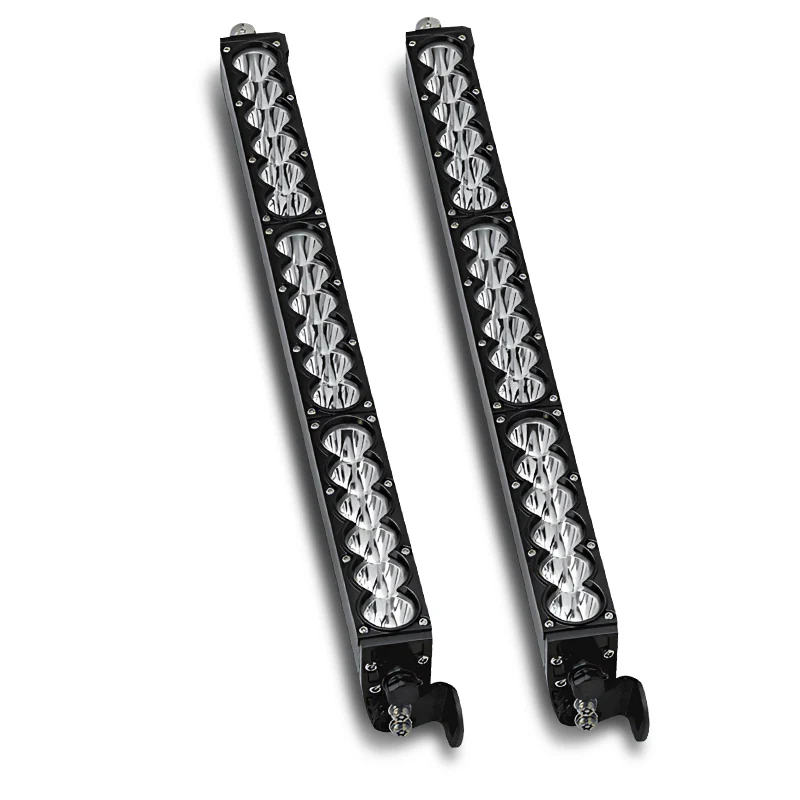

• 2 x Raptor 125w 20.5-Inch LED Light Bars

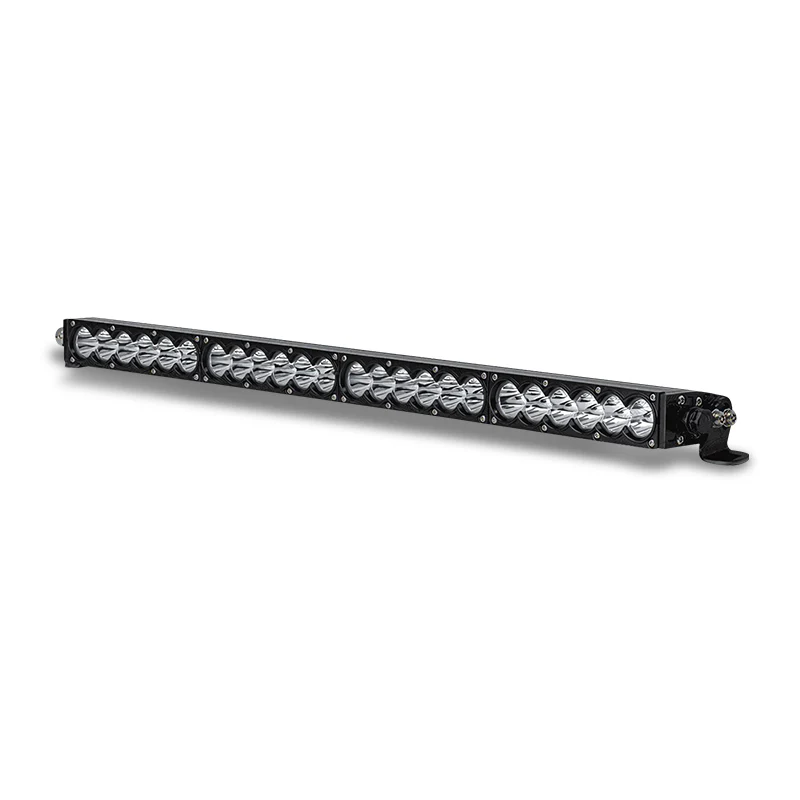

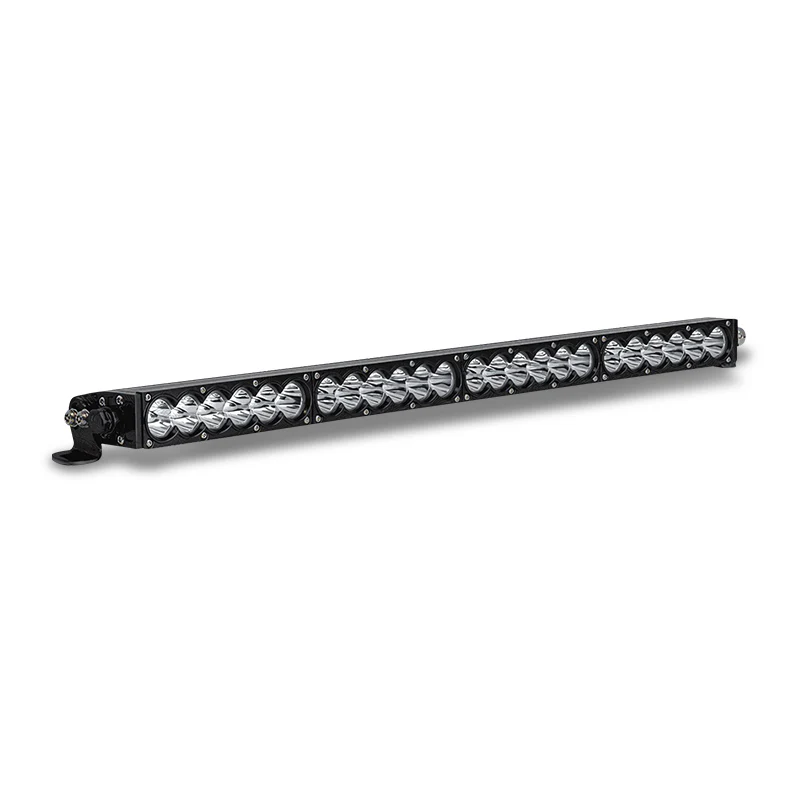

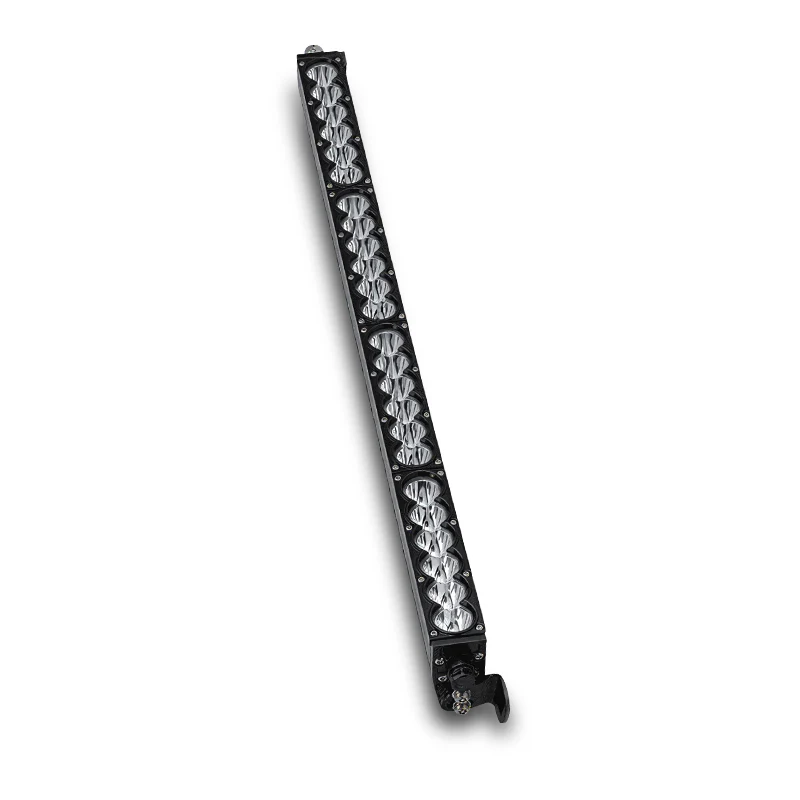

• 1 x Raptor 165w 26.5-Inch LED Light Bar

Ultra Vision UV-NPY62-KIT Features:

• Designed specifically for the Nissan Patrol Y62 Series 5 2020-on models.
• No bull bar required
• No cutting or drilling required
• Includes choice of Raptor or Nitro Maxx Light Bars
• Brackets powder-coated black for sleek design and rust preservation
• Designed and made in Australia.

Ultra Vision UV-NPY62-KIT Specifications:

Light Bar Specs (1x Light Bar)	Nitro Maxx 155	Nitro Maxx 205	Raptor 125w	Raptor 165w
Wattage	150 Watts	200 Watts	125 Watts	165 Watts
Light Source	30 x 5w LED's	40 x 5w LED's	18 High Power LEDs	24 High Power LEDs
Light Output – Raw	18,480 Lumens	24,640 Lumens	13,957 Lumens	18,609 Lumens
Light Output – Effective	13,295 Lumens	17,724 Lumens	11,430 Lumens	15,240 Lumens
Voltage	9-36V	9-36V	9-36V	9-36V
Current Draw	12A	15A	10A	13A
Operating Temperature	-40 to 80 Deg C	-40 to 80 Deg C	-40 to 80 Deg C	-40 to 80 Deg C
Waterproof Rating	IP68	IP68	IP67	IP67
Connector Type Plugs	2 Pin std Deutsch	2 Pin std Deutsch	2 Pin heavy duty Deutsch	2 Pin heavy duty Deutsch
Housing	6063 T5 Aluminium	6063 T5 Aluminium	Aluminium	Aluminium
Lens Construction	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Brackets	Sliding Base / Side Mounts	Sliding Base / Side Mounts	Side Mount Brackets	Side Mount Brackets
Colour Temperature	5700K	5700K	5700K	5700K
Lifespan	50,000 Hours	50,000 Hours	50,000 Hours	50,000 Hours
Dimensions	465 x 92 x 84mm	605 x 92 x 84mm	523 x 45 x 73mm	679 x 45 x 73mm
Net Weight	2.5 kg	3.4 kg	1.7 kg	2.3kg
Beams Available	Combo and Widr	Combo and Widr	Spot	Spot
Warranty	5 Years	5 Years	3 Years	3 Years

What's In The Box:

• Raptor or Nitro Maxx Light Bar of Choice.
• 1x Wiring harness to suit
• 1x Purpose-built Y62 Patrol Behind-Grille black powder-coated bracket kit
• 1x Y62 Patrol high-beam plug & play wiring adaptor
• 1x OEM-Style switch to fit into factory switch blank
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
