Ultra Vision UV-FRPX3-KIT Ford Ranger PX3 Light Bar Grille Integration Kit

Ultra Vision Ford Ranger PX3 Light Bar Grille Integration Kit: Seamlessly Integrate Light Bars Into Your Grille without Having to Invest in A Bull Bar

Boost the lighting power on your Ford Ranger PX3 with our Grille Integration Light Bar Kit.

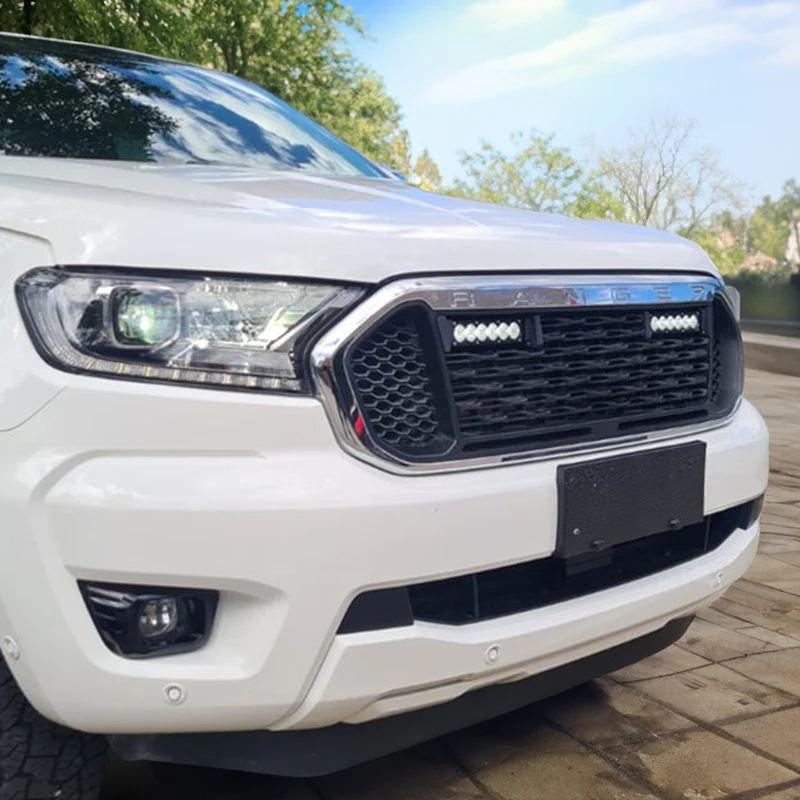

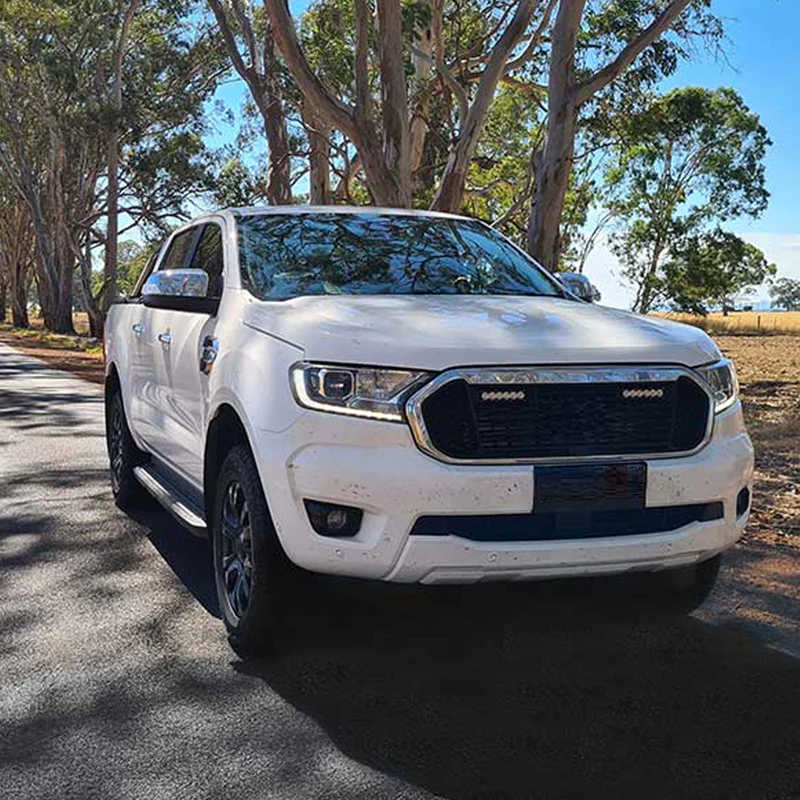

Seamlessly integrate two Raptor 40w 8.5-Inch light bars into your grille without having to invest in a bull bar. Some models require drilling and removal of parts of the grille. The kit comes with full fitting instructions with images for each step.

The kit includes a plug & play high beam adaptor, so no soldering or cutting of wires is needed.

Choose from the following models below:

• XL, XLS, Sport & Wildtrak
• XLT & FX4

Ultra Vision UV-FRPX3-KIT Features:

• Custom fit for Ford Ranger PX3 July 2018 – 2022 models
• No bull bar required

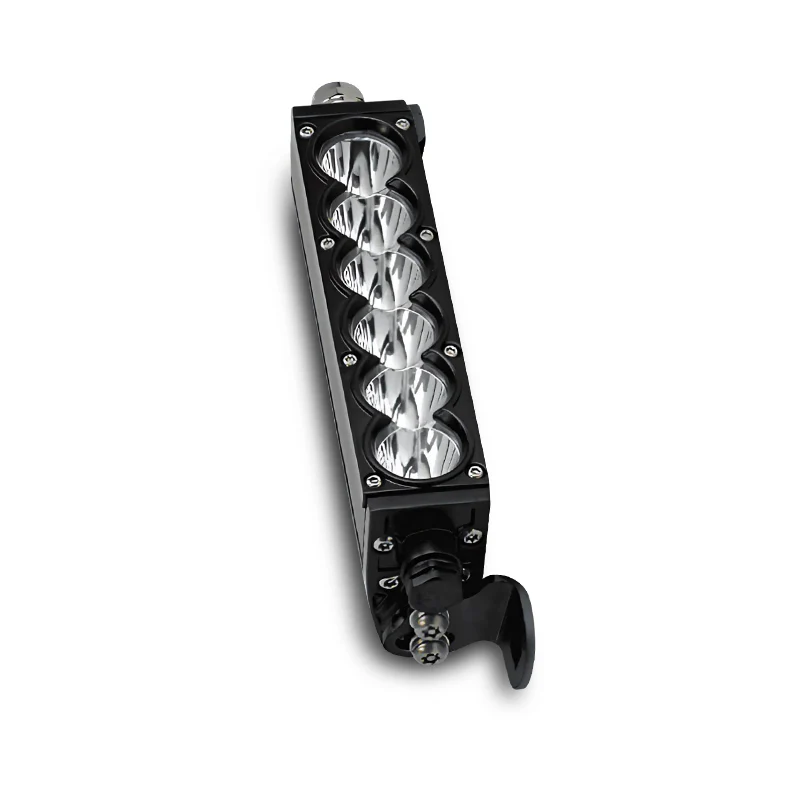

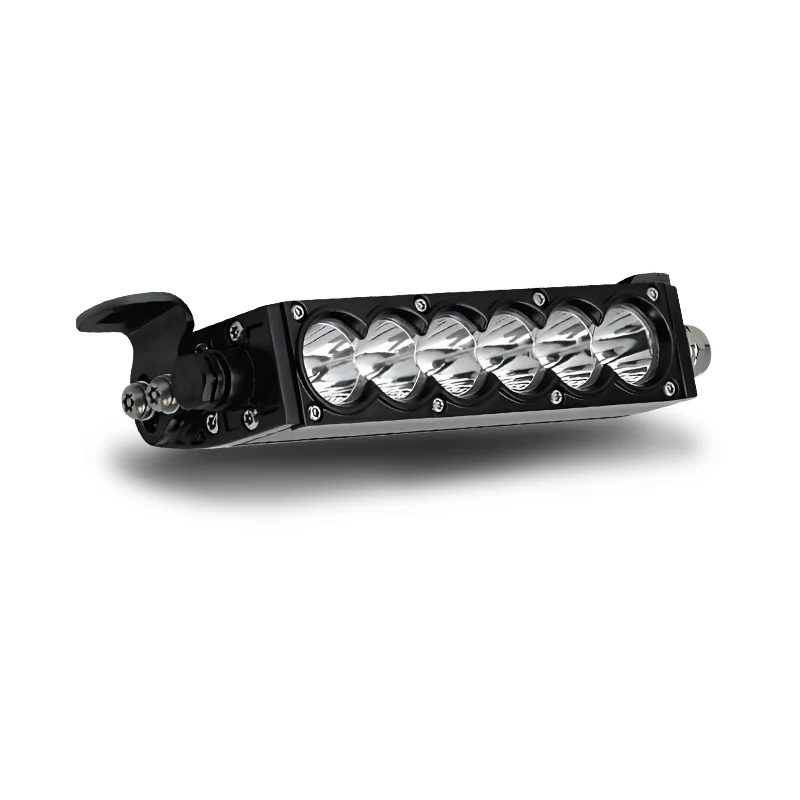

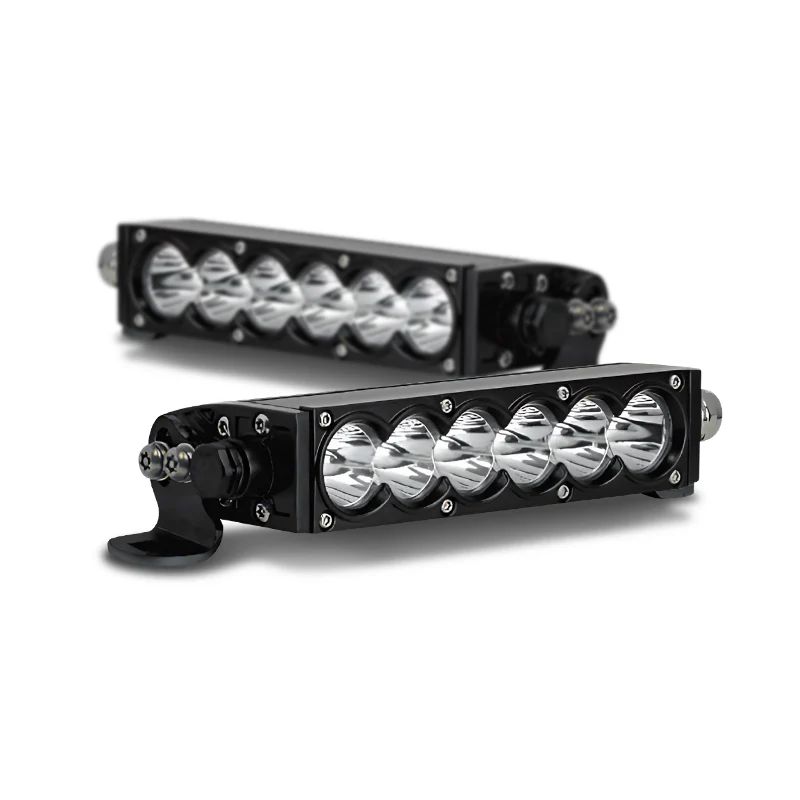

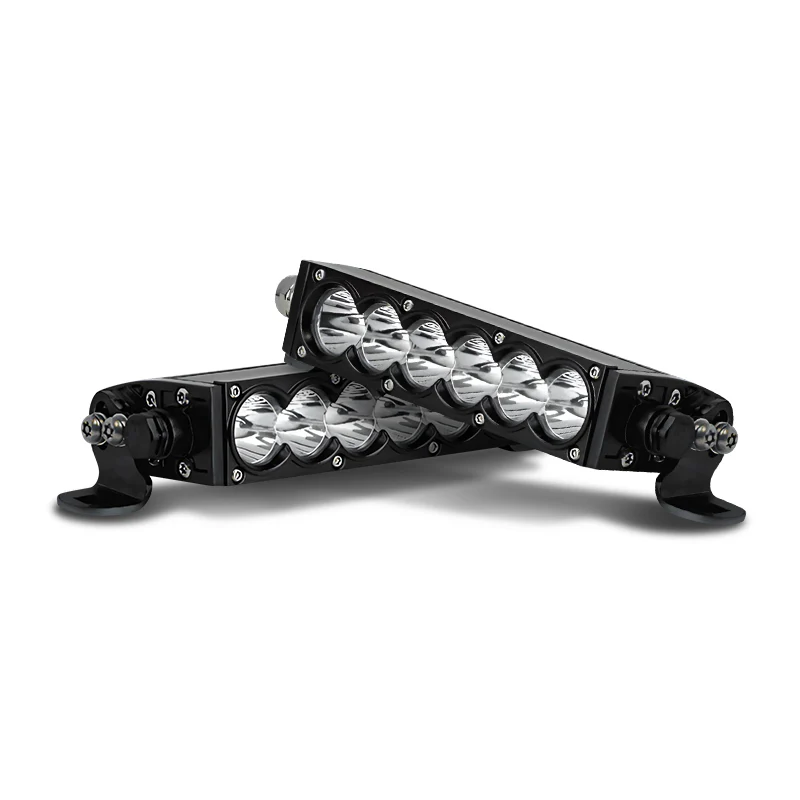

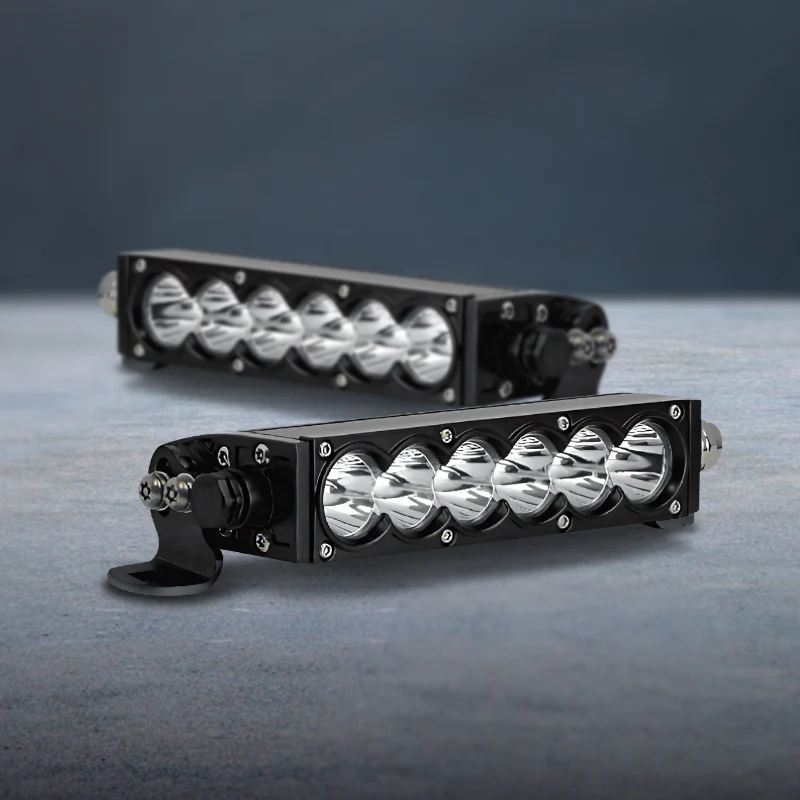

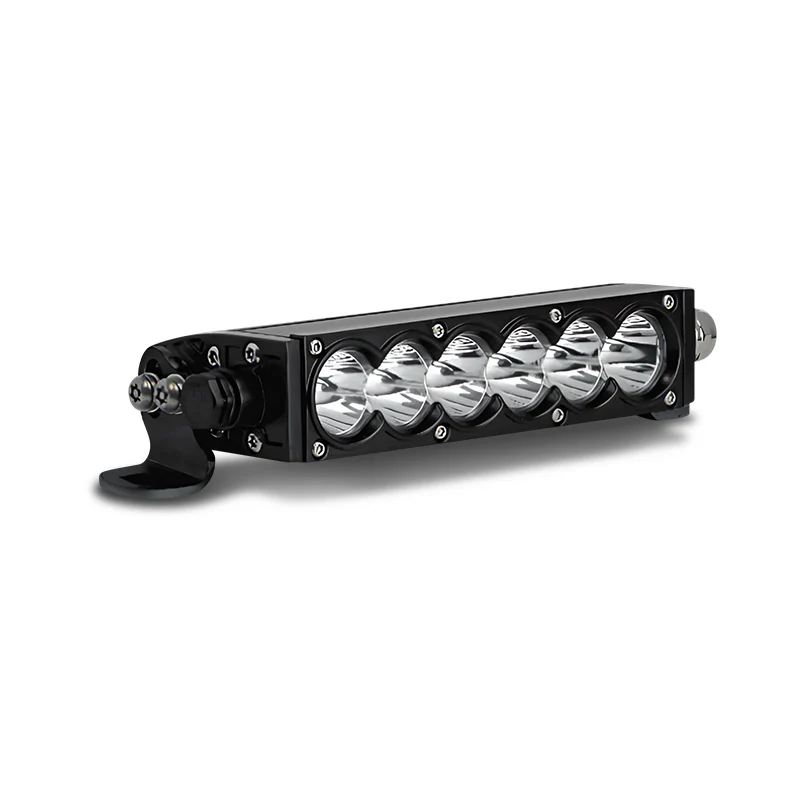

• Includes 2x Raptor 40w 8.5-Inch LED Light Bars with 578m beam distance at 1 lux
• 3-year warranty
• Black brackets made of strong nylon material
• Designed and made in Australia

Ultra Vision UV-FRPX3-KIT Specifications:

• Wattage: 40 Watts
• Light Source: 6 High Power LEDs
• Light Output – Raw: 4,652 Lumens
• Light Output – Effective: 3,810 Lumens
• Voltag:e 9-36V
• Current Draw: 3.25A @ 13.5
• Operating Temperature: -40 to 80 Deg C
• Waterproof Rating: IP67
• Connector Type: Plugs 2 Pin Heavy Duty Deutsch
• Housing: Aluminium
• Lens: Construction Polycarbonate
• Bracket: Stainless Steel powdered-coated black
• Colour Temperature: 5700K
• Lifespan: 50,000 Hours
• Dimensions: 213 x 45 x 73mm
• Net Weight: 640g
• Mounting Suitable: Side Mount
• Beam Type: Spread or Combo
• Warranty: 3 Years

What's In The Box:

• 2 x Raptor 40w 8.5-inch led light bars in 5700k
• 1 x Purpose-built Ford Ranger PX3 light bar bracket kit
• 1 x Wiring Harness to suit
• 1 x Ranger PX3 high-beam plug & play wiring adaptor
• Mounting hardware (bolts, nuts and brackets)
• Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
