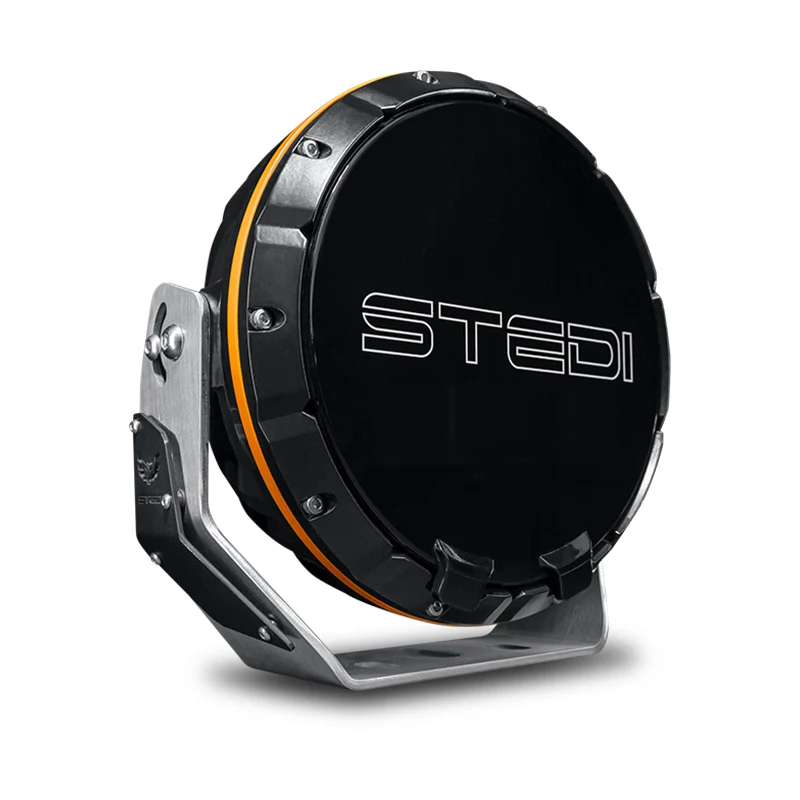

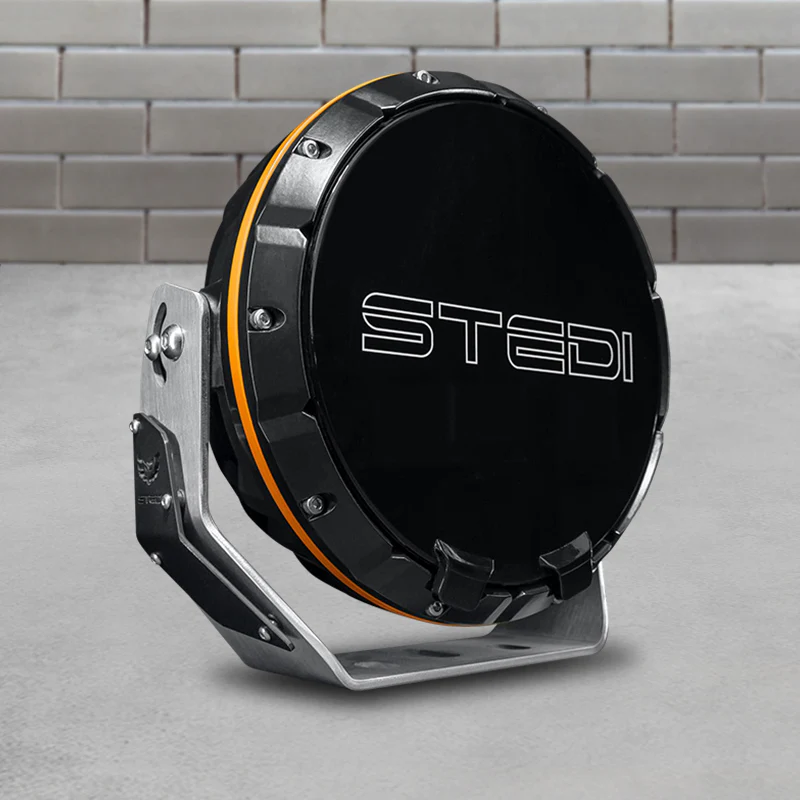

STEDI SNGL-X1-SPORT-8-5INCH 8.5" Single (1x Light) Type-X™ Sport
The Nitty Gritty.
High Performance - Accessible Price
Get to know the Type-X™ Sport; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.
Legendary Type-X™ DNA

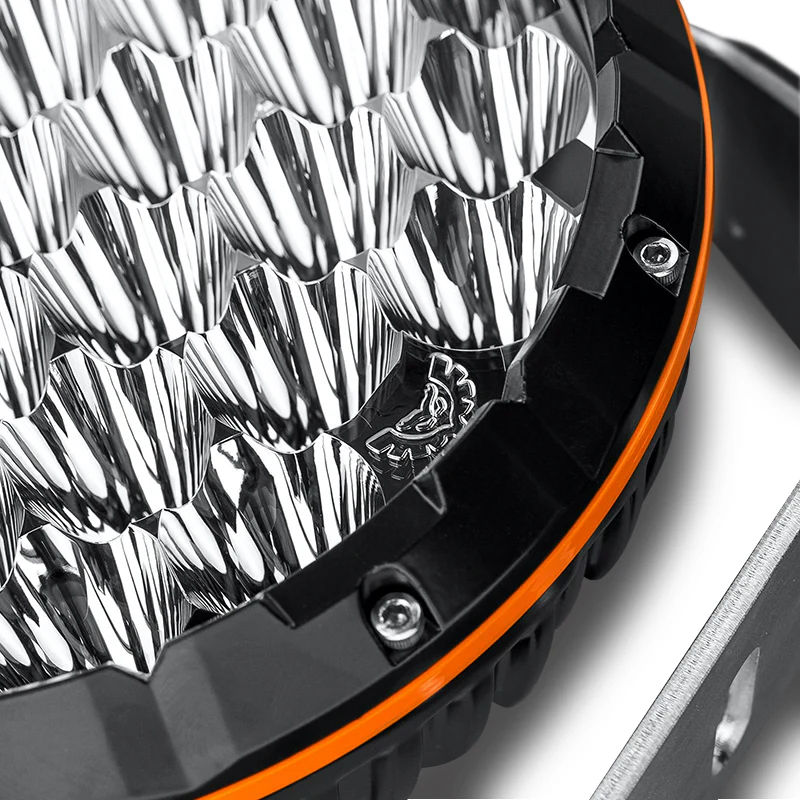

All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light evenly into the nearfield, and transition beautifully with the spot beam.
STEDI™ Design Language
Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.
The Nerdy Details

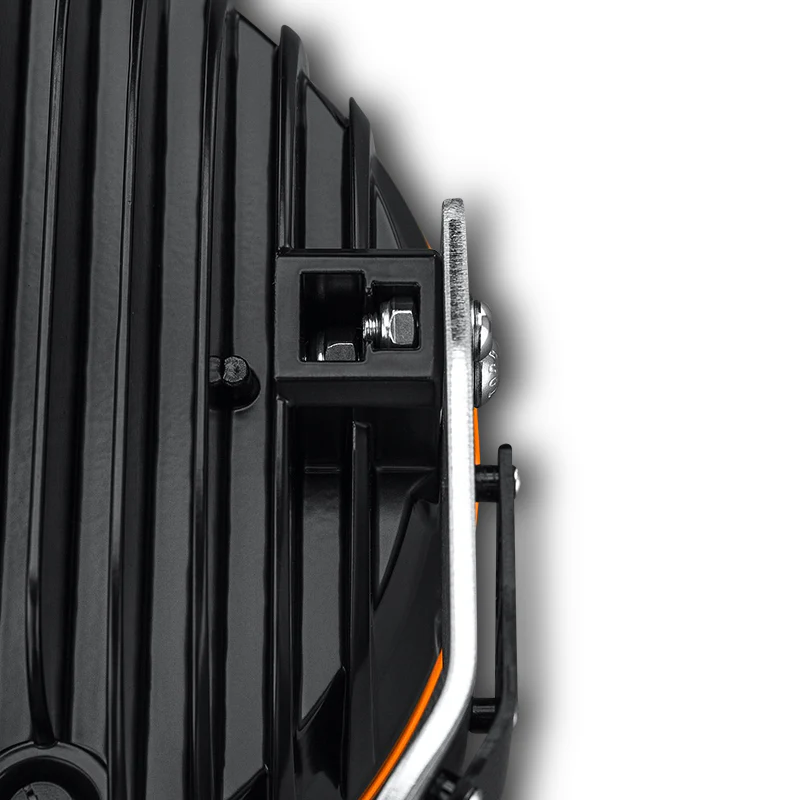

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.

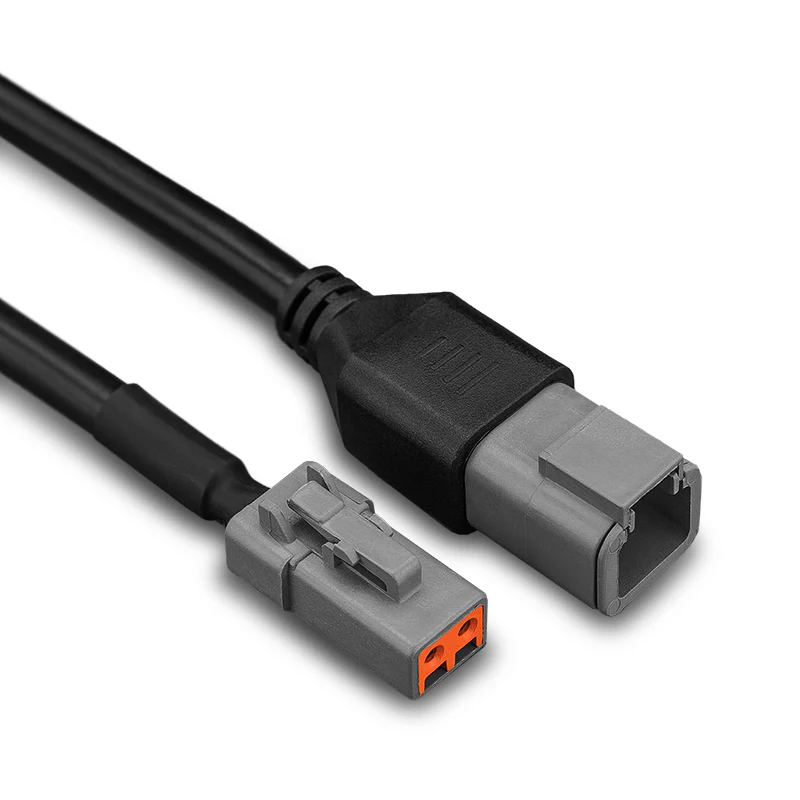

- Environmentally Sealed Deutsch® DTP-2 connector
- EMI & RFI Suppression circuitry – We guarantee it.
- Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
- Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
- Does Not Include Wiring Harness
Dimensions:
Specifications:
- LED: 36 x Osram Oslon SSL
- Raw Lumens: 10, 390
- Tested Lumens: 7, 475
- AMP Draw: 9.8A @ 13.2v
- Power Draw: 129W
- Candela: cd
- Beam Pattern: 4 x Spread 32 x Spot Beam
- Ingress Protection: IP68 | Submersible up to 3m
- Colour Temp (CCT): 5700K
- Voltage Compatibility: 12v & 24v
- Lumen Maintenance: 50,000 LM-80
- Weight: 3.35kg
Photometric Data
- 10 m 11,025Lx
- 50 m 441Lx
- 200 m 27Lx
- 300 m 12Lx
- 400 m 6Lx
- 1,000 m 1.1Lx
- 1,050 m 1Lx
What's In The Box:
- 1 x STEDI TYPE-X Sport
- 1 x STEDI Black Out Covers
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
