STEDI LEDFOG-ST6057 Universal Type C LED Fog Light Conversion Kit

The Nitty Gritty.

Key Technical Details

These LED fog lights are a direct fit which uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

Universal Housing Solution

If you're looking for an OEM-like LED upgrade, look no further down our Type C fog light which has mounting brackets to suit a wide range of factory fog lamp housing.

Utmost Compliance

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

Bull Bar Friendly

These LED fog lights are a direct fit, using your factory mounting points in behind the standard front bumper, and some aftermarket bull bars which you can view here.

Dimensions:

Lux Chart:

Specifications:

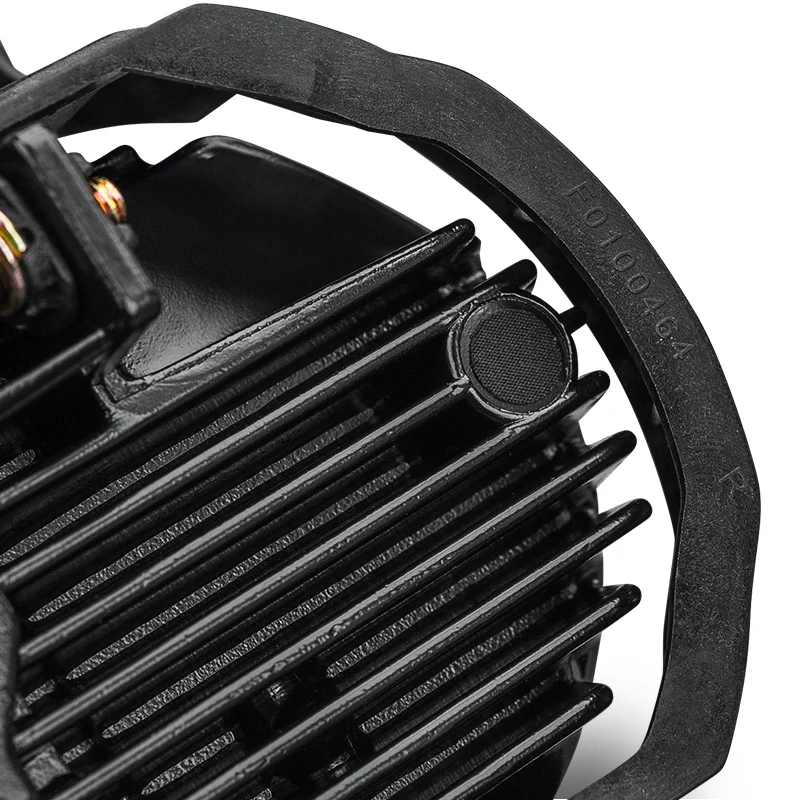

• Housing Material: Alloy Heat Sink
• LED: High Performance Luxeon T LED
• Lumen: 960LM (per light)
• Compatible Voltage: 12v and 24v
• Lifespan: 50,000hours

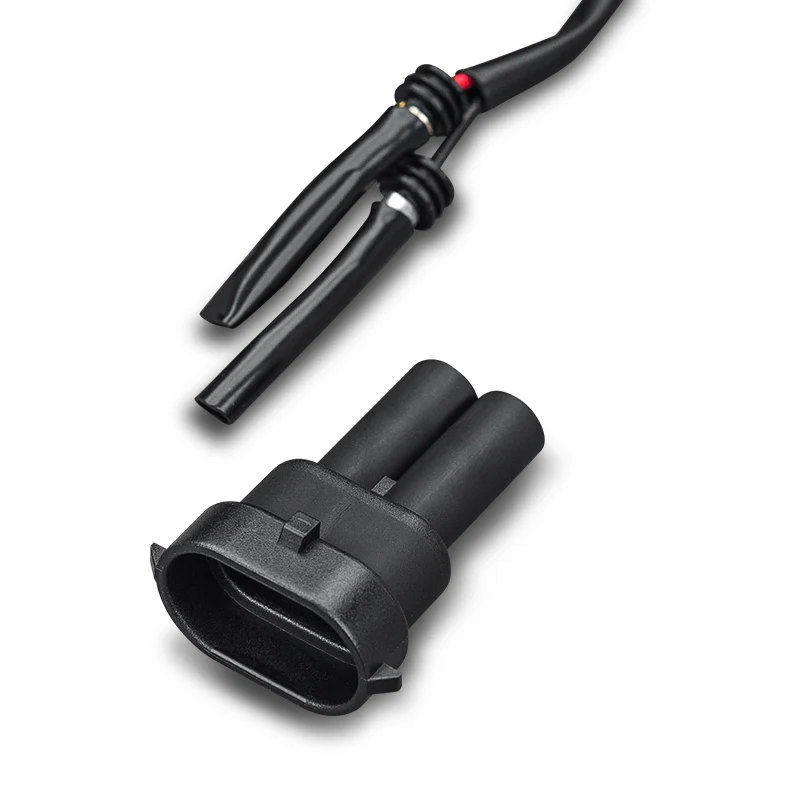

• Connector Type: Sealed

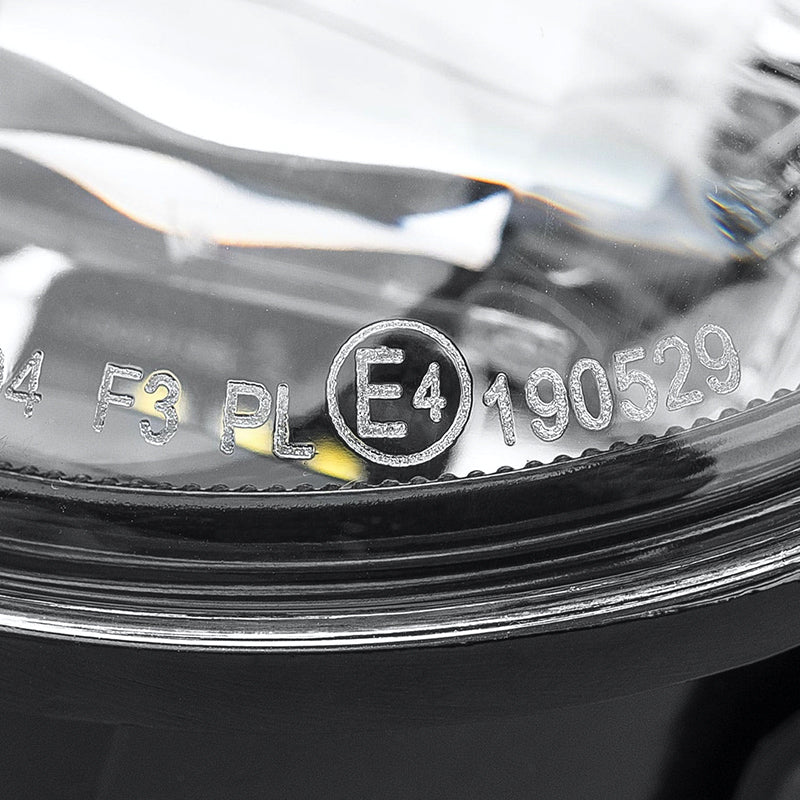

• Certification: CE, E4, RoHs, R87, IP67
• Fog Light Draw: 0.5a @ 13.6v
• Diameter: 90mm

OEM Part Number:

OE No.: 81210-0W050, 81220-0W040
OE No.: 81210-0W070, 81220-0W070

Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

Please check below for a full list of compatible vehicles.

Bull Bars:

• TJM: T13 Bull Bars with halogen fog lights T13
• Rhino 4x4: Bull Bars

What's In The Box:

• 2 x STEDI Universal Type C Fog Lights
• Fasteners Included
