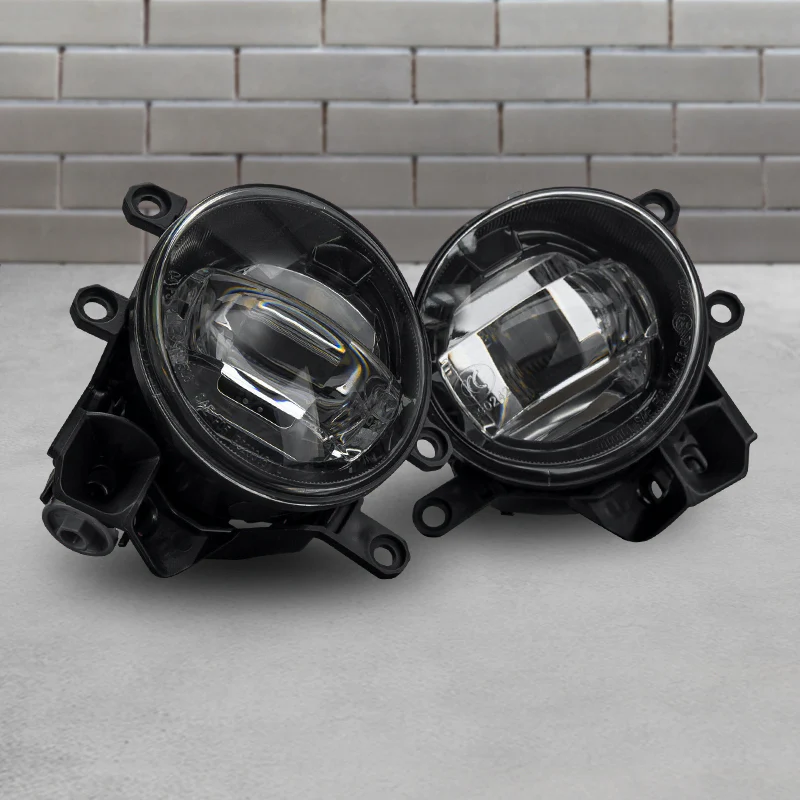

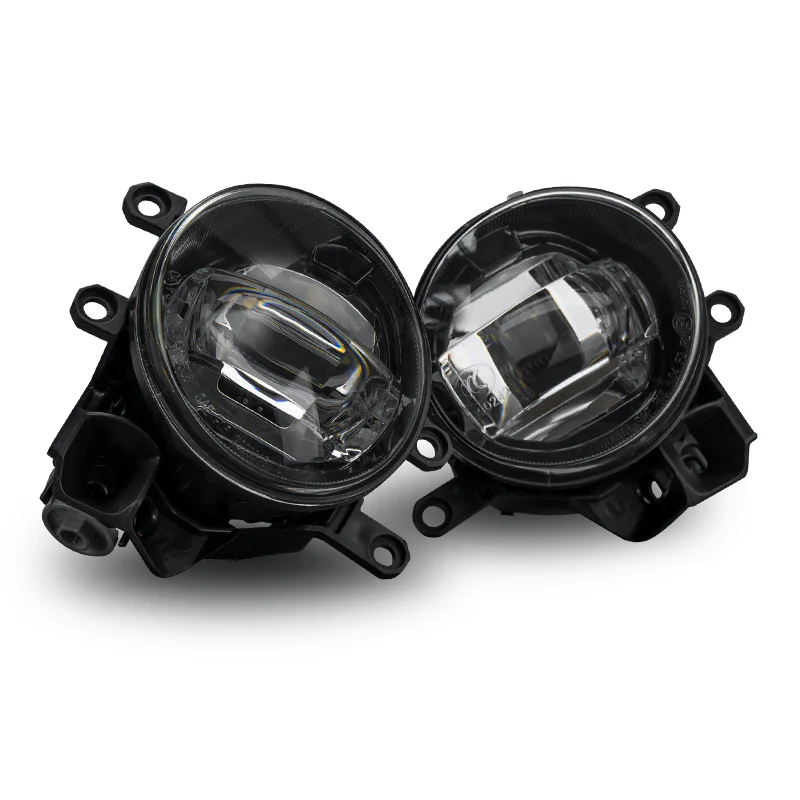

STEDI LEDFOG-ST6046 Universal Type B LED Fog Light Conversion Kit

The Nitty Gritty.

STEDI's new Type B Universal LED Fog Light is designed to replace your factory fog lights with a brighter beam and better fog penetration for much more visibility.

Key Technical Details

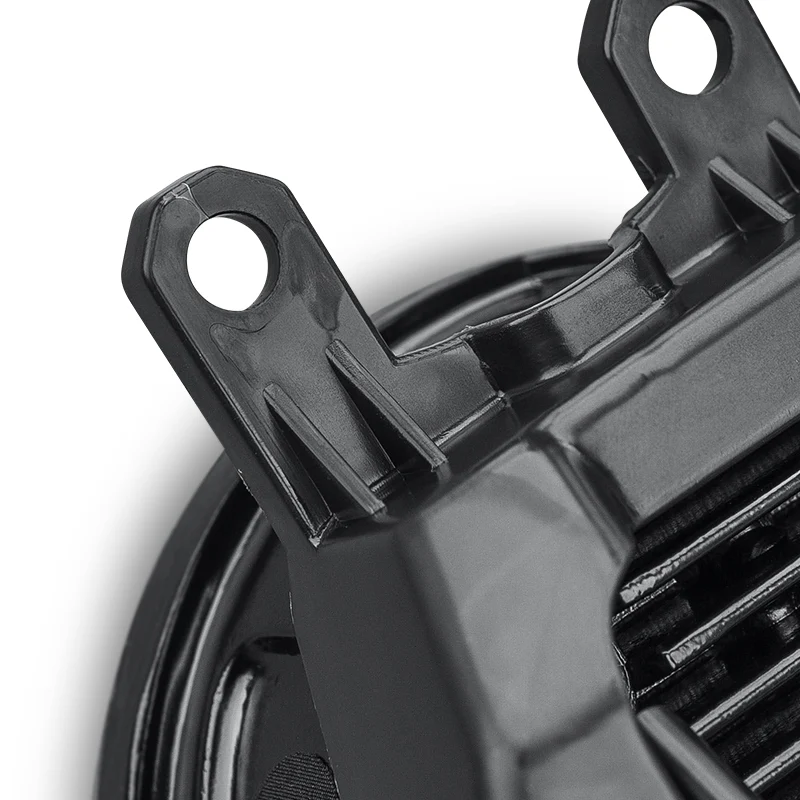

These LED fog lights are a direct fit that uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.

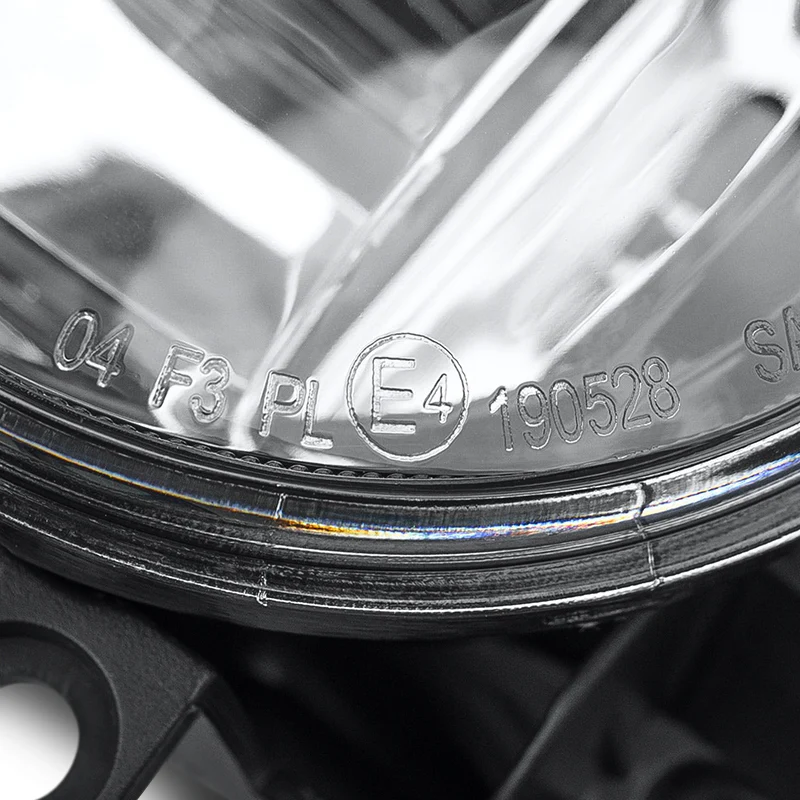

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

Utmost Compliance

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

Dimensions:

Lux Chart:

Specifications:

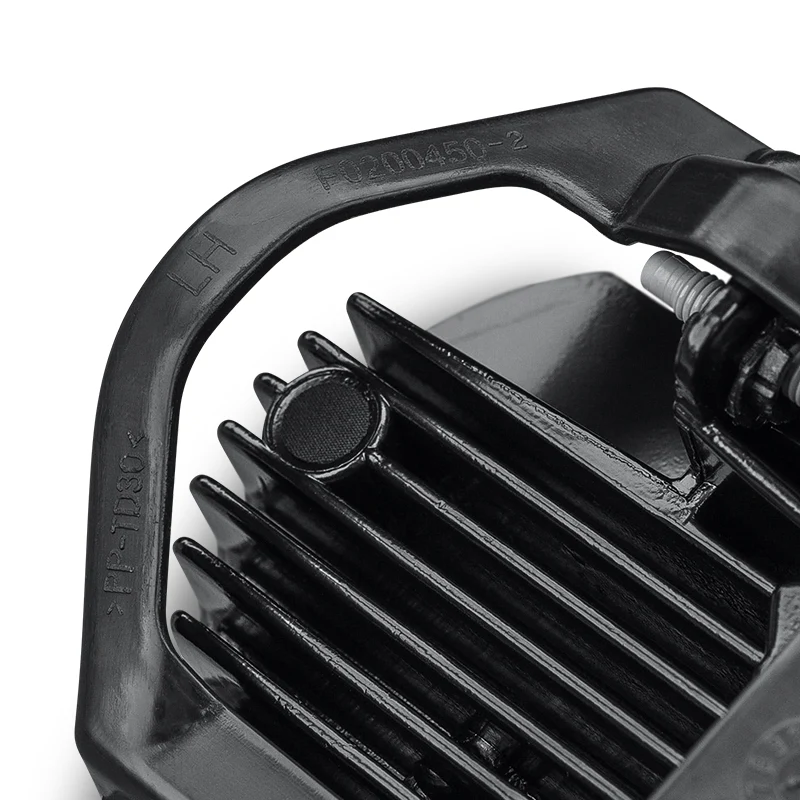

• Housing Material: Alloy Heat Sink
• LED: High Performance Luxeon T LED
• Lumen: 960LM (per light)
• Compatible Voltage: 12v and 24v
• Lifespan: 50,000hours

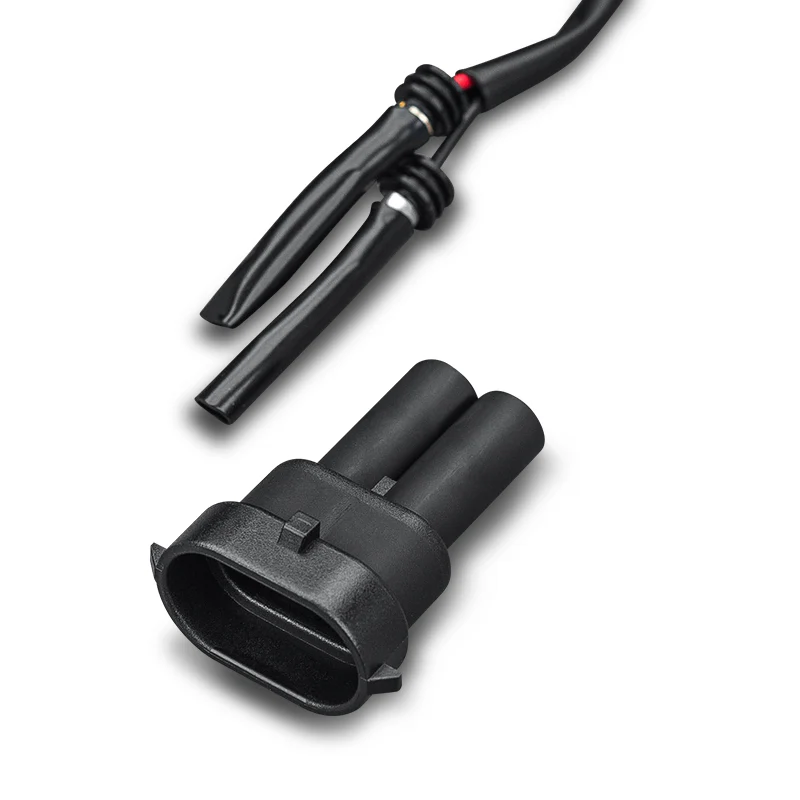

• Connector Type: Sealed
• Certification: CE, E4, RoHs, R87, IP67
• Fog Light Draw: 0.5a @ 13.6v
• Diameter: 90mm

OEM Part Number:

R: 81210-0D040 + L: 81220-0D040 / R: 81210-0D041 + L: 81220-0D041
R: 81210-0D042 + L: 81220-0D042 / R: 81210-06052 + L: 81220-06050
R: 35501-57L00 + L: 35502-57L01 / R: 81210-06071 + L: 81220-06071
R: 81025-0W020 + L: 81026-0W020 / R: 81211-12230 + L: 81221-12230
R: 81210-12230 + L: 81220-12230 / R: 81210-0D110 + L: 81220-0D110
R: 81210-02110 + L: 81220-02110

Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

Please check below for a full list of compatible vehicles.

Compatible Vehicles:

Lexus

• LX570:2008 - 2011
• IS-F:2008 - 2013
• HS250H:2010 - 2012
• RX270 / RX350 / RX450:2010 - 2015
• GS350:2013 - 2015
• LX570:2013 - 2017

Toyota

• 4 RUNNER:2014 - 2017
• AURION:2007 - 2017
• AURIS:2007 - 2017
• AVALON:2008 - 2010
• CAMRY:7/2006 - 11/2011
• CAMRY HYBRID:AHV40 2010 - 2011
• COROLLA:3/2007 to 2013
• FORTUNER:2015 - 2017
• HILUX (N80):2016 - 2019
• KLUGER:2007 - 2017
• LANDCRUISER PRADO 150:2009 - 2020
• LANDCRUISER 200 SERIES:2016 - 2020
• PRIUS:2009 - 2015
• PRIUS C:2012 - 2017
• RAV 4:2006 - 2011
• RAV 4:2016 - 2017
• TUNDRA:2013 - 2017
• YARIS:2014 - 2017

Peugeot

• 206:1998 - 2005
• 206 SPORT:1998 - 2005

What's In The Box:

• 2 x STEDI Universal Type B Fog Lights
• Fasteners Included
