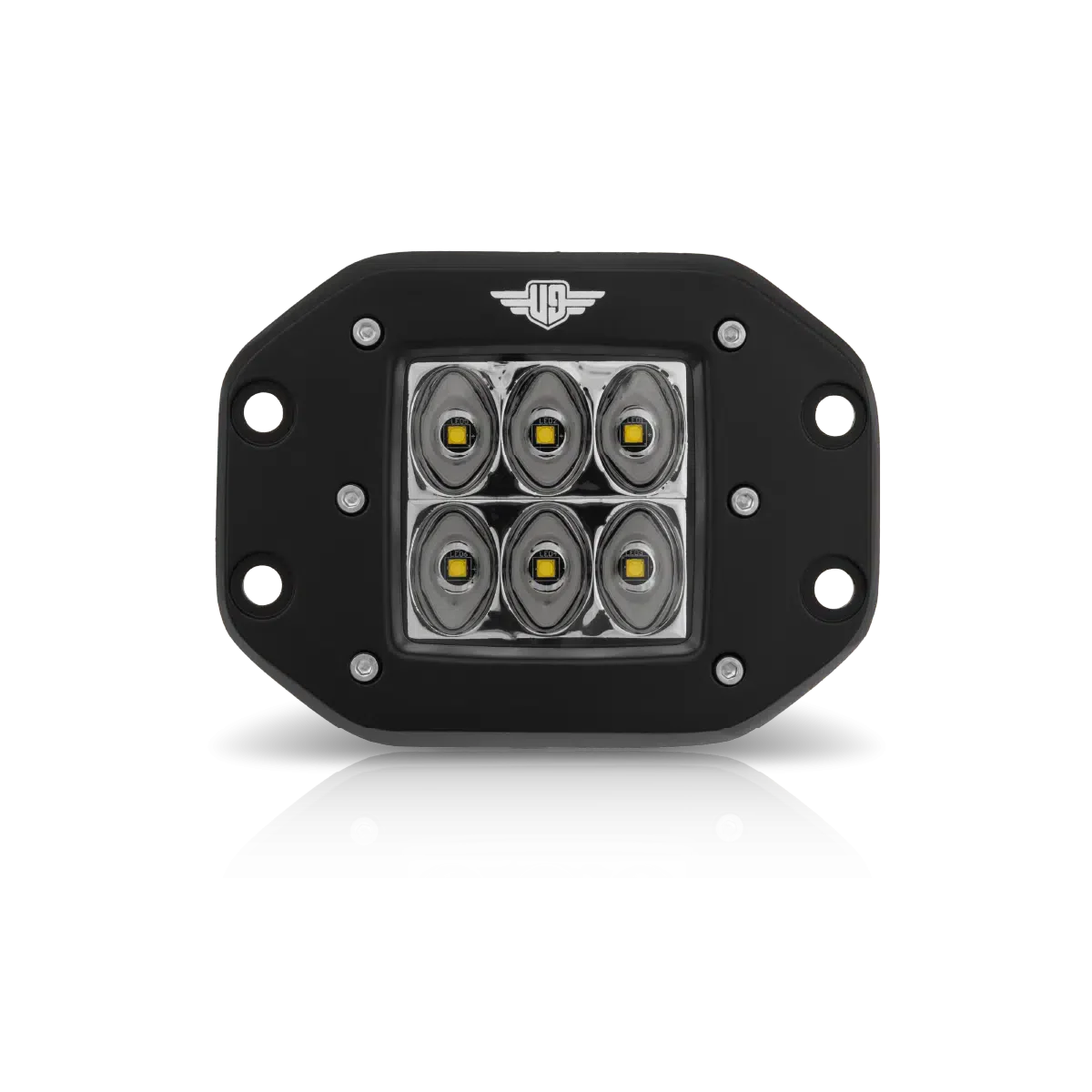

Ultimate9 ULTLEDWL020 LED Work Lamp Flush Mount

Brilliant Performance Projected in a Driving Beam Pattern!

LED Work Lamp: Flush Mount
For a clean and factory looking build, it's hard to look past flush mount lights - enter the Ultimate9 Work Lamp: Flush Mount. With x6 Osram 5W LED chips, a driving pattern reflector, and a Lexan® Polycarbonate lens - the Flush Work Light will cast a clean beam of light, reaching 1 Lux at 89m.

Paired well with bull bars & nudge bars to uncover terrain immediately approaching while keeping a tidy finish. Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.

What Harness Do I Need?
Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can be utilised

Features:

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K;
  IP68 for term-long submersion and total dust ingress;
  IP69K for stream jet cleaning.
• Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure;
  Moisture and dust ingress as the aluminium housing heats and cools;
  Eliminating condensation & fogging.
• Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener;
  Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant;
  They negate the need for additional protective covers.
• Optics: Driving Beam Pattern.
• Technology: 6x Grade A Osram 5W LED Chips & Sealed DT Connectors

Specifications:

• Input Power: 9-36V
• Beam Pattern: Driving
• Power: 30W
• Current Draw: 1.5A @ 13.2V
• Effective Lumen: 1,396LM
• Beam @ 1 Lux: 89M
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: Die Cast 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Military Grade
• Lens Dimensions: 2" x 2" (50 x 50mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM
• Body Dimensions: (L) 123mm x (H) 92mm x (W) 83mm
• Weight: 0.9kg; Loom: 0.25kg

Kit Includes:

• Work Lamp: Flush Mount
• 304 Stainless Steel Fasteners
• Rubber Gasket
• Wiring Harness:
  2.5M Relay ~ DT Connector
  1.3M Relay ~ Light Switch
  1.3M Relay ~ Power Terminals
