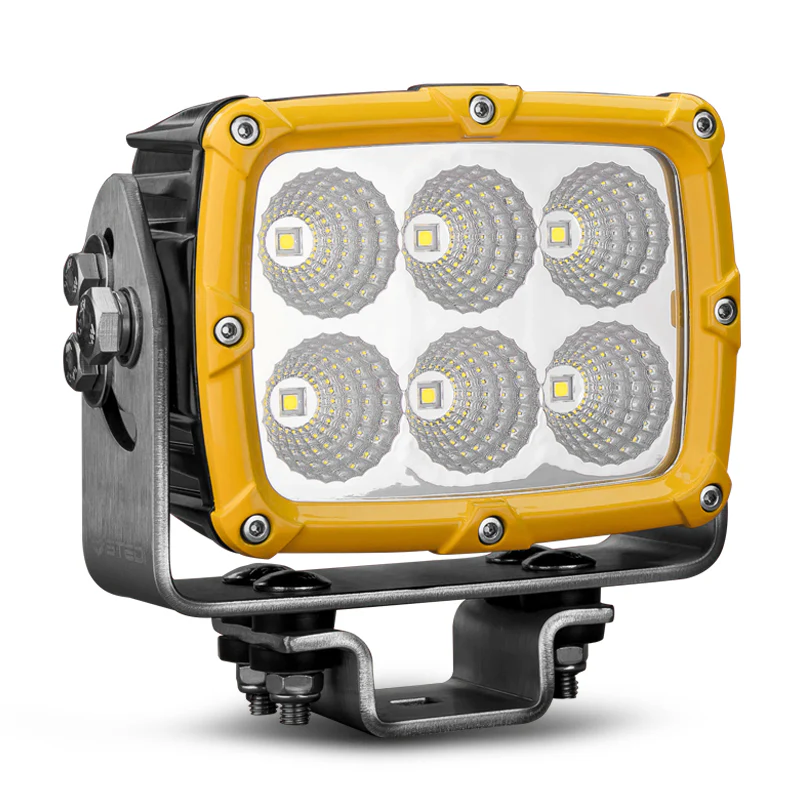

STEDI LEDMINE-60W-YELLOW Shock 6 Mining Spec LED Flood Light - Yellow

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

Shock & Vibration Testing
The STEDI Shock 6 has passed the following testing to standard with the criterion that "All light components must stay intact and in the original place. Light to operate normally after the test."

• Testing Method 1:
  Vibration testing according to MIL-STD - 810G 514.6 - Run test for 4 hours vertically and 2 hours laterally at a frequency of 5 - 500Hz
• Testing Method 2:

  • Housing Impact Test: Drop weight of mass 240g onto housing from a height of 1000mm
  • Lens Impact Test: Drop weight of mass 250g onto the lens from a height of 510mm

Endless Case Studies
Reach out to the sales team to discover how we have saved Australia's most respected mining and resources companies hundreds of thousands of dollars on their lighting upgrade programs, while simultaneously implementing higher performance and more robust lighting solutions.

At Your OEM or ODM Service
If one of our existing product offerings is not suitable, we offer a bespoke luminaire design service with the following core competencies:

• Optical Engineering
• Electrical Engineering
• Technical Drawings

Production Capabilities:

• Printed Circuit Boards
• Injection Molded Parts
• Die Cast Parts
• Extruded Parts
• Rapid Prototypes
• Wire Harnesses
• Mass Production

Core Lighting Competencies:

• Light Emitting Diodes (LED)
• Reflector Optics
• Lens Optics

Protected Against:

• Reverse Polarity
• Shockproof, Waterproof & UV Shielded
• RFI/EMC Interference | Won't Interfere with Existing Electronic Systems. Tested & Certified to The CISPR25 Class 4 Standard
• Voltage & Current Surge Protection

Features:

• Dynamic Thermal Management Regulator | Designed to Operated 24 Hours a Day 7 Days per Week

• Die-Cast Aluminium ADC12 Heat-Sink
• Silicon Power Cable
• Anodized Powder Coat | Abrasion Resistant
• Lexan Poly-Carbonate Front Cover | Unbreakable
• Environmentally Sealed Deutsch DT04-2 Connectors
• Vibration & Shock Absorbing Bracketing

Specifications:

• Power: 60 Watts
• LED: 6 x 10w CREE XM-L2
• Current Draw: 5.3A @ 12v, 2.3A @ 24v
• Voltage: 9 - 36v
• Lumen: 5,400LM
• Ingress Protection: IP68
• CCT: 5000K
• Life Span: 50,000 hrs LM-80
• Lens: LEXAN Optical PC
• Weight: 2.070kg
• Beam: 60A Flood
• Peak Beam Distance: @ 1 Lux 132m
• Certificates: CE, IP68, CISPR 25
• Connector: Deutsch DT04-2P

What's Included:

• 60W Mining Spec Flood Light
• Stainless Steel U Bracket
• Secondary Shock Dampening Mount
• Mounting Pad
• Stainlesss Steel Fasteners
