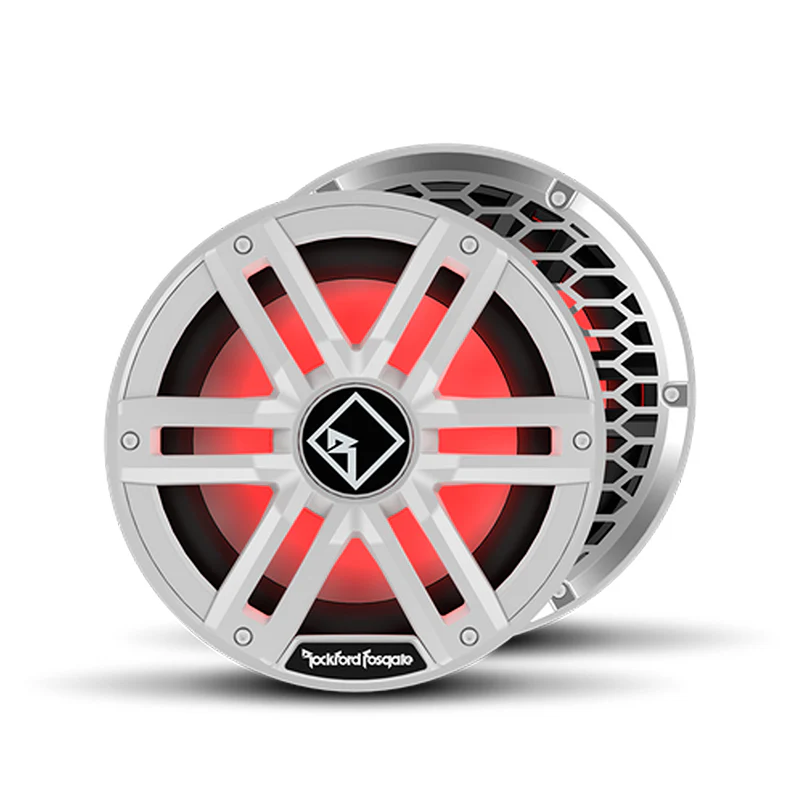

Rockford Fosgate M2D4-10I M2 10" DVC 4Ω Color Optix Infinite Baffle Marine Subwoofer

Rockford Fosgate M2D4-10I M2 Series 10 Inch DVC 4-Ohm Color Optix Infinite Baffle Marine Subwoofer in White

A premium marine grade 10 inch dual voice coil 4-ohm infinite baffle subwoofer in white with Color Optix RGB LED lighting, 400W RMS handling, VersaSwitch impedance selection between 2-ohm and 8-ohm, and interchangeable stainless steel and sport grille inserts. Aramid-polyester composite spider, UV stable foam surround, PA66 glass-fill frame, vented motor with nano-coated mesh screen, and integrated Deutsch/Amphenol connectors. Optimised for infinite baffle installations - no enclosure required. IPX6 rated and ASTM B117 and G154 tested. Sold individually (1 each). Backed by a 2 year warranty.

Product Overview

The Rockford Fosgate M2D4-10I is an M2 series 10 inch dual voice coil (DVC) 4-ohm marine subwoofer in white, featuring Color Optix RGB LED illumination controllable via the PMX-RGB controller and RF Connect app (available on iOS and Android, sold separately). It is the white version of the M2D4-10IB, purpose-built for infinite baffle (free air) marine installations where a dedicated subwoofer enclosure is not available or practical. A mounting baffle is required to isolate front and rear wavelengths and prevent acoustic cancellation.

The M2D4-10I brings the full M2 series driver construction to a 10 inch infinite baffle format. The cone is injection-moulded mineral-filled polypropylene with UV inhibitors, co-moulded with a UV stable injection-moulded foam surround using Rockford Fosgate's patented VAST technique for up to 25% more effective radiating cone area. The aramid-polyester composite spider provides superior excursion linearity. The ultra-high temperature PA66 frame with 30% glass fill and UV inhibitors provides a rigid, thermally stable mounting platform. The vented motor design with a water-repelling nano-coated mesh screen allows heat dissipation at high output levels while protecting the motor from water ingress. Fully insulated silicone tinsel leads are used throughout.

The VersaSwitch allows impedance to be changed between 2-ohm (parallel) and 8-ohm (series) by flipping a single switch, without any additional wiring. Industry-first moulded in-frame Deutsch/Amphenol connectors combine Color Optix RGB lighting and audio signal in a single plug-and-play connection. Gold-plated marine grade brass terminals are also included. Both stainless steel and sport grille inserts are included with additional grille options available separately. Tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards. Klippel Verified certification applied.

---

Features & Benefits

VersaSwitch - 2-Ohm or 8-Ohm Without Rewiring: The VersaSwitch allows the DVC 4-ohm voice coils to be configured to parallel (2-ohm) or series (8-ohm) by flipping a single switch, enabling flexible amplifier matching without additional wiring.

400W RMS - Full M2 Series Power in a 10 Inch Infinite Baffle Format: The M2D4-10I handles 400W RMS and 1600W peak, delivering premium M2 series output in a 10 inch driver optimised for hull or panel mounting without a dedicated enclosure.

Optimised for Infinite Baffle - No Enclosure Required: The M2D4-10I is engineered specifically for infinite baffle (free air) installations. A mounting baffle is required to physically separate the front and rear of the cone to prevent acoustic cancellation, but no sealed or ported enclosure box is needed.

UV Stable Foam Surround with VAST Technology: The injection-moulded UV stable foam surround is co-moulded to the cone and attaches vertically via the patented VAST technique, increasing the effective radiating cone area by up to 25%.

Aramid-Polyester Composite Spider and PA66 Glass-Fill Frame: The aramid-polyester composite spider delivers superior excursion linearity and fatigue resistance. The PA66 frame with 30% glass fill and UV inhibitors provides a rigid, thermally stable, and UV resistant mounting structure.

Vented Motor with Nano-Coated Water-Repelling Mesh Screen: The vented motor design allows heat to dissipate from the 2 inch (50mm) Kapton voice coil former at high output levels, while the nano-coated mesh screen prevents water from entering the motor assembly.

Industry-First Moulded In-Frame Deutsch/Amphenol Connectors: Moulded in-frame connectors combine speaker signal and Color Optix RGB lighting in a single error-proof plug-and-play connection. Gold-plated marine grade brass spade terminals are also included.

Interchangeable Grille Options - Stainless Steel and Sport Inserts Included: Both stainless steel and sport grille inserts are included, with additional grille options available separately for further customisation.

---

Technical Specs

---

Compatible With / Goes Well With

The M2D4-10I is suited to marine watercraft requiring a premium 10 inch infinite baffle subwoofer in white. A mounting baffle must be used to separate the front and rear acoustic wavelengths. The VersaSwitch enables pairing with amplifiers rated at 2-ohm or 8-ohm. Sold individually. The black version is available as the M2D4-10IB.

Goes Well With:

• PMX-RGB - Rockford Fosgate Color Optix RGB controller required to access full Color Optix lighting control and RF Connect app integration
• M5-1000X1 - M5 series 1000W marine monoblock amplifier, compatible with the M2D4-10I at both 2-ohm and 8-ohm VersaSwitch settings
• M5-1500X5 - M5 series 1500W 5-channel marine amplifier for full system builds pairing the M2D4-10I with marine full-range speakers
• M2D4-10IB - Black version of this subwoofer for colour-matched installations
• M2D4-12I - Larger M2 series 12 inch white DVC 4-ohm infinite baffle subwoofer for installations where a bigger driver is preferred
• M2D2-10SB - M2 series 10 inch DVC 2-ohm Color Optix sealed enclosure subwoofer for builds where an enclosure is available

---

Frequently Asked Questions

What is the difference between the M2D4-10I and the M2D4-10IB?

The M2D4-10I and M2D4-10IB are identical in specifications and features. The only difference is the colour - the M2D4-10I is white and the M2D4-10IB is black. Choose based on the colour scheme of your vessel.

What is an infinite baffle installation and is an enclosure required?

An infinite baffle (free air) installation mounts the subwoofer directly into a hull panel, storage lid, or partition rather than in a sealed or ported enclosure box. No dedicated enclosure is required, making it ideal for vessels with limited below-deck space. A mounting baffle is required to physically separate the front and rear of the subwoofer cone to prevent the front and rear acoustic waves from cancelling each other.

What is the difference between the M2D4-10I and the M2D4-12I?

Both are M2 series DVC 4-ohm Color Optix infinite baffle subwoofers in white with the same VersaSwitch settings (2-ohm/8-ohm). The M2D4-10I is the 10 inch version with an 8.87 inch cutout and 4.44 inch mounting depth. The M2D4-12I is the 12 inch version with a larger cutout and deeper mounting depth, delivering more bass extension and output capability. Choose the M2D4-10I for a more compact infinite baffle installation; choose the M2D4-12I for maximum bass output.

Is the M2D4-10I sold as a single unit or as a pair?

The M2D4-10I is sold individually - one subwoofer per purchase. Two units will need to be added to the order if a dual subwoofer installation is required.

Does the Color Optix lighting require a separate controller?

Yes. Color Optix RGB lighting requires the PMX-RGB controller and the RF Connect app (available on iOS and Android) to access full colour control, lighting effects, and brightness adjustment. The PMX-RGB controller is sold separately. The subwoofer can also be used without the controller at a fixed default colour setting straight out of the box.
