Hertz HP 6001 SPL Class D Mono-Block Amplifier With Crossover 6000W

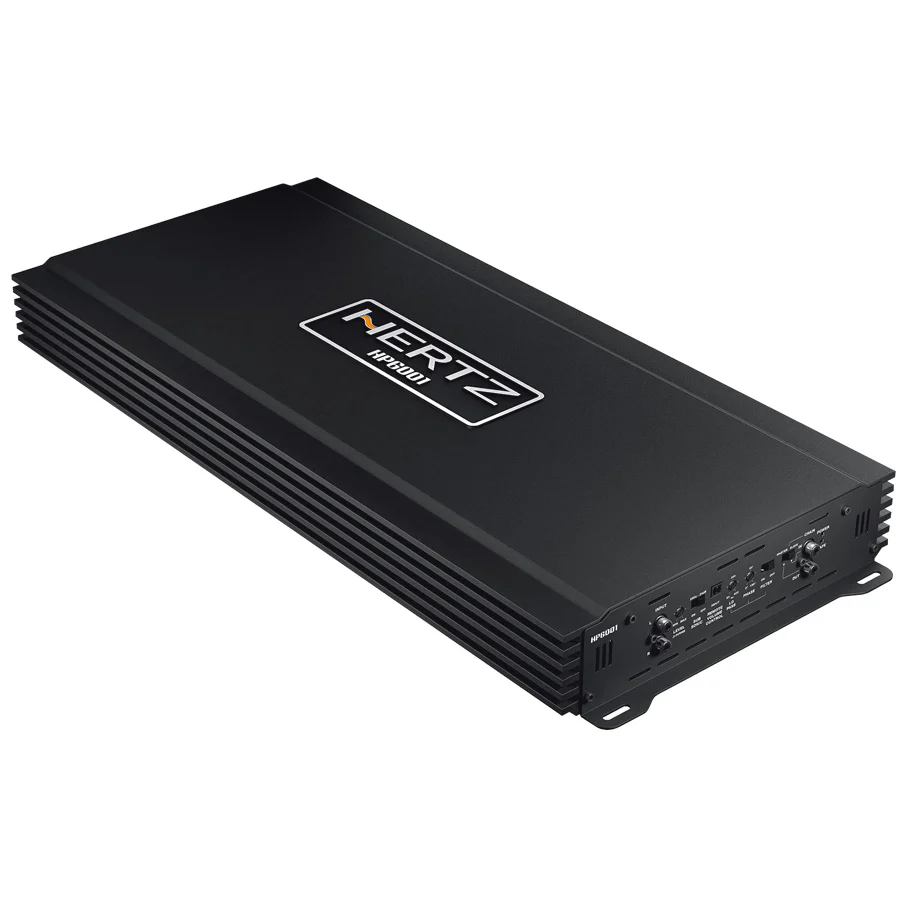

Product image 1

Hertz HP 6001 SPL Class D Mono-Block Amplifier With Crossover 6000W

HP 6001 is the Most Powerful SPL Car Audio Amplifier within the SPL Show Line

The overbuilt power supply stage and the D Class output stage featuring 12 Mosfets provide the ability to deliver up to 6000W power. The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, make HP 6001 an extremely powerful amplifier, perfect for SPL applications. Thanks to the Chain Mode function, to cascade a second amplifier into a single load, a devastating amount of power up to 12000W can be achieved with record SPL levels.

Specifications:

  • Channel Mode - 1
  • Output (RMS) - 1ch / 1670W x 1 @ 4ohm, 1ch / 2970W x 1 @2ohm, 1ch / 5000W x 1 @1ohm
  • Filters - 50/400Hz @ 24 dB/Oct.
  • Distortion / THD (100Hz @ 4ohm) - 0.1%
  • S/N Ratio - 86dB
  • Damping Factor (100Hz @ 4ohm) - 500
  • Dimentions W x D x H mm - 644 x 280 x 65.5

Key Features:

Overbuilt Power Supply Stage
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.

Circuit Boards and Components Designed Specifically For SPL Systems
Inside the amplifier, the electronics have been designed specifically for SPL systems, driving low impedance loads with perfect thermal stability. Power for sound pressure without compromise.

Ultra-Versatile, Complete Control and Filter System
The Front End section features a complete crossover system, for endless configuration possibilities. HP 3001/HP 6001 mono models are provided with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control, remote volume control (HRC) and also a Chain Mode function to cascade-connect a second amplifier, achieving maximum SPL levels.

Aluminium Extruded Heatsink with Massive Fins For Unparralleled Thermal Stability
Aluminium extruded heatsink with enhanced thermal performance. Following the style of Hertz, the Hertz logo has been tastefully integrated into the top of the HP heatsink, and massive fins are featured along the side of the amplifier.
$607.27

Original: $1,735.06

-65%
Hertz HP 6001 SPL Class D Mono-Block Amplifier With Crossover 6000W—

$1,735.06

$607.27

Product Information

Shipping & Returns

Description

HP 6001 is the Most Powerful SPL Car Audio Amplifier within the SPL Show Line

The overbuilt power supply stage and the D Class output stage featuring 12 Mosfets provide the ability to deliver up to 6000W power. The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, make HP 6001 an extremely powerful amplifier, perfect for SPL applications. Thanks to the Chain Mode function, to cascade a second amplifier into a single load, a devastating amount of power up to 12000W can be achieved with record SPL levels.

Specifications:

  • Channel Mode - 1
  • Output (RMS) - 1ch / 1670W x 1 @ 4ohm, 1ch / 2970W x 1 @2ohm, 1ch / 5000W x 1 @1ohm
  • Filters - 50/400Hz @ 24 dB/Oct.
  • Distortion / THD (100Hz @ 4ohm) - 0.1%
  • S/N Ratio - 86dB
  • Damping Factor (100Hz @ 4ohm) - 500
  • Dimentions W x D x H mm - 644 x 280 x 65.5

Key Features:

Overbuilt Power Supply Stage
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.

Circuit Boards and Components Designed Specifically For SPL Systems
Inside the amplifier, the electronics have been designed specifically for SPL systems, driving low impedance loads with perfect thermal stability. Power for sound pressure without compromise.

Ultra-Versatile, Complete Control and Filter System
The Front End section features a complete crossover system, for endless configuration possibilities. HP 3001/HP 6001 mono models are provided with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control, remote volume control (HRC) and also a Chain Mode function to cascade-connect a second amplifier, achieving maximum SPL levels.

Aluminium Extruded Heatsink with Massive Fins For Unparralleled Thermal Stability
Aluminium extruded heatsink with enhanced thermal performance. Following the style of Hertz, the Hertz logo has been tastefully integrated into the top of the HP heatsink, and massive fins are featured along the side of the amplifier.
