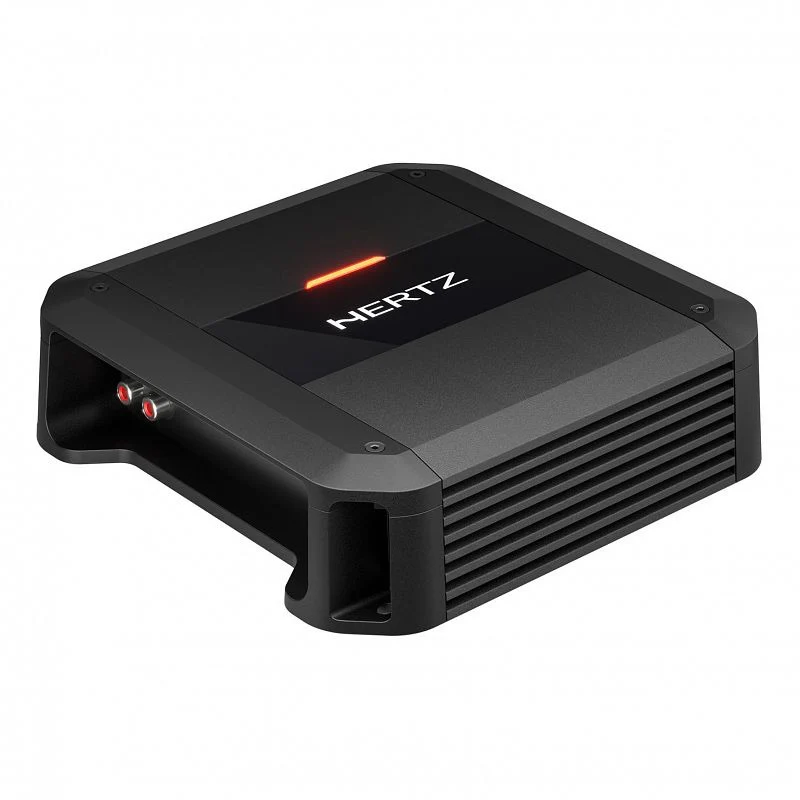

Hertz DP1.500 Dieci Power 1180W Mono Class-D Compact Amplifier

An Audio Powerhouse Designed to Elevate Your Car Audio Experience to Unprecedented Heights!

DIECI POWER DP 1.500 Mono Class-D Compact Amplifier
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.

Features:

• Maximum Power in Compact Size: ADC (Advanced Class-D) 2Ω stable power output in a small and compact design.
• Attractive Design: elegant status LED, solid machined terminal block, and removable top panel to protect controls and connections.
• Universal Compatibility: operating supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
• High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
• Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
• Automatic Remote Turn-On/Off: driven by OEM radio speaker outputs.
• Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Ready: provides the ability to tune the subwoofer level for any

Specifications:

• General:
  Channels: 1
  Nominal Power Supply Voltage (Fuse): 11 ÷ 15 VDC (1 x 30 A)
  Operating Power Supply Voltage: 6.5 ÷ 17.5 VDC
  Idling Current 1 A
  Standby Current Draw: 50 uA
  Consumption, MIN Load Impedance (Max Musical Power): 21 A
  Remote IN: 4 ÷ 17 VDC (1 mA)
  ART - Automatic Remote Turn On/Off From SPK-IN (BTL Radio Only): 1.5 VDC
  Efficiency: 86%
  Distortion - THD @ 100 Hz, 70% Rated Power: 0.2%
  Damping Factor @ 1 kHz, 1W: 180
  Bandwidth @ -3 dB: 10Hz ÷ 500Hz
  S/N Ratio (A-Weighted @ 1 V Input): 99 dBA
  Minimum Load Impedance @ 1 Ch: 2 Ω
  Adjustable Crossovers: Yes
• Output Power:
  Output Power (RMS) @ 1% THD: 1CH @ 4Ω 280 W x 1, 1CH @ 2Ω 500 W x 1
  Output Power (RMS) @ 14.4 VDC, THD 10%: 1CH @ 4Ω 350 W x 1, 1CH @ 2Ω 590 W x 1
  Total Power: 1180W
• Inputs / Filters:
  Inputs: Pre-In / Speaker-In
  Pre Out: Full Range
  Pre-In Sensitivity: 0.32 ÷ 8 VRMS
  Speaker-In Sensitivity: 1.6 ÷ 40 VRMS
  Lo-Pass: OFF / 50÷ 250Hz 24dB/Oct.
  Subsonic: OFF / 25 Hz @ 24 dB/Oct.
  Phase: 0 / 180°
  Bass Boost: 50Hz 0 ÷ 9 dB
  SUB Remote Volume Control HRC 02: -20 ÷ 6 dB
• Physical Specifications:
  Weight: 1.62kg
