HELIX M SIX DSP | 6 Channel Digital Amplifier with DSP | 10 Processed Channels
HELIX M SIX DSP | 6 Channel Digital Amplifier with 10 DSP Processed Outputs
Precision Power Meets DSP Intelligence.
The HELIX M SIX DSP is a professional-grade, compact 6-channel digital amplifier with integrated DSP. Delivering 6 x 100W RMS and up to 10 DSP processed channels, this advanced solution provides exceptional audio flexibility for OEM integration or fully custom car audio systems.
Powered by 64-bit DSP, ACO CoProcessor, and Virtual Channel Processing, this amplifier delivers unmatched signal routing, low distortion, and total control—making it the ultimate multi-channel car amplifier for audiophiles and professional installers.
Key Features & Benefits:
- 6 x 100W RMS @ 4Ω / 2Ω – Pure Class D amplification
- 10 Processed DSP Channels – Flexible signal routing & tuning
- Virtual Channel Processing – Intelligent audio control architecture
- ACO CoProcessor – Fast boot, tuning memory, and diagnostics
- High-Level Input with ADEP.3 – OEM error suppression
- 4 RCA Pre-Outs (6V RMS) – Expand your system with full DSP control
- SFX Features: Augmented Bass, RealCenter, StageXpander, and more
- Optical Input – SPDIF digital audio (12–96 kHz)
- Memory Presets & Power Save Mode – Smart install options
Specifications:

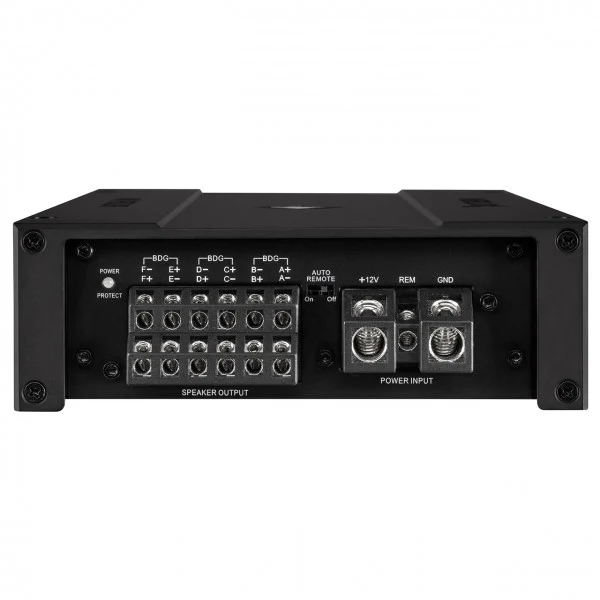

- Amplified Channels: 6 x 100W @ 4Ω / 2Ω
- Bridged Power: 3 x 200W @ 4Ω
- DSP Engine: 64-bit / 295 MHz

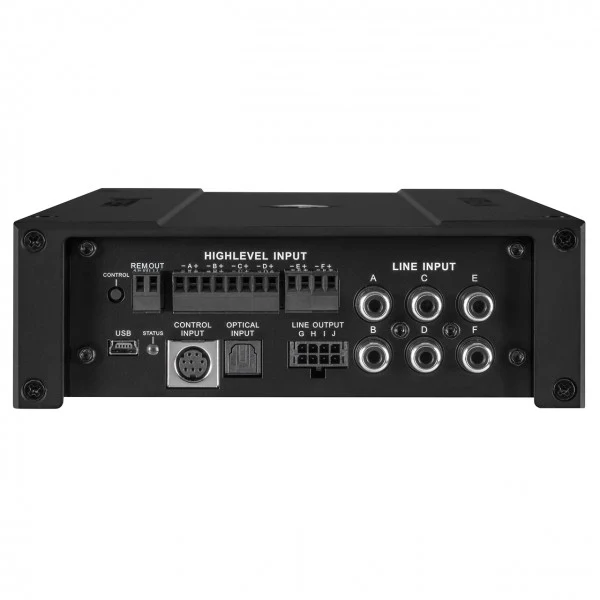

- Inputs: 6 x RCA, 6 x High-Level, 1 x SPDIF Optical
- Outputs: 4 x RCA Pre-Outs, 2 x Remote
- S/N Ratio: 108 dB (Digital), 105 dB (Analog)
- THD+N: <0.03% (Speaker), <0.005% (Pre-Out)
- Frequency Response: 20 Hz – 22 kHz
- Damping Factor: 100
- Operating Voltage: 10.5 – 16V
- Dimensions: 50 x 320 x 154mm
- Fuse: 2 x 35A Maxi-Fuse
What's in the Box:
- 1 x HELIX M SIX DSP Amplifier
- 1 x USB Cable
- 1 x RCA Output Adapter
- 1 x Mounting Kit
- 1 x User Manual
Perfect For:
- OEM Head Unit Integration
- Multi-Amplifier Audio Builds
- Hi-Resolution DSP Sound Control
- Professional Audio Competitions
- Virtual Signal Routing Systems
HELIX M SIX DSP is the elite solution for those demanding superior audio control, powerful output, and a smart installation footprint—all with German-built precision.
