HELIX M ONE X | 1 Channel Digital Amplifier | 1030W RMS 1Ω Stable

HELIX M ONE X 1 Channel Digital Amplifier | 1030W RMS 1Ω Stable

Small. Efficient. Uncompromisingly Stable.

Experience compact digital power with HELIX M ONE X's advanced Class D technology—delivering 1030W RMS output in minimal dimensions with smart high-level input featuring ADEP circuit protection and TwinPower Link capability.

The HELIX M ONE X represents cutting-edge Class D amplification in an ultra-compact design, perfectly engineered for subwoofer applications demanding maximum efficiency and minimal space. This highly compact monoblock easily controls speakers with 1Ω impedance and serves as the perfect partner for 2x2Ω subwoofers connected in parallel. Featuring smart high-level input with ADEP circuit (Advanced Diagnostics Error Protection), the M ONE X prevents OE radio diagnostic errors while maintaining all factory features like fader function. With TwinPower Link capability for dual amplifier setups and comprehensive crossover controls, this efficient amplifier delivers professional performance with minimal heat dissipation and easy installation.

M ONE X Features:

• Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
• Start-Stop capability down to 6V supply voltage
• Smart highlevel input with ADEP circuit and Auto Turn-On function

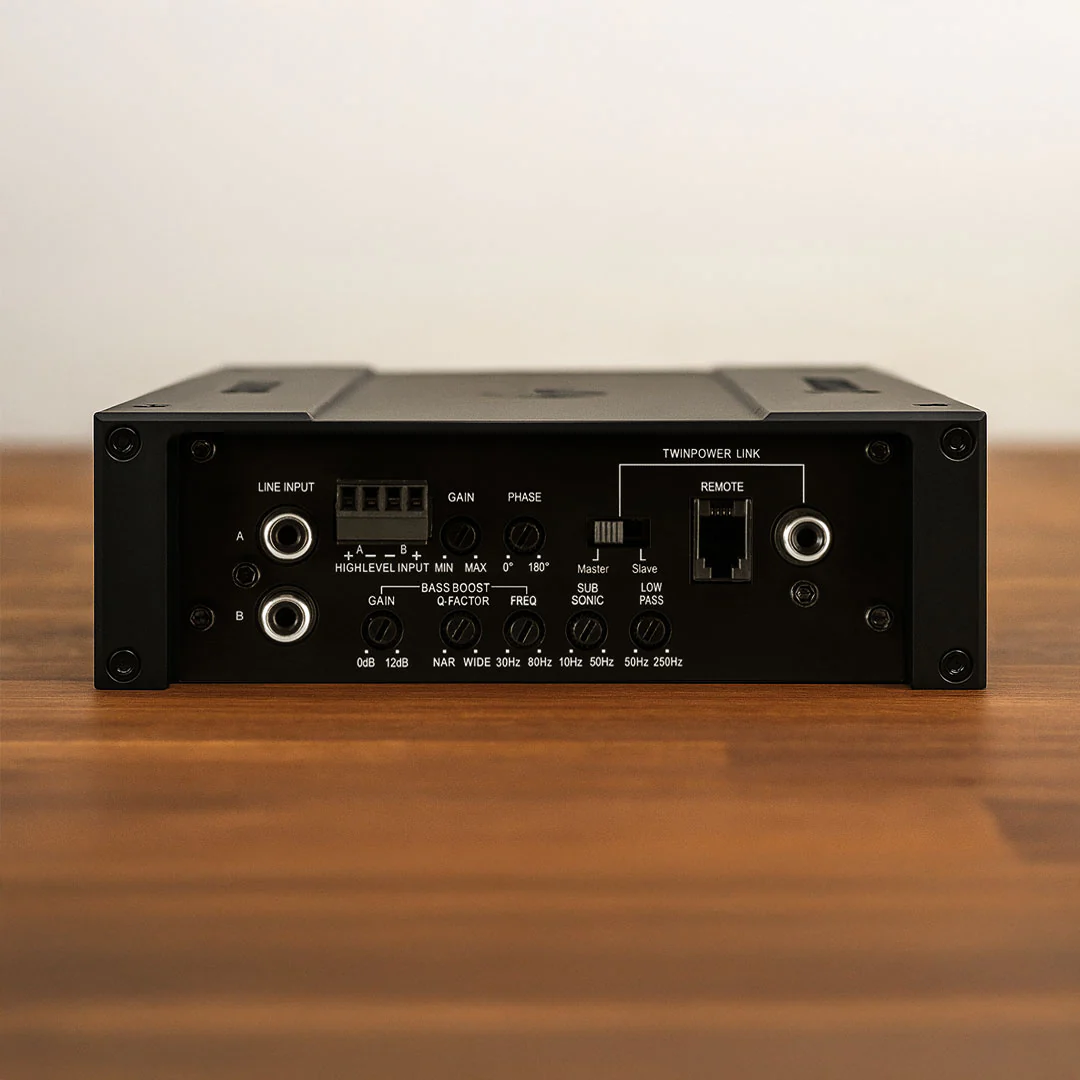

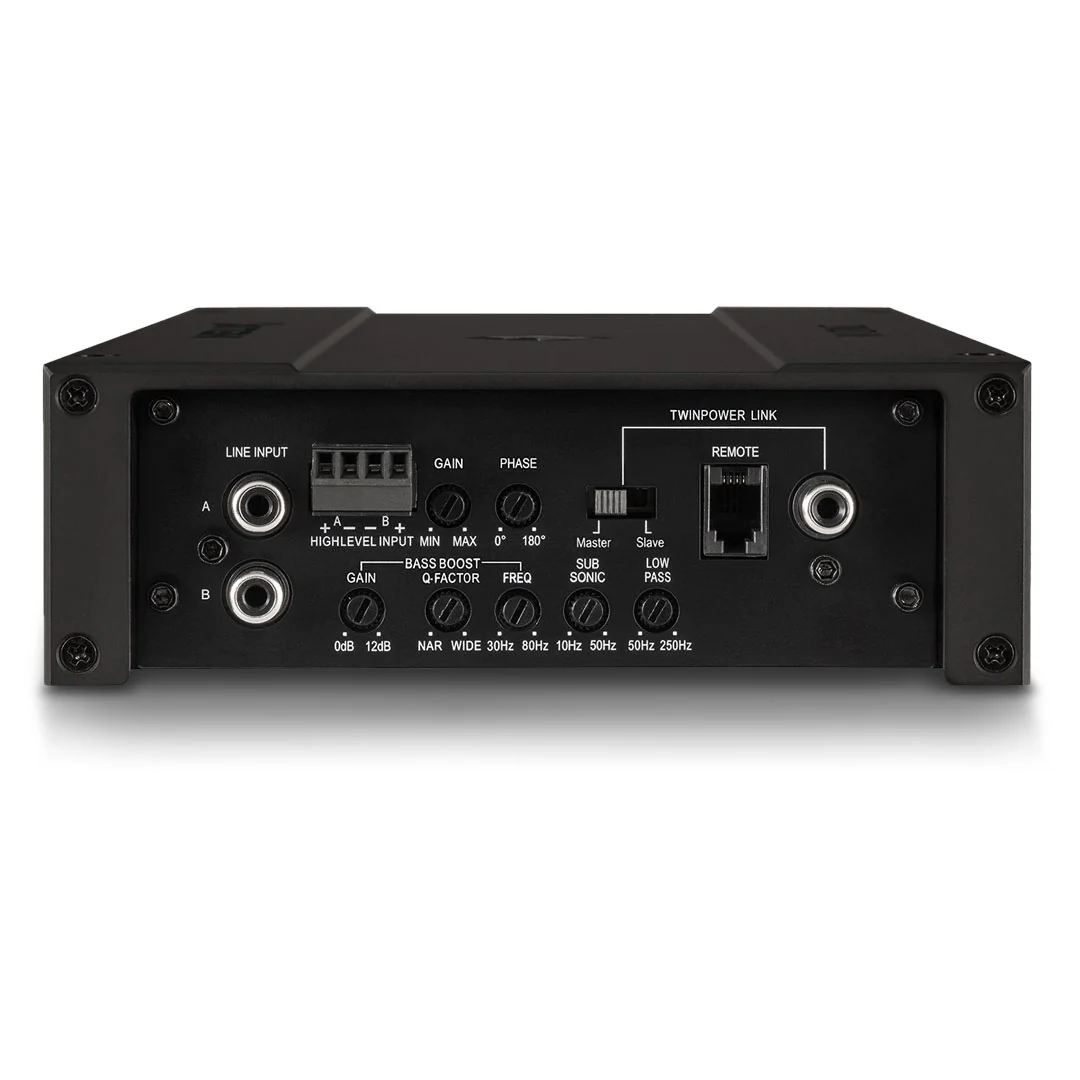

• Integrated, active crossover with lowpass, bass boost, subsonic and phase control
• TwinPower Link for connecting two amplifiers in bridged mode
• Bass remote control for volume adjustment
• Low heat dissipation thanks to extraordinary efficiency
• Advanced Diagnostics Error Protection (ADEP) prevents OE radio error messages
• Maintains factory features like fader function with OE integration
• Compact dimensions for easy installation in tight spaces
• Comprehensive crossover controls with adjustable slopes
• Professional Class D efficiency with minimal power consumption
• Auto Turn-On function for seamless operation
• Ultra-compact design without performance compromise


Specifications:

• Channels: 1 Channel | Mono
• Built-in DSP: No
• RCA Input: 2x RCA
• High-Level Input: 2x High level
• Power W RMS/ch | 4Ω: 400W
• Power W RMS/ch | 2Ω: 700W
• Power W RMS/ch | 1Ω: 1030W
• Max Output Power: 1180W RMS @ 1Ω
• Class: D
• Max Input Sensitivity: 13V (High-level), 6V (RCA)
• THD+N: 0.2%
• RCA Out: 0x | No Pre-out
• Frequency Response: 10 Hz - 250 Hz
• Signal-to-Noise Ratio: 95 dB (A-weighted)
• Damping Factor: 150
• Operating Voltage: 10.5-16V (max. 5 sec. down to 6V)
• Dimensions (H x W x D): 50 x 320 x 154mm

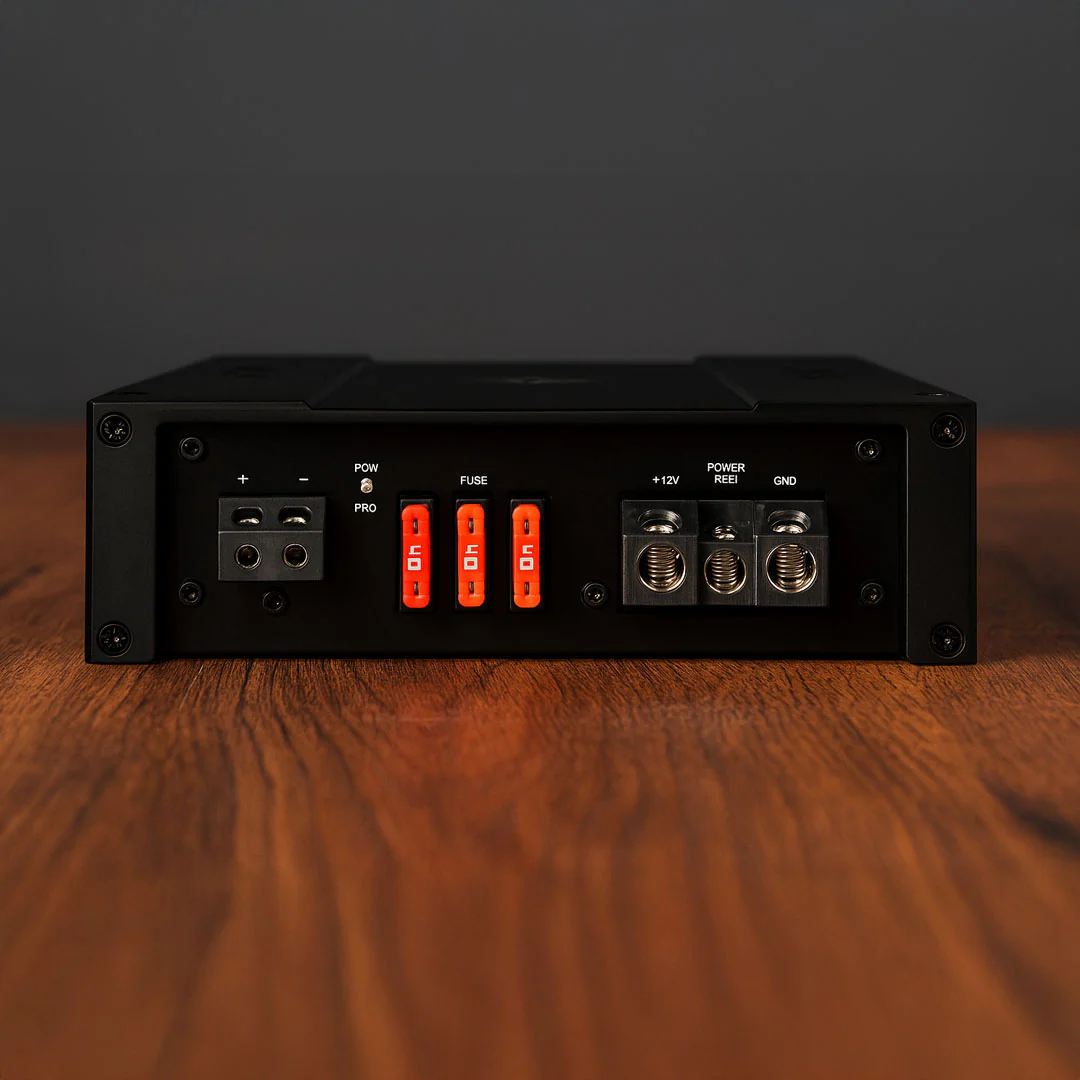

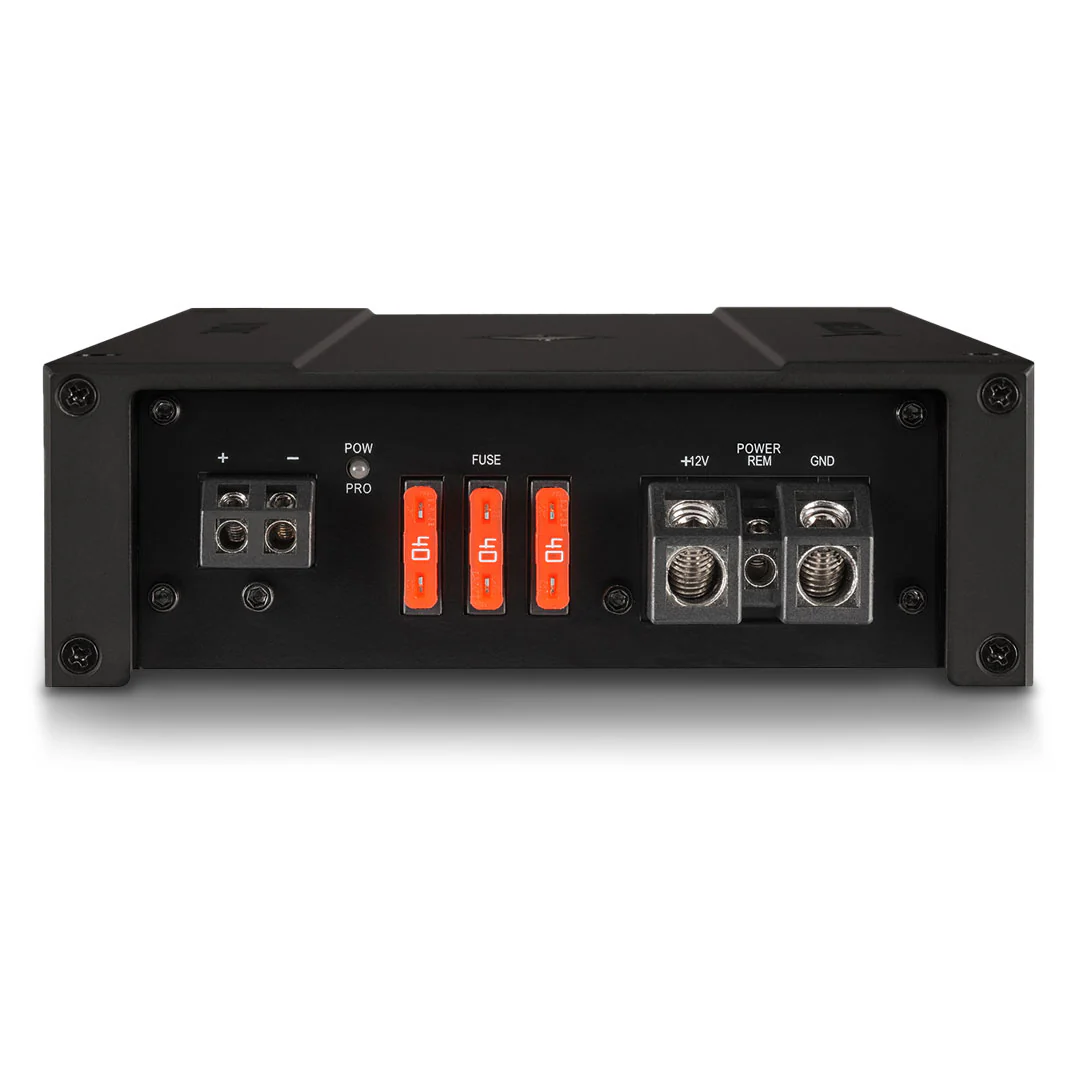

• Fuse: 3 x 40A Maxi-fuse (APX)
• Idle Current: 800mA


Scope of Delivery:

• 1 x Amplifier HELIX M ONE X
• 1 x Cable remote control
• 1 x Mounting material
• 1 x Instruction manual


Perfect for:

• Compact subwoofer installations, OE integration projects, space-constrained applications, 2x2Ω subwoofer setups, and any installation requiring maximum power output with minimal footprint and seamless factory radio integration.
