ConnectPRO SWI-BM01 BMW Radio Replacement Interface

Retains the Built-In Steering Wheel Controls in Compatible Vehicles when Replacing the Factory Radio with An Aftermarket Radio

BMW Radio Replacement Interface

Make installation of your new aftermarket radio or infotainment system easy in select Mercedes Benz vehicles with the Plug & Play ConnectPRO Audi radio replacement solution from Stinger Australia.

The Radio Replacement Solution

There's nothing worse than loosing your steering wheel control buttons when updating to the latest technology.

The SWI-BM01 from ConnectPRO from Stinger Australia allows easy retention of steering wheel audio control buttons with your new aftermarket radio or infotainment system.

Keep your eyes on the road and less time fumbling for the radio with ConnectPRO.

The Solid Connection

Each ConnectPRO radio replacement solution includes a Plug and Play interface for a easy and solid connection to your existing vehicle harness.

No need to strip back wires or chop off connectors in your vehicle allowing re-installation of your factory radio if ever required.

Features:

• Retains factory fitted steering wheel audio buttons

Suitable for vehicles with:

• 40PIN Quadlock
• 17PIN Round PIN Connector

Compatibility Notes:

• Not compatible with vehicles featuring i-DRIVE Infotainment system
• Does not retain Amplified system in vehicles featuring DSP
• Phone buttons cannot be retained in all vehicle models (if fitted)
• Voice Recognition (VR) Button feature not retained (if fitted)
• Multimedia Outputs (Reverse / Handbrake / VSS / Illumination) only available if data is present on vehicle network
• Designed for use with major branded head units including Alpine, Clarion, Kenwood, JVC, Pioneer, Sony, Stinger plus more

Specifications:

• Plug & Play: Yes – Factory Connector to Standard ISO Connector
• Retain Factory Steering Wheel Audio Controls: Yes - Will retain Steering Wheel Audio Controls with Select Aftermarket Radios
• Retain Factory Amplifier: No
• Retain Parking Sensors: No – If Vehicle OEM Radio Was Generating the Parking Sensor Tones. if Parking Sensors Are Not Part of The Factory Radio, They Should Not Be Effected
• Vehicle Plug Style: 17 Round PIN Style Connector, 40PIN Quadlock Style Connector
• Application Notes: Not compatible with iDRIVE fitted vehicles

Vehicle Compatibility:

• BMW 3 SERIES (Incl M3) 1997 - 2005 (E46)
• BMW 5 SERIES (Incl M5) 1996 - 2003 (E39)
• BMW MINI 2002 - 2006 (R50)
• BMW X3 2003 - 2010 (E83)
• BMW X5 2000 - 2005 (E53)
• BMW Z4 2003 - 2008 (E85-E86)
• LAND ROVER RANGE ROVER (Incl HSE - VOGUE) 2002 - 2012 (L322)
• ROVER 75 1999 - 2011 (No Chassis Code)

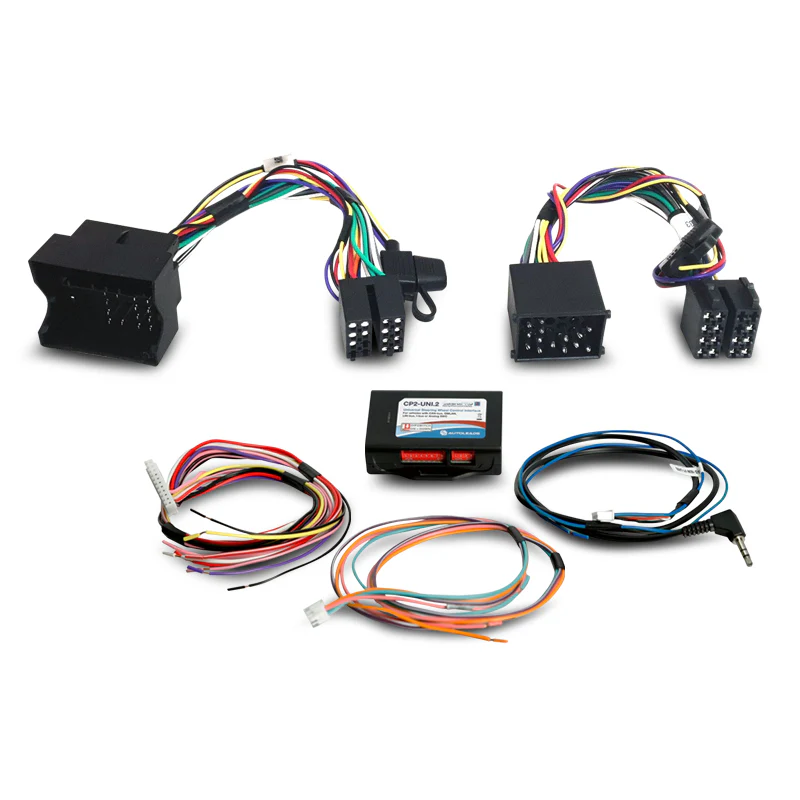

What's in The Box:

• Autoleads ControlPRO.2 CP2-UNI.2 Interface
• 40 PIN Quadlock Vehicle Plug and Play Harness
• 17 PIN Round PIN Type Vehicle Plug and Play Harness
• Bare wire CP2-UNI.2 Harness
• Instruction Manual
