CANM8 C8NECTPARKONE CANNECT Front Park Sensor Interface

Ideal for Use when Installing Aftermarket Front Parking Systems that Require a Control Output Between 0-6 MPH

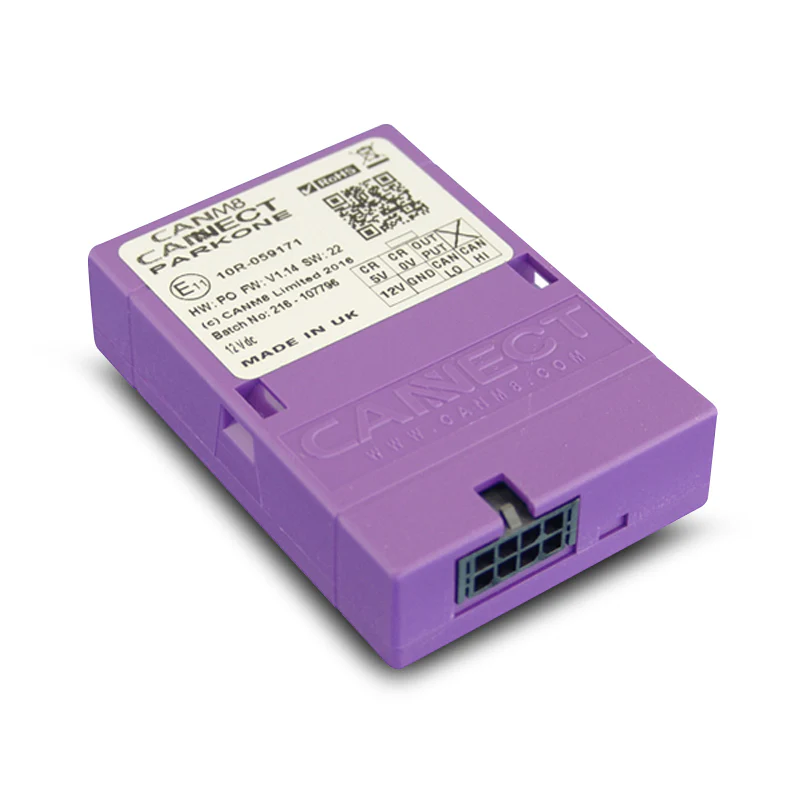

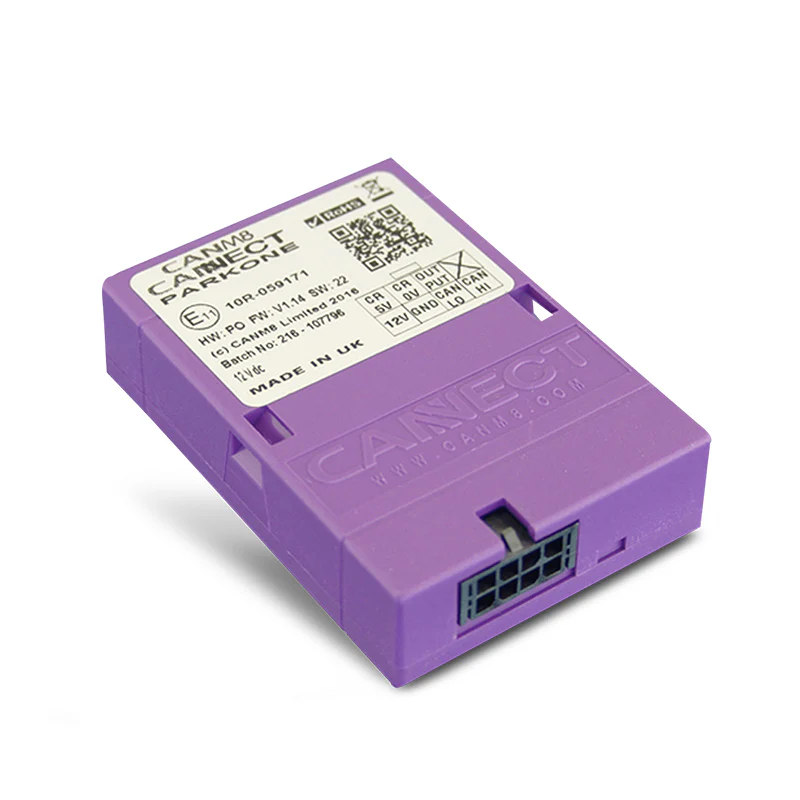

CANM8 CANNECT PARK*ONE
CAN Bus Interface that provides accurate control for aftermarket Front Parking sensors, Side View systems and other equipment that requires a control signal within a specific speed range. The interface will provide an output between 0 – 6 MPH.

Continual Development Program
All CANM8 products have been designed with the future in mind and are continually under redevelopment to support the latest vehicle specifications and customer requirements.

Installation
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN Hi & CAN Lo) along with a connection to a switched 12v power supply and an earth connection. The interface provides a 12V, 1A output when vehicle speed is below 6MPH to activate the parking sensors.

The interface incorporates a multi-function miniature status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status:

• Flashing Red: Searching For CAN Information.
• Solid Red: CAN Data Received But Vehicle Type Not Identified Yet.
• Solid Green: CAN Data Received & Vehicle Type Recognised.
• Flashing Green: Vehicle Speed Detected

Wiring Installation Details:

• White – CAN HI
• Blue – CAN LO
• Black – 0V
• Red – 12V
• Purple – 12V Ignition On Output (Between 0-6 MPH)
