Rockford Fosgate M2-10H M2 10 Inch Color Optix 2-Way Horn Loaded Marine Speaker - White (Pair)
Rockford Fosgate M2-10H M2 10 Inch Color Optix 2-Way Horn Loaded Marine Speaker - White (Pair)
The Rockford Fosgate M2 10 inch horn loaded marine speaker in white delivers class-leading open-air output with Color Optix RGB lighting, Element Ready marine construction, integrated Deutsch/Amphenol plug-and-play connections, and grille customisation. Speaker only - no enclosure or tower clamp included. Sold as a pair. Color Optix controller sold separately.
Product Overview

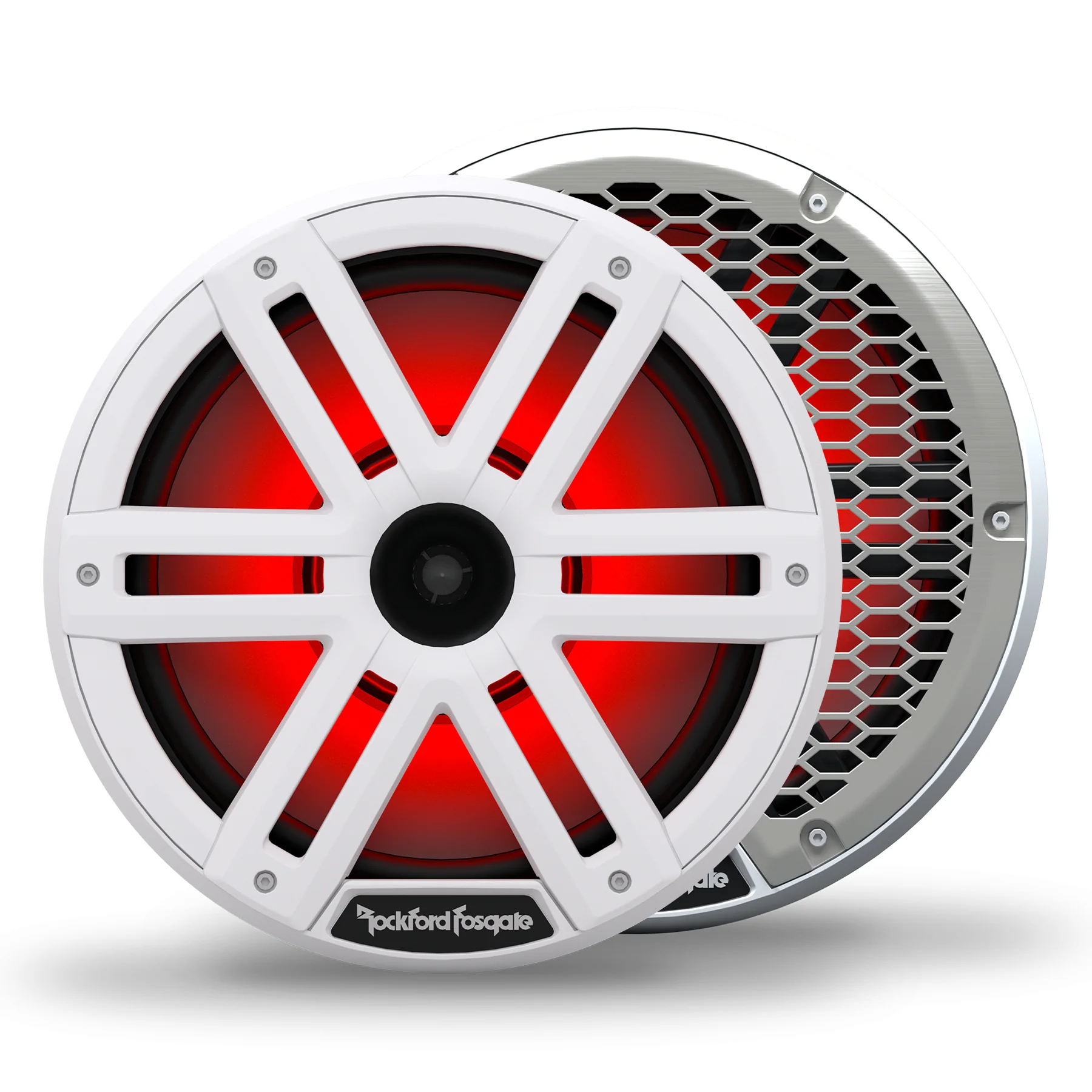

The Rockford Fosgate M2-10H is a pair of 10 inch 2-way horn loaded marine speakers in the M2 series, in white finish with white sport grilles. Specifications are identical to the M2-10HB, with the M2-10H suited to white vessel interiors and decks. The horn loaded driver provides long-range projection with frequency response uniquely tuned for open-air environments. Power handling is 300W RMS and 1200W peak per speaker at 4 Ohm, with 94dB sensitivity at 1W/1M and a mounting depth of 4.66 inches (118.4mm).
The M2-10H features Rockford Fosgate's Color Optix RGB LED system with ultra-bright wide-angle tri-colour surface mount LEDs. The Color Optix PMX-RGB controller and RF Connect app are required for full lighting control and are sold separately. Dual integrated Deutsch and Amphenol connections support flexible installation configurations.
Built to Rockford's Element Ready standard for marine environments, the M2-10H uses a PA66 with 30% glass fill UV-inhibited injection moulded frame, UV and salt-fog resistant TPE surround, moisture and tear resistant Aramid fiber spider, vented motor design with water-repelling nano-coated mesh screen, fully insulated flex lead wire, gold-plated marine grade brass terminals, and IPX6 water intrusion rating. The fully sealed Integrated Concealed Crossover (ICC) network with metallised polyester film capacitors is integrated inside the basket. Both stainless steel and white sport grille inserts are included.
Please note the M2-10H is a speaker only and does not include a wake tower enclosure or clamp system. For the complete loaded tower enclosure with universal clamp, please see the Rockford Fosgate M2WL-10H.
Features & Benefits
Class-Leading Horn Loaded Output: The 10 inch horn loaded driver delivers maximum output and long-range projection in open-air marine environments with 94dB sensitivity at 1W/1M. Suitable for saltwater and freshwater watercraft and some UTV installations.
Color Optix RGB LED Lighting: Ultra-bright wide-angle tri-colour surface mount LEDs with an optically clear UV stable encapsulated PCB provide a fully customisable lighting experience. Full lighting control requires the PMX-RGB Color Optix controller and RF Connect app (sold separately).
Element Ready Marine Construction: PA66 30% glass fill UV-inhibited frame, UV and salt-fog resistant TPE surround, Aramid fiber spider, nano-coated vented motor, and fully insulated flex lead wire provide complete marine-grade durability.
Fully Sealed ICC Crossover Network (12dB/Octave): The Integrated Concealed Crossover is fully sealed inside the basket with metallised polyester film capacitors for long-term environmental protection and a cleaner installation.
Integrated 1 Inch High-Efficiency Horn Tweeter: The 1 inch (25.4mm) high-efficiency horn tweeter is integrated into the driver for a seamless 2-way horn loaded speaker design.
VAST Surround Technique with Co-Moulded Cone and Surround: The VAST co-moulded TPE surround increases the effective radiating cone area by up to 25% and forms a strong bond at the mounting point.
Dual Deutsch/Amphenol Connections: Integrated Deutsch RGB and speaker receptacles with proprietary dual function input terminals provide industry-leading marine plug-and-play connectivity.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | M2-10H |
| Brand | Rockford Fosgate |
| Series | M2 |
| Type | 2-Way Horn Loaded Marine Speaker |
| Colour | White |
| Quantity | Pair (2 speakers) |
| Speaker Size | 10 inch |
| Tweeter | 1 inch (25.4mm) High-Efficiency Integrated Horn Tweeter |
| Mounting Depth | 4.66 inch (118.4mm) |
| Power Handling (RMS) | 300W per speaker |
| Power Handling (Peak) | 1200W per speaker |
| Nominal Impedance | 4 Ohm |
| Sensitivity | 94dB @ 1W/1M / 97dB @ 2.83V |
| Frequency Response | 20Hz - 25kHz |
| Crossover | 12dB/Octave ICC (Integrated Concealed Crossover, fully sealed) |
| Frame | PA66 30% Glass Fill, UV Inhibited Injection Moulded |
| Surround | UV and Salt-Fog Resistant TPE (VAST co-moulded) |
| Spider | Moisture, Tear and Fatigue Resistant Aramid Fiber |
| Speaker Connector | Integrated Deutsch / Amphenol |
| LED | Ultra-Bright Wide-Angle Tri-Colour RGB SMD LEDs |
| IP Rating | IPX6 |
| Terminals | Gold-Plated Marine Grade Brass |
| Certifications | Klippel Verified, CEA-2031, CE Compliant |
| Enclosure | Not included - speaker only |
| Warranty | 2 Years |

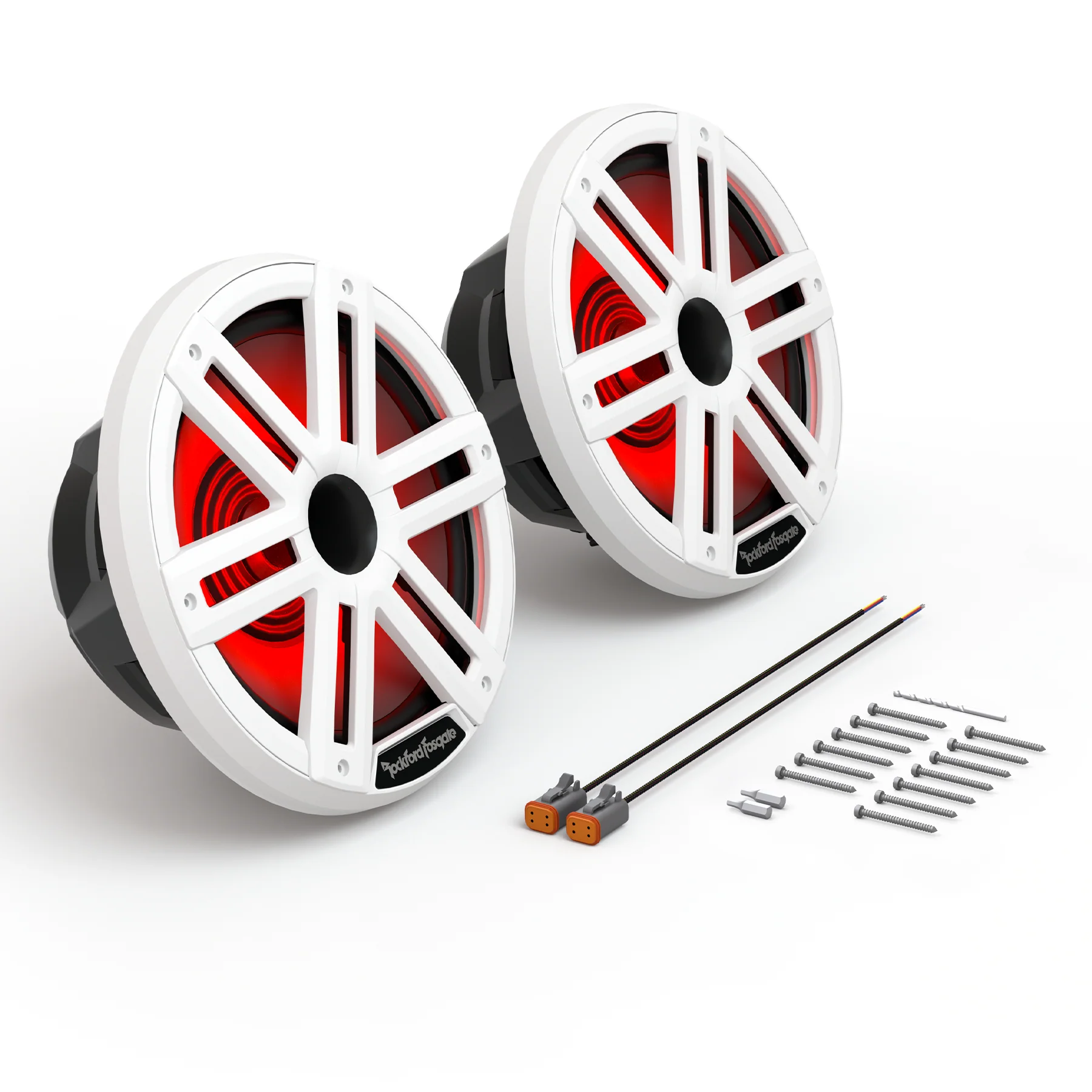

What's in the Box
- 2x M2-10H Horn Loaded Marine Speakers
- 2x 4-Pin Deutsch Harnesses (1130-74637-01)
- 2x Stainless Steel Grilles
- 2x White Sport Grilles
- 2x Driver Bits
- 1x Drill Bit
- 12x Mounting Screws
Goes Well With
- Rockford Fosgate PMX-RGB Color Optix Controller (sold separately - required for full RGB lighting control via RF Connect app)

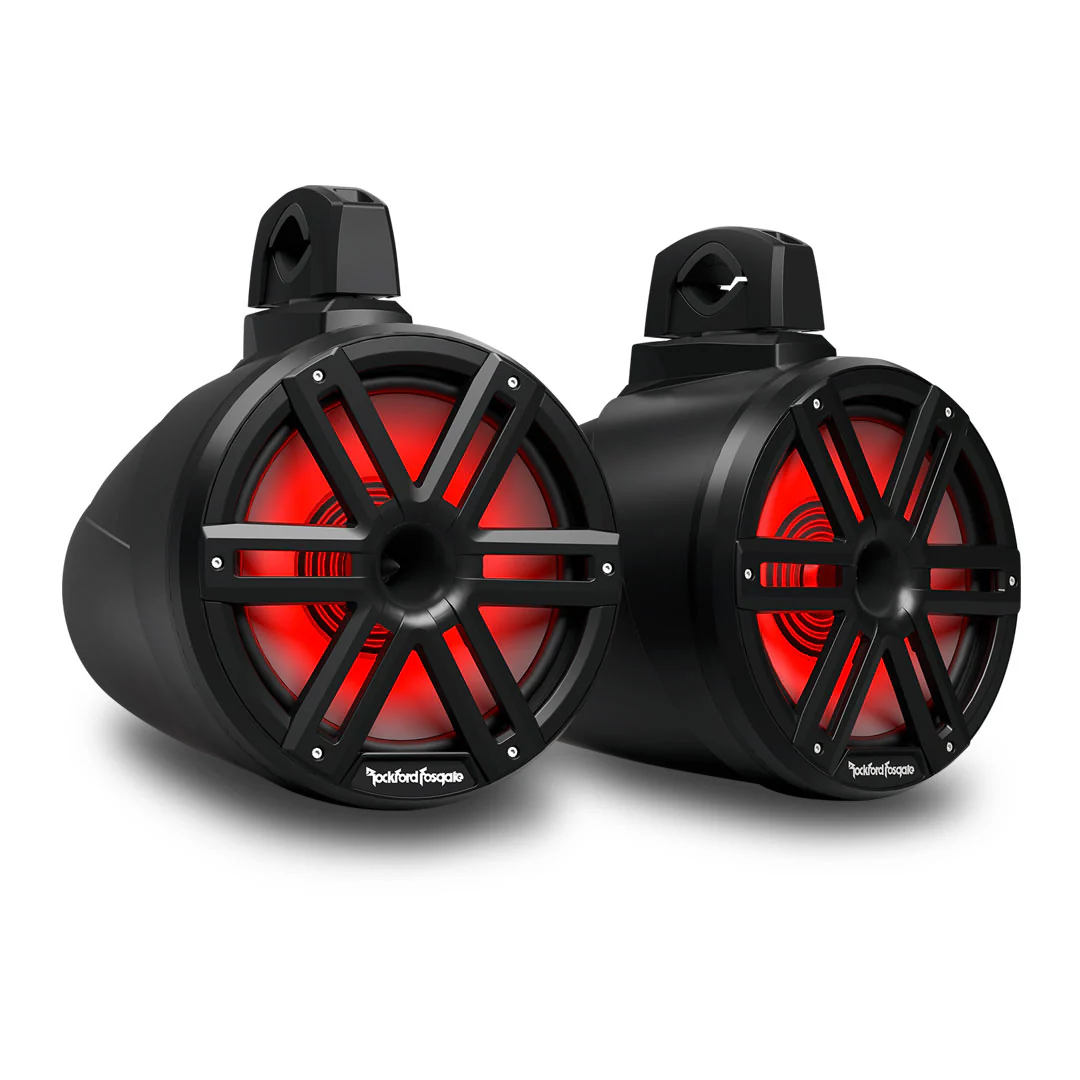

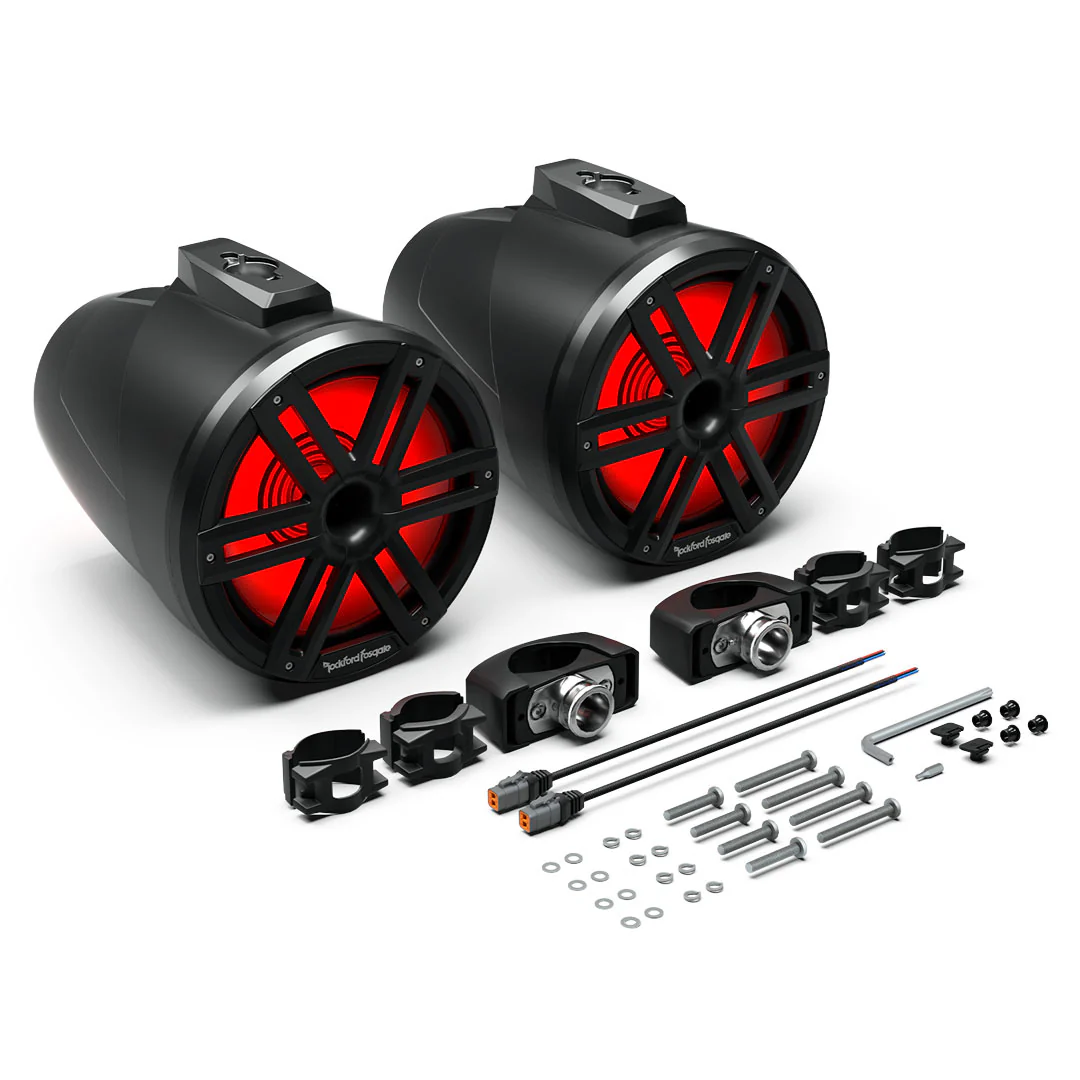

- Rockford Fosgate M2WL-10H (loaded wake tower enclosure version with universal clamp system)
Frequently Asked Questions
What is the difference between the M2-10H and the M2-10HB?

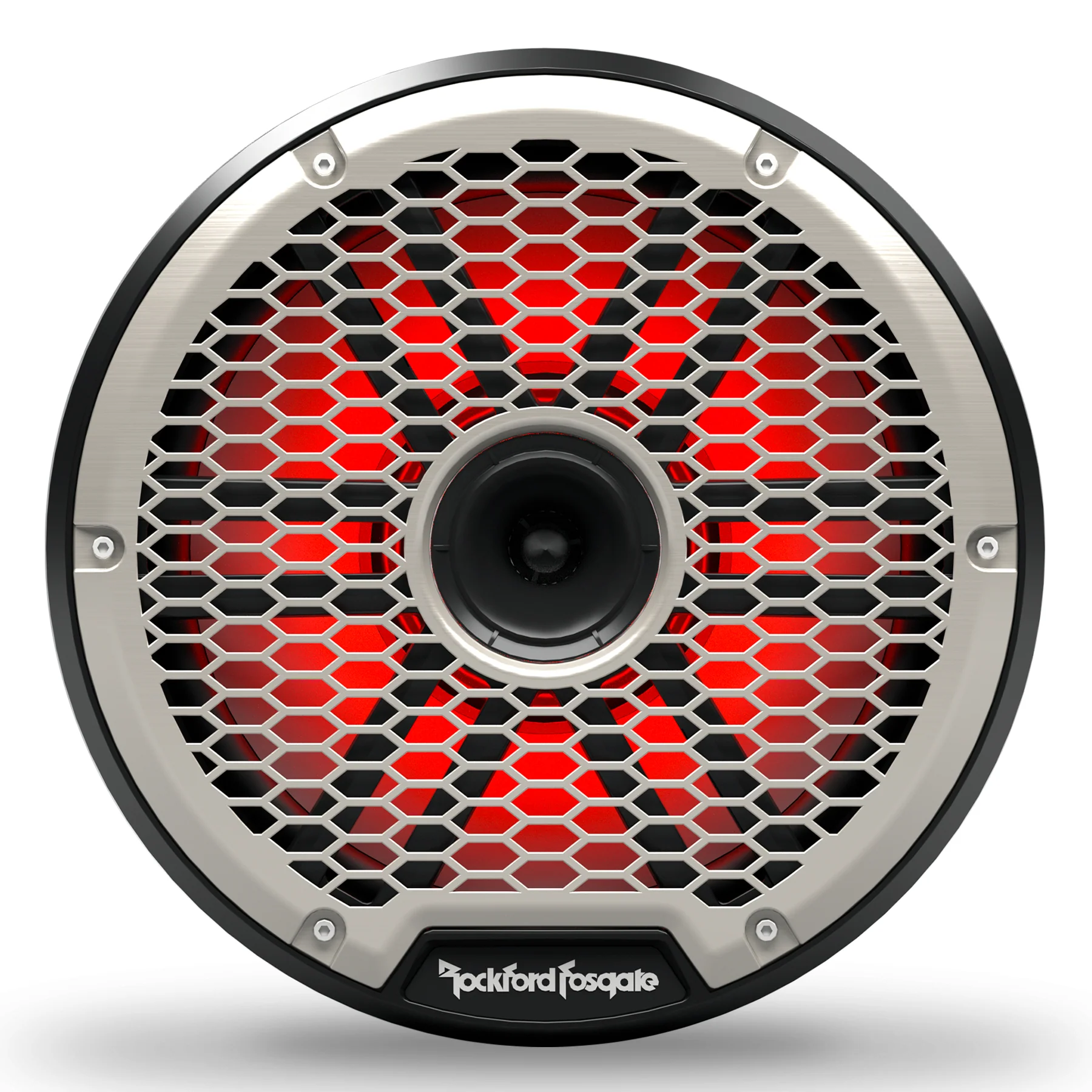

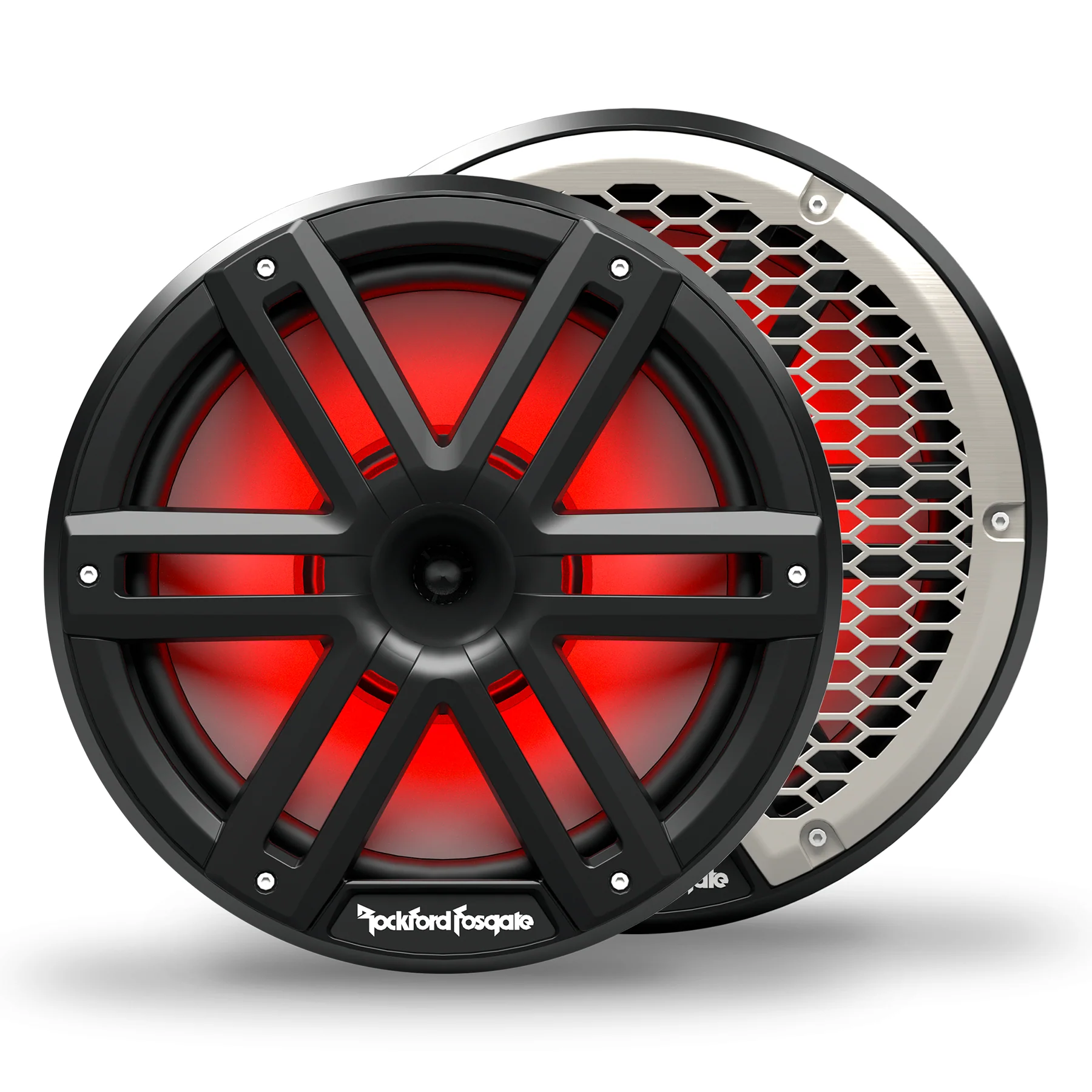

The M2-10H and M2-10HB are identical in specifications. The M2-10H is the white finish variant with white sport grilles, while the M2-10HB is the black finish variant with black sport grilles. Both include stainless steel grilles. Choose based on the colour scheme of your vessel or installation.
What is the difference between the M2-10H and the M2WL-10H?
The M2-10H is the speaker-only version and does not include a wake tower enclosure or universal clamp system. The M2WL-10H is a complete loaded wake tower enclosure with a universal clamp fitting tower bars from 1.5 to 3 inches. If you require a self-contained tower mounting solution, the M2WL-10H is recommended.
Is the Color Optix controller included with the M2-10H?
No. The Color Optix PMX-RGB controller and RF Connect app are sold separately and are required for full RGB lighting control and colour adjustment.
Are both grille options included in the box?

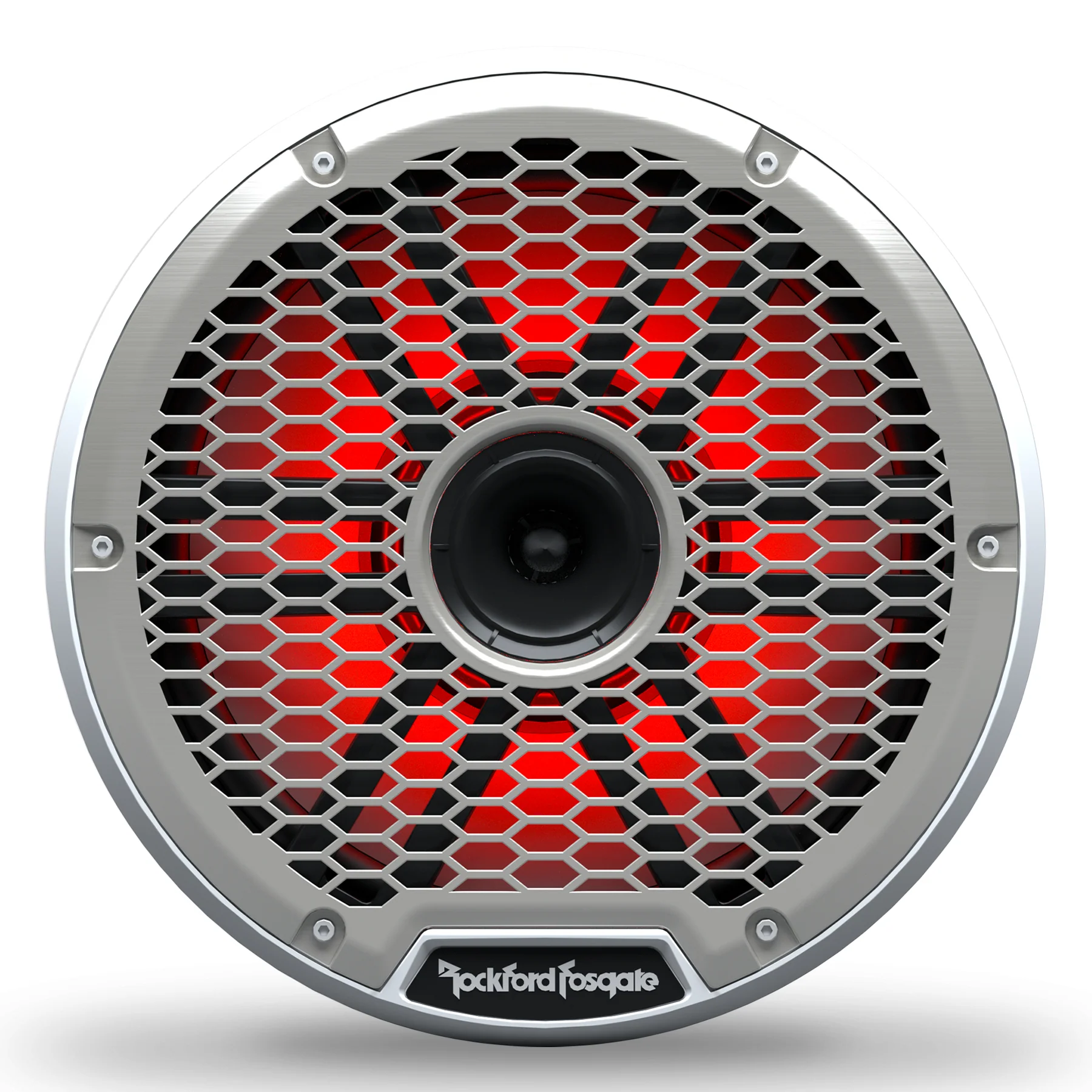

Yes. Both stainless steel grille inserts and white sport grille inserts are included in the box.
What is the IPX6 rating and what does it mean for marine use?
IPX6 means the speakers are rated to withstand water projected in powerful jets from any direction without harmful effects. Combined with the UV and salt-fog resistant TPE surround, Aramid fiber spider, nano-coated vented motor, and fully sealed ICC crossover, the M2-10H is purpose-built for the demanding salt and freshwater marine environment.
