Rockford Fosgate M2WL-10HB M2 10 Inch Color Optix 2-Way Horn Loaded Wake Tower Speakers - Black (Pair)
Rockford Fosgate M2WL-10HB M2 10 Inch Color Optix 2-Way Horn Loaded Wake Tower Speakers - Black (Pair)
The Rockford Fosgate M2 10 inch horn loaded wake tower speakers deliver class-leading on-water output with Color Optix RGB lighting, Element Ready marine construction, dual Deutsch/Amphenol plug-and-play connections, and full grille customisation. Sold as a pair. Color Optix controller sold separately.
Product Overview

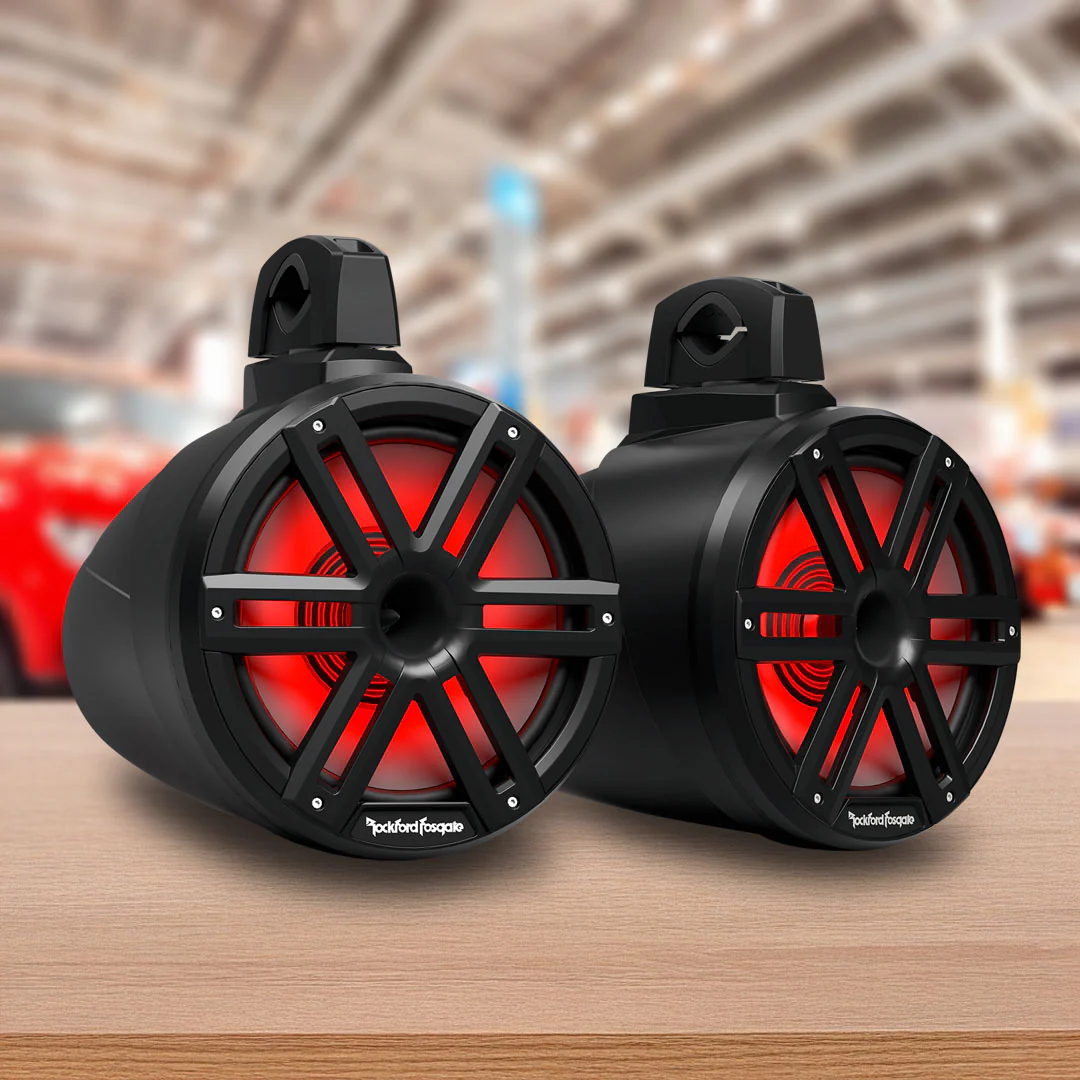

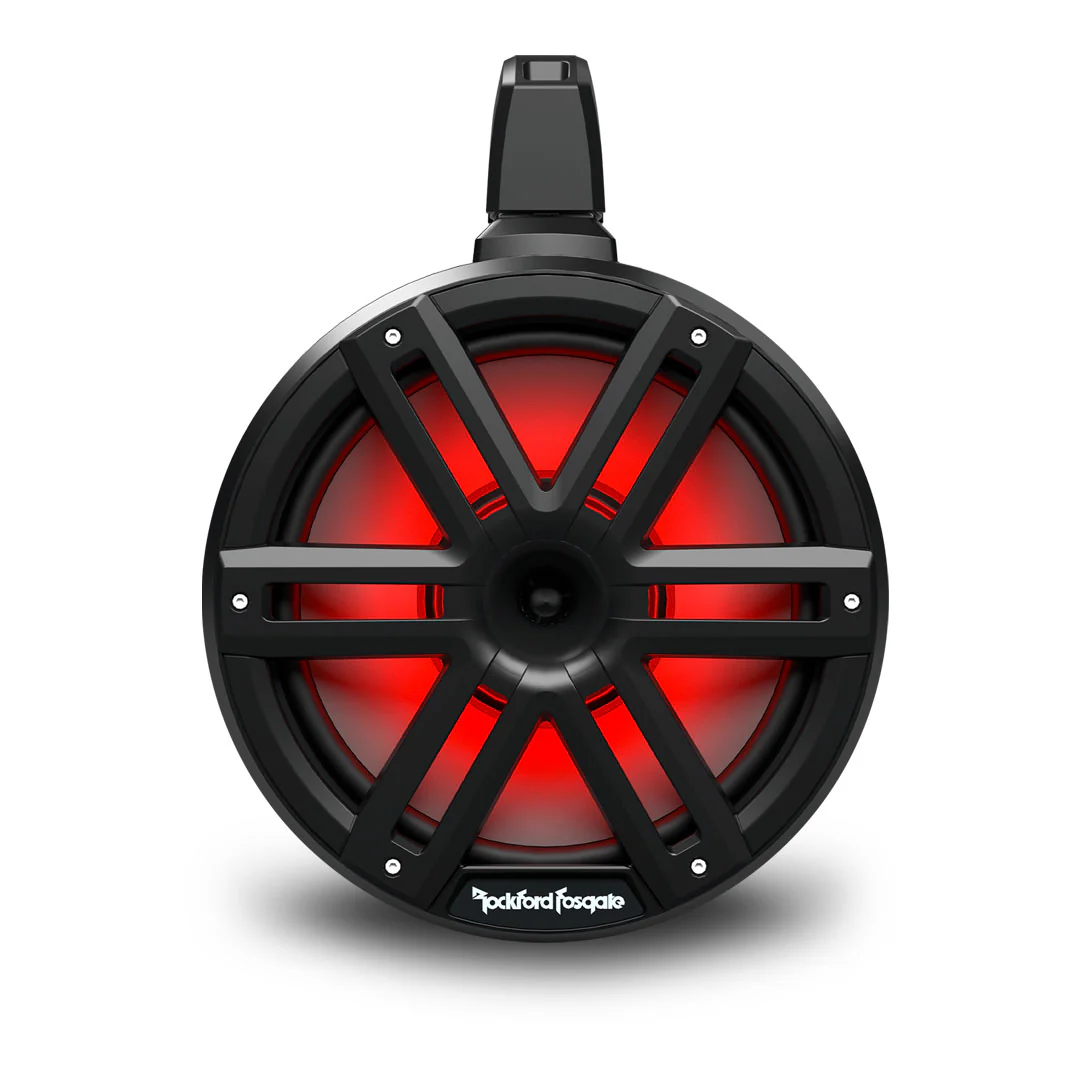

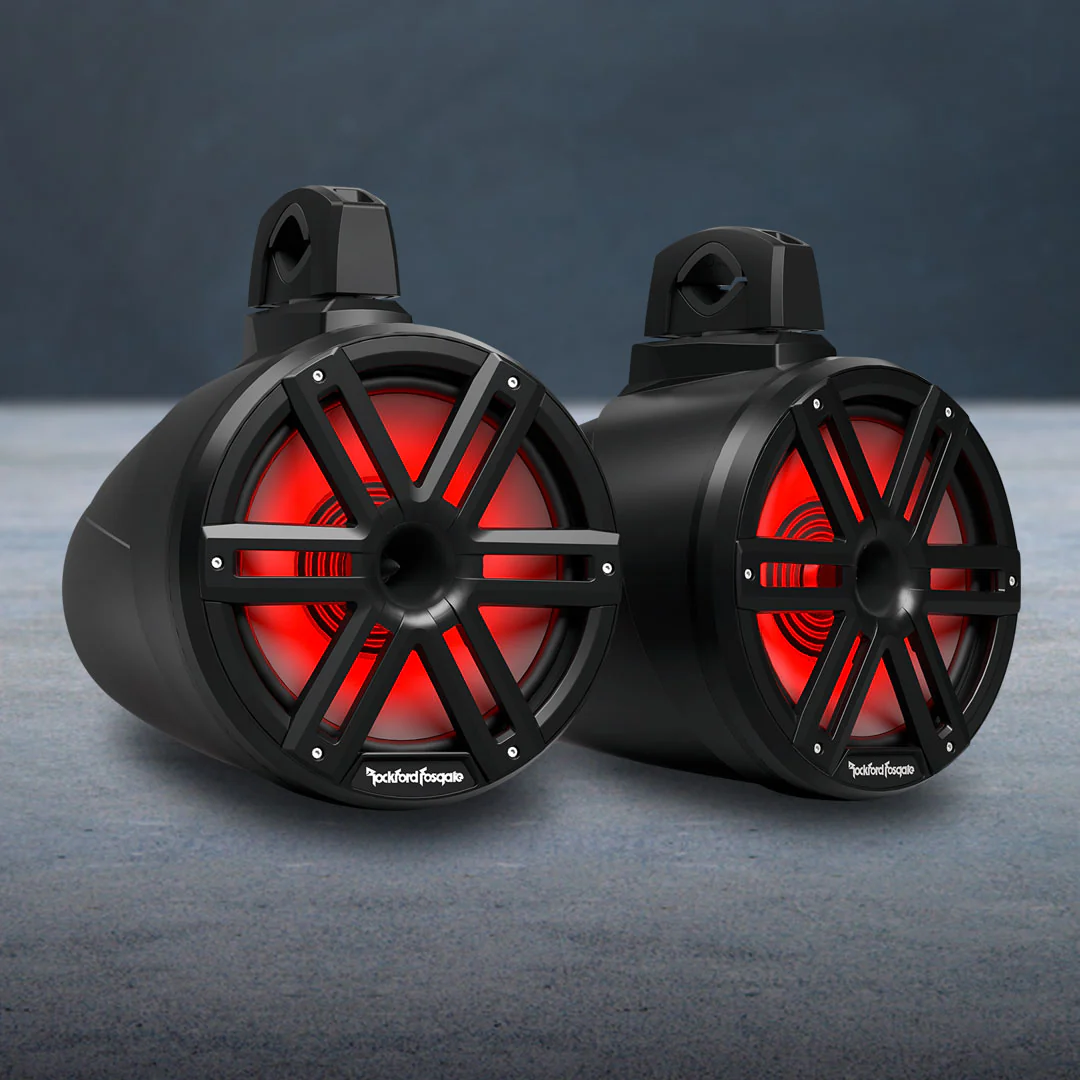

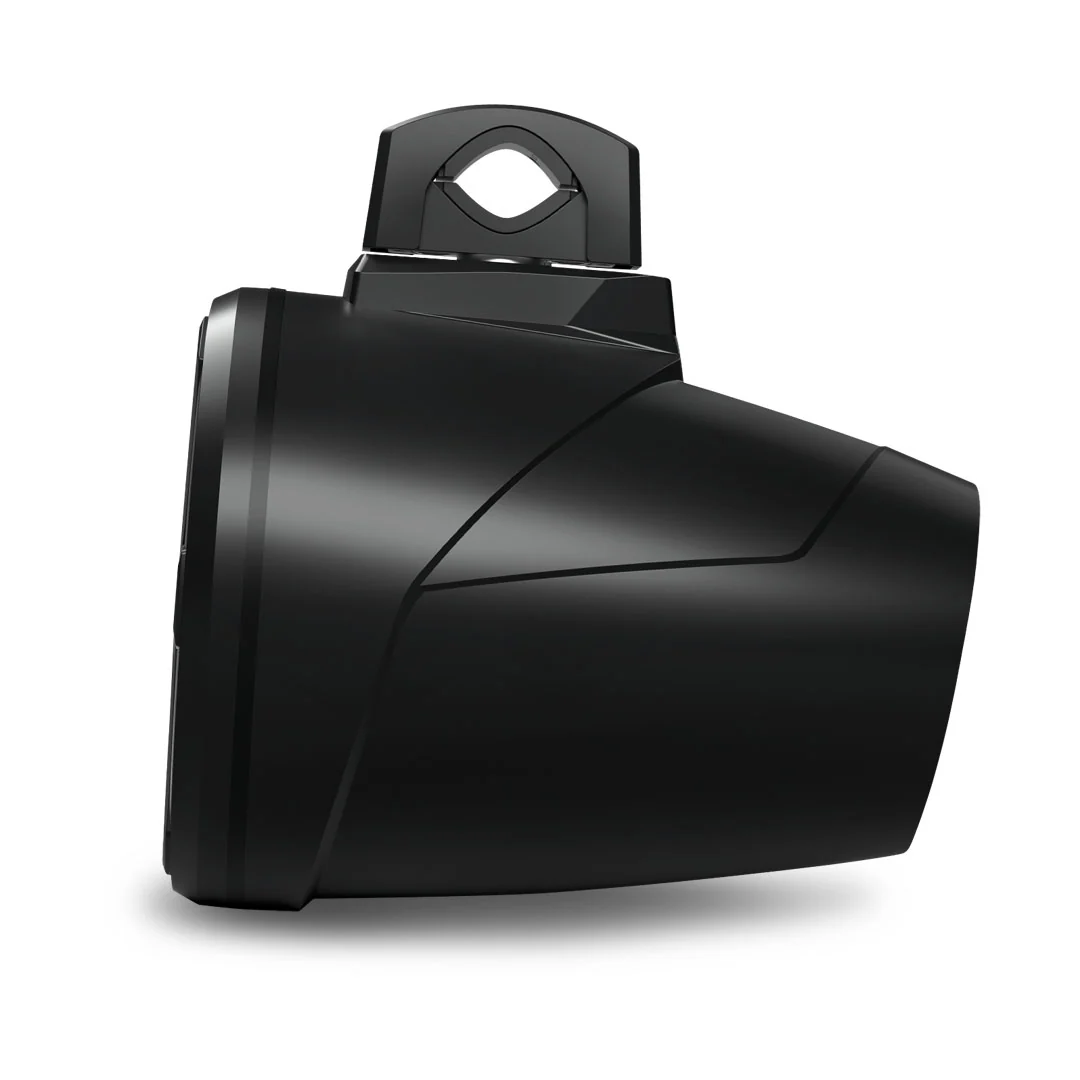

The Rockford Fosgate M2WL-10HB is a pair of 10 inch 2-way horn loaded wake tower speakers in the M2 marine series, engineered to deliver maximum output in open-air marine and on-water environments. The horn loaded driver design provides long-range projection for listeners at a distance from the speaker, with a frequency response uniquely tuned for open-air listening. Power handling is 300W RMS and 1200W peak per speaker at 4 Ohm impedance.
The M2WL-10HB features Rockford Fosgate's Color Optix RGB LED system with bright, wide-angle LEDs and a 3DIL 360-degree rotating rear illuminated logo medallion that stays correctly oriented regardless of mounting angle. The Color Optix controller and RF Connect app are sold separately and required for full lighting control. Dual integrated Deutsch and Amphenol connections in two locations support thru-clamp and direct-mount configurations for flexible installation.
Built to Rockford's Element Ready standard for marine environments, the M2WL-10HB uses 100% UV stable ASA plastic frame and grille materials, gold-plated marine grade brass terminals, Deutsch DT connectors with front and rear silicone seals, and an IPX6 water intrusion rating. The universal clamp system accommodates bar diameters from 1.5 to 3 inches with near 360-degree rotation. Both stainless steel and black sport grille inserts are included.
Features & Benefits
Class-Leading Horn Loaded Output: The 10 inch horn loaded driver is engineered for maximum output and long-range projection in open-air marine environments, with frequency response tuned for on-water listening at a distance from the speaker. Suitable for salt or freshwater watercraft and some UTV installations.

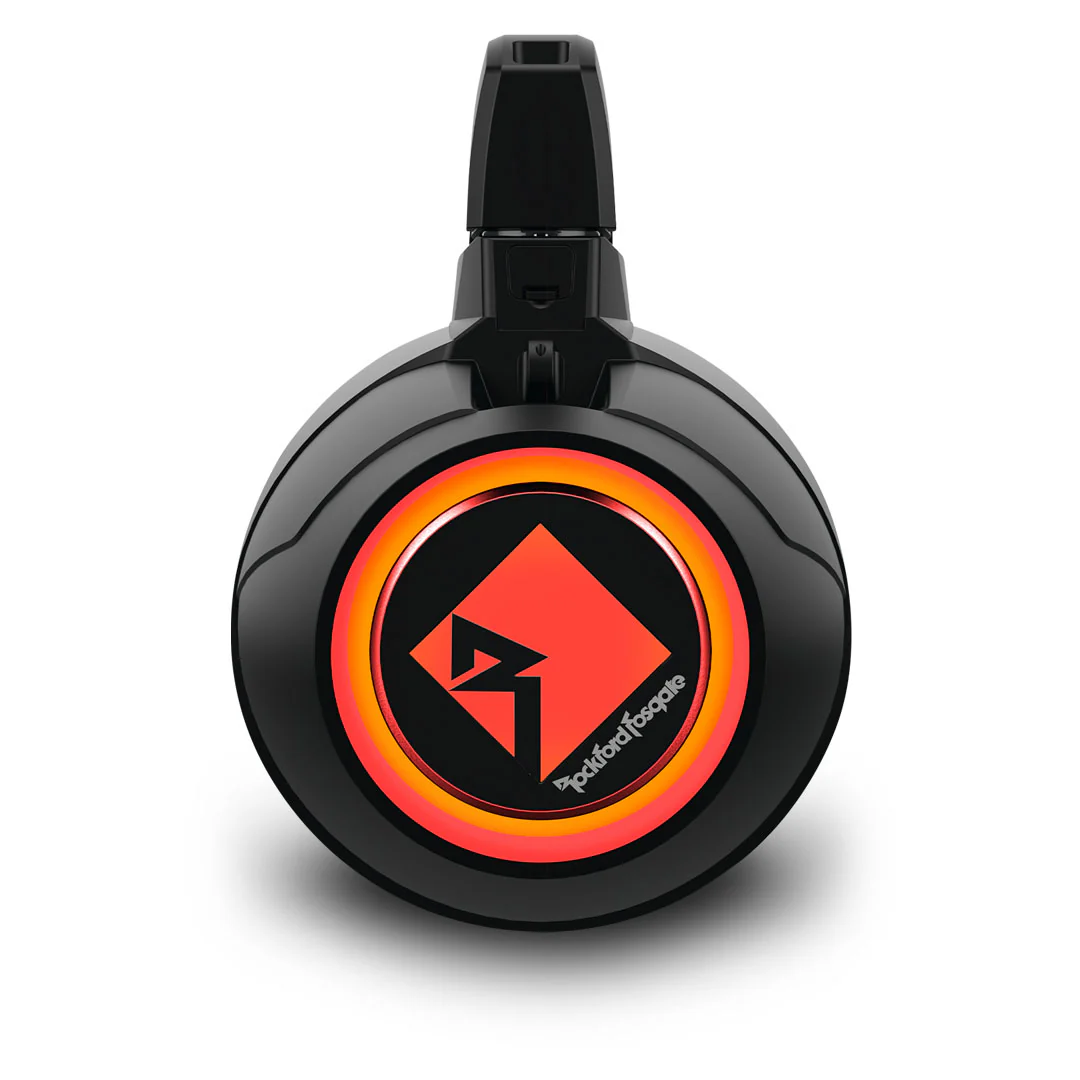

Color Optix RGB LED Lighting: Wide-angle RGB LEDs and a 3DIL 360-degree rotating rear illuminated logo medallion provide a fully customisable lighting experience. Full lighting control requires the PMX-RGB Color Optix controller and RF Connect app (sold separately).
Element Ready Marine Construction: All components are built to withstand water, salt, UV, dust, temperature extremes, corrosion, and vibration. The frame and grille are made from 100% UV stable ASA plastic with an IPX6 water intrusion rating.
Dual Deutsch/Amphenol Plug-and-Play Connections: Integrated Deutsch and Amphenol connections in two locations support both thru-clamp and direct-mount configurations, with Deutsch DT connectors featuring front and rear silicone seals for environmental protection.

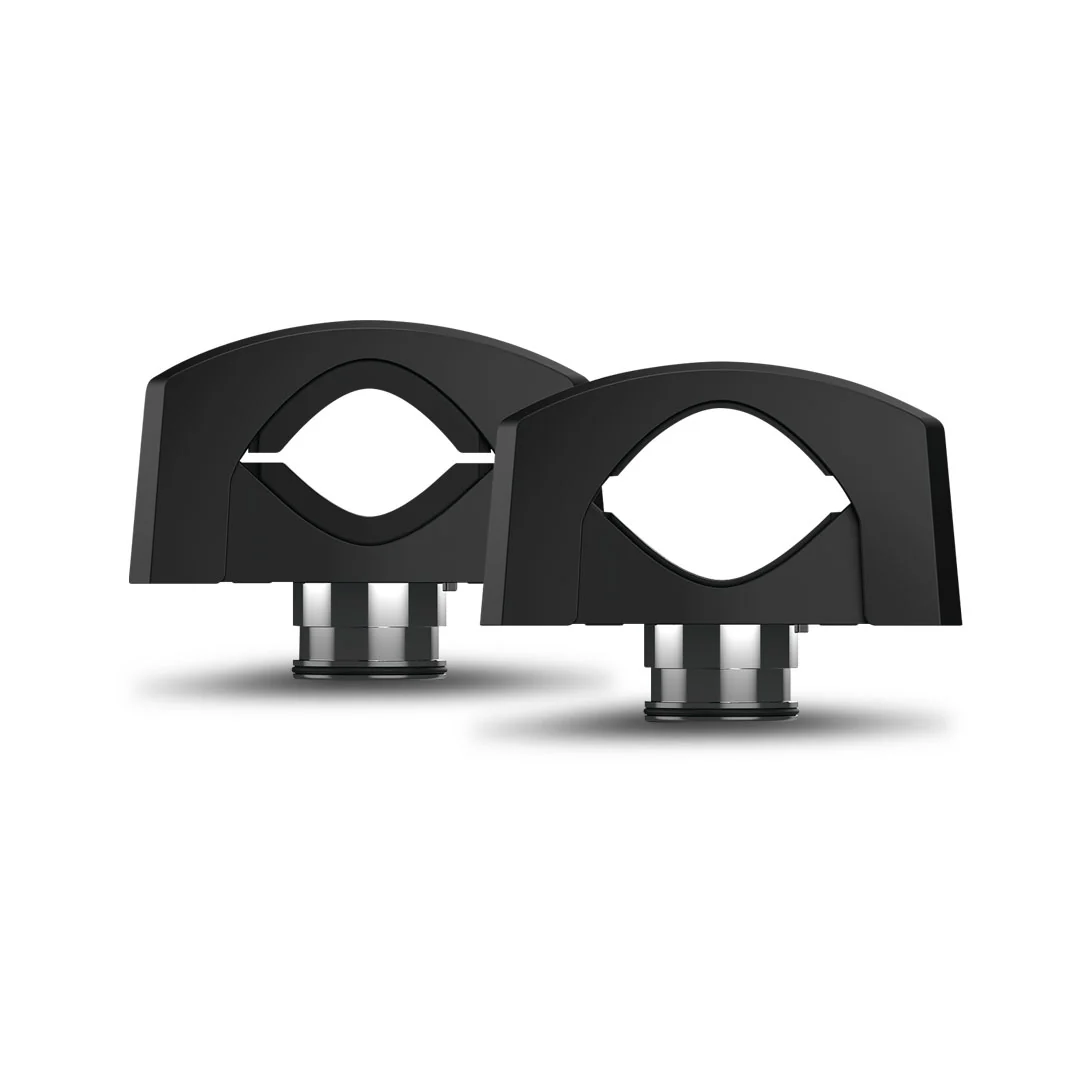

Universal Clamp System with Near 360-Degree Rotation: The universal clamp fits tower bars from 1.5 to 3 inches in diameter with near 360-degree rotation for flexible positioning and angle adjustment.
Integrated 1 Inch Horn Tweeter with ICC Crossover: The integrated 1 inch (25mm) high-efficiency horn tweeter is paired with an Integrated Concealed Crossover (ICC) hidden inside the basket for a cleaner look and easier installation.
VAST Surround Technique: The Vertical Attach Surround Technique (VAST) co-moulds the surround to the cone, increasing effective radiating cone area by up to 25% for improved bass and midrange performance.

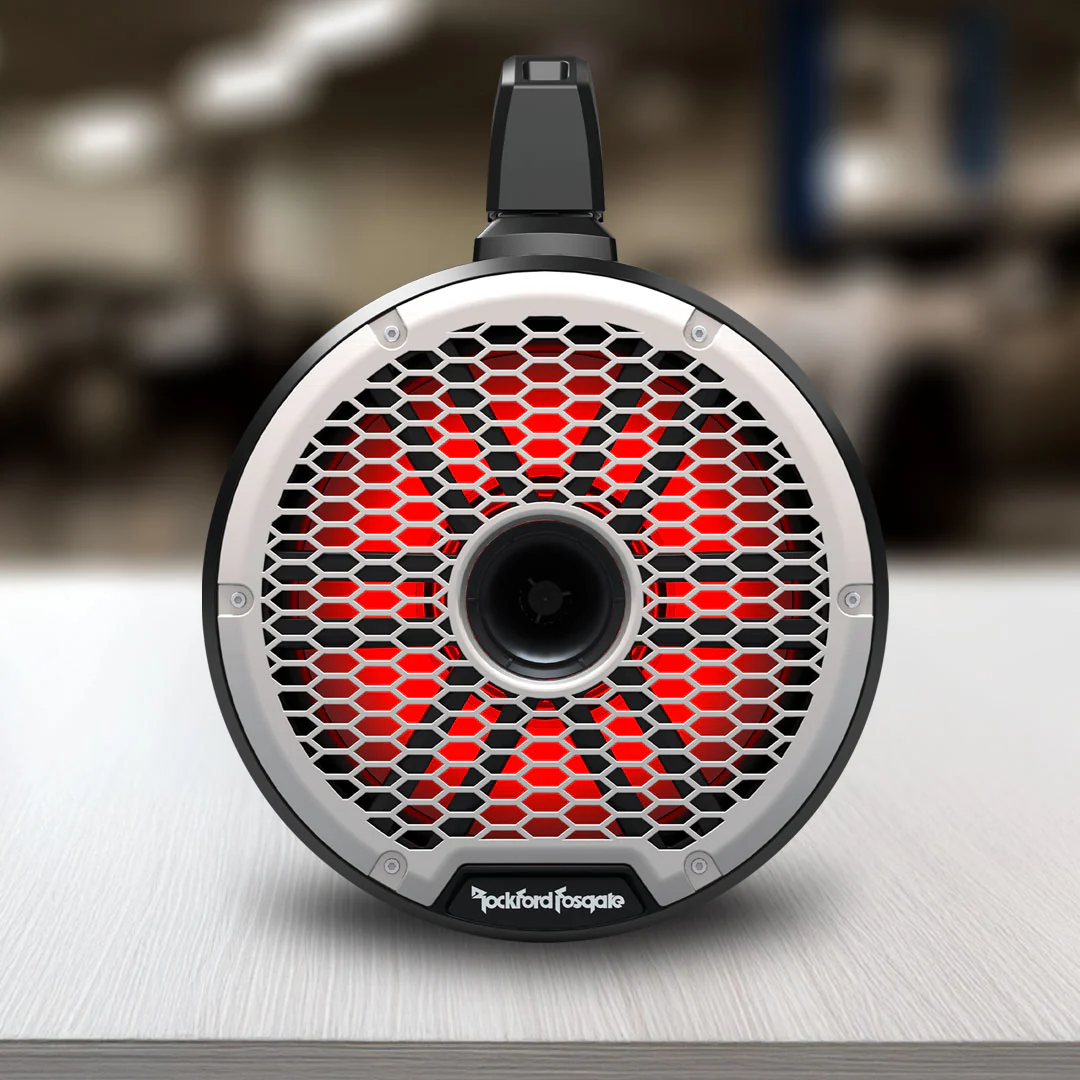

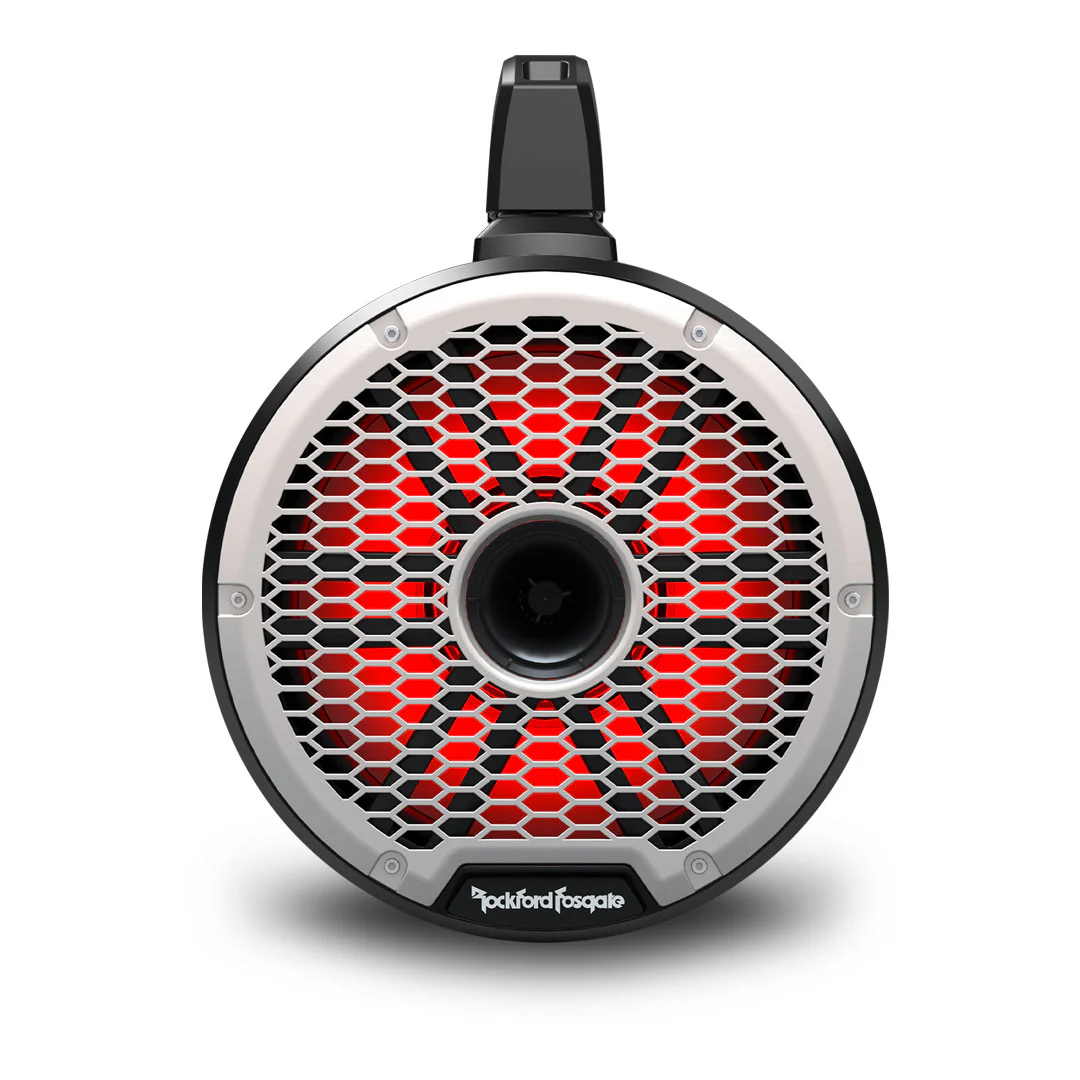

Stainless Steel and Sport Grilles Included: Both stainless steel grille inserts (pre-installed) and black sport grille inserts are included in the box for grille customisation.
Klippel Verified: Klippel certification ensures the drivers are engineered and measured to the highest performance standards.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | M2WL-10HB |
| Brand | Rockford Fosgate |
| Series | M2 |
| Type | 2-Way Horn Loaded Wake Tower Speaker |
| Colour | Black |
| Quantity | Pair (2 speakers) |
| Speaker Size | 10 inch |
| Enclosure Design | Sealed |
| Enclosure Material | High Density ASA |
| Power Handling (RMS) | 300W per speaker |
| Power Handling (Peak) | 1200W per speaker |
| Nominal Impedance | 4 Ohm |
| Frequency Response | 20Hz - 25kHz |
| Tweeter | 1 inch (25mm) Integrated Horn Tweeter |
| Crossover | ICC - Integrated Concealed Crossover |
| Speaker Connector | 6-pin Deutsch / Amphenol |
| LED Voltage Range | 9-16 VDC |
| LED Current Draw | 0.25A |
| LED Recommended Fuse | 1A |
| Bar Clamp Diameter | 1.5 inch to 3 inch |
| Clamp Rotation | Near 360 degrees |
| IP Rating | IPX6 |
| Terminals | Gold-Plated Marine Grade Brass |
| Surround | VAST - Vertical Attach Surround Technique |
| Certifications | Klippel Verified, CE Compliant |
| Dimensions | 386.9mm (L) x 292.1mm (W) x 372.8mm (H) |
| Warranty | 2 Years |

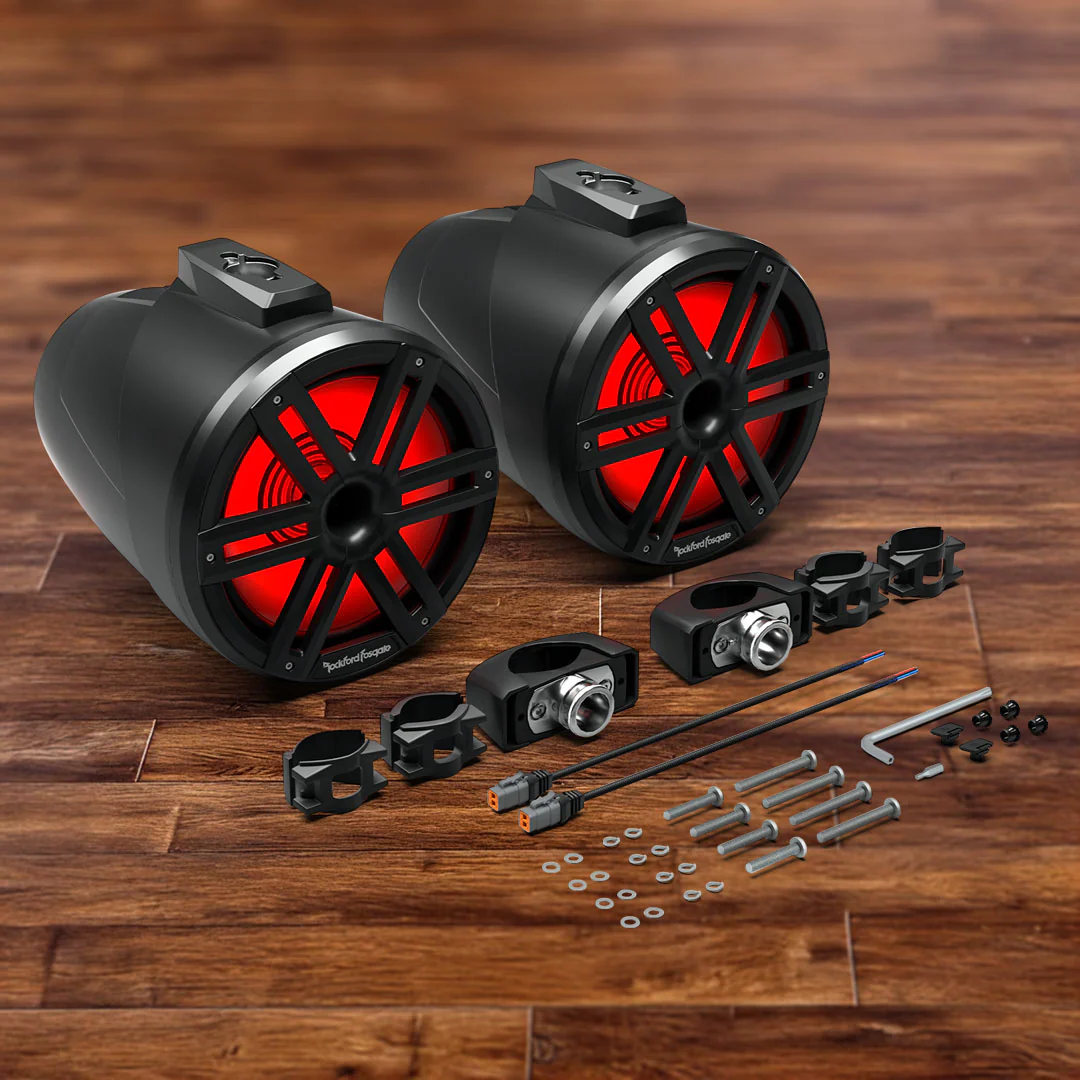

What's in the Box
- 2x M2 10" Loaded Wake Tower Cans
- 2x Universal Clamps (1130-74671-A1)
- 2x Grommets
- 2x Spare Safety Inserts for Screw Clamp
- 2x 6-Pin Deutsch Harnesses (1130-73416-C1)
- 2x 1.5"-2.5" Rubber Inserts and Stainless Screws
- 2x 2.5"-3.0" Rubber Inserts and Stainless Screws
- 2x Black Sport Grilles
- 1x Safety Torx Wrench
- 1x Allen Bit for Rotating Speakers in Can
Goes Well With
- Rockford Fosgate PMX-RGB Color Optix Controller (sold separately - required for full RGB lighting control via RF Connect app)
Frequently Asked Questions
Is the Color Optix controller included with the M2WL-10HB?
No. The Color Optix PMX-RGB controller and RF Connect app are sold separately and are required for full RGB lighting control and colour adjustment. The speakers will function as audio drivers without the controller, but lighting customisation requires the PMX-RGB.
What size tower bars do the M2WL-10HB clamps fit?
The universal clamp system accommodates tower bar diameters from 1.5 to 3 inches, with near 360-degree rotation for flexible positioning. Both 1.5"-2.5" and 2.5"-3.0" rubber inserts and stainless screws are included to cover the full range.
Are both grille options included in the box?
Yes. Both stainless steel grille inserts (pre-installed) and black sport grille inserts are included in the box, allowing you to switch between the two styles without any additional purchase.
What is the IPX6 rating and what does it mean for marine use?
IPX6 means the speakers are rated to withstand water projected in powerful jets from any direction without harmful effects. Combined with the Element Ready construction - UV stable ASA plastics, silicone-sealed Deutsch connectors, and gold-plated brass terminals - the M2WL-10HB is purpose-built for the demanding salt and freshwater marine environment.
Can the M2WL-10HB be used on a UTV as well as a boat?
Yes. Due to the horn loaded design's long-range projection capability, the M2WL-10HB is suitable for use on saltwater and freshwater watercraft as well as some UTV installations where high-output, open-air speakers are required.
