Morel MPS 5.950 4 x70 + 350 at 4 ohm 4 x 100 + 550 at 2 ohm

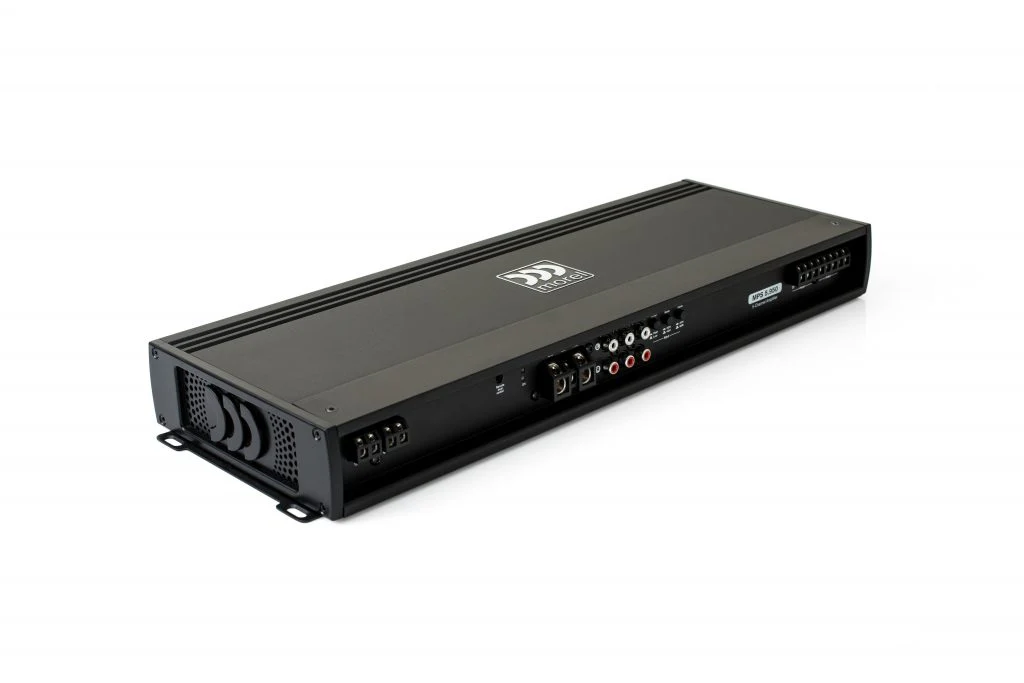

Morel MPS 5.950 - 5-Channel Class AB+D Amplifier

Professional 5-channel amplifier combining 4-channel speaker amplification with dedicated monoblock subwoofer section, engineered for complete system integration with advanced controls.

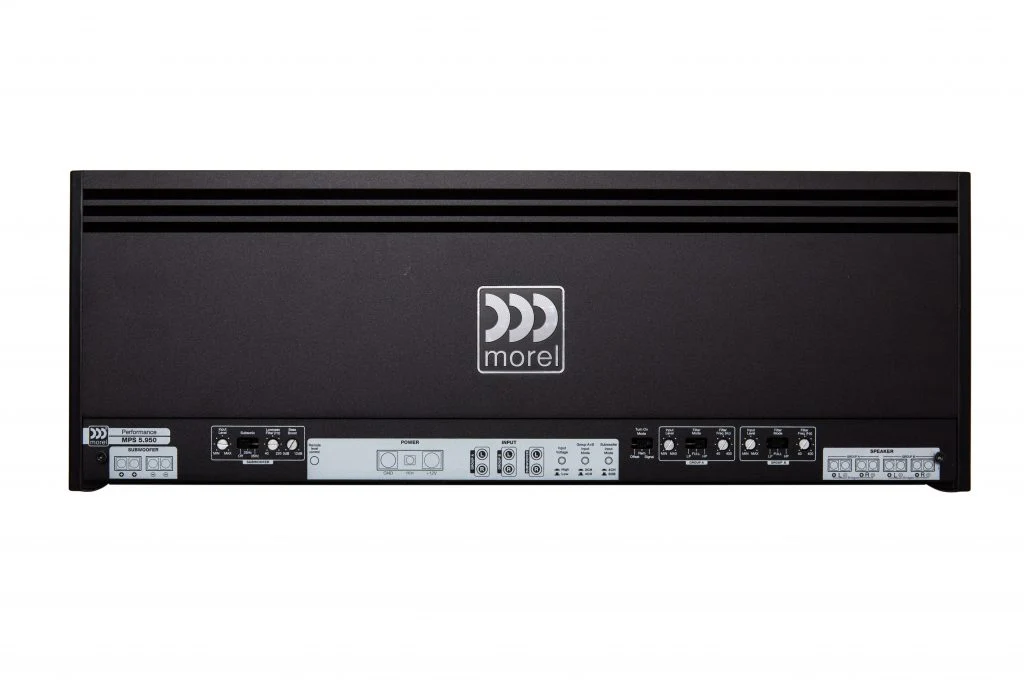

The Morel MPS 5.950 integrates seamlessly with complete Morel speaker systems, powering full-range and subwoofer drivers with superior engineering and thoughtful design. This 5-channel hybrid amplifier delivers 4 x 70W RMS + 1 x 350W RMS at 4 ohms and 4 x 100W RMS + 1 x 550W RMS at 2 ohms, combining Class AB main channels with efficient Class D subwoofer amplification. The unit features top-mounted level and filter controls concealed beneath a removable chassis panel for easy adjustments and clean installation aesthetics. Noise eliminating balanced line inputs accept signal from most sources, including high-level inputs up to 20 volts for factory system integration. Advanced integration features include auto turn-on through signal sensing and DC offset sensing, making the MPS 5.950 ideal for complete factory audio system upgrades. The amplifier includes selectable input range (x1/x2/x4), HP/LP filters for main channels (40-400 Hz), low-pass filters for sub channel (40-220 Hz) with 12 dB/octave slopes, sub level control (0-20dB), subsonic filter (Off/25/35Hz), and 2/4 or 6 channel input modes for maximum system flexibility.

Specifications
