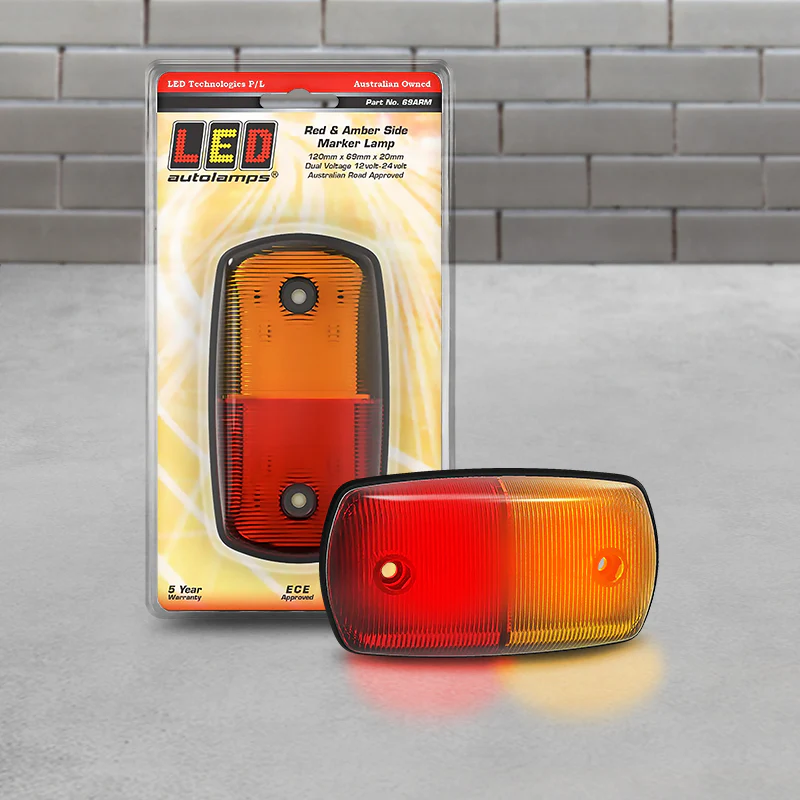

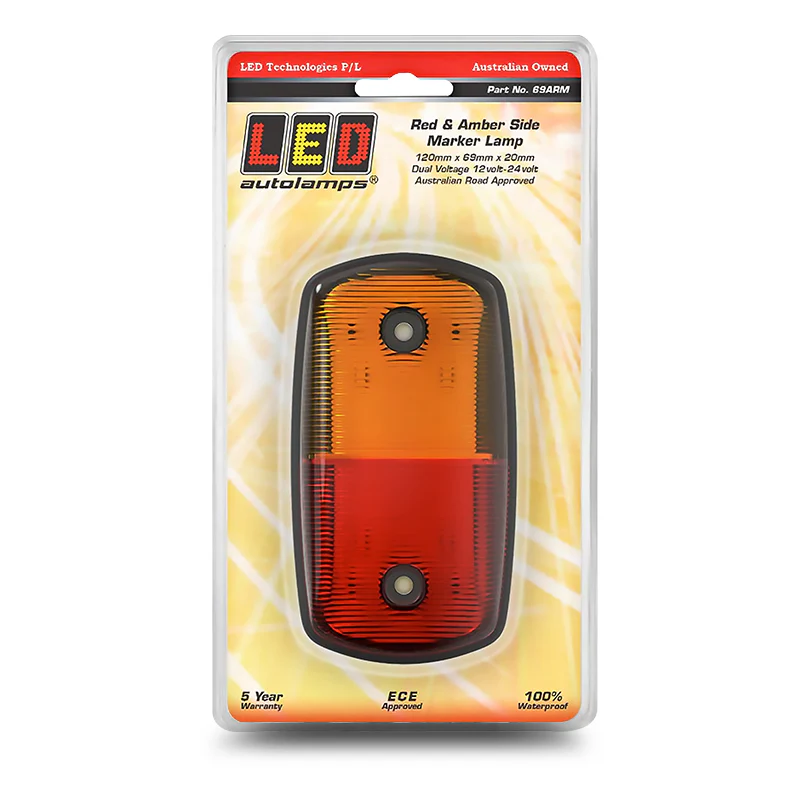

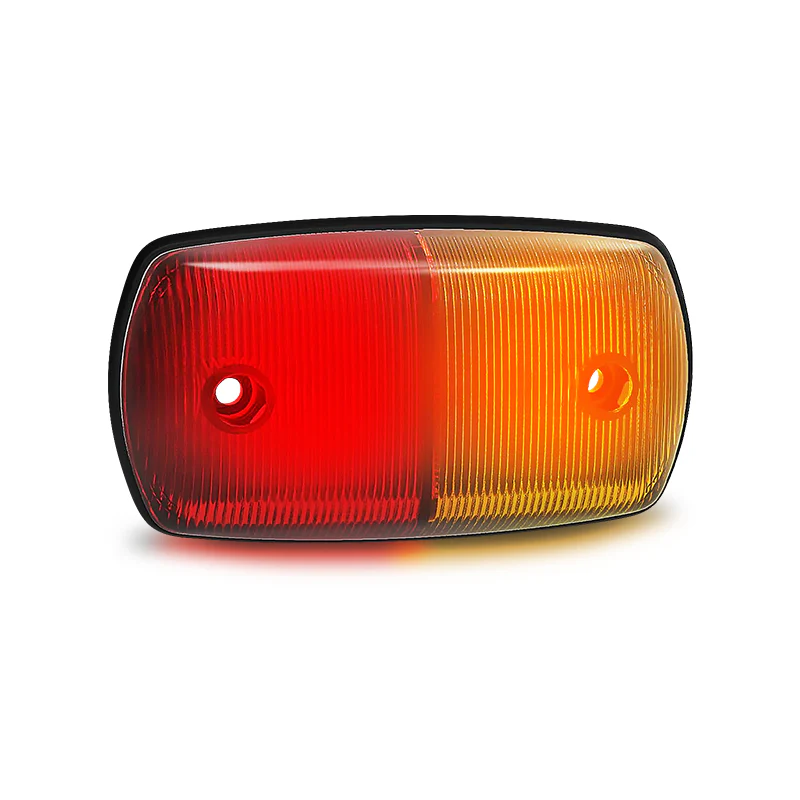

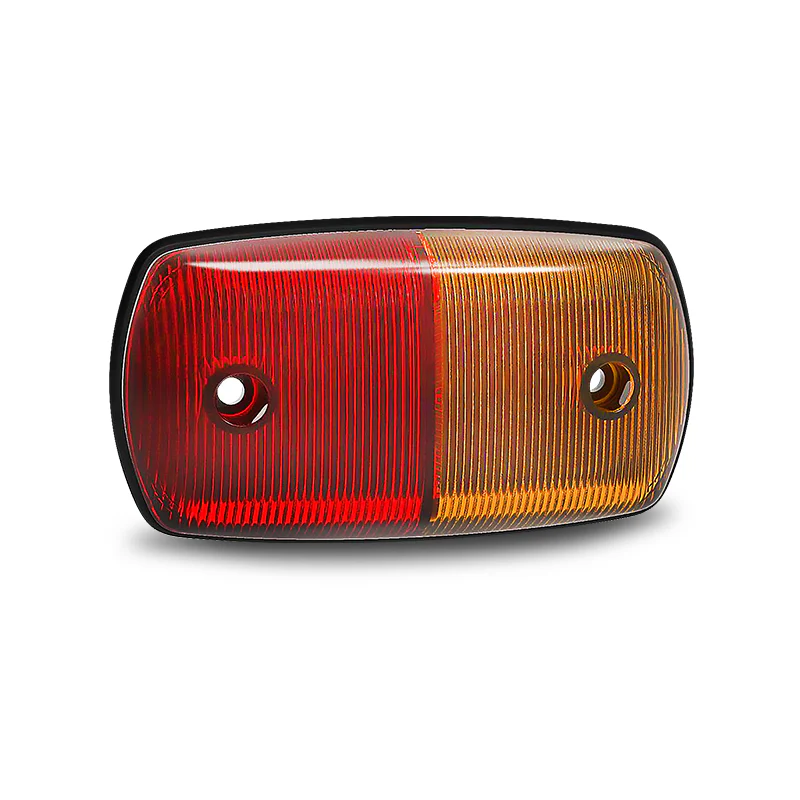

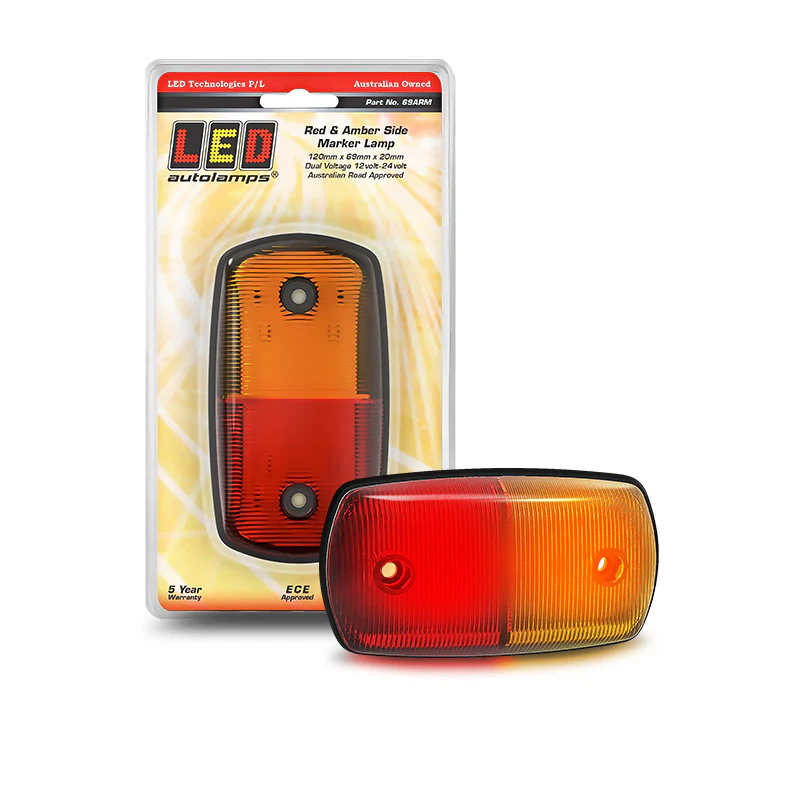

LED Autolamps 69ARM 12/24V Amber/Red Side Marker Light Blister Pack

ADR and ECE Approved Amber/Red Side Marker A Direct Globe Replacement for Trucks, Trailers, and Commercial Vehicles.

---

Product Overview

The LED Autolamps 69ARM is an amber/red side marker light designed as a retrofit replacement for traditional globe-type side marker lamps on trucks, semi-trailers, caravans, and commercial vehicles. Carrying both ADR and ECE road approvals, it meets Australian compliance requirements while also satisfying European ECE certification suitable for imported vehicles and fleet operators across multiple compliance frameworks.

Rated at multivolt 12V to 24V and IP67 waterproof, the 69ARM installs directly into existing globe-type side marker housings with no modification required. The LED light source eliminates the globe replacement cycle, reducing ongoing maintenance cost and vehicle downtime on fleet trucks and trailers where side marker globe failures are a routine service item. Backed by a 5-year warranty and sold individually as a blister pack.

---

Key Specifications

• Colour: Amber/Red
• Light style: Side marker light
• Voltage: 12V – 24V (multivolt)
• IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
• Compliance: ADR and ECE road approved
• Design: Retrofit — replaces globe type
• Dimensions: 120mm (L) × 64mm (W) × 22mm (D)
• Packaging: Blister pack
• Sold as: Each
• Warranty: 5 years
• Current draw: Not specified — confirm with LED Autolamps
• Mount type: Not specified — confirm with LED Autolamps
• Connector type: Not specified — confirm with LED Autolamps
• Compliance codes: Not specified — confirm with LED Autolamps

---

Features & Benefits

• Retrofit Globe Replacement Design — Engineered to fit directly into existing globe-type side marker lamp housings without modification, making it a straightforward upgrade for vehicles and trailers currently running incandescent globe side markers.
• ADR and ECE Road Approved — Dual compliance covering both Australian Design Rules and European ECE regulations — suited to Australian-registered vehicles and imported commercial vehicles requiring multi-standard certification.
• IP67 Waterproof Rating — Completely sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes — protected against wash-downs, rain, and road spray in Australian transport and touring conditions.
• 12V – 24V Multivolt — Works natively on both 12V and 24V systems without modification, covering passenger vehicles, caravans, and 24V commercial trucks in a single SKU.
• No Globe Replacement Required — LED technology eliminates the routine globe replacement cycle. On fleet vehicles running numerous side markers, this reduces procurement cost, labour, and vehicle downtime associated with regular globe servicing.
• 5-Year Warranty — A 5-year manufacturer's warranty provides long-term confidence well beyond the service life of the globe-type lamp it replaces.

---

Technical Specs

---

Compatible With / Goes Well With

Suitable vehicle and trailer types:

• Trucks and semi-trailers (12V and 24V systems) with existing globe-type side marker housings
• B-doubles and road trains requiring side marker compliance
• Caravans and camper trailers
• Box trailers and flatbed trailers
• Buses and coaches
• Imported commercial vehicles requiring ECE compliance
• Any vehicle currently running globe-type side markers

Pairs well with:

• LED Autolamps 69RM rear end outline marker (matching retrofit globe replacement in the same range)
• LED Autolamps combination stop/tail/indicator lamp assemblies
• LED Autolamps 58RM rear position markers

---

Frequently Asked Questions

Is the 69ARM an amber lamp, a red lamp, or does it provide both colours?

The supplier lists this product as "Amber/Red" but does not clarify whether this is a single lamp with dual amber and red output zones, or whether the SKU covers two separate colour variants sold individually. Confirm with LED Autolamps before purchasing to ensure you receive the correct colour for your application.

Does the 69ARM require a new housing or does it fit an existing globe-type fitting?

The 69ARM is designed as a retrofit replacement for existing globe-type side marker lamp housings — intended to fit directly without modification. Confirm dimensional compatibility with your specific housing before purchasing, as housing profiles vary across vehicle makes and models.

Will the 69ARM work on both 12V and 24V vehicles?

Yes. The multivolt 12V to 24V operating range covers both light passenger and recreational vehicles and 24V heavy commercial trucks without any modification or voltage-specific variants.

What does IP67 mean for a side marker lamp?

IP67 means the lamp is completely sealed against dust and can withstand water immersion to 1 metre for 30 minutes — protecting it against rain, road spray, wash-downs, and wet crossings encountered in Australian transport and touring conditions.

Does the 69ARM carry specific ADR compliance codes for documentation purposes?

ADR and ECE approvals are confirmed by the supplier, but specific compliance code numbers (equivalent to CRN 36840 on the 69RM) are not included in the supplier data for this SKU. Contact LED Autolamps for the specific approval numbers if required for fleet compliance documentation.
