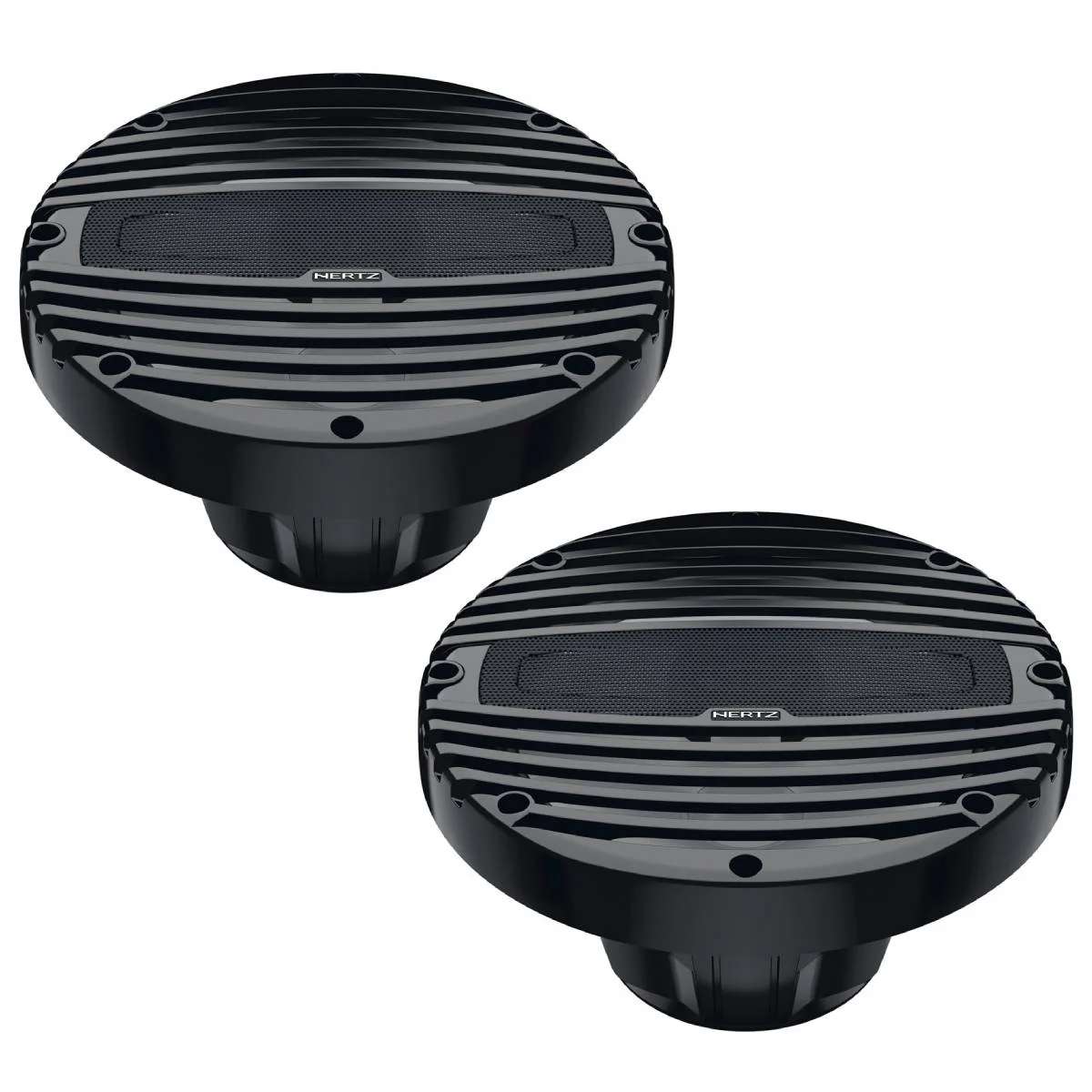

Hertz HMX8TC Marine 8" 2-Way Total Charcoal Coaxial Speaker - Pair (HMX 8 TC)

Features A Tone-On-Tone Stainless Steel Front Mesh Matching the Grille Colour!

8" Marine 2-Way Coaxial Speaker - Total Charcoal
The Hertz HMX 8 TC (Order Code HMX8TC) Hi-Performance Marine Coaxial Speakers feature a tone-on-tone stainless steel front mesh matching the grille colour. The coaxial speaker is optimised to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter features an acoustic lens optimised for best off-axis dispersion and maximized SPL.

The UV-resistant polypropylene cone co-molded with Santoprene rubber surrounds together with the basket and grille injected with a hi-temperature and UV-resistant polymer neutralise water, dust, and mud. The aramid fibre spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features:

• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
• 1.4" Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimised for best off-axis dispersion and highest SPL.
• Sound-transparent tone-on-tone stainless steel tweeter mesh grille provides efficient high-frequency transfer, an attractive look, and rock-solid protection.
• Long-throw 25mm (1") voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
• Aramid fibre spider with silicone-insulated lead wires ensures durability and constant performance over time.
• FEM-optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer-injected basket.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Gold-plated corrosion-resistant terminals.

Specifications:

• Colour: Total Charcoal
• Component: Coaxial
• Size: 200mm (8")
• Power Handling - Continuous: 100W
• Power Handling - Peak: 200W
• Impedance: 4-Ohm
• Depth: 123mm (4.84")
• Tweeter Diaphragm: 36mm (1.4")
• Woofer Voice Coil: 32mm (1.4")
• Tweeter Voice Coil: 20mm (0.8")
• Frequency Response: 45 - 25kHz
• Woofer Magnet Size: (D) 90mm x (D) 40mm x (H) 20mm
• Tweeter Magnet Size: (D) 19.7mm x (H) 3mm
• Woofer Magnet: High-Density Flux Ferrite
• Tweeter Magnet: Neodymium
• Cone: Polypropylene With UV Inhibitors
• Dome: PEI
• Xmech: 8.5mm (0.33")
• Weight: 1.66kg (Single Speaker)
