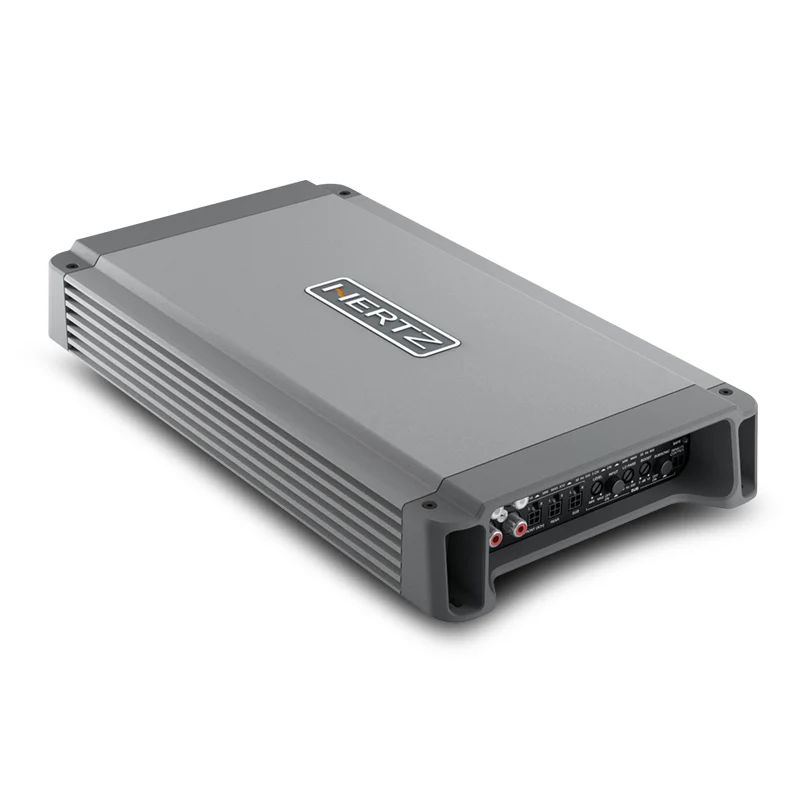

Hertz HCP5MD24 1500W RMS 24V 5CH Marine Amplifier (HCP 5 MD 24V)

Compact Design Ready to Face the Open Water Environment, Providing Tons of Clean Power!

5-Channel 24V Marine Amplifier
The Hertz HCP 5 MD 24V (Order Code HCP5MD24) marine amplifier features a compact design that is ready to face the open water environment and provides tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness, and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built-up heat is then directed to the special dissipation wings along the side of the amplifier.

Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electromagnetic interference for noise-free results. The HCP M amplifiers crossover section ensures extreme flexibility: fully adjustable Lo-pass, and Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP5MD24 is suitable for a five-channel system with a subwoofer, a tree channel front + sub system using the front and rear built-in filters that also include a bass boost circuit and a subsonic filter.

Please Note: Optional Remote Volume Control model HRC.

Features:

• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust)
• Compact design built from extruded aluminum heatsink with the top side ensuring effective transfer of the heat
• Power supply featuring multiple winding transformers, Low-ESR 105C capacitors, D-Class 2 ohm stable output stage
• Versatile front and rear filters, providing the ability to build Hi-Pass front + rear or multichannel woofer + tweeter systems, both including sub
• 24 dB continuous adjustable (50 to 500 Hz) Lo-Pass subwoofer filter
• SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies from music signals to avoid damage to the subwoofer
• 5 ch/3 ch operation mode (selectable), to create a five-channel system (with sub), or a powerful sub + front three-channel system
• Bass Boost adjustable via selector, for more punch from speakers
• Special balanced input circuitry to reject electro-magnetic disturbances
• Hi-level and lo-level inputs compatible with any source
• Short-circuit and thermal protections with auto-resetting
• Optional Remote Volume Control (HRC); provides the ability to adjust subwoofer volume level from the dashboard

Specifications:

• Channels: 5 - 3
• Power Supply Voltage: 22 - 33 VDC
• Idling current (Power ON/OFF): 2 A / 0.04 mA
• Consumption at 2 Ohm, 26.4 VDC (Max Musical Power): 15 A
• Remote In: 7-33 VDC - 1 mA
• Distortion - THD (100Hz @ 4 Ohm): 0.02 Percent
• S/N Ratio (A-Weighted @ 1V): 100 dB
• Damping factor (1 kHz at 4 Ohm): 250
• Pre-ln Sensitivity: 0.2-5VRMS
• Load Impedance (MIN): 2 Ohm
• Adjustable Crossovers: Yes
  Output Power (RMS) @ 14.4 VDC, THD 10 Percent:
  5Ch: 55W x 4 + 160W (4 Ohm)
  5Ch: 90W x 4 + 280W (2 Ohm)
  3Ch: 180W x 2 + 160W (4 Ohm)
  3Ch: 180W x 2 (4 Ohm) + 280W (2 Ohm)
• Total Power RMS: 1500W
• Dimensions: 345mm x 190mm x 50mm
• Packaging Type: Giftbox
• Weight: 3.00kg
