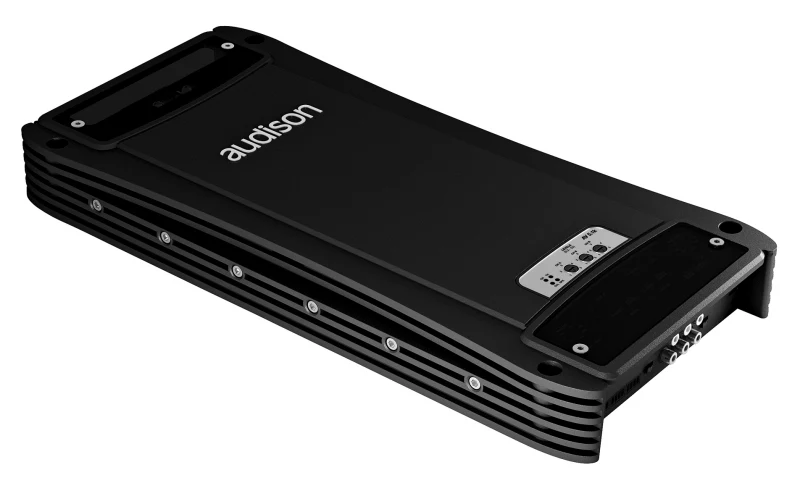

Audison AV 5.1K 1650 Watts Voce Series 5-Channel Power Amplifier

Perfect For Active Two-Way Front Speaker Systems!

Five-Channel Power Amplifier With Crossover
The AV 5.1k, 1650 W (RMS) max, five channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems. Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.

The D Class mono section provides 1000 W (RMS) for an efficient and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.

Specifications:

• Power Supply:
  Power Supply Voltage: 11 ÷ 15 VDC
  Idling Current: 3 A
  Idling Current When Off: 0.02 mA
  Consumption @ 14.4 VDC (Max Musical Power): 110A
• Amplifier Stage:
  Distortion - THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %
  Distortion - THD (100 Hz @ 4Ω), C (Sub) Ch: 0.3 %
  Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
  Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
  S/N Ratio (A-Weighted @ 1V) A, B Ch: 100 dB
  S/N Ratio (A-Weighted @ 1V) C (Sub) Ch: 87 dB
  Damping Factor (1k Hz @ 4Ω) A, B Ch: 100
  Damping Factor (100 Hz @ 4Ω) C (Sub) Ch: 80
  Input Sensitivity: 0.3 ÷ 5 V RMS
  Input Impedance: 15k Ω
  Speaker-In Sensitivity: 1.4 ÷ 24 V RMS
  Speaker-In Impedance: 5k Ω
  Minimum Load Impedance A / B / C Ch: 4Ω / 2Ω / 2Ω
  Nominal Power (RMS) A + B + C Ch @ 12 VDC,
  THD 0.3%, 4Ω: 50 W x 2 + 120 W x 2 + 500 W x 1
• Output Power (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
  5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
  5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
  5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)
• CEA Specifications:
  Output Power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
  SN Ratio (Ref. 1W Output):
  70W Channels: 80 dBA
  140W Channels: 80 dBA
  600W Channels: 78 dBA
  Signals Inputs / Filters:
  Inputs: Pre In / Speakers In
  Outputs: Pre OUT Full Range
  A Ch Filters (Full / Hi-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
  B Ch Filters (Full / Hi-Pass / Band-Pass): 50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
  C Ch Filters (Full / Lo-Pass): 50 ÷ 150 Hz @ 24 dB/Oct.
• Other Functions:
  Remote In: 7 ÷ 15 VDC - 1mA
  Remote Out: 12 VDC - 50mA
  Fuse (Strip Type): 100 A
  Remote Sub Volume Adj.: (-50 ÷ 6) dB
  Speakers In Turn-On (Art): Selectable
• Dimensions: 220mm x 470mm x 58mm
• Weight: 7.20kg
