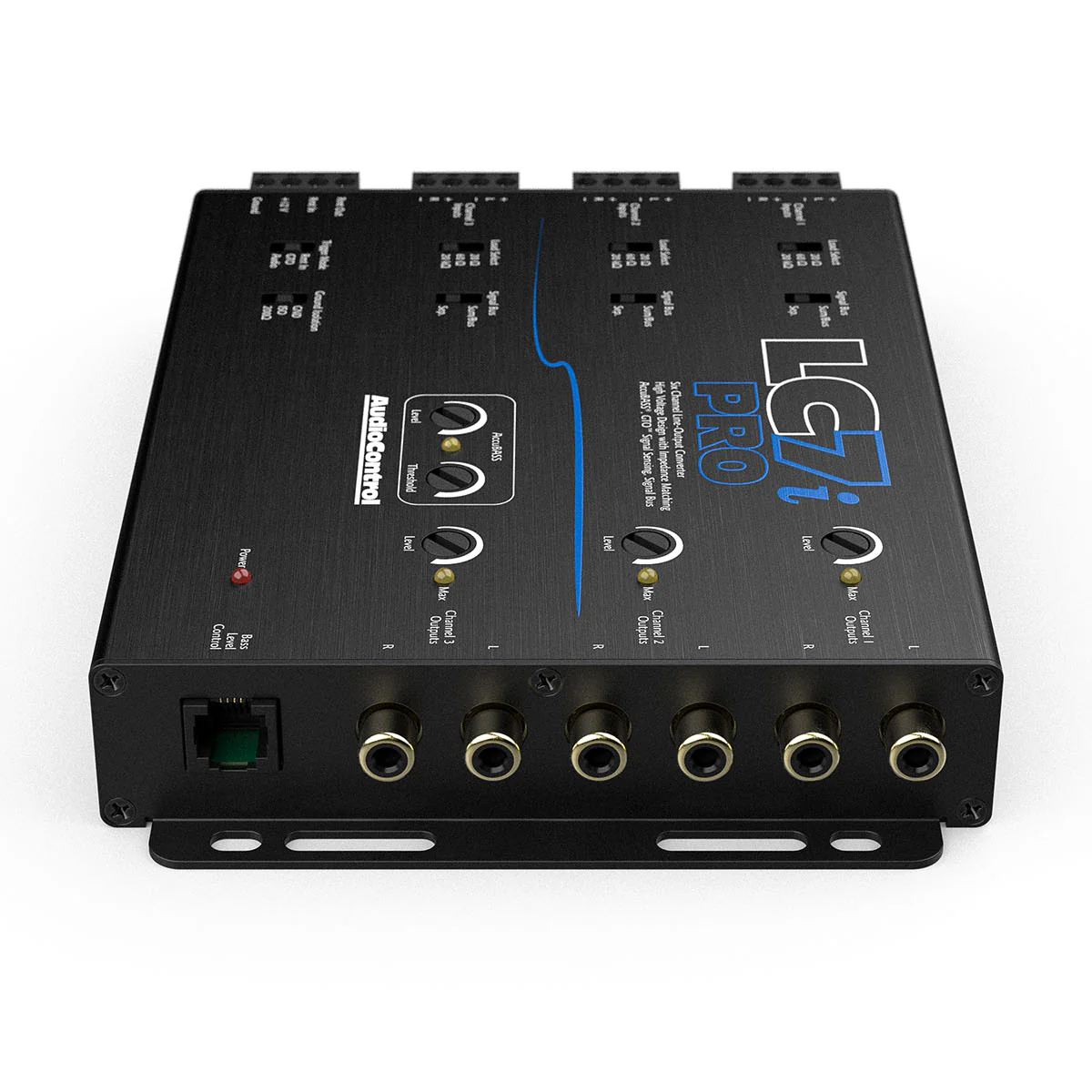

AudioControl AC-LC7IPRO LC Series LC7i PRO Active Line Out Converter

Take Your System From Sounding Good to Sounding Great!

LC Series PRO Active Line Out Converter
AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12-volt input.

All PRO series products feature AudioContol’s patented AccuBASS® for restoring low-frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

Features:

• Six channels of active speaker-level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• ACR-1 Dash Remote Included
• Compact Design

Specifications:

• Inputs:
  Speaker Level Input: 1 (6 Channels)
  Maximum Speaker Level Input: 40V RMS / 400W (20kΩ Setting)
  Input Impedance (Selectable): 20Ω, 60Ω, 20kΩ
• Outputs:
  Preamp Outputs: 6 (4 Channels Main, 6 Channels Bass)
  Maximum Output Level: 9.5V RMS/13V Peak
  Output Gain: +/- 15dB
  Output Impedance: 150Ω
• Performance:
  Total Harmonic Distortion: 0.01%
  Signal-To-Noise: >124dB
  Frequency Response: 20 Hz – 20 kHz
• Control:
  Remote In / GTO™ Signal Sense / Audio Sense
  12V DC Remote Out (Always active when the unit is on)
• General:
  Current Draw: 330mA
  Recommended Fuse Rating: 2A
• Weights & Dimensions:
  Dimensions: 7″ (L) x 5.1″ (D) x 1.14″ (H) (Including Speaker Connectors)
  Weight: 0.49kg
