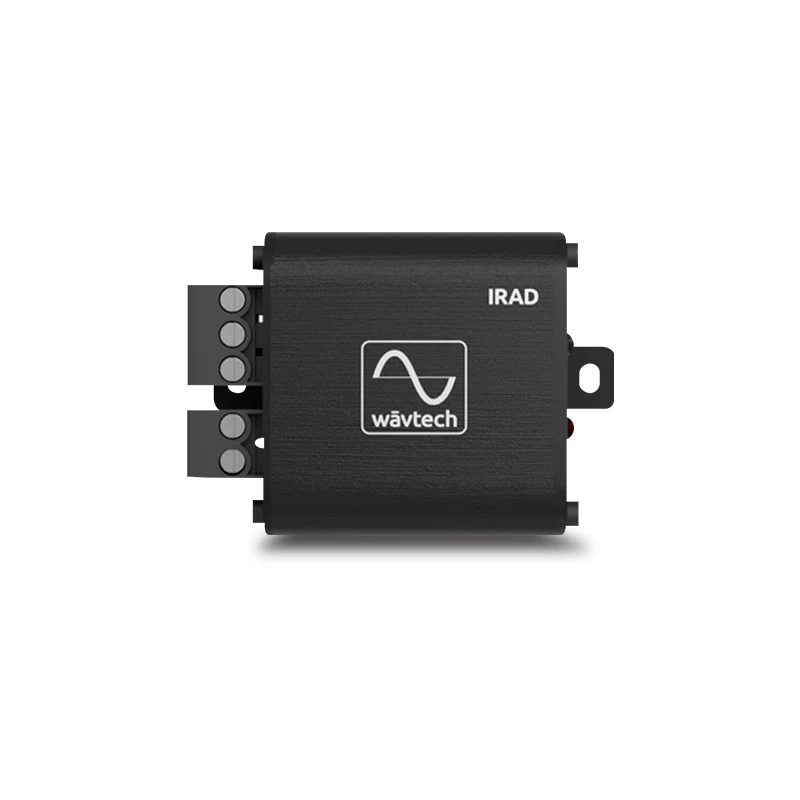

Wavtech IRAD Ignition/Remote Generator With Delay Function

Provides a Switched 12-Volt Output in Problem Vehicles, & Solves Problems with Start/Stop Vehicles

12-Volt Source & Secondary Battery Controller
The IRAD provides solutions to three very specific problems faced in todays car audio installations. This easy to program device allows you to add a switched 12 volt output, a remote output with adjustable delay and a relay/solenoid control to overcome the issues created by vehicles with start/stop systems.

Features:

• Automatic 12V ignition detection and +12V output generation
• Generated +12V remote output (Direct or linked to IGN)
• Stop-Start Relay/Solenoid Control Mode
• Independent adjustable IGN & REM turn-on/off delays
• >750mA Continuous Current per Output
• Compact aluminium chassis with detachable mounting tabs
• Locking Detachable Terminals

Specifications:

• Operating Voltage: 6V-18V
• Ignition Detect Threshold: >0.5V B+ Change
• Remote In Trigger: >6V
• Ignition Out:
  • Voltage: >1V From B+
  • Continuous Current: 750mA
  • Peak Current: <1.5A
• Remote Out:
  • Voltage: >1V From B+
  • Continuous Current: 750mA
  • Peak Current: <1.5A
• Ignition Remote Mode:
  • Ignition Out Delay: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-10MIN, 1MIN Steps (0 Default)
  • Remote Out Delay: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-5SEC, 1SEC Steps (0 Default)
• Relay Control Mode:
  • Ignition Out: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-10MIN, 1MIN Steps (3MIN Default)
  • Remote Out: Turn-On: N/A (BY Engine Off Detect) / Turn-Off: N/A (Same as Ignition Out)
• Current Draw:
  • Max: <1.6A (Cont.)
  • Idle: <2.6MA
• Dimensions:
• Chassis Only: 20mm x 38mm x 37.7mm
• Including Tabs: 22mm x 38mm x 61mm
• Weight: 0.10
