VW T-Cross C1 - Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

Transform your VW T-Cross C1 into a premium audio sanctuary with German-engineered precision and professional DSP integration.

Product Overview

The HELIX Ci3 Complete DSP Audio Package for VW T-Cross C1 delivers audiophile-quality sound transformation through German-engineered components and advanced digital signal processing. This complete system features 6.5" FlexMount component speakers for the front, coaxial speakers for the rear, a compact dual-subwoofer enclosure, and a sophisticated 5-channel DSP amplifier with vehicle-specific integration hardware. Built on HELIX COMPOSE and MATCH DSP technology, the package is designed for professional installation to unlock premium audio performance while maintaining factory aesthetics and functionality in your compact SUV.

Key Specifications

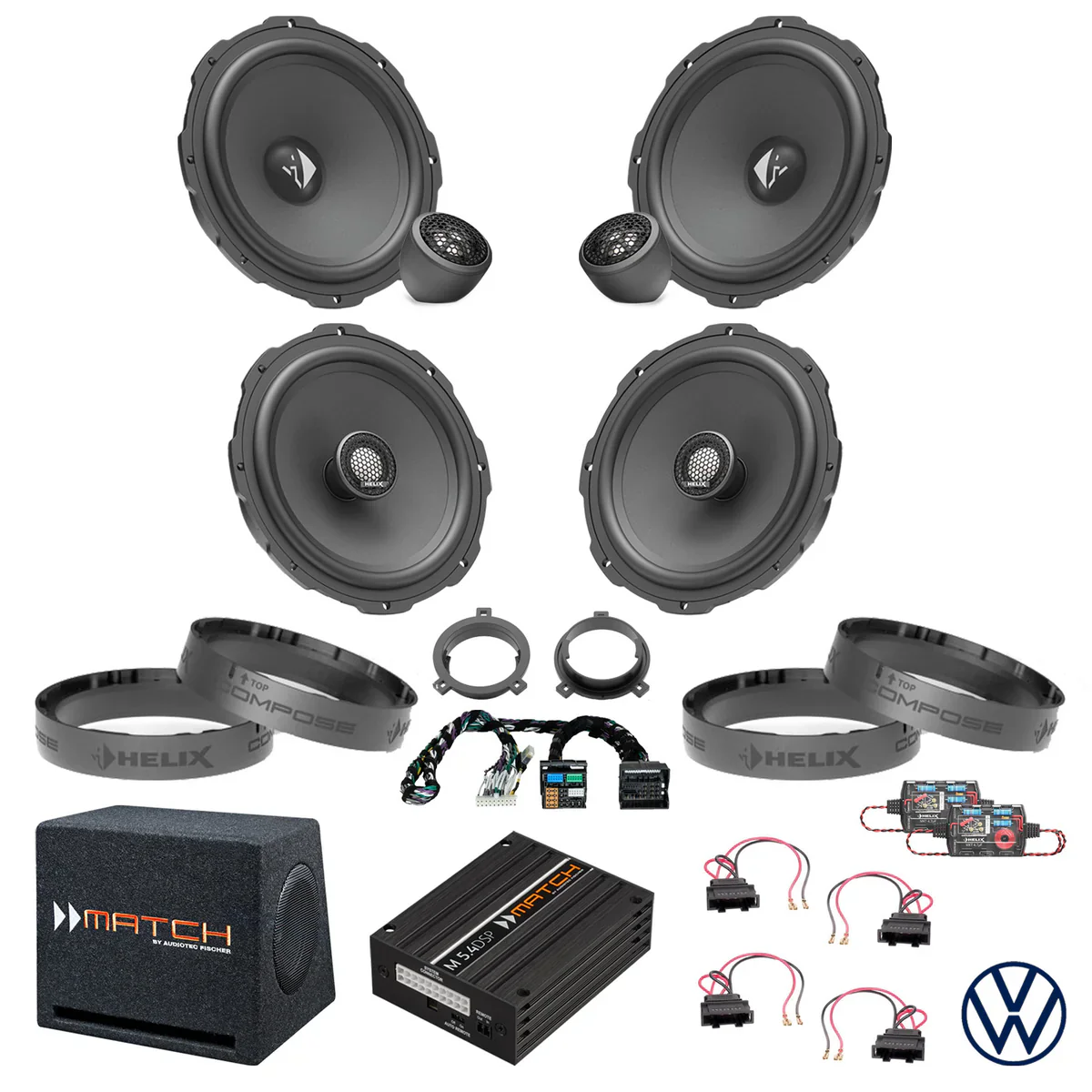

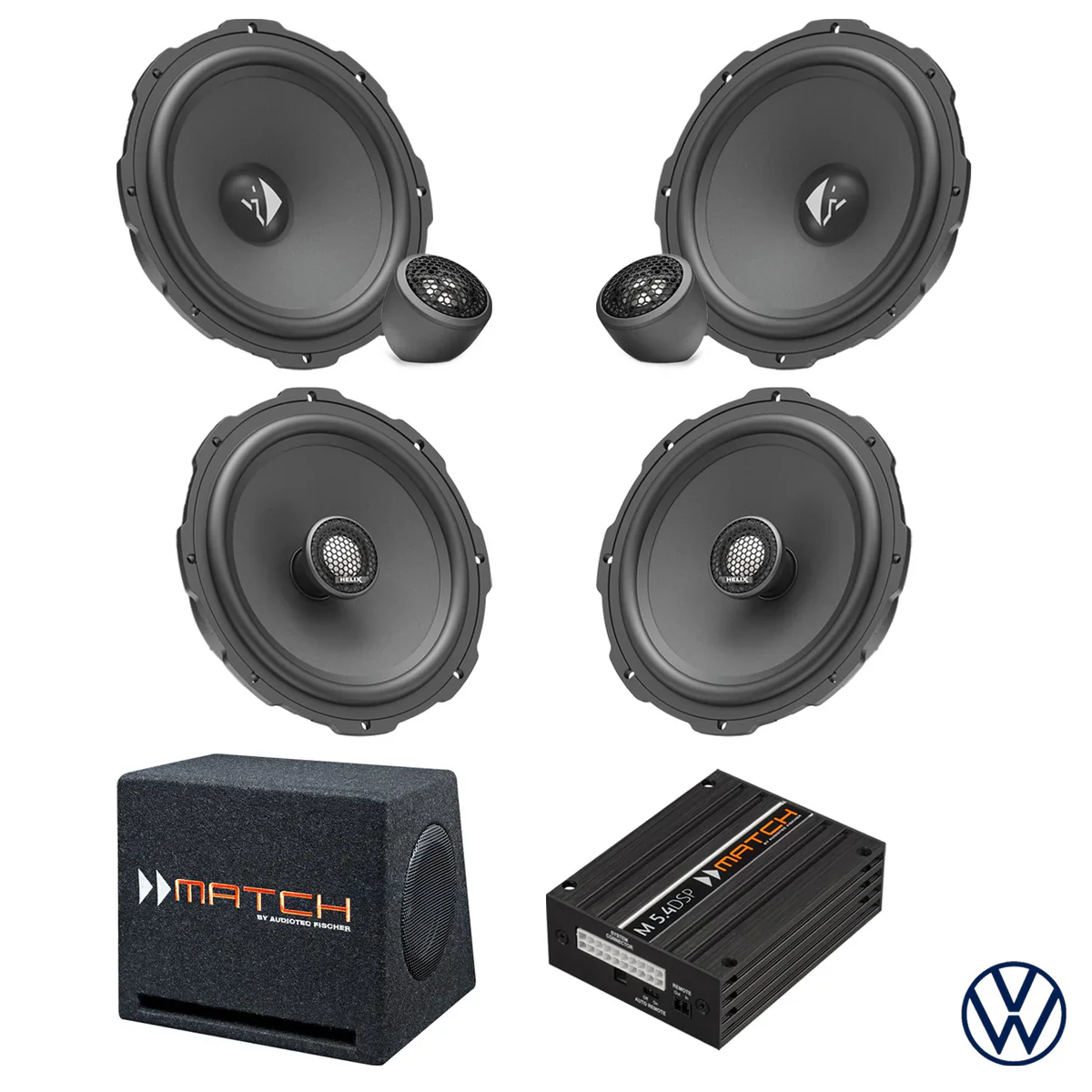

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• HELIX Ci3 C165.2FM-S3 - 6.5" 2-Way Coaxial Speaker Pair with FlexMount (3Ω impedance)
• MATCH PP 7E-D - Dual 6.5" 200W RMS Vented Subwoofer Enclosure (4×2Ω configuration)
• MATCH M 5.4DSP - 5 Channel Micro Amplifier with 9-Channel DSP Processing
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for Radio-to-Amplifier Integration
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (2 Pairs)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
• Aerpro APS56 - VW Speaker Plug Adapters (2 Pairs)

System Specifications:

• Total system power: 400W RMS / 800W Maximum
• Front amplification: 4 × 60W RMS (HighPower mode)
• Subwoofer amplification: 1 × 160W RMS @ 2Ω
• DSP resolution: 64-bit with 295MHz processing power
• Vehicle compatibility: VW T-Cross C1 (2019+) specific engineering
• Integration method: Plug-and-play with factory radio retention

Features & Benefits

Complete System Integration - Every component is pre-selected and tested together, eliminating compatibility concerns while maximising acoustic synergy between speakers, amplification, and your T-Cross's interior acoustics.

Advanced DSP Processing - The MATCH M 5.4DSP delivers 64-bit signal processing with intelligent features like Input Signal Analyzer, StageXpander, and Augmented Bass Processing to optimise your T-Cross's compact SUV acoustic environment.

German Engineering Excellence - HELIX and MATCH represent the pinnacle of European automotive audio technology, with materials and construction standards that exceed OEM requirements for durability and performance.

Compact SUV Optimisation - The system is engineered to maximise performance while preserving your T-Cross's practical interior space and urban versatility, with a compact subwoofer that fits efficiently without compromising functionality.

Vehicle-Specific Integration - VAG Quadlock T-harness and FlexMount adapters ensure clean, reversible installation that maintains your T-Cross's warranty and resale value while delivering audiophile sound quality.

Technical Specs

HELIX Ci3 Component/Coaxial Speakers:

• Frequency response: 60Hz - 25,000Hz
• Sensitivity: 92dB @ 2.83V/1m
• Impedance: 3Ω for maximum amplifier efficiency
• Installation depth: 60.7mm midbass, 9.8mm tweeter
• Construction: Paper cone with Cenosphere coating, titanium dome tweeters

MATCH M 5.4DSP Amplifier:

• Output power: 4 × 60W + 1 × 160W RMS
• Operating voltage: 10.5-17V (Start-Stop compatible)
• Dimensions: 35 × 85 × 110mm
• Inputs: High-level, optical SPDIF
• DSP features: 9-channel processing, 64-bit resolution

MATCH Subwoofer Enclosure:

• Dual 6.5" long-excursion drivers with 4×2Ω configuration
• Enclosure dimensions: 280 × 318 × 310mm
• Maximum excursion: ±5.0mm linear
• Efficiency: 90dB @ 1W/1m

Frequently Asked Questions

Will this fit my specific T-Cross C1 model year? This package is designed for VW T-Cross C1 chassis (2019+). The included PP-PAM 92b adapter specifically suits the VAG Quadlock connector system used in T-Cross models.

How much cargo space will the subwoofer use? The compact PP 7E-D enclosure (280×318×310mm) is designed to fit efficiently in T-Cross cargo areas without significantly compromising your SUV's practical storage capacity.

Can I install this myself or do I need professional help? While components are plug-and-play, installation involves interior disassembly and DSP tuning. Professional installation is recommended for optimal results and system performance.

Will this maintain my vehicle warranty? The plug-and-play design with ADEP.3 integration preserves factory wiring and functions, but installation involves interior modifications. Professional installation is recommended to ensure proper fitment and performance.

What's included for the complete installation? The package includes all speakers, amplifier, subwoofer, vehicle-specific harnesses, FlexMount adapters, speaker connectors, and mounting hardware required for installation.

Compatible With / Goes Well With

Vehicle Applications:

• VW T-Cross C1 (2019+ with 40-pin Quadlock system)
• Compatible VW Group compact SUV models (with verification)

Installation Accessories Included:

• MATCH PP-PAM 92b T-harness (VAG Quadlock)
• HELIX FlexMount CFMK165 VW.1 speaker adapters (2 pairs)
• HELIX FlexMount CFMK25 VW.1 tweeter adapters
• Aerpro APS56 speaker plug adapters (2 pairs)
• All required mounting hardware and cables

Professional Installation Services:

• DSP tuning and calibration
• Interior trim removal and installation
• Acoustic measurement and optimisation

Weight

Total package weight approximately 15-20kg
