VW T-Cross C1 - Front Speaker DSP Amplified Package | HELIX Ci3

Transform your VW T-Cross C1 front speakers with precision German engineering and professional DSP integration.

Product Overview

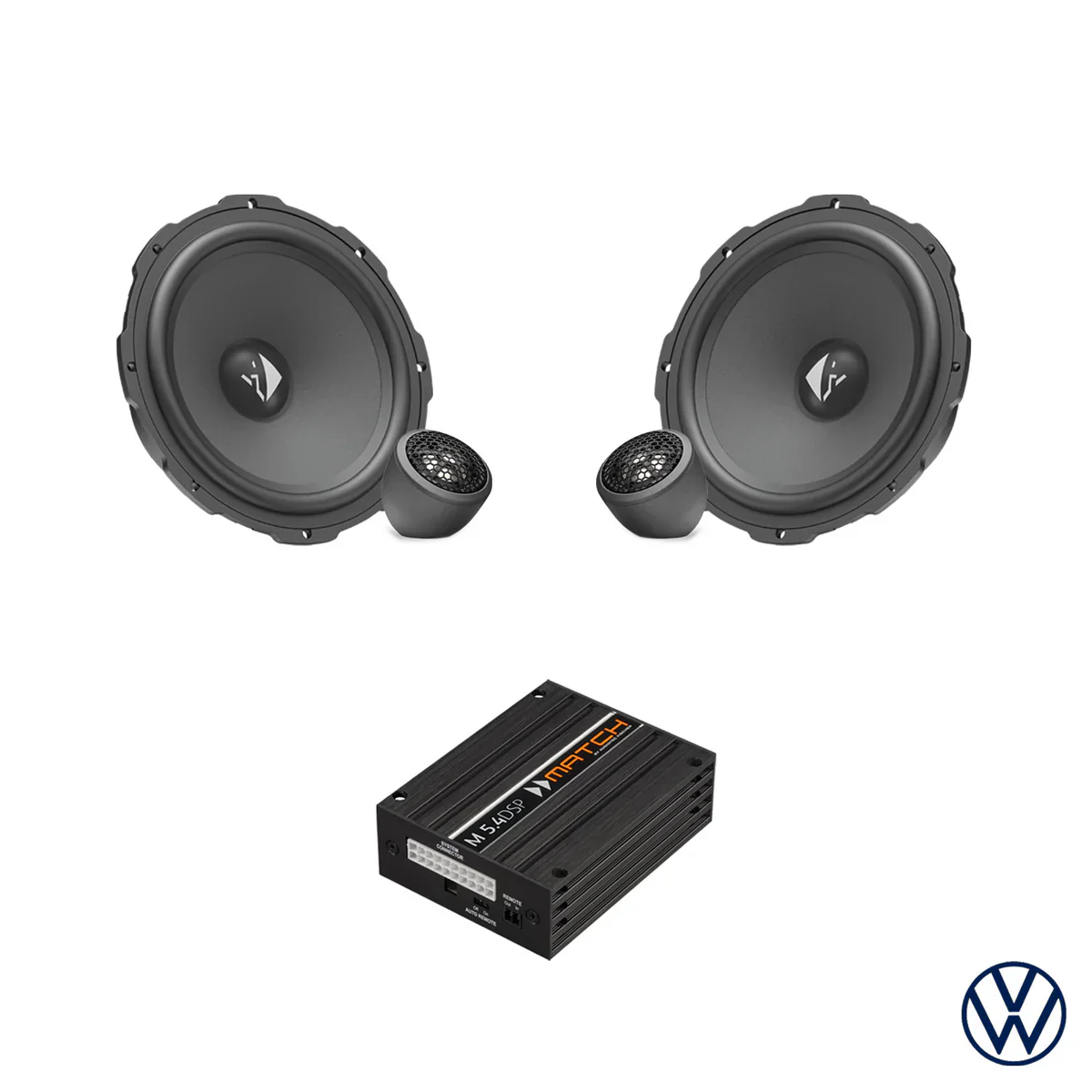

The HELIX Ci3 Front Speaker DSP Package for VW T-Cross C1 delivers audiophile-quality front soundstage through German-engineered components and advanced digital signal processing. This complete system features 6.5" FlexMount component speakers with a sophisticated 5-channel DSP amplifier and vehicle-specific integration hardware. Built on HELIX COMPOSE and MATCH DSP technology, the package is designed for professional installation using the MATCH Plug & Play upgrade system to unlock premium front audio performance while maintaining factory functionality in your compact SUV.

Key Specifications

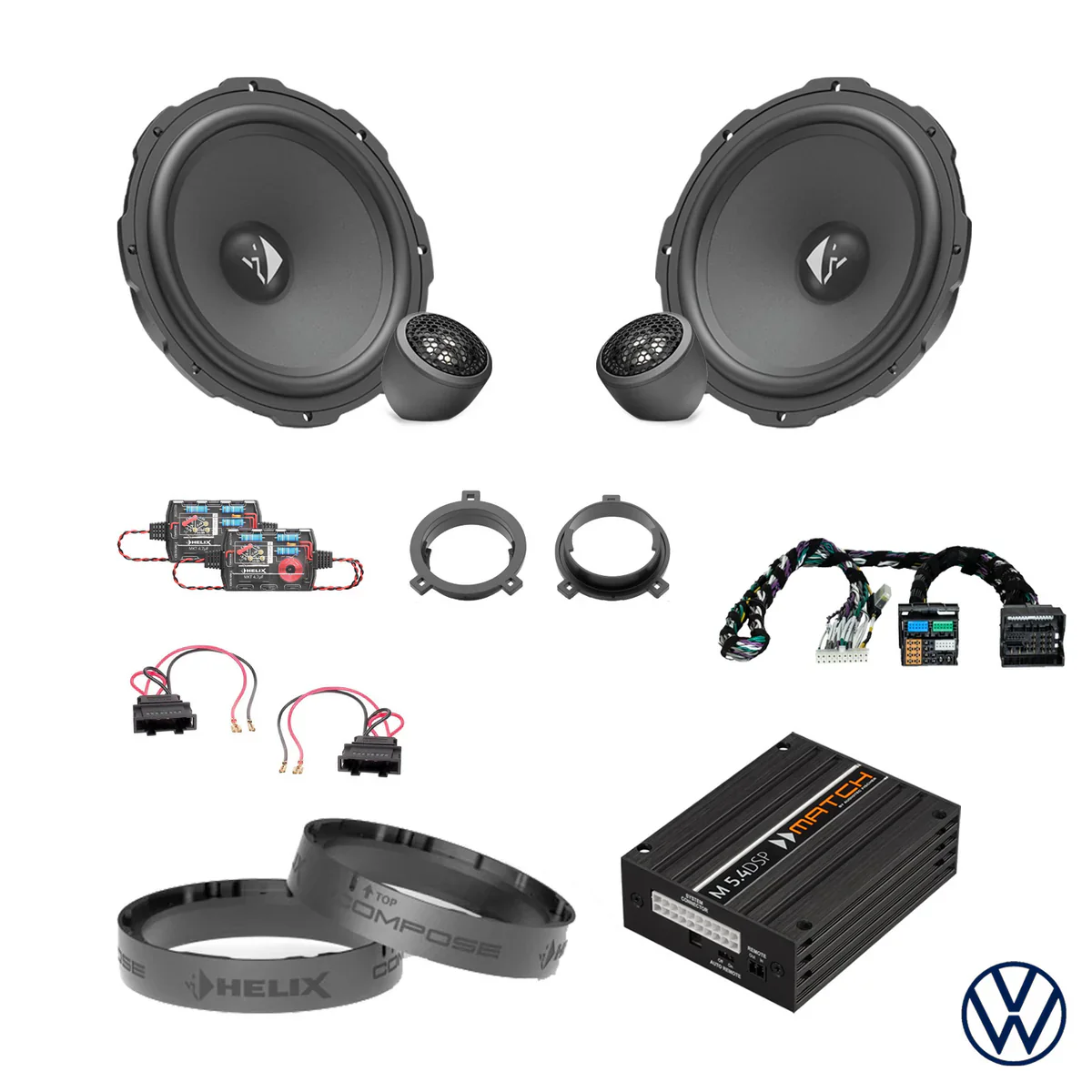

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH M 5.4DSP - 5 Channel Micro Amplifier with 9-Channel DSP Processing
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for Radio-to-Amplifier Integration
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (Pair)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
• Aerpro APS56 - VW Speaker Plug Adapters (Pair)

System Specifications:

• Front amplification: 4 × 60W RMS (HighPower mode) / 4 × 35W RMS (MidPower mode)
• Subwoofer output capability: 1 × 160W RMS @ 2Ω (for future expansion)
• DSP resolution: 64-bit with 295MHz processing power
• Speaker configuration: 2-way component with separate tweeters and crossovers
• Vehicle compatibility: VW T-Cross C1 (2019+) specific engineering
• Integration method: Plug-and-play with factory radio retention

Features & Benefits

German Precision Engineering - HELIX Ci3 components deliver exceptional clarity and dynamics through advanced driver design, titanium dome tweeters, and precision crossover networks engineered for European audio standards.

Advanced DSP Processing - MATCH M 5.4DSP provides 64-bit signal processing with intelligent features like Input Signal Analyzer, StageXpander, and Augmented Bass Processing to optimise your T-Cross's front soundstage acoustics.

Vehicle-Specific Integration - FlexMount adapters and VAG Quadlock T-harness ensure seamless installation without cutting factory wiring, maintaining warranty coverage while delivering professional-grade audio performance.

Dual Power Modes - HighPower mode maximises performance with external power supply, while MidPower mode enables plug-and-play installation using factory electrical systems for simplified integration.

Future Expansion Ready - Integrated subwoofer output and line outputs allow easy system expansion with additional amplifiers or subwoofers as your audio requirements evolve.

Technical Specs

HELIX Ci3 Component Speakers:

• Power handling: 100W RMS / 150W Max per pair
• Frequency response: 60Hz - 25,000Hz
• Sensitivity: 92dB @ 2.83V/1m
• Impedance: 3Ω for maximum amplifier efficiency
• Installation depth: 60.7mm midbass, 9.8mm tweeter
• Construction: Paper cone with Cenosphere coating, titanium dome tweeter

MATCH M 5.4DSP Amplifier:

• Dimensions: 35 × 85 × 110mm (smartphone-sized)
• Operating voltage: 10.5-17V (Start-Stop compatible)
• Signal-to-noise ratio: >105dB digital, >99dB analog
• Total harmonic distortion: <0.03%
• DSP features: 9-channel processing, BurrBrown converters

Installation Hardware:

• FlexMount adapters: Automotive-grade 3D printed polymer (-40°C to +90°C)
• T-harness: 1.0m length with optimised cable cross-sections
• Speaker connectors: Plug-and-play design for VW factory plugs

Frequently Asked Questions

Does this package include rear speakers or a subwoofer? No, this is a front speaker DSP upgrade package only. The system focuses on optimising the front soundstage with component speakers and DSP processing.

Can I add a subwoofer later? Yes, the MATCH M 5.4DSP includes a dedicated subwoofer output (160W RMS) and comes with connection cables for easy future subwoofer integration.

Will this work in MidPower mode without extra wiring? Yes, MidPower mode (4 × 35W RMS) operates using factory electrical supply, making it ideal for plug-and-play installations without additional power cables.

Are the FlexMount adapters compatible with my T-Cross C1? The adapters are designed for VW Group vehicles. T-Cross C1 compatibility should be verified through the HELIX FlexMount Finder before purchase.

Is this compatible with factory steering wheel controls? Yes, the MATCH PP-PAM 92b T-harness maintains factory radio functions including steering wheel controls and dashboard integration.

Compatible With / Goes Well With

Vehicle Applications:

• VW T-Cross C1 (2019+ with 40-pin Quadlock system)
• Compatible VW Group vehicles with VAG Quadlock connectors

Future System Expansion:

• MATCH PP series subwoofers with plug-and-play cables
• Additional amplifiers via line outputs
• MATCH wireless control accessories (WIFI CONTROL, DIRECTOR)

Installation Services:

• Professional DSP tuning and calibration
• Sound deadening materials for enhanced acoustics
• Custom installation configurations

Weight

Total package weight approximately 5-8kg
