Victron Energy PIN481220200 48/1200 Phoenix Direct Schuko Pure Sinewave Inverter

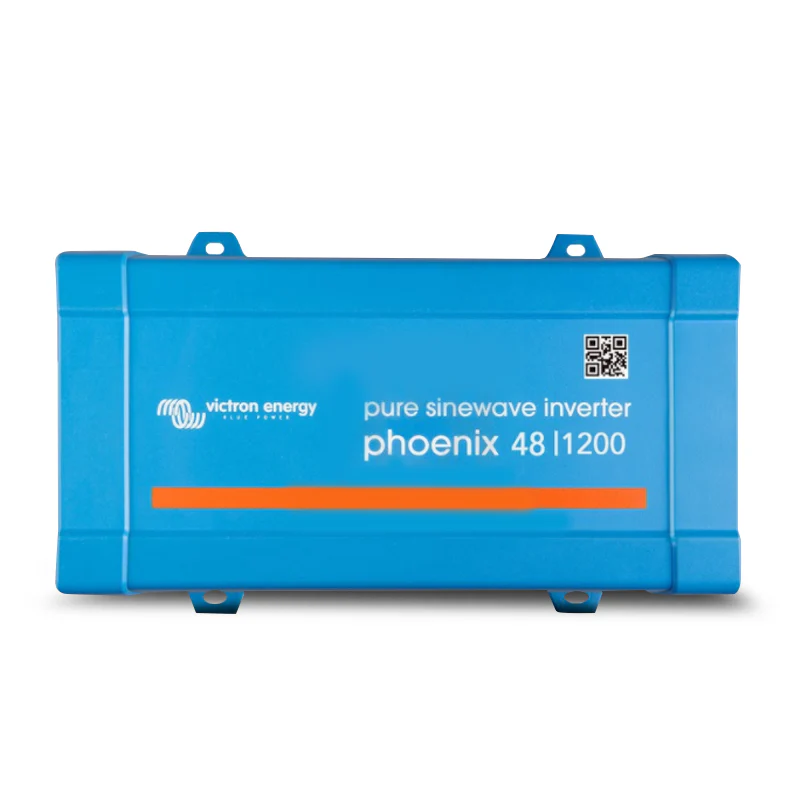

Victron Energy Phoenix 48/1200 Direct Schuko Pure Sine Wave Inverter
1200VA, 92% efficient, 2200W peak the highest-output and most efficient Phoenix Direct Schuko 48V model
Product Overview
The Victron Energy Phoenix 48/1200 Direct Schuko (PIN481220200) is the top-of-range model in the Phoenix Direct Schuko 48V lineup, delivering 1200VA continuous output (1000W at 25°C / 850W at 40°C) and a 2200W peak power rating from a 48V battery bank. It also achieves 92% maximum efficiency the highest across the entire Phoenix Direct Schuko 48V range setting it apart from both the 48/800 (91%) and the smaller models below it. At this output level and efficiency, it is the correct choice for large 48V off-grid solar systems, commercial and industrial installations, and any 48V setup requiring sustained high-output 230VAC with the lowest possible conversion losses.
The 48V platform at 1200VA output draws a quarter of the DC input current of an equivalent 12V inverter the smallest cable cross-sections, least resistive loss, and least heat in the DC wiring of any voltage platform at this power level. Fan-assisted cooling maintains rated output across the full −40°C to +65°C operating range with controlled 1.25% derating per °C above 40°C. The full 48V voltage protection suite fully user-adjustable shutdown, restart, alarm, and dynamic cutoff provides chemistry-appropriate battery protection for LiFePO4 and lead-acid alike. Integrated Schuko outlet, remote on/off, and ECO mode at just 3.0W standby round out a unit that delivers professional-grade performance in the most straightforward form factor in the Phoenix range.
Note: This product is a standalone inverter only it does not include a battery charger. It is not suitable for connection to mains AC supply.
Key Specifications
- Input voltage range: 36.8–62.0V DC (48V nominal)
- DC low shutdown (adjustable): 37.2V
- DC low restart and alarm (adjustable): 43.6V
- Battery charged detect (adjustable): 56.0V
- Output voltage: 230VAC (or 120VAC) ±3%, adjustable 210–245VAC
- Output frequency: 50Hz or 60Hz ±0.1% (configurable)
- Continuous output power at 25°C: 1200VA
- Continuous output power at 25°C / 40°C: 1000W / 850W
- Peak power: 2200W
- Maximum efficiency: 92%
- Zero-load power: 10.0W
- Zero-load power in ECO mode: 3.0W (default retry interval: 2.5s, adjustable)
- Dynamic cutoff: fully configurable, load-dependent
- Operating temperature range: −40°C to +65°C (fan-assisted cooling; derate 1.25% per °C above 40°C)
- Humidity: max 95% non-condensing
- Short circuit protection: Yes
- Overtemperature protection: Yes
- Remote on/off: Yes (two-pole connector)
- AC outlet: Schuko (direct integrated socket)
- Battery charger included: No
- Monitoring: Input and output voltage, alarms
Features & Benefits
- 1200VA continuous the highest output in the 48V Phoenix Direct Schuko range: At 1000W continuous (850W at 40°C) and 2200W peak, the Phoenix 48/1200 handles the full breadth of sustained AC loads in serious 48V installations: domestic appliances, power tools running continuously, small air conditioners, workshop compressors, and multiple simultaneous loads that push the 800VA and smaller models to or beyond their limits.
- 92% maximum efficiency the best in the 48V Phoenix Direct Schuko range: At 92% peak efficiency, less than 8% of the 48V battery's energy is lost as heat during conversion the highest efficiency figure across all Phoenix Direct Schuko 48V models. The progression from 88% (48/250) through 90% (48/375), 91% (48/500 and 48/800), to 92% (48/1200) means the top-output model also wastes the least energy an unusual and genuine advantage for large off-grid and commercial systems cycling 1000W+ through the inverter daily.
- 48V platform minimum DC current at maximum output: At 1200VA from a 48V source, DC input current is a quarter of what an equivalent 12V inverter would demand. For large off-grid and commercial installations where cable sizing, routing, and resistive losses at high power are real engineering considerations, the 48V platform at 1200VA output is the correct architectural choice smaller cables, lower losses, less heat.
- Full bridge plus toroidal transformer pure sine wave output: Victron's proven professional inverter topology delivers grid-quality pure sine wave output across the full load range. Variable speed tools, switching power supplies, audio equipment, medical devices, and sensitive electronics all operate cleanly no waveform distortion, no interference, no compatibility issues.
- 2200W peak power: Handles the heaviest inrush current demands from motor loads, compressors, and power tools on startup the loads most likely to trip or clip a lesser inverter at the moment of switch-on, especially at sustained high ambient temperatures.
- 3.0W ECO mode standby: Despite its 1200VA output rating, ECO mode standby drops to just 3.0W the same figure as the 48/800 and 48/500. For large off-grid systems where the inverter may remain on overnight with intermittent loads, this keeps parasitic battery drain negligible between load events.
- Fan-assisted cooling across −40°C to +65°C: Thermally controlled fan cooling maintains rated output under sustained high-draw conditions and in hot Australian off-grid equipment enclosures. Thermal derating is a gradual 1.25% per °C above 40°C sustained usable output rather than hard shutdown at the worst possible moment.
- Fully configurable 48V voltage protection: DC low shutdown (37.2V), restart (43.6V), and battery charged detect (56.0V) are all user-adjustable for 48V LiFePO4 or lead-acid. Dynamic cutoff raises the protection threshold proportionally under heavier loads preventing deep discharge at high draw while avoiding nuisance trips under light loads.
- Remote on/off: Two-pole remote connector for switching from a system control panel, BMS load-enable output, or site management circuit. At 1200VA, avoiding heavy 48V battery cables at the switching point is a practical installation benefit.
- Integrated Schuko socket: Direct 230VAC Schuko outlet compatible with standard Australian and European plugs. At 1200VA, this socket supplies a broad range of appliances, tools, and equipment directly.
- Short circuit proof and overtemperature protected: Automatic clean shutdown under fault conditions; recovers without damage once conditions normalise. Critical for unattended large off-grid, commercial, and industrial installations.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | PIN481220200 |
| Brand | Victron Energy |
| Model | Phoenix 48/1200 Direct Schuko |
| Input Voltage Range | 36.8–62.0V DC |
| Nominal Input Voltage | 48V |
| DC Low Shutdown (Adjustable) | 37.2V |
| DC Low Restart & Alarm (Adjustable) | 43.6V |
| Battery Charged Detect (Adjustable) | 56.0V |
| Output Voltage | 230VAC (or 120VAC) ±3%, adjustable 210–245VAC |
| Output Frequency | 50Hz or 60Hz ±0.1% (configurable) |
| Continuous Output Power (25°C) | 1200VA |
| Continuous Output Power (25°C / 40°C) | 1000W / 850W |
| Peak Output Power | 2200W |
| Maximum Efficiency | 92% |
| Zero-Load Power | 10.0W |
| Zero-Load Power (ECO Mode) | 3.0W |
| ECO Mode Sense Interval | Adjustable (default: 2.5 seconds) |
| Dynamic Cutoff | Yes (fully configurable, load-dependent) |
| Cooling | Fan-assisted |
| Operating Temperature Range | −40°C to +65°C |
| Thermal Derating | 1.25% per °C above 40°C |
| Humidity | Max 95% non-condensing |
| Topology | Full bridge + toroidal transformer |
| Output Waveform | Pure sine wave |
| Short Circuit Protection | Yes |
| Overtemperature Protection | Yes |
| Remote On/Off | Yes (two-pole connector) |
| AC Outlet | Schuko (direct integrated) |
| Battery Charger Included | No |
| Monitoring | Input/output voltage and alarms |
Compatible With
- 48V LiFePO4 and lead-acid battery banks large capacity recommended for sustained 1200VA use (configure low voltage thresholds to suit chemistry)
- Large off-grid solar systems with 48V battery storage requiring sustained high 230VAC output
- 48V commercial and industrial installations with high sustained 230VAC load requirements
- 48V marine installations for sustained high-output AC load supply
- Power tools, compressors, domestic appliances, and entertainment systems in 48V off-grid setups
- Victron MultiPlus-II 48V systems requiring a supplementary high-output AC outlet
- Victron SmartSolar MPPT charge controllers (48V off-grid systems)
- Victron BMV battery monitors (input voltage monitoring and system integration)
- Victron Color Control GX and Cerbo GX (for system-level monitoring check compatibility)
Frequently Asked Questions
How does the Phoenix 48/1200 compare to all other models in the 48V Phoenix Direct Schuko range?
The 48/1200 is the top-of-range model delivering the highest continuous output (1200VA), the highest peak power (2200W), and the best peak efficiency (92%) across the full 48V Phoenix Direct Schuko range. Compared to the 48/800 (800VA / 1500W peak / 91%), 48/500 (500VA / 900W / 91%), 48/375 (375VA / 700W / 90%), and 48/250 (250VA / 400W / 88%), the 48/1200 leads on every performance metric.
Why does the 48/1200 achieve higher efficiency than the smaller 48V Phoenix models?
Larger inverter designs inherently achieve better peak efficiency due to more optimal transformer and switching component sizing at higher power levels. The 92% figure on the 48/1200 represents the best the Phoenix Direct Schuko 48V range achieves and means less than 8% of the battery's energy is lost as heat during conversion at peak efficiency.
What sustained loads can the Phoenix 48/1200 power from a 48V system?
At 1000W continuous at 25°C (850W at 40°C), it handles domestic appliances, power tools in continuous use, small air conditioners, workshop compressors, and multiple simultaneous loads. The 2200W peak covers heavy motor and compressor start-up inrush. Battery bank capacity should be sized for sustained 1200VA use consult your installer for recommendations.
Can the low voltage thresholds be configured for a 48V LiFePO4 battery?
Yes. DC low shutdown (37.2V default), restart (43.6V), and battery charged detect (56.0V) are all fully user-adjustable for 48V LiFePO4 voltage ranges. Consult the Victron Phoenix inverter manual and your battery manufacturer's recommended discharge limits before configuring thresholds.
Does this inverter include a battery charger?
No. The Phoenix 48/1200 is a standalone pure sine wave inverter only with no battery charger or AC input. For combined 48V inverter and charger functionality including shore power input, PowerAssist, and UPS transfer refer to the Victron MultiPlus-II range.
