Victron PIN242120200 24/1200 Phoenix Direct Schuko Pure Sinewave Inverter

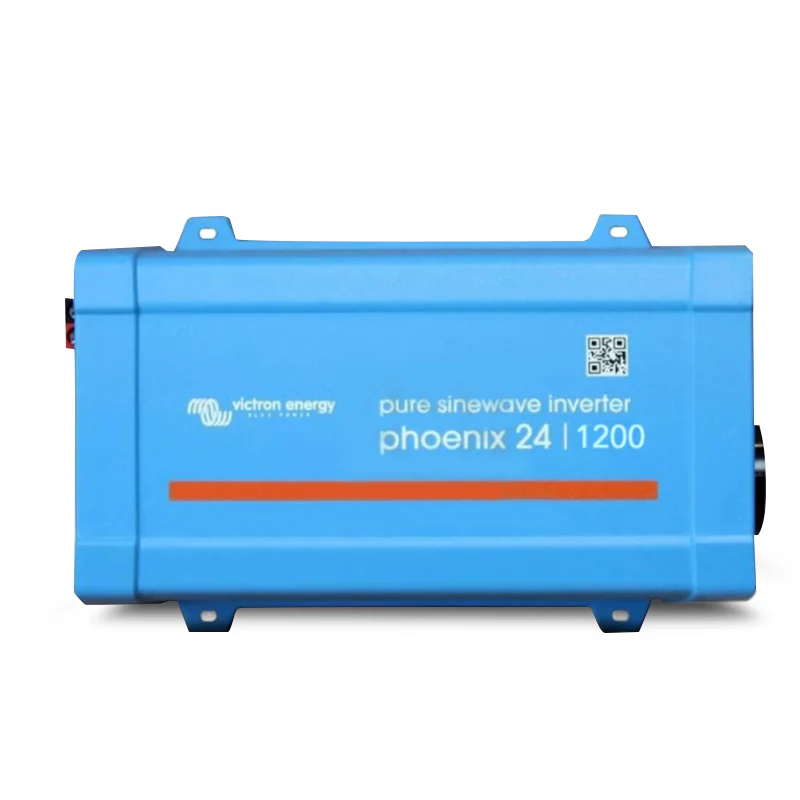

Victron Energy Phoenix 24/1200 Direct Schuko Pure Sine Wave Inverter

The top of the 24V Phoenix range 1200VA continuous, 2200W peak, and 91% efficiency for serious 24V installations

---

Product Overview

The Victron Energy Phoenix 24/1200 Direct Schuko (PIN242120200) is the highest-output model in the Phoenix Direct Schuko 24V range, delivering 1200VA continuous output (1000W at 25°C / 850W at 40°C) and a 2200W peak power rating from a 24V battery bank. At this capacity, it handles the full breadth of sustained AC loads found in serious 24V commercial vehicle, marine, caravan, and off-grid installations domestic appliances, power tools, air compressors, entertainment systems, and combinations of multiple simultaneous loads that would push smaller models to their limits.

Achieving 91% maximum efficiency and running on fan-assisted cooling across a −40°C to +65°C operating range, the Phoenix 24/1200 is built for installations where the inverter works hard every day. The 24V platform at 1200VA output draws half the input current of an equivalent 12V model, making it the architecturally correct choice for any 24V system requiring this level of AC output with meaningfully smaller cable requirements and lower resistive losses in the DC wiring than a 12V equivalent. The full suite of configurable voltage protection, remote on/off, and integrated Schuko socket complete a unit that is as straightforward to install as any Phoenix Direct Schuko model, and considerably more capable than most.

Note: This product is a standalone inverter only it does not include a battery charger. It is not suitable for connection to mains AC supply.

---

Key Specifications

• Input voltage range: 18.4–34.0V DC (24V nominal)
• DC low shutdown (adjustable): 18.6V
• DC low restart and alarm (adjustable): 21.8V
• Battery charged detect (adjustable): 28.0V
• Output voltage: 230VAC (or 120VAC) ±3%, adjustable 210–245VAC
• Output frequency: 50Hz or 60Hz ±0.1% (configurable)
• Continuous output power at 25°C: 1200VA
• Continuous output power at 25°C / 40°C: 1000W / 850W
• Peak power: 2200W
• Maximum efficiency: 91%
• Zero-load power: 8.0W
• Zero-load power in ECO mode: 1.5W (default retry interval: 2.5s, adjustable)
• Dynamic cutoff: fully configurable, load-dependent
• Operating temperature range: −40°C to +65°C (fan-assisted cooling; derate 1.25% per °C above 40°C)
• Humidity: max 95% non-condensing
• Short circuit protection: Yes
• Overtemperature protection: Yes
• Remote on/off: Yes (two-pole connector)
• AC outlet: Schuko (direct integrated socket)
• Battery charger included: No
• Monitoring: Input and output voltage, alarms

---

Features & Benefits

• 1200VA continuous 2200W peak: The most powerful Phoenix Direct Schuko 24V model available. At 1000W continuous (850W at 40°C) and 2200W peak, it powers domestic appliances, power tools running continuously, small air conditioners, workshop compressors, and multiple simultaneous loads in 24V commercial vehicles, vessels, caravans, and off-grid installations without the sustained output limitations that constrain the 800VA and 500VA models.
• 91% maximum efficiency matched only by the 24/800 in this range: At 91% peak efficiency, less than 9% of the energy drawn from the 24V battery is lost as heat during conversion. For installations cycling 1000W+ through the inverter daily, that efficiency advantage directly reduces energy consumption, extends runtime, and lowers the charge capacity required to recover the battery after each cycle.
• 24V platform advantage at 1200VA: At this output level, the current demands on the DC input wiring are substantial. A 24V input inverter draws approximately half the current of a 12V equivalent meaning smaller, lighter, and less expensive input cabling, lower resistive losses, and meaningfully less heat in the DC circuit. For any installation already built around a 24V bank, the Phoenix 24/1200 is the correct architectural choice at this power level.
• Full bridge plus toroidal transformer pure sine wave output: Victron's proven professional inverter topology delivers grid-quality pure sine wave output. Variable speed tools, switching power supplies, audio equipment, medical devices, and any load sensitive to waveform quality all operate cleanly no motor noise, no interference, no compatibility issues.
• Fan-assisted cooling across −40°C to +65°C: Thermally controlled fan cooling maintains rated output under sustained high-draw conditions and across Australian summer temperatures. Thermal derating is a controlled 1.25% per °C above 40°C sustained usable output rather than abrupt shutdown under load in the heat.
• Fully configurable voltage protection: DC low shutdown (18.6V), restart (21.8V), and battery charged detect (28.0V) are all user-adjustable for 24V AGM, gel, or LiFePO4. Dynamic cutoff provides load-dependent protection the cutoff voltage rises under heavier loads to prevent harmful deep discharge while avoiding nuisance trips under light draw.
• 1.5W ECO mode standby: Despite its 1200VA output rating, ECO mode standby drops to just 1.5W one of the lowest in the 24V Phoenix Direct Schuko range. For always-on installations running overnight on battery with intermittent high loads, this minimises parasitic drain between load events.
• 2200W peak power: Handles the high inrush current of motor loads, compressors, and power tools on startup the loads most likely to trip a lesser inverter at the moment of switch-on.
• Remote on/off: Two-pole remote connector for switching from a caravan panel, vehicle ignition, or BMS output no heavy 24V battery cables required at the switching point. At 1200VA, avoiding oversized switch gear in the input circuit is a practical installation benefit.
• Integrated Schuko socket: Direct 230VAC Schuko outlet compatible with standard Australian and European plugs. At 1200VA, this socket can supply a broad range of appliances, tools, and equipment directly without additional wiring.
• Short circuit proof and overtemperature protected: Automatic clean shutdown under fault conditions with recovery once conditions normalise. Reduces failure risk in unattended and remote installations running sustained high loads.

---

Technical Specs

---

Compatible With

• 24V AGM, gel, and LiFePO4 battery banks larger capacity recommended for sustained 1200VA use (configure low voltage thresholds to suit chemistry)
• 24V commercial vehicles (trucks, buses, plant) with high sustained 230VAC load requirements
• Caravans and motorhomes running 24V primary systems with high AC load demands
• Marine 24V installations for sustained appliance, tool, and entertainment supply
• 24V off-grid solar systems and backup power installations with high AC load requirements
• Power tools, compressors, and domestic appliances in mobile or off-grid setups
• Victron BMV battery monitors (input voltage monitoring and system integration)
• Victron Color Control GX and Cerbo GX (for system-level monitoring check compatibility)

---

Frequently Asked Questions

How does the Phoenix 24/1200 differ from the Phoenix 24/800?

The 24/1200 delivers 1200VA continuous and 2200W peak versus 800VA and 1500W on the 24/800 a 50% increase in continuous capacity and 47% more peak power. Both models achieve 91% maximum efficiency and share the same fan-assisted cooling, operating temperature range, and configurable protection features. The 24/1200 is the top-output model in the 24V Phoenix Direct Schuko range and is suited to installations running sustained high-draw loads where the 24/800 would be operating near its limits.

What sustained loads can the Phoenix 24/1200 power from a 24V battery bank?

At 1000W continuous at 25°C (850W at 40°C), it handles domestic appliances, power tools in continuous use, small air compressors, entertainment systems, and combinations of multiple moderate-draw loads simultaneously. The 2200W peak covers motor and compressor start-up inrush. Battery bank capacity should be sized appropriately for sustained 1200VA use  consult your installer for recommendations.

Why is the 24V platform particularly advantageous at 1200VA output?

At 1200VA, the DC input current demands are significant. A 24V inverter draws approximately half the current of a 12V equivalent at the same output allowing smaller input cable cross-sections, lower resistive losses, and less heat in the DC wiring run. For large caravan, commercial vehicle, and marine installations where DC cable sizing and losses are real engineering considerations, the 24V platform at this output level is the correct architectural choice.

Can the low voltage settings be configured for a 24V LiFePO4 battery?

Yes. DC low shutdown (18.6V default), restart (21.8V), and battery charged detect (28.0V) are all fully user-adjustable for 24V LiFePO4 voltage ranges. Consult the Victron Phoenix inverter manual and your battery manufacturer's recommended discharge limits before setting thresholds.

Does this inverter include a battery charger?

No. The Phoenix 24/1200 is a standalone pure sine wave inverter only with no battery charger or AC input. For combined inverter and charger functionality including shore power input, PowerAssist, and UPS transfer refer to the Victron MultiPlus or MultiPlus-II range.
