Victron Energy PIN121800200 12/800 Phoenix Direct Schuko Pure Sinewave Inverter

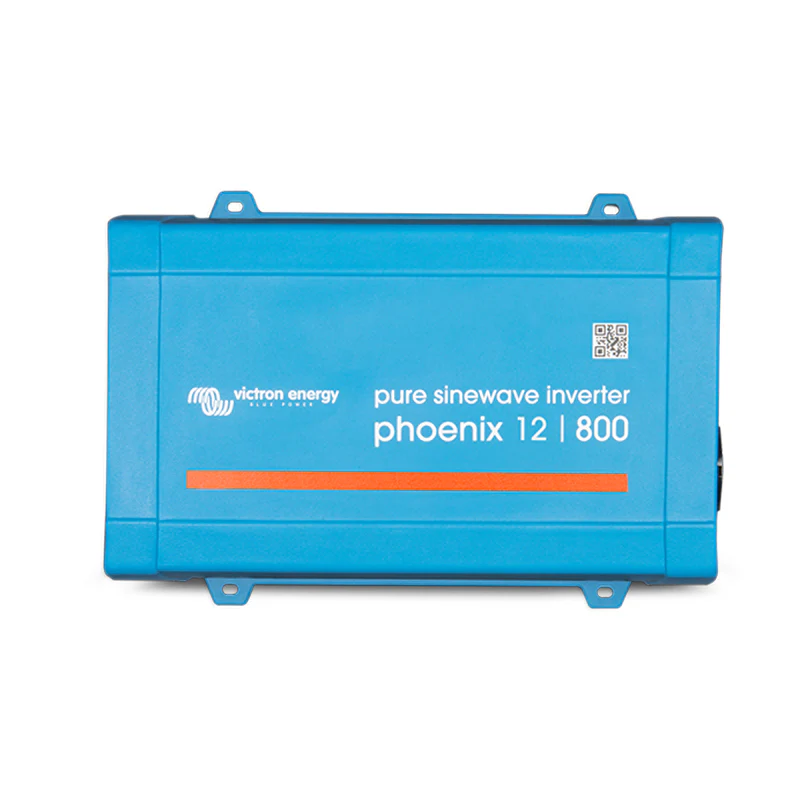

Victron Energy Phoenix 12/800 Direct Schuko Pure Sine Wave Inverter

800VA continuous, 1500W peak the Phoenix steps up to handle real-world 12V inverter demands

---

Product Overview

The Victron Energy Phoenix 12/800 Direct Schuko (PIN121800200) is a significant step up from the compact Phoenix range, delivering 800VA continuous output (650W at 25°C / 560W at 40°C) with a 1500W peak power rating from a 12V battery bank. With fan-assisted cooling, a full suite of published specifications, and a wider operating temperature range of −40°C to +65°C, the 12/800 is built for more demanding and sustained applications than the lighter 250VA–500VA models in the Direct Schuko range.

At this output level, the Phoenix 12/800 handles loads that smaller inverters simply cannot sustain: power tools in continuous use, small air compressors, domestic appliances, entertainment systems, and high-draw accessories in caravans, vehicles, and marine installations. The integrated Schuko socket retains the plug-and-go simplicity of the smaller Phoenix models, while the full specification set including dynamic cutoff, configurable alarm and protection thresholds, ECO mode, and remote on/off provides the system integration depth expected in a professional-grade installation. Maximum efficiency of 90% and a 1W ECO mode standby draw keep energy losses and overnight battery drain well managed.

Note: This product is a standalone inverter only it does not include a battery charger. It is not suitable for connection to mains AC supply.

---

Key Specifications

• Input voltage range: 9.2–17V DC (12V nominal)
• DC low shutdown (adjustable): 9.3V
• DC low restart and alarm (adjustable): 10.9V
• Battery charged detect (adjustable): 14.0V
• Output voltage: 230VAC (or 120VAC) ±3%, adjustable 210–245VAC
• Output frequency: 50Hz or 60Hz ±0.1% (configurable)
• Continuous output power at 25°C: 800VA
• Continuous output power at 25°C / 40°C: 650W / 560W
• Peak power: 1500W
• Maximum efficiency: 90%
• Zero-load power: 6.5W
• Zero-load power in ECO mode: 1W (default retry interval: 2.5s, adjustable)
• Dynamic cutoff: fully configurable, load-dependent
• Operating temperature range: −40°C to +65°C (fan-assisted cooling; derate 1.25% per °C above 40°C)
• Humidity: max 95% non-condensing
• Short circuit protection: Yes
• Overtemperature protection: Yes
• Remote on/off: Yes (two-pole connector)
• AC outlet: Schuko (direct integrated socket)
• Battery charger included: No
• Monitoring: Input and output voltage, alarms

---

Features & Benefits

• 800VA continuous 1500W peak: At 800VA continuous and 1500W peak, the Phoenix 12/800 handles sustained loads well beyond the compact Phoenix range: power tools running continuously, small air compressors, domestic appliances, and high-draw caravan or marine accessories. The 1500W peak handles motor and compressor start-up inrush cleanly where budget inverters trip, the Phoenix keeps running.
• Fan-assisted cooling sustained output in the heat: Unlike the passively cooled smaller Phoenix models, the 12/800 uses fan-assisted cooling to maintain rated output under sustained load. Combined with a −40°C to +65°C operating temperature range (with 1.25% derating per °C above 40°C rather than hard shutdown), it is built to operate reliably in hot Australian engine bays, enclosed equipment lockers, and summer outdoor installations.
• Full bridge plus toroidal transformer pure sine wave output: The same proven topology used across Victron's professional inverter range delivers grid-quality pure sine wave output. Variable speed tools, switching power supplies, audio equipment, and medical devices all operate cleanly and efficiently no motor noise, no interference, no compatibility issues.
• 90% maximum efficiency: At 90% peak efficiency, the Phoenix 12/800 keeps energy losses well managed under load important for battery life and runtime in installations cycling large loads from a 12V bank daily.
• 1W ECO mode standby: In ECO mode, standby draw drops to just 1W the lowest in the Phoenix Direct Schuko range covered here. For always-on caravan, marine, and off-grid installations where the inverter remains switched on overnight, this minimises parasitic battery drain between load events.
• Fully configurable voltage protection: DC low shutdown, restart, and alarm thresholds are all user-adjustable. Dynamic cutoff adds load-dependent intelligence: the cutoff voltage rises under heavier loads to prevent damaging deep discharge at high draw, while avoiding nuisance trips under light loads. Battery charged detect is also adjustable allowing the unit to confirm battery status accurately for your specific chemistry.
• Remote on/off: Switch the Phoenix 12/800 from a caravan control panel, vehicle dash, or BMS output via the two-pole remote connector without routing heavy 12V battery cables to the switching point. Clean installs, simple integration.
• Integrated Schuko socket: Direct 230VAC Schuko outlet built in compatible with standard Australian and European plugs. No additional socket wiring required. At 800VA, this socket can supply a meaningful range of appliances and tools directly.
• Wide operating temperature range (−40°C to +65°C): Suitable for cold-climate installations as well as hot Australian summer conditions. Fan-assisted cooling maintains rated performance across the full range, with gradual derating above 40°C rather than abrupt shutdown.
• Short circuit proof and overtemperature protected: Output short circuits and overtemperature conditions trigger a clean automatic shutdown the unit recovers without damage once conditions normalise. Reduces failure risk in unattended and remote installations.

---

Technical Specs

---

Compatible With

• 12V AGM, gel, and LiFePO4 battery banks (configure low voltage thresholds to suit chemistry)
• Caravans and motorhomes with higher AC load requirements
• Marine 12V installations for sustained AC appliance and tool supply
• 4WD and expedition vehicles with high-draw AC accessory requirements
• Power tools, small compressors, and workshop equipment in mobile or off-grid setups
• CPAP and PAP therapy machines requiring clean pure sine wave power
• Victron BMV battery monitors (input voltage monitoring and system integration)
• Victron Color Control GX and Cerbo GX (for system-level monitoring check compatibility)

---

Frequently Asked Questions

How does the Phoenix 12/800 differ from the smaller Phoenix Direct Schuko models?

The 12/800 delivers 800VA continuous and 1500W peak significantly more than the 12/500 (500VA), 12/375 (375VA), and 12/250 (250VA). It also adds fan-assisted cooling, a published full specification set including input voltage range and efficiency figures, and a wider operating temperature range of −40°C to +65°C. It is suited to sustained high-draw loads that the smaller models cannot support.

What loads can the Phoenix 12/800 run continuously?

At 650W continuous at 25°C (560W at 40°C), it handles power tools in use, small air compressors, domestic appliances, entertainment systems, and combinations of moderate-draw loads. The 1500W peak rating covers motor and compressor start-up inrush. Confirm individual load watt ratings against the inverter's continuous and peak capacity before use.

Does the fan run constantly or only under load?

Victron's fan-assisted cooling on the Phoenix range is thermally controlled the fan activates as needed based on internal temperature rather than running continuously. This reduces noise in lightly loaded conditions and extends fan life.

Can the low voltage cutoff be configured for a LiFePO4 battery?

Yes. The DC low shutdown, restart, and alarm thresholds are all fully user-adjustable allowing you to set cutoff levels appropriate for LiFePO4 voltage ranges, which differ from lead-acid. Consult the Victron Phoenix inverter manual and your battery manufacturer's specifications for recommended thresholds.

Does this inverter include a battery charger?

No. The Phoenix 12/800 is a standalone pure sine wave inverter only and has no battery charger or AC input connection. For combined inverter and charger functionality including shore power input, PowerAssist, and UPS transfer refer to the Victron MultiPlus or MultiPlus-II range.
