Victron Energy PIN122120200 12/1200 Phoenix Direct Schuko Pure Sinewave Inverter

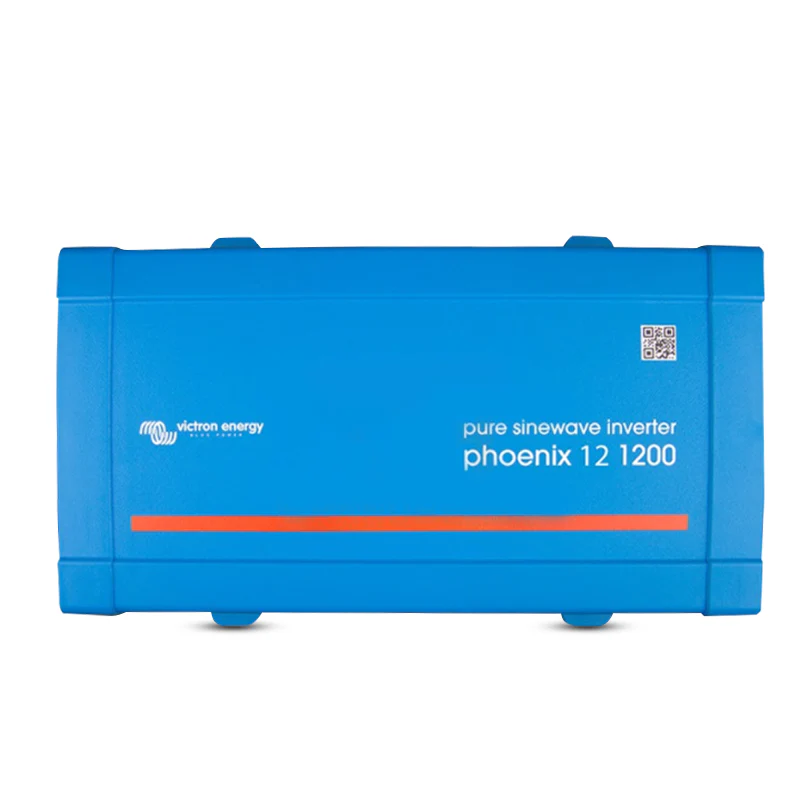

Victron Energy Phoenix 12/1200 Direct Schuko Pure Sine Wave Inverter

1200VA continuous, 2200W peak the high-output Phoenix for demanding 12V installations

---

Product Overview

The Victron Energy Phoenix 12/1200 Direct Schuko (PIN122120200) is the highest-output model in the Phoenix Direct Schuko 12V range, delivering 1200VA continuous output (1000W at 25°C / 850W at 40°C) and a 2200W peak power rating from a 12V battery bank. At this capacity, it handles the full breadth of sustained AC loads found in serious caravan, marine, 4WD, and off-grid installations domestic appliances, power tools, air compressors, entertainment systems, and combinations of multiple simultaneous loads that would overwhelm smaller inverter models.

Like the Phoenix 12/800, the 12/1200 uses fan-assisted cooling to maintain rated output under sustained load, operates across −40°C to +65°C, and delivers 90% maximum efficiency. The integrated Schuko socket retains the plug-and-go simplicity the Phoenix range is known for, while the full suite of configurable voltage protection settings, ECO mode, and remote on/off provide the depth of system integration required in a professionally installed 12V power system. At 1W ECO mode standby draw, overnight battery drain is minimal even when the inverter is left on.

Note: This product is a standalone inverter only it does not include a battery charger. It is not suitable for connection to mains AC supply.

---

Key Specifications

• Input voltage range: 9.2–17V DC (12V nominal)
• DC low shutdown (adjustable): 9.3V
• DC low restart and alarm (adjustable): 10.9V
• Battery charged detect (adjustable): 14.0V
• Output voltage: 230VAC (or 120VAC) ±3%, adjustable 210–245VAC
• Output frequency: 50Hz or 60Hz ±0.1% (configurable)
• Continuous output power at 25°C: 1200VA
• Continuous output power at 25°C / 40°C: 1000W / 850W
• Peak power: 2200W
• Maximum efficiency: 90%
• Zero-load power: 6.5W
• Zero-load power in ECO mode: 1W (default retry interval: 2.5s, adjustable)
• Dynamic cutoff: fully configurable, load-dependent
• Operating temperature range: −40°C to +65°C (fan-assisted cooling; derate 1.25% per °C above 40°C)
• Humidity: max 95% non-condensing
• Short circuit protection: Yes
• Overtemperature protection: Yes
• Remote on/off: Yes (two-pole connector)
• AC outlet: Schuko (direct integrated socket)
• Battery charger included: No
• Monitoring: Input and output voltage, alarms

---

Features & Benefits

• 1200VA continuous 2200W peak: The most powerful Phoenix Direct Schuko 12V model in the range. At 1000W continuous (850W at 40°C) and 2200W peak, it handles the sustained load demands of serious 12V installations: domestic appliances, power tools running continuously, small air conditioners, workshop compressors, and multiple simultaneous loads. The 2200W peak covers heavy motor and compressor start-up inrush without tripping.
• Fan-assisted cooling rated output maintained under load: Thermally controlled fan cooling allows the Phoenix 12/1200 to sustain its rated continuous output even under extended high-draw conditions in hot environments. Combined with a −40°C to +65°C operating range and gradual 1.25% derating per °C above 40°C rather than hard shutdown it keeps working in Australian summer conditions where passively cooled inverters would throttle or cut out.
• Full bridge plus toroidal transformer pure sine wave: Victron's proven professional inverter topology delivers grid-quality pure sine wave output essential for variable speed tools, switching power supplies, audio equipment, medical devices, and any load sensitive to waveform quality. No motor noise, no interference, no compatibility issues.
• 90% maximum efficiency: At 90% peak efficiency, the Phoenix 12/1200 keeps losses manageable at this output level important for daily-cycled 12V battery banks where inverter efficiency has a compounding effect on usable runtime and charge cycle frequency.
• 1W ECO mode standby: Standby draw in ECO mode is just 1W the same ultra-low figure as the 12/800. For large-capacity caravans, liveaboard vessels, and off-grid installations where the inverter runs continuously with intermittent high loads, this keeps overnight battery drain negligible between load events.
• Fully configurable voltage protection: DC low shutdown, restart, alarm, and battery charged detect thresholds are all user-adjustable tunable to AGM, gel, or LiFePO4 chemistry. Dynamic cutoff ensures the cutoff voltage rises proportionally with load, protecting against deep discharge under heavy draw while avoiding nuisance trips under light loads.
• Remote on/off: Two-pole remote connector allows switching from a caravan control panel, vehicle ignition circuit, or BMS load-enable output without routing heavy battery cables to the switching point. Particularly valuable at 1200VA where input cable size is significant.
• Integrated Schuko socket: Direct 230VAC Schuko outlet built in compatible with standard Australian and European plugs. At 1200VA, this socket can supply a broad range of appliances, tools, and equipment directly without additional wiring.
• Wide operating temperature range (−40°C to +65°C): Covers cold-climate off-grid applications as well as hot Australian summer conditions. Fan-assisted cooling maintains performance across the full range with controlled derating rather than abrupt shutdown.
• Short circuit proof and overtemperature protected: Automatic shutdown under fault conditions; recovers without damage once conditions normalise. Essential for unattended and remote installations at this output level.

---

Technical Specs

---

Compatible With

• 12V AGM, gel, and LiFePO4 battery banks large capacity recommended for sustained 1200VA use (configure low voltage thresholds to suit chemistry)
• Caravans and motorhomes with high AC load requirements
• Marine 12V installations for sustained appliance, tool, and entertainment supply
• 4WD and expedition vehicles with high-draw AC accessory requirements
• Power tools, compressors, and workshop equipment in mobile or off-grid setups
• Domestic appliances in off-grid cabins and remote installations
• Victron BMV battery monitors (input voltage monitoring and system integration)
• Victron Color Control GX and Cerbo GX (for system-level monitoring check compatibility)

---

Frequently Asked Questions

How does the Phoenix 12/1200 differ from the Phoenix 12/800?

The 12/1200 delivers 1200VA continuous and 2200W peak versus 800VA and 1500W on the 12/800 a 50% increase in both continuous and peak capacity. It is the highest-output model in the Phoenix Direct Schuko 12V range and is suited to sustained high-draw loads and larger installations where the 12/800 would be operating near its limits. Both models share the same fan-assisted cooling, operating temperature range, efficiency, and configurable protection features.

What sustained loads can the Phoenix 12/1200 power?

At 1000W continuous at 25°C (850W at 40°C), it handles domestic appliances, power tools in continuous use, small air compressors, entertainment systems, and combinations of multiple moderate-draw loads simultaneously. The 2200W peak covers motor and compressor start-up inrush. Confirm individual load watt ratings against the inverter's continuous and peak capacity and ensure your 12V battery bank is sized for sustained 1200VA draw.

Does the fan run continuously or only as needed?

The fan activates based on internal temperature rather than running at all times. Under light loads or in cooler conditions it may not run at all, reducing noise and extending fan life. Under sustained high loads or in hot conditions it activates to maintain rated output.

Can the low voltage settings be configured for a LiFePO4 battery?

Yes. DC low shutdown, restart, and alarm thresholds are all fully user-adjustable allowing you to set cutoff levels appropriate for LiFePO4 voltage ranges. Consult the Victron Phoenix inverter manual and your battery manufacturer's recommended discharge limits for correct threshold settings.

Does this inverter include a battery charger?

No. The Phoenix 12/1200 is a standalone pure sine wave inverter only and has no battery charger or AC input. For combined inverter and charger functionality including shore power input, PowerAssist, and UPS transfer refer to the Victron MultiPlus or MultiPlus-II range.
