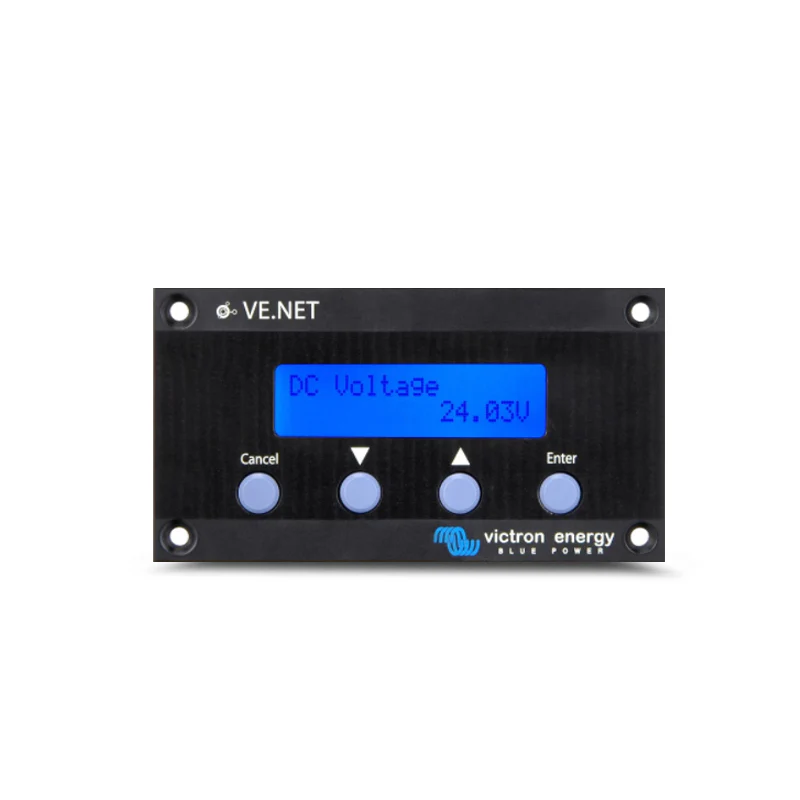

Victron Energy VPN000100000 VE Net Control Panel

Victron Energy VE Net Control Panel: The CANvu GX From Victron Energy Have Been Designed to Be a True Worldwide Product

The VE.Net Panel provides a user interface to all connected VE.Net devices. This could be one or more VE.Net Battery Controllers, VE.Net Generator Modules, regular Victron Energy equipment such as inverters and the Multi Inverter/Charger combination, or other third party equipment.

Victron Energy VPN000100000 Specifications:

• Maximum number of nodes: 128
• Maximum cable length: 100 meter
• Network cable: Standard UTP with RJ-45 jacks
• Network type: Mixed (star and ring networks possible)
• Power supply voltage range: 9 – 35 V DC
• Current draw – standby: 3 mA at 12 volt
• Current draw – backlight off: 14 mA at 12 volt
• Current draw – backlight on: 26 mA at 12 volt
• Operating temp. range: 20 – +50°C (0 - 120°F)
• Potential free contact: 3A / 30 V DC / 250 V AC / (Normally Open)
