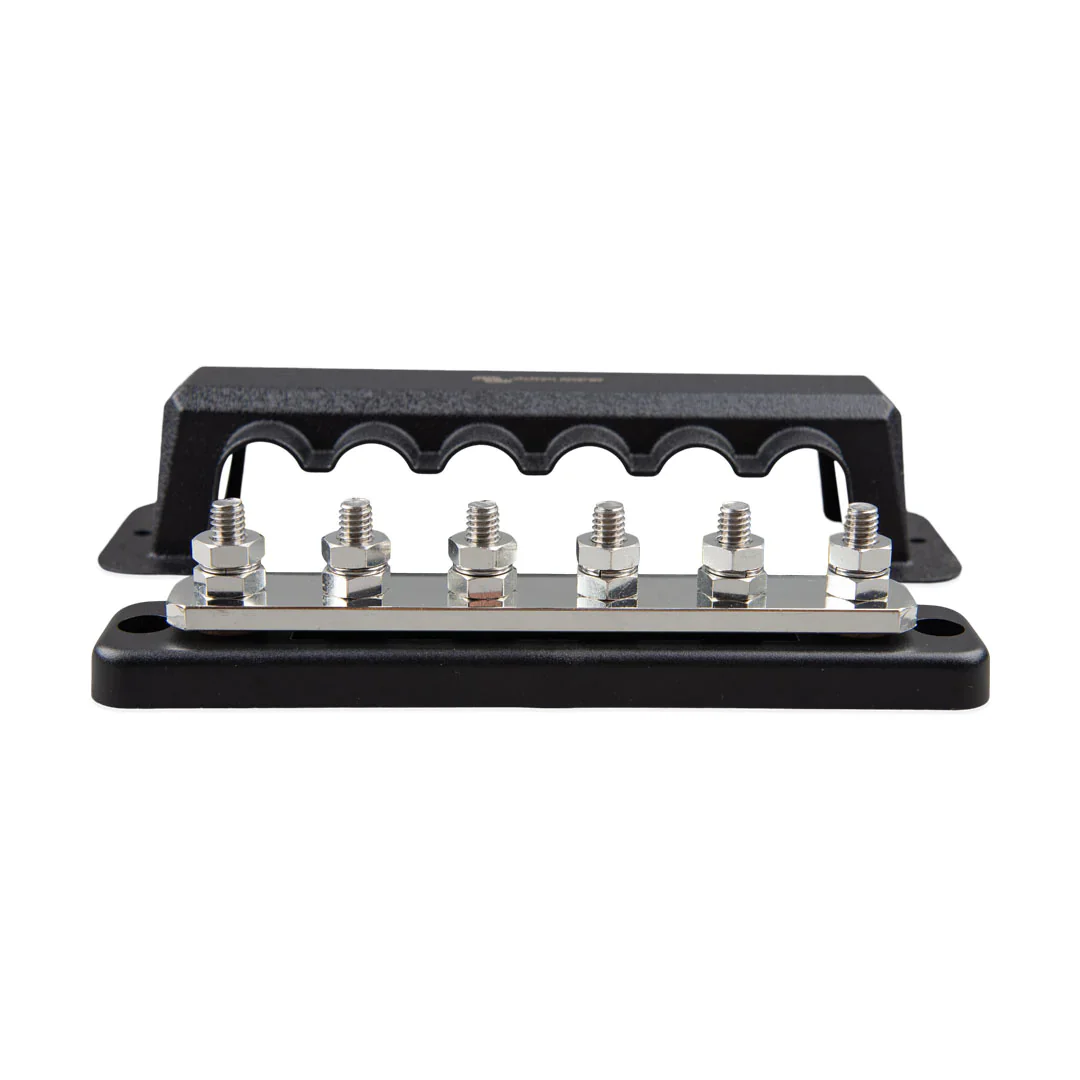

Victron Energy VBB125060020 Busbar 250A 6P + Cover

Victron Energy Busbar 250A 6P + Cover

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

Busbar 250A 6 Terminals with cover
Max. current rating	250 A
Max. Voltage rating	70 VDC
Terminal diameter	5/16 inch / 8 mm
Terminal height	0.67 inch / 17 mm
Terminal material	Stainless steel
Hex nut material	Tin-plated copper
Recommended torque	110 lbf·inch / 13 N·m
Busbar strip material	Tin-plated copper (5 x 24 mm)
Base material	ABS, black, UL 94 V-0
Cover material	ABS, black, UL 94 V-2
Weight, 6 terminals	1.0 lb / 0,43 kg
Dimensions (hxwxd) (with cover)	1.9 x 9.4 x 2.8 inch 48 x 237 x 70 mm
