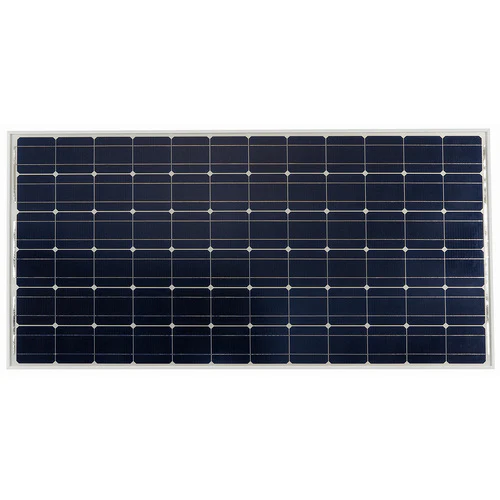

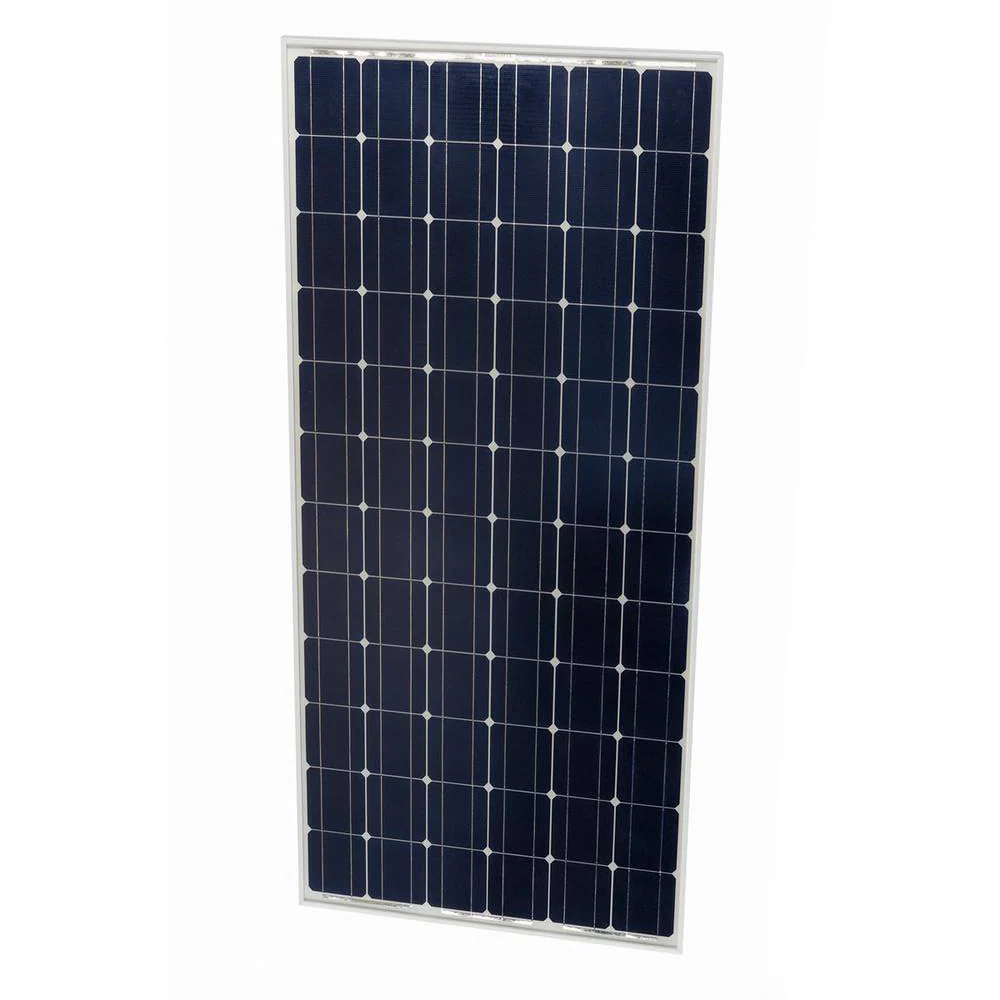

Victron Energy SPM042152402 Solar Panel 215W-24V Mono 1580x705x35mm Series 4b

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety ofstandard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Victron Energy SPM042152402 Specifications:

Article Number	SPM042152402
Description	215W-24V Mono 1580 x 705 x 35mm series 4b
Net Weight	11,7 Kg
Nominal Power PMPP W	215
Max-Power Voltage VMPP V	40.1
Max-Power Current IMPP A	5.36
Open-Circuit Voltage Voc V	46.01
Short-Circuit Current Isc A	5.65
Nominal Power (±3% tolerance)	215W
Cell type	Monocrystalline
Number of cells in series	72
Maximum system voltage	1000V
Temperature coefficient of MPP (%)	0.45/°C
Temperature coefficient of Voc (%)	-0.35/°C
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	200 kg/m²
Allowable Hail Load	23 m/s, 7.53 g
Junction Box Type	PV-LH0701
Length of Cables / Connector Type	900 mm MC4
Frame	Aluminium
Product warranty	5 years
Warranty on electrical performance	10 years 90% + 25 years 80% of power output
Smallest packaging unit	1 panel
Quantity per pallet	42
