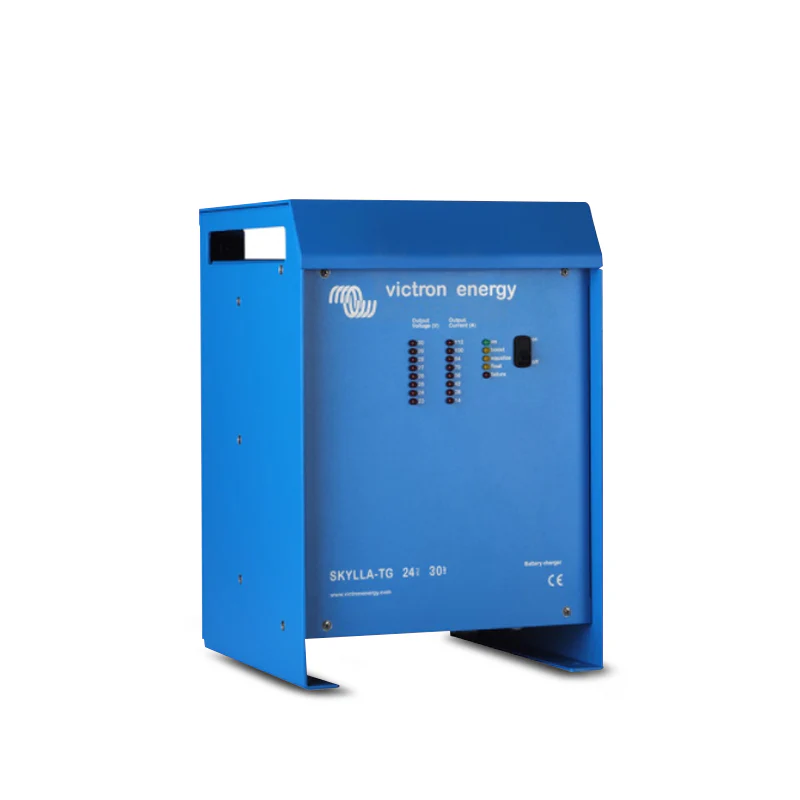

Victron Energy SDTG2400303 Skylla-TG Battery Charger 24/30 (1+1) 120-240V

Victron Energy Skylla-TG Battery Charger 24/30 (1+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a True Worldwide Product

Universal 90-265 V AC input voltage range and also suitable for DC supply
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
The chargers will also accept a 90-400 V DC supply.

Germanischer Lloyd approval
The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1.
Category C applies to equipment protected from the weather.
EMC 1 applies to conducted and radiated emission limits for equipment installed on the bridge of a ship.

The approval to GL C, EMC1 implies that the Chargers also complies to IEC 60945-2002, category ‘protected’ and ‘equipment installed on the bridge of a ship’.

The GL certification applies to 185-265 V AC supply.

Victron Energy SDTG2400303 Features:

• Microprocessor control
• Can be used as power supply
• Battery temperature sensor for temperature compensated charging
• Battery voltage sensing to compensate for voltage loss due to cable resistance

Victron Energy SDTG2400303 Specifications:

• Input voltage (V AC): 230
• Input voltage range (V AC): 90-265
• Input voltage range (V DC): 90-400
• Frequency (Hz): 45-65 Hz or DC
• Power factor: 1
• Charge voltage 'absorption' (V DC): 28,5
• Charge voltage 'float' (V DC): 26,5
• Charge current house battery (A): 30 (limited to 22 A at 110V AC)
• Charge current starter battery (A): 4
• Charge characteristic: IUoUo (three step)
• Battery capacity (Ah): 150-300
• Temperature sensor: Yes
• Can be used as power supply: Yes
• Remote alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
• Forced cooling: Yes
• Protection: a, b, c, d
• Operating temp. range: -40 to +50°C (-40 - 122°F) Full output current up to 40°C
• Humidity (non-condensing): max 95%
