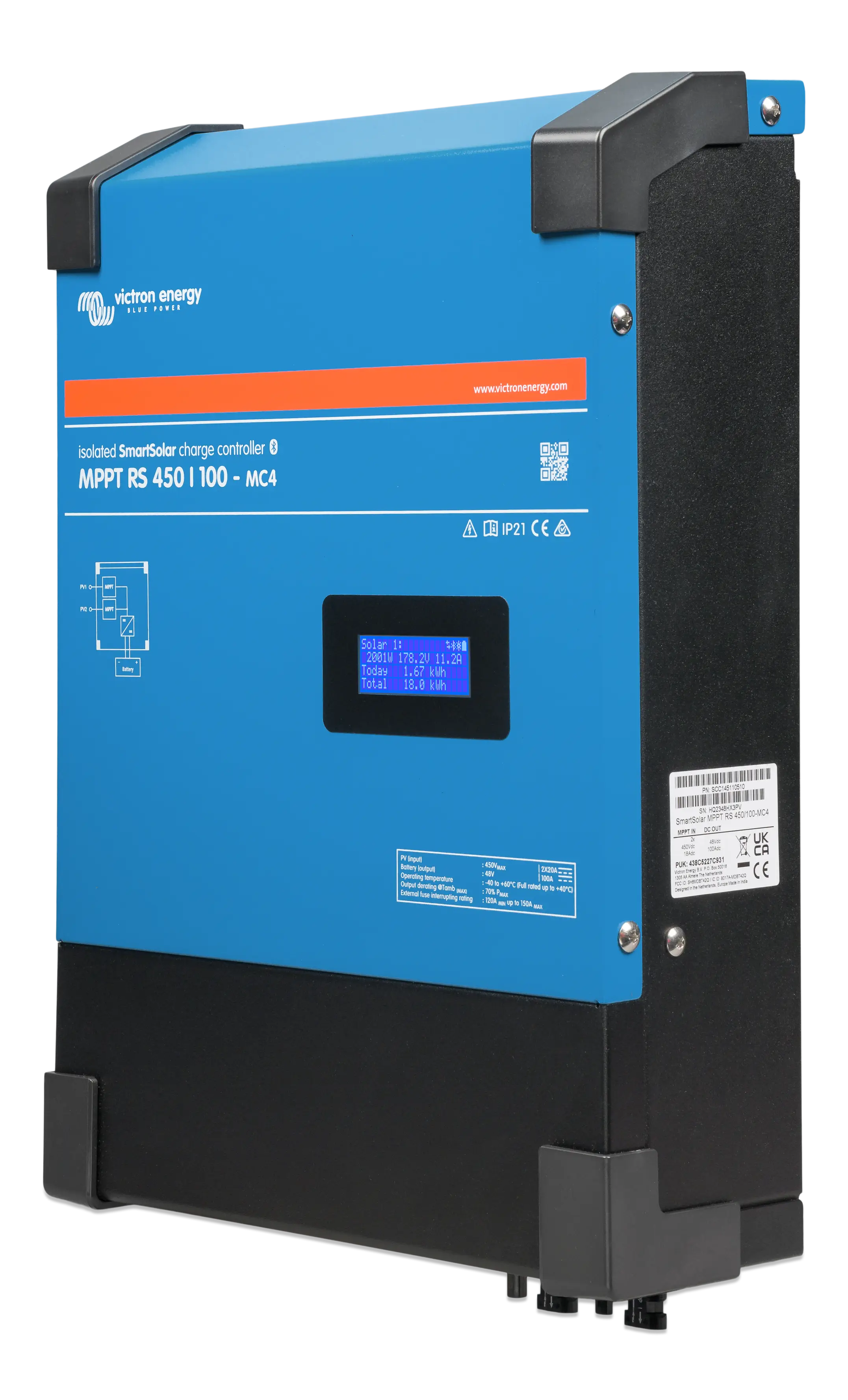

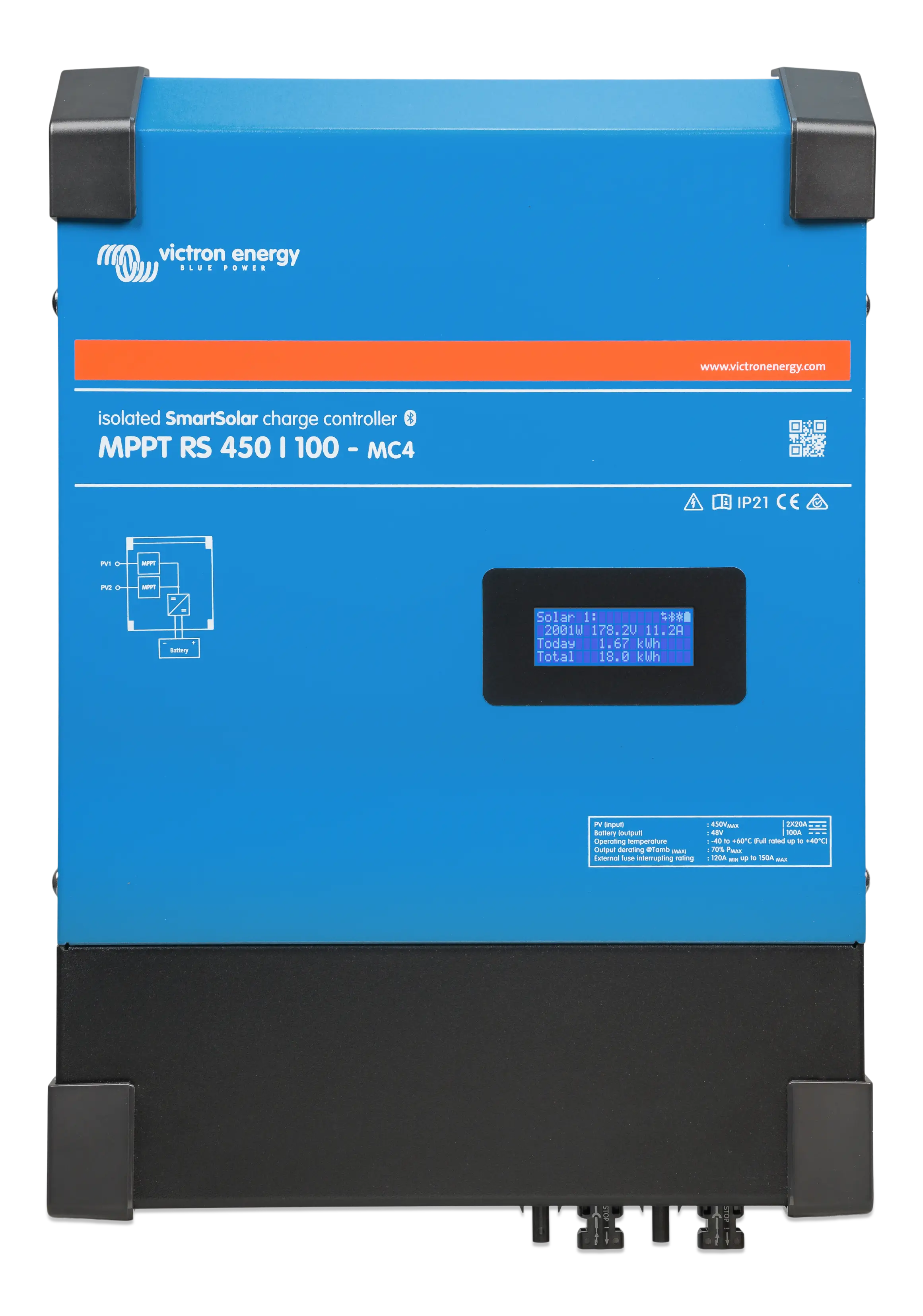

Victron Energy SCC145110510 SmartSolar MPPT RS 450/100-MC4

Victron Energy SmartSolar MPPT RS 450/100-MC4

The SmartSolar MPPT RS solar charge controllers are Victron's top choice for systems with large series-connected PV arrays charging 48 V DC battery banks. Ideal for both large off-grid and grid-connected battery systems, this product offers robust performance and reliability.

Available in 5.76kW and 11.52kW models, key features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections enhance safety and modernize the presentation, aligning with the latest suite of Victron products.

Victron Energy SCC145110510 Features:

• 450 Max PV Voltage / 100A Max Charge Current
• MC4 terminals for PV Input
• MPPT: Ultra Fast Maximum Power Point Tracking
• Setup and monitor with VictronConnect
• Daisy Chain Additional Units
• Remote Monitoring and Control Using GC Device
• SmartSolar Display
• I/O Connections
