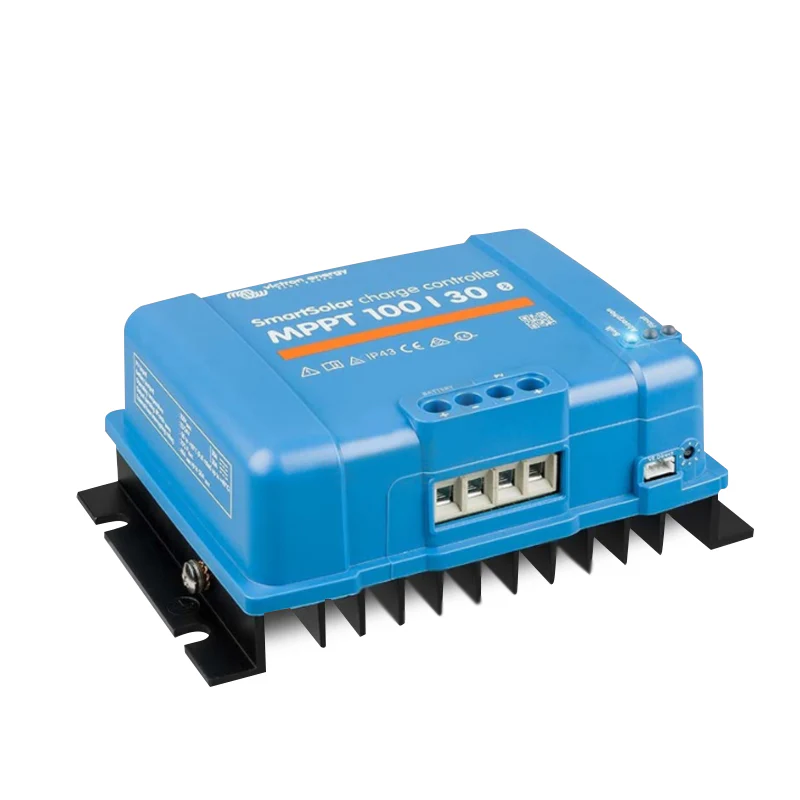

Victron Energy SCC110030210 Smart Solar Charge Controller MPPT 100/30

Victron Energy Smart Solar Charge Controller MPPT 100/30: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Bluetooth Smart built-in

The wireless solution to set up, monitor, update, and synchronize SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC, or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%.
The full output current is up to 40°C (104°F).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Victron Energy SCC110030210 Specifications:

• Battery voltage: 12/24V Auto Select
• Rated charge current: 30A
• Nominal PV power, 12V: 440W
• Nominal PV power, 24V: 880W
• Nominal PV power, 48V: 100V
• Max. PV open circuit current: 100V
• Max. PV short circuit current: 35A
• Peak efficiency: 98%
• Self-consumption: 12V: 25 mA , 24V: 15 mA
• Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
• Charge voltage 'float': 13,8V / 27,6V (adjustable)
• Charge algorithm: multi-stage adaptive
• Temperature compensation: -16 mV / °C resp. -32 mV / °C
• Protection: Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit, Over-temperature
• Operating temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing
