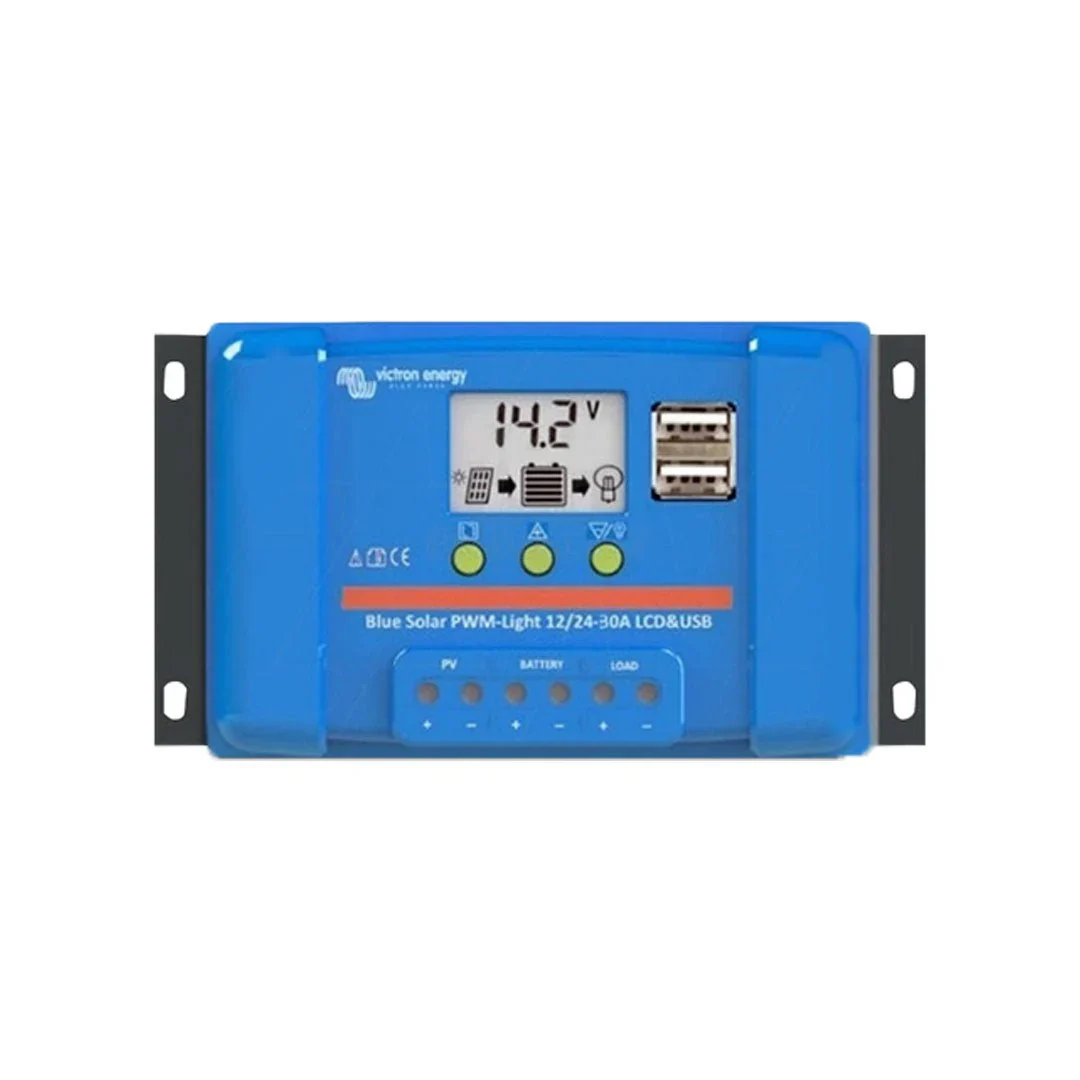

Victron Energy SCC010030050 Blue Solar Charge Controller PWM-LCD&USB 12/24V-30A

Victron Energy Blue Solar Charge Controller PWM-LCD&USB 12/24V-30A: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Liquid crystal display for status monitoring and set-up load output. Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.

Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed. The connect and disconnect voltages are adjustable.

Day/night timing of the load output

• This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

• Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs

• Maximum current (both outputs combined): 2A

Victron Energy SCC010030050 Specification:

• Battery Voltage: 12/24 V with automatic system voltage detection
• Rated charge current: 30A
• Automatic load disconnect: Yes
• Maximum solar voltage: 28V / 55V
• Self-consumption: < 10 mA
• Load output: Manual control + low voltage disconnect +timer
• Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
• Grounding: Common positive
• Operating temp. range: -35 to +60°C (full load)
• Humidity (non-condensing): Max 95%
