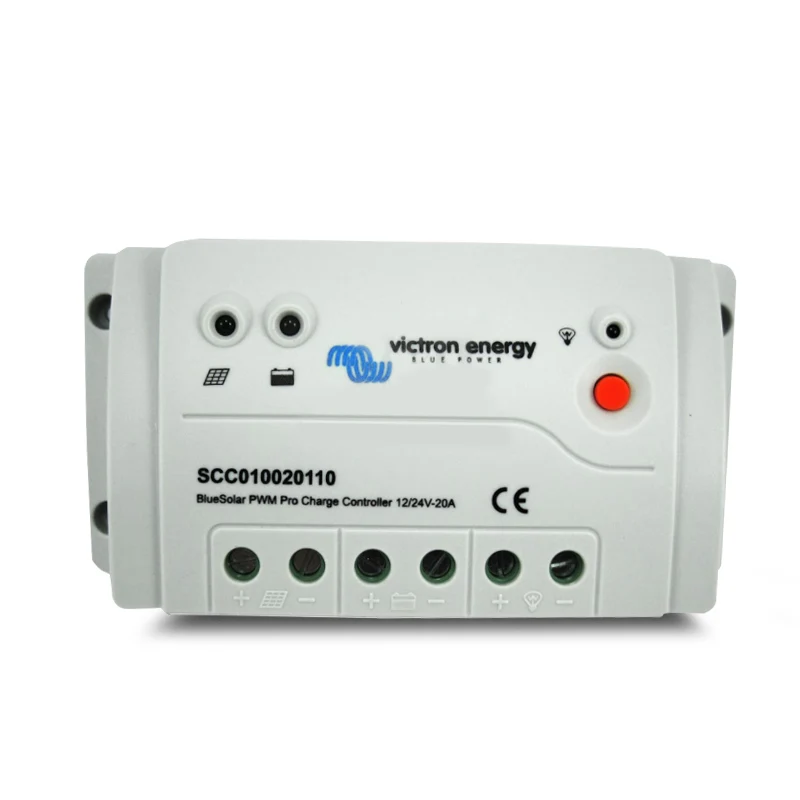

Victron Energy SCC010020110 Blue Solar Charge Controller PWM-Pro 12/24V-20A

Victron Energy Blue Solar Charge Controller PWM-Pro 12/24V-20A: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Programmable
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:

• With help of a computer and software
• With the dedicated BlueSolar Pro Remote Panel

Victron Energy SCC010020110 Features:

• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Integrated battery monitor function (Remote Panel needed to display state of charge)
• Load output with low voltage disconnect and manual control (default setting)
• Optional external temperature sensor
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery

Victron Energy SCC010020110 Specifications:

• Battery Voltage: 12/24V with automatic system voltage detection
• Rated charge current: 20A
• Automatic load disconnect: Yes
• Maximum solar voltage: 28V / 55V
• Self-consumption: < 10mA
• Load output: Manual control + low voltage disconnect
• Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
• Battery temperature sensor: Optional (article SCC940100100)
• Temperature compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
• Remote panel: Optional (article SCC900300000)
• Grounding: Common positive
• Operating temp. range: -20 to +50°C
• Humidity (non-condensing): Max 98%
