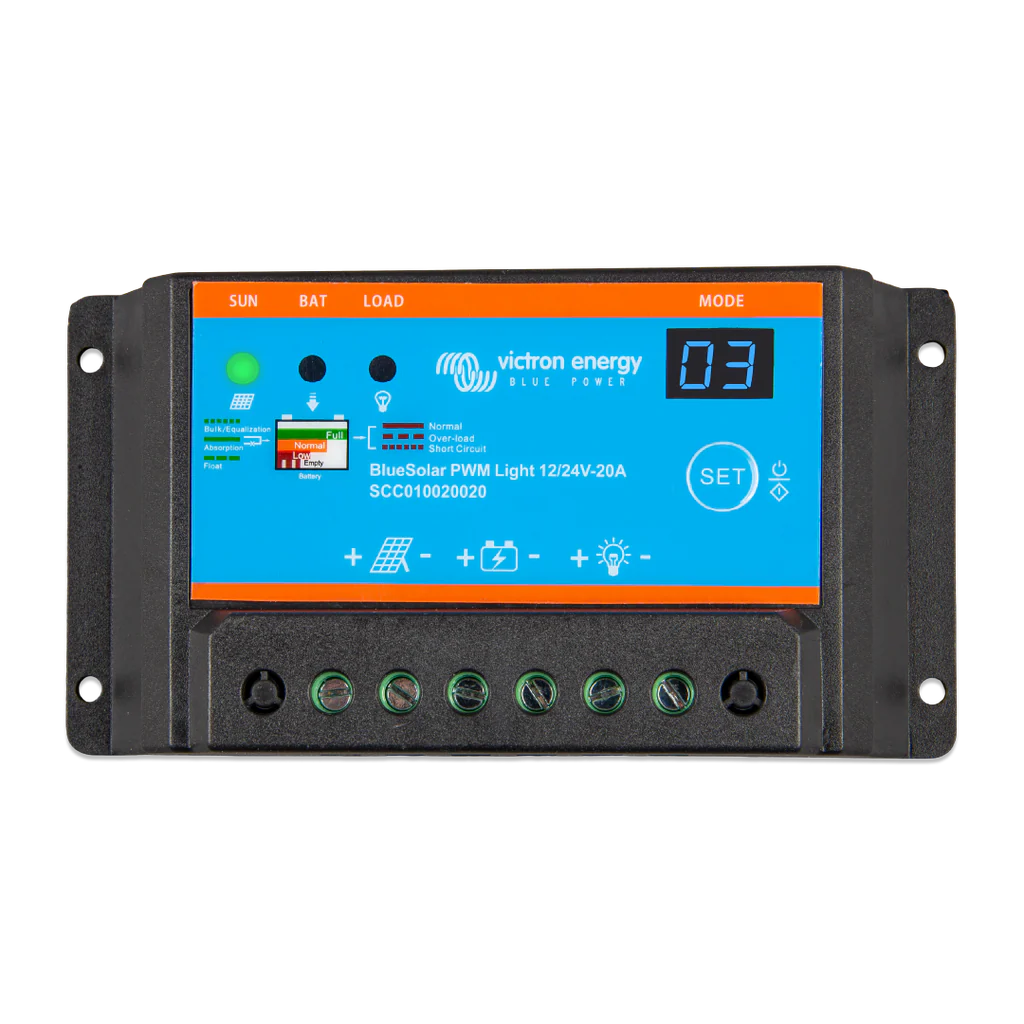

Victron Energy SCC010020020 Blue Solar Charge Controller PWM-Light 12/24V-20A

Victron Energy Blue Solar Charge Controller PWM-Light 12/24V-20A: The Solar Charge Controller from Victron Energy has been Designed to Be a True Worldwide Product

Victron Energy SCC010020020 Features:

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two-digit seven-segment display for quick and easy setting of the load output functionality, including timer setting.
• Three-stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against overload and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.

Victron Energy SCC010020020 Specifications:

• Battery Voltage: 12/24 V with automatic system voltage detection
• Rated charge current: 20A
• Automatic load disconnect: Yes
• Maximum solar voltage: 28V / 55V
• Self-consumption: < 10 mA
• Load output: Manual control + low voltage disconnect
• Grounding: Common positive
• Operating temp. range: -20 to +50°C (full load)
• Humidity (non-condensing): Max 95%
