Victron Energy SCA520500000 Solar Splitter Fits MC4-Y 1xM-2F/1xF-2M Pair
Victron Energy SCA520500000 Connect Two Solar Panels in Parallel. One Cable Pair. Clean and Simple.
Product Overview

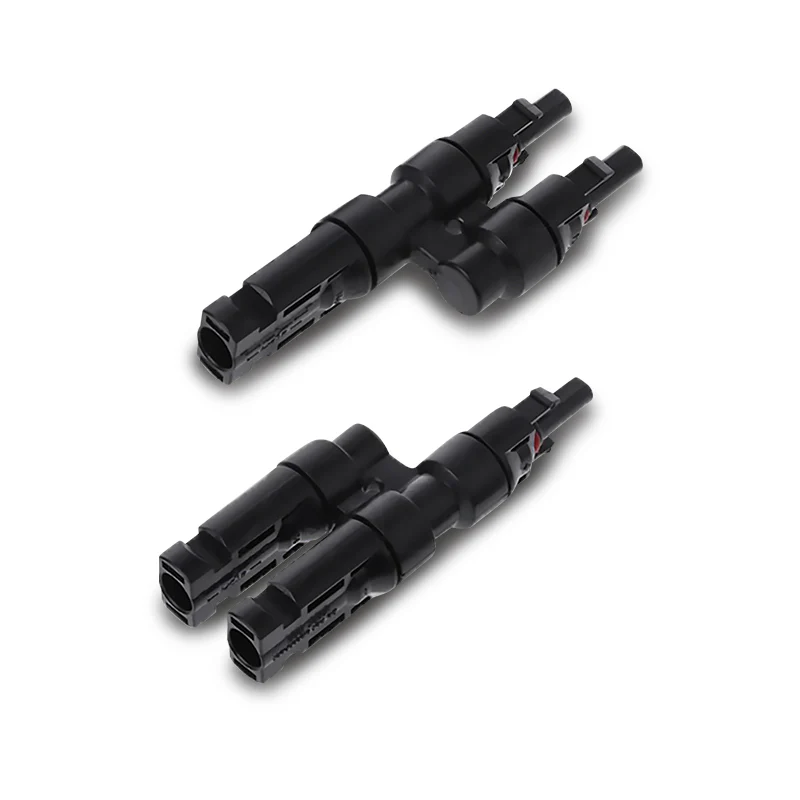

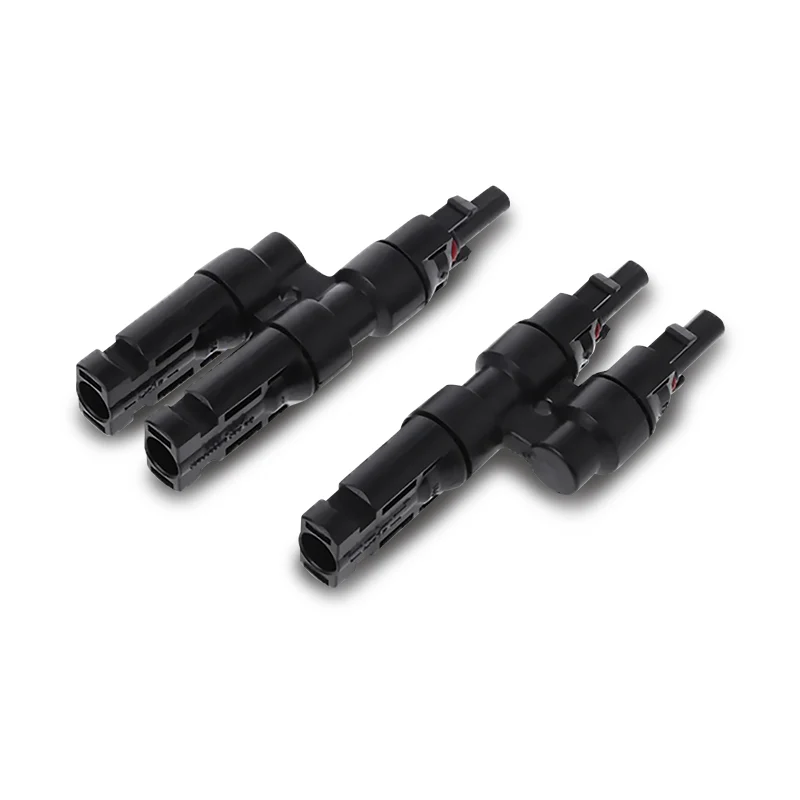

The Victron Energy SCA520500000 is an MC4 Y-splitter cable pair designed to connect two solar panels in parallel, combining their outputs into a single MC4 connector pair for integration with a solar charge controller or combiner. Sold as a matched pair one M-2F splitter (one male connector to two female connectors) and one F-2M splitter (one female connector to two male connectors) the set covers both the positive and negative runs of a parallel panel connection without the need for additional adapters.
Parallel wiring keeps panel voltage the same as a single panel while combining current from both the correct configuration when your charge controller's input voltage is already matched to the panel voltage and you want to increase current (and therefore power) without exceeding the controller's maximum input voltage. The MC4 format ensures compatibility with the overwhelming majority of modern solar panels, and the weatherproof construction handles permanent outdoor and rooftop installation without degradation.
Key Specifications
- Part Number: SCA520500000
- Contents: 1x M-2F Y-splitter cable + 1x F-2M Y-splitter cable (sold as a matched pair)
- Configuration 1: 1x Male MC4 connector to 2x Female MC4 connectors (M-2F)
- Configuration 2: 1x Female MC4 connector to 2x Male MC4 connectors (F-2M)
- Connection Type: Parallel panel connection
- Connector Standard: MC4
- Construction: Weatherproof
- Maximum Voltage Rating: Not specified — confirm with supplier
- Maximum Current Rating: Not specified — confirm with supplier
- Cable Length: Not specified — confirm with supplier
- Cable Cross-Section: Not specified — confirm with supplier
- IP Rating: Not specified — confirm with supplier
Features & Benefits
- Matched Pair — Both Polarities Covered — A parallel solar panel connection requires Y-splitters on both the positive and negative runs. This pair supplies both — the M-2F for the negative run and the F-2M for the positive run (or vice versa depending on panel polarity) — so you have everything needed for a complete parallel connection in one purchase.
- Parallel Connection — Same Voltage, Combined Current — Wiring two panels in parallel maintains the system voltage at a single panel's output while adding the current of both panels together. The correct approach when your charge controller's input voltage is already matched to the panel voltage and increasing current — not voltage — is the goal. Not to be confused with series wiring, which adds voltages.
- MC4 Compatible — MC4 is the industry-standard solar panel connector format used across the vast majority of modern solar panels and charge controller inputs. These splitters connect directly to standard MC4 leads without adapters or modification.
- Weatherproof Construction — Built for permanent outdoor installation — rooftop, caravan roof, ground mount, or marine deck. High-quality materials resist UV exposure, moisture, and temperature cycling encountered in Australian outdoor conditions.
- No Tools Required for Connection — MC4 connectors click and lock into place by hand. Disconnection requires a MC4 removal tool (not included) — preventing accidental disconnection under vibration or load.
- Streamlined Wiring — Reduces cable runs and connection points compared to manual parallel wiring with junction boxes or terminal blocks — particularly useful in space-constrained installations on caravans, campervans, boats, and rooftop solar arrays.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | SCA520500000 |
| Contents | 1x M-2F + 1x F-2M Y-splitter (matched pair) |
| Configuration 1 (M-2F) | 1x Male MC4 → 2x Female MC4 |
| Configuration 2 (F-2M) | 1x Female MC4 → 2x Male MC4 |
| Connection Type | Parallel (voltage maintained, current combined) |
| Connector Standard | MC4 |
| Construction | Weatherproof |
Compatible With / Goes Well With
Panel Configurations:
- Two solar panels connected in parallel (same voltage, combined current)
- Any solar panels with standard MC4 output connectors
System Integration:
- MPPT solar charge controllers with MC4 input (confirm maximum input current and voltage before connecting)
- PWM solar charge controllers with MC4 input
- Solar combiners and junction boxes with MC4 connections
Commonly Paired With:
- Victron SmartSolar MPPT charge controllers
- Victron BlueSolar MPPT charge controllers
- Standard MC4 solar extension cables
- MC4 branch connectors (for three or more panels — separate product)
Frequently Asked Questions
What is the difference between connecting solar panels in parallel versus series?
Parallel connection (what these splitters enable) keeps voltage the same as a single panel while combining the current output of both. Series connection adds voltages while keeping current the same. Parallel is used when your charge controller's input voltage is already matched to a single panel and you want more current and power without exceeding the maximum input voltage.
Why does this product come as a pair and do I need both cables?
A parallel solar connection requires a Y-splitter on both the positive and negative runs. The M-2F cable handles one polarity and the F-2M handles the other — you need both for a complete parallel connection. Buying them separately would require sourcing matching connectors; this pair ensures correct polarity and compatibility in one purchase.
Are these splitters compatible with all solar panels?
Yes, provided your solar panels use standard MC4 connectors — which is the case for the vast majority of modern solar panels. If your panels use a different connector type (e.g. older proprietary connectors), MC4 adapters would be required before these splitters can be used.
Can I use these splitters to connect three or more panels in parallel?
No. Each splitter has two panel inputs. Connecting three or more panels in parallel requires branch connectors (1-to-3 or 1-to-4 Y-cables) — separate products not included in this pair.
Do I need any tools to install these splitters?
No tools are required to make the MC4 connections — they click and lock by hand. However, an MC4 removal tool is required to safely disconnect the connectors once installed. Attempting to disconnect MC4 connectors without the correct tool risks damaging the connector housing and should not be done with the system under load.
