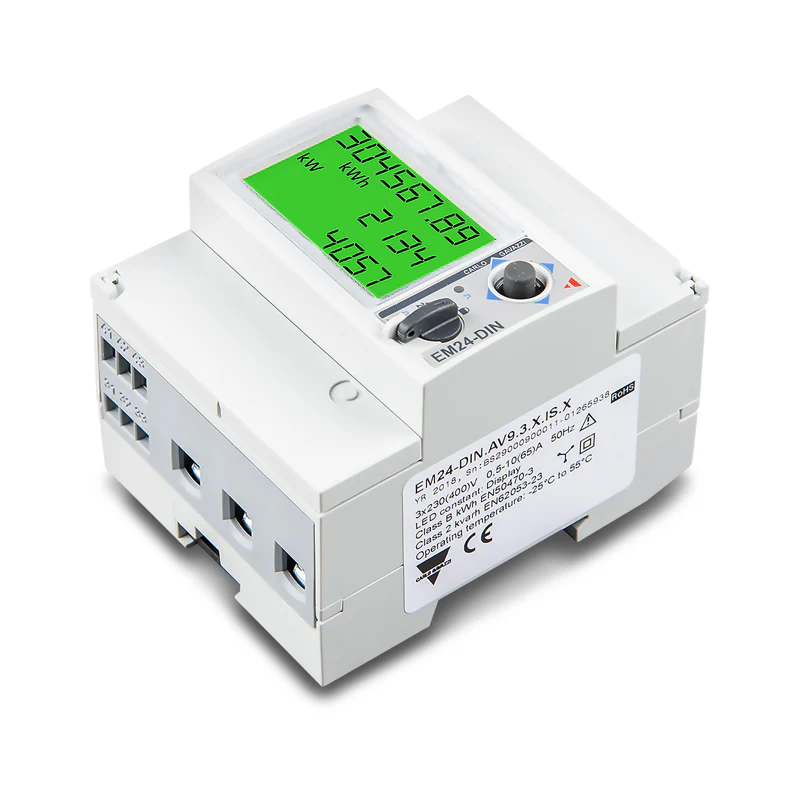

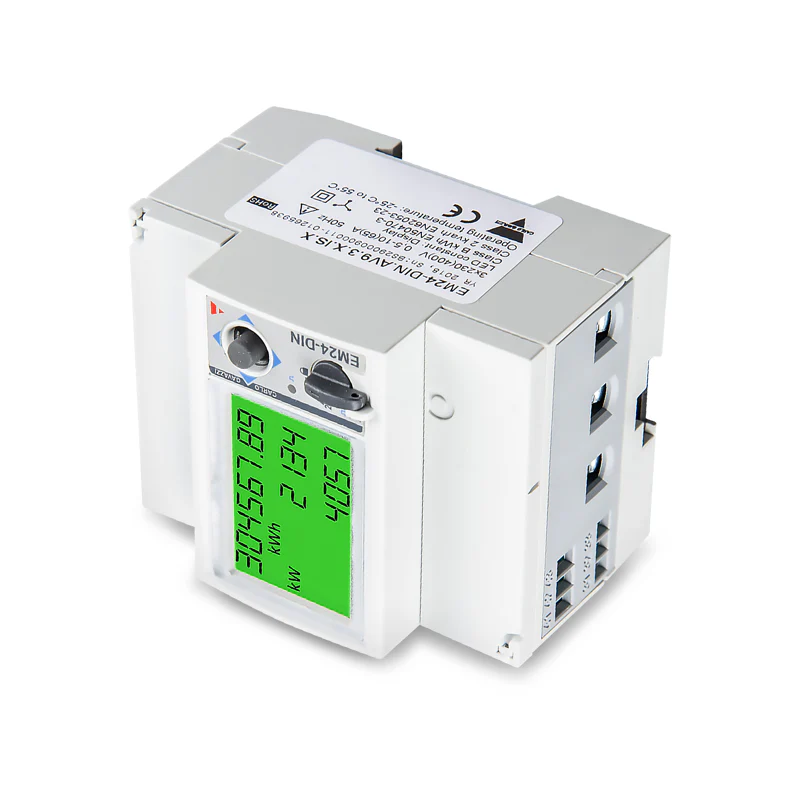

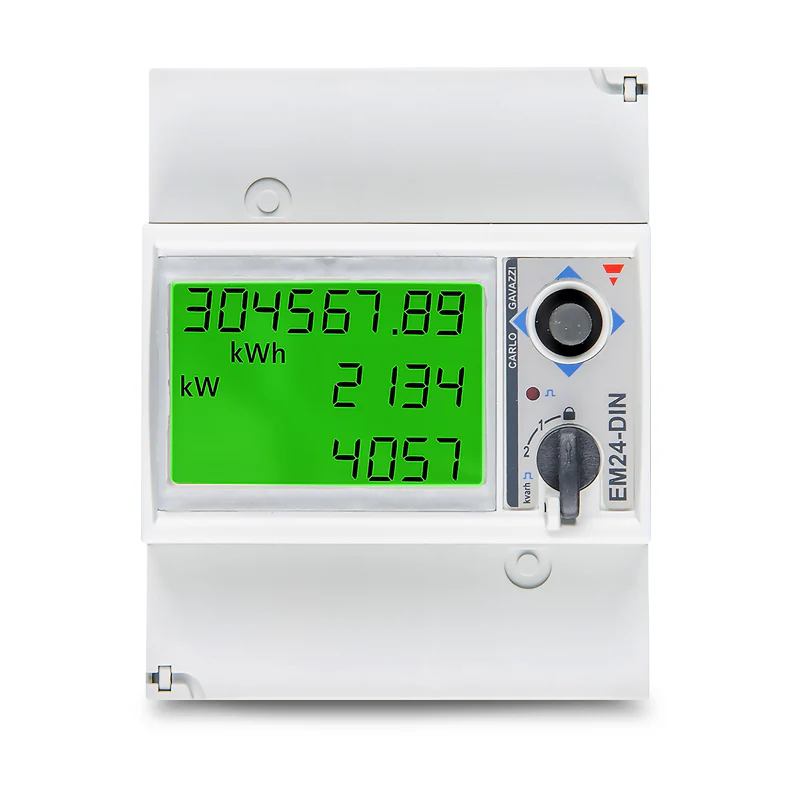

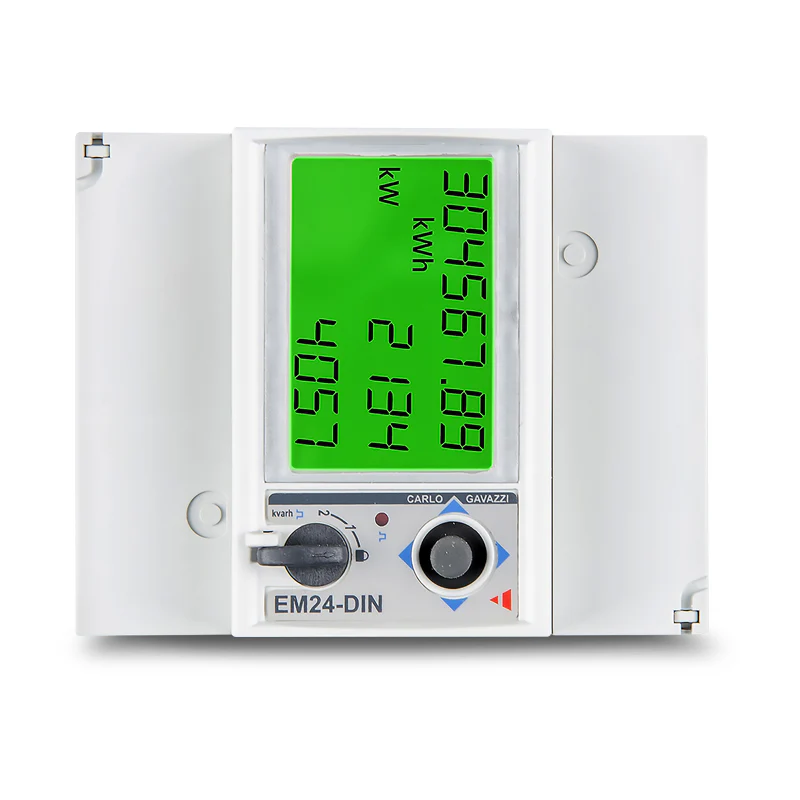

Victron Energy REL200200100 Energy Meter EM24 3 Phase Max 65a/phase Ethernet

Victron Energy Energy Meter EM24 3 Phase Max 65a/phase Ethernet: A Energy Meter Device To Measure The Power And Energy Of A 3-phase Application

For example at the distribution box or to measure the output of a PV Inverter, AC Genset, or the output of an Inverter/Charger. The EM24 Ethernet offers one option for connection to a GX device: A wired ethernet connection to the local network in such a way that the GX device can reach it.

Victron Energy REL200200100 Features:

• The energy meter can be configured for four different roles in a GX device (e.g. Cerbo GX)
• As a Grid meter and used as control input for an ESS System
• To measure the output of a PV Inverter
• To measure the output of an AC Genset
• As an AC meter to measure the output of an inverter or inverter/charger.
