Victron Energy PMP482507010 EasySolar-II 48/5000/70-50 MPPT 250/100 GX

Victron Energy EasySolar-II GX 5000VA Inverter, 100A MPPT, and GX Hub. One Enclosure. Minimum Wiring.

---

Product Overview

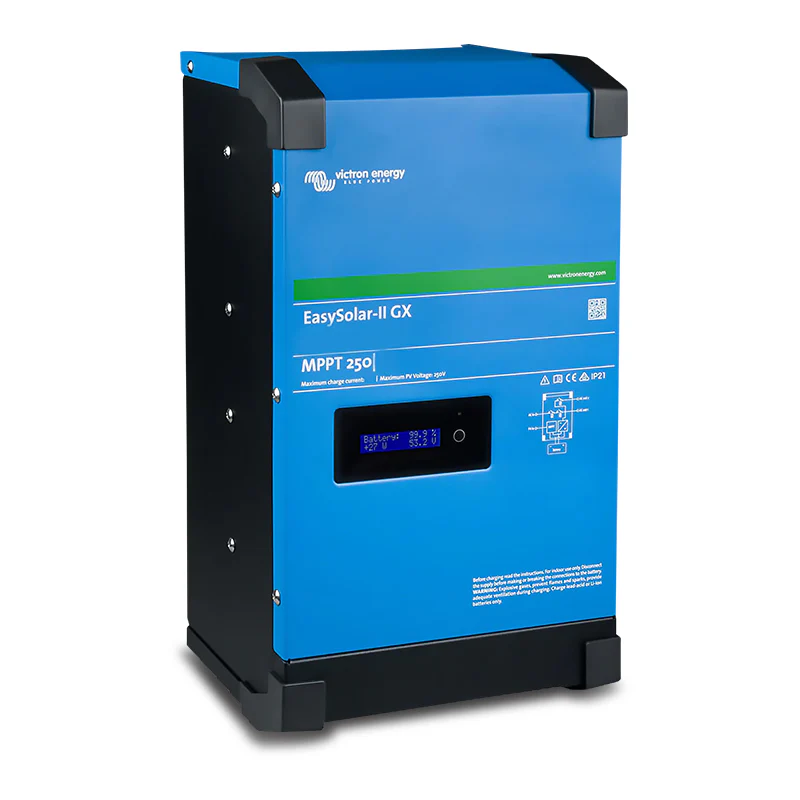

The Victron Energy EasySolar-II GX (PMP482507010) is a fully integrated all-in-one solar power system combining three of Victron's most capable components the MultiPlus-II 48/5000/70-50 inverter/charger, the SmartSolar 250/100 MPPT-Tr solar charge controller, and a GX system control device into a single factory-wired enclosure. For off-grid, hybrid, and backup power installations where space, installation time, and wiring complexity are key constraints, the EasySolar-II GX eliminates the need to purchase, mount, and interconnect these components separately.

The model designation tells the full specification story: 48V battery system, 5000VA inverter output, 70A battery charger from AC input, 50A AC transfer current, 250V maximum PV input voltage, and 100A maximum MPPT charge current. At 5000VA and 100A MPPT, this is a serious off-grid and hybrid system capable of powering a full household, remote property, commercial premises, or large vehicle installation. The integrated GX device includes a 2×16 character display for on-unit parameter reading, WiFi for smartphone monitoring and configuration, and wired connectivity via BMS-CAN, USB, Ethernet, and VE.Direct all pre-wired internally to the MultiPlus-II and SmartSolar MPPT before the unit leaves the factory.

---

Key Specifications

• Part Number: PMP482507010
• Product: EasySolar-II GX (all-in-one solar inverter/charger/MPPT/GX)
• Inverter/Charger: MultiPlus-II 48/5000/70-50
• Battery Voltage: 48V
• Inverter Output: 5000VA
• Battery Charger Output: 70A (from AC input)
• AC Transfer Current: 50A
• Solar Charge Controller: SmartSolar 250/100 MPPT-Tr
• Maximum PV Input Voltage: 250V DC
• Maximum MPPT Charge Current: 100A
• GX Device: Integrated — 2×16 character display
• WiFi: Yes — monitoring, configuration, and setup via smartphone
• BMS-CAN Interface: Yes (CAN-bus managed battery — NOT VE.Can compatible)
• USB Port: Yes
• Ethernet Port: Yes
• VE.Direct Port: Yes
• Internal Wiring: Factory pre-wired — MultiPlus-II via VE.Bus, SmartSolar via VE.Direct
• AC Input Voltage Range: Not specified — confirm with supplier
• AC Output Voltage: Not specified — confirm with supplier
• Peak Power: Not specified — confirm with supplier
• Transfer Switch Time: Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: 42.0 kg
• Efficiency: Not specified — confirm with supplier

---

Features & Benefits

• Three Victron Components — One Factory-Wired Enclosure — The EasySolar-II GX combines the MultiPlus-II inverter/charger, SmartSolar MPPT, and GX device in a single unit, pre-wired internally at the factory. Installing these three components separately requires individual mounting, interconnection cabling, VE.Bus and VE.Direct wiring between units, and configuration of each individually. The EasySolar-II GX replaces all of that with a single product connection to the battery, PV array, and AC supply — saving installation time, reducing wiring complexity, and eliminating the risk of interconnection errors.
• MultiPlus-II 48/5000/70-50 Inverter/Charger — The heart of the EasySolar-II GX is the MultiPlus-II — Victron's flagship inverter/charger at 5000VA continuous output. At 48V, it delivers high efficiency at the battery level. The 70A charger stage charges the battery from AC mains or generator input, and the 50A transfer capability handles the AC input current budget for grid or generator connection. The MultiPlus-II also controls the on/off state of the SmartSolar MPPT internally — the two units function as a coordinated system, not independent components sharing an enclosure.
• SmartSolar 250/100 MPPT-Tr Solar Charge Controller — With a 250V maximum PV input voltage and 100A maximum charge current, the SmartSolar 250/100 handles large PV arrays — up to 5200W at 48V nominal. The MPPT algorithm continuously tracks the maximum power point of the array for maximum energy harvest across varying irradiance conditions, temperature, and partial shading events. The DC output is parallel-wired to the MultiPlus-II's DC connection — PV harvest and battery charging are fully integrated within the single enclosure.
• Integrated GX Device — System Hub — The GX device is Victron's system controller and communications hub. Pre-wired to both the MultiPlus-II via VE.Bus and the SmartSolar via VE.Direct, it monitors and coordinates the entire system without external cabling. The 2×16 character display shows battery, inverter, and solar charge controller parameters at a glance. WiFi enables smartphone and web-based access for monitoring and configuration. Wired connectivity via BMS-CAN, USB, and Ethernet extends integration capability to managed battery systems, network monitoring, and external devices.
• BMS-CAN Interface — Compatible Managed Battery Integration — The GX device includes a BMS-CAN interface for connection to CAN-bus managed battery systems — compatible with a range of lithium battery BMS units that communicate over CAN. This enables the battery to communicate state-of-charge, cell voltage, temperature, and charge/discharge permission signals directly to the GX device for system-level coordination. Note: this is a BMS-CAN port, not a VE.Can port — it is not compatible with VE.Can devices.
• WiFi Monitoring and Configuration — The integrated WiFi allows the EasySolar-II GX to be accessed from any WiFi-enabled smartphone, tablet, or computer for real-time parameter monitoring, system setup, and settings changes — without requiring physical access to the unit or a wired connection. Parameters accessible include battery voltage, state of charge, inverter status, solar harvest, and charger state.

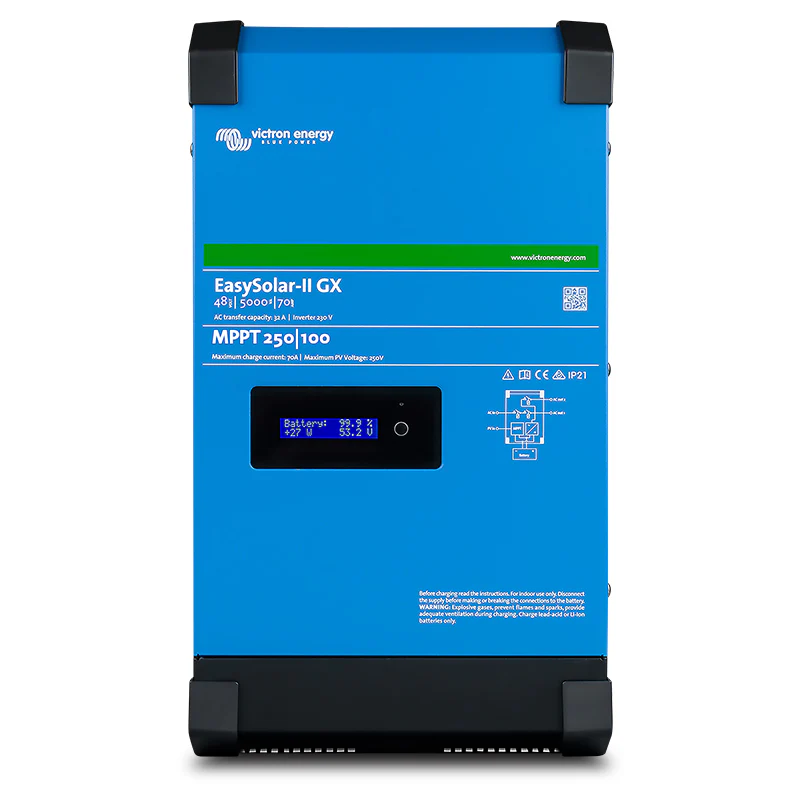

• 2×16 Character Display — On-Unit Parameter Reading — The built-in display provides immediate access to key system parameters at the unit itself — battery voltage and state, inverter output, and solar charge controller status — without requiring a phone, app, or network connection. Useful during commissioning, maintenance visits, and any situation where smartphone access is unavailable.
• USB, Ethernet, and VE.Direct Ports — The GX device provides wired connectivity for extended system integration: USB for data logging or connected accessories, Ethernet for wired network integration and VRM portal access, and VE.Direct for additional Victron device connection beyond the internally connected SmartSolar.

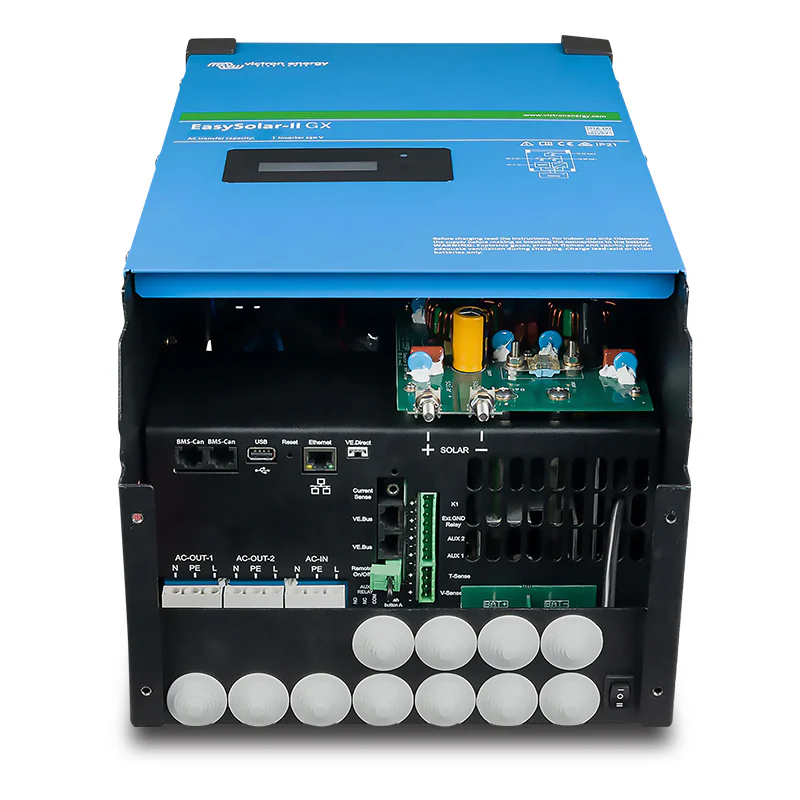

• Minimum Wiring — Simplified Installation — External connections to the EasySolar-II GX are limited to the battery bank (DC), PV array (DC input), and AC supply/output — the same connections required for the three separate components, but without any of the inter-device wiring. This significantly reduces installation time, labour cost, and the potential for wiring errors in complex multi-component systems.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 48V battery banks — lead acid (flooded, AGM, gel) and lithium
• CAN-bus managed lithium batteries via BMS-CAN interface (confirm specific BMS compatibility with Victron documentation)

Solar Array:

• PV arrays up to 250V Voc — confirm string design against 250V maximum and MPPT minimum input voltage from datasheet
• Multiple strings via external combiner (confirm MPPT input configuration from datasheet)

System Monitoring:

• Victron VRM Portal (via Ethernet or WiFi through GX device)
• Victron Remote Console (via GX device)
• VictronConnect app (WiFi — confirm Bluetooth availability from datasheet)

Extended Integration:

• Additional Victron VE.Direct devices via the GX VE.Direct port
• USB accessories and data logging devices
• Wired LAN integration via Ethernet port

---

Weight

42.0 kg

---

Frequently Asked Questions

What is included inside the EasySolar-II GX and what do I still need to purchase?

The EasySolar-II GX includes the MultiPlus-II 48/5000/70-50 inverter/charger, SmartSolar 250/100 MPPT solar charge controller, and GX device — all factory-wired in a single enclosure. You still need: a 48V battery bank, a PV solar array with appropriate wiring and protection, AC supply cabling and protection, and any additional system components such as a battery monitor, additional VE.Direct devices, or managed battery BMS. Installation by a licensed electrician is mandatory.

How large a solar array can the 250/100 MPPT handle?

The SmartSolar 250/100 MPPT accepts a maximum of 250V DC PV input voltage and up to 100A charge current. On a 48V battery system this corresponds to approximately 5200W of PV array — though the practical array size depends on your location, orientation, and shading. String voltage must not exceed 250V under any temperature condition. Engage a qualified solar designer for array specification.

What is the difference between BMS-CAN and VE.Can?

BMS-CAN is used to communicate with CAN-bus managed battery systems — lithium batteries with a BMS that outputs battery data (voltage, current, temperature, state of charge, charge/discharge permission) over a CAN protocol. VE.Can is Victron's proprietary CAN implementation used for VE.Can-compatible Victron devices such as larger MPPT controllers. The EasySolar-II GX has a BMS-CAN port only — VE.Can devices are not compatible with this port.

Can the EasySolar-II GX be monitored remotely?

Yes. The integrated GX device connects to the Victron VRM portal via Ethernet or WiFi, enabling real-time monitoring, historical data, custom reports, and remote access from any internet-connected device. Local monitoring is available via the 2×16 character display and WiFi-connected smartphone or tablet.

Does the EasySolar-II GX work as a grid-tie or off-grid system?

The MultiPlus-II inverter/charger supports both off-grid and grid-connected (hybrid) operation. In grid-connected mode it can charge batteries from the grid and seamlessly transfer to battery/solar in the event of a grid failure. For grid-connected installations in Australia, a CEC-accredited installer is required in addition to a licensed electrician. Confirm the specific grid-tie and export functionality from the MultiPlus-II 48/5000/70-50 datasheet.
