Victron Energy PMP242200000 MultiPlus 24/2000/50-32 230V VE.Bus

Victron Energy MultiPlus 24/2000 2000VA Pure Sine Inverter, 50A Adaptive Charger, PowerAssist. Parallel and Three-Phase Ready.

---

Product Overview

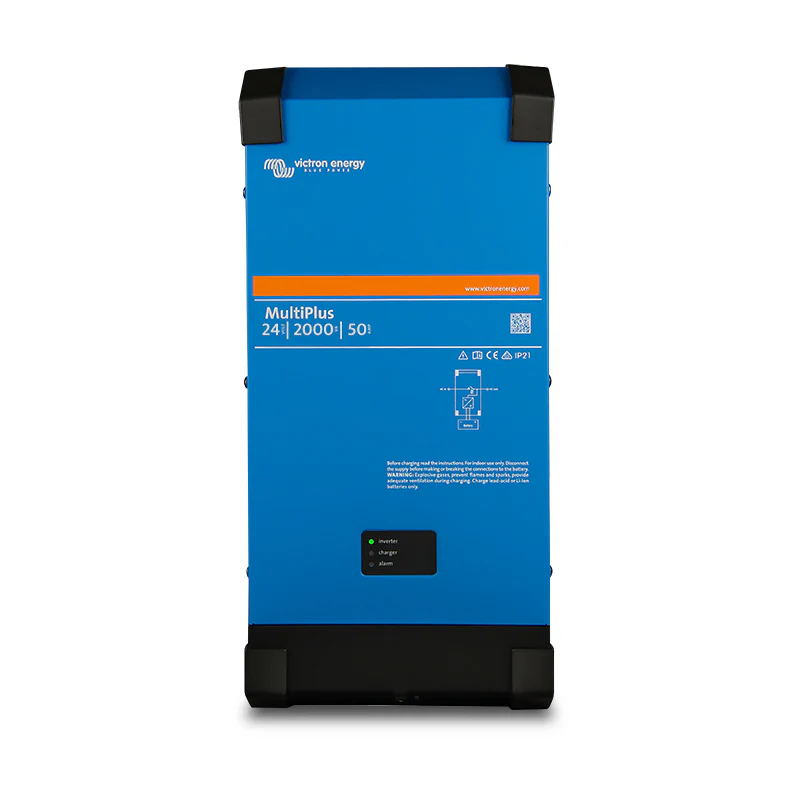

The Victron Energy MultiPlus 24/2000/50-32 230V (PMP242200000) is a compact, professional-grade 24V pure sine wave inverter/charger combining a 2,000VA inverter, 50A adaptive battery charger, and high-speed 32A AC transfer switch in a single enclosure. Designed for marine, vehicle, off-grid, and generator-backed installations, the MultiPlus combines intelligent power management PowerControl, PowerAssist, 4-stage adaptive charging, and Search Mode standby with the scalability of VE.Bus parallel and three-phase operation.

This is the original MultiPlus a proven, widely deployed platform that has been the backbone of professional off-grid and mobile power systems for many years. Unlike the MultiPlus-II, it does not include an external current transformer option, built-in anti-islanding, or ESS (Energy Storage System) functionality. It is ideally suited to stand-alone off-grid, marine, vehicle, and generator-backed applications where its combination of compact size, VE.Bus connectivity, and intelligent power management delivers reliable, field-proven performance.

---

Key Specifications

• Part Number: PMP242200000
• Product: MultiPlus 24/2000/50-32 230V VE.Bus
• Battery Voltage: 24V
• Inverter Output: 2,000VA — 230V pure sine wave
• Battery Charger: 50A adaptive (4-stage)
• Transfer Switch: 32A high-speed AC
• Charge Algorithm: 4-stage adaptive — Bulk, Absorption, Float, Storage
• Second Battery Output: Yes — independent trickle charge (for engine/generator starter battery)
• PowerControl: Yes — via Multi Control Panel (maximum generator/shore current setting)
• PowerAssist: Yes — supplements generator/shore power with battery
• Search Mode: Yes — reduces no-load inverter consumption by approximately 70%
• Programmable Relay: Yes — default alarm relay
• Remote On/Off/Charger On: Yes — 3-pole connector
• VE.Bus: Yes — parallel operation, three-phase, remote monitoring and integration
• Parallel Operation: Yes — up to 6 units
• Three-Phase Operation: Yes — 3 units, same model
• Remote Monitoring: Yes — via Cerbo GX or other GX device + VRM portal (free)
• Configuration: VEConfigure + MK3-USB interface (sold separately)
• Anti-Islanding: Not built-in (unlike MultiPlus-II)
• ESS Functionality: Not available (unlike MultiPlus-II)
• External Current Transformer Option: Not available (unlike MultiPlus-II)
• DC Input Voltage Range: Not specified — confirm with supplier
• Efficiency: Not specified — confirm with supplier
• Standby Power: Not specified — confirm with supplier (Search Mode reduces by ~70%)
• Transfer Time: Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: Not specified — confirm with supplier

---

Features & Benefits

• 2,000VA Pure Sine Wave at 24V — Delivers 2,000VA of continuous pure sine wave AC output from a 24V battery bank — the right size for marine vessels, campervans, motorhomes, service vehicles, and off-grid cabins where 24V systems are standard and a reliable inverter/charger is needed without oversizing. Pure sine wave output is compatible with all AC equipment including sensitive electronics, motor-driven tools, and appliances.
• 50A Adaptive 4-Stage Charger — A 50A charger at 24V delivers approximately 1,200W of charging power from an AC source — suited to 24V battery banks of 250–500Ah. The adaptive algorithm adjusts absorption time automatically based on discharge depth and battery condition, with a fourth Storage stage for extended float charging during inactivity — protecting battery health without overcharge.
• Independent Trickle Charge Output — Second Battery — A separate trickle charge output independently maintains a second battery — typically an engine or generator starter battery — alongside the main charge output. A second dedicated charger is not required.
• PowerControl — Prevent Generator and Shore Power Overload — Using the Multi Control Panel, a maximum AC input current can be set. The MultiPlus monitors all connected loads and adjusts battery charging current to ensure the total draw never exceeds the set limit — preventing generator trips and shore power supply violations. When other loads reduce, charging current is automatically increased to use all available headroom.
• PowerAssist — Supplement Insufficient AC Sources — When peak loads momentarily exceed the available generator or shore power capacity, PowerAssist instantly supplements the shortfall from the battery. When the peak subsides, spare AC capacity recharges the battery. A smaller, more economical generator can support a larger connected load — and peak loads do not trigger supply trips or load shedding.
• High Start-Up Power — The MultiPlus provides the high inrush current needed to start demanding loads — power converters for LED and halogen lighting, electric tools, compressors, and other high-inrush equipment — without voltage collapse or inverter trip.
• Search Mode — Reduced No-Load Power Consumption — When Search Mode is active, the inverter switches off in the absence of load and briefly checks for load demand every two seconds. If load exceeds the set threshold, the inverter resumes full operation; if not, it switches off again. This reduces no-load inverter consumption by approximately 70% — useful in off-grid and battery systems where standby draw directly affects battery autonomy.
• 4-Stage Adaptive Charging — Storage Mode Included — Beyond the standard three charge stages, the Storage mode delivers an extended lower-voltage float for long periods of inactivity — reducing electrolyte gassing and plate corrosion when the system is connected to shore power but not in active use. The adaptive charge algorithm fine-tunes absorption duration to battery condition at each cycle, reducing maintenance requirements over the battery's service life.
• Programmable Relay — Alarm and Control Integration — The default alarm relay de-energises on any alarm condition — inverter approaching thermal limit, battery voltage approaching low threshold, or input ripple approaching high limit. Provides an integration point for external alarm systems, generator auto-start, and other event-driven controls.
• Remote On/Off/Charger On — 3-Pole Connector — A dedicated 3-pole connector enables external remote control of the inverter on/off state and charger on/off independently — useful for panel switches, timer controls, and BMS integration.
• VE.Bus — Parallel, Three-Phase, and System Integration — VE.Bus connectivity enables parallel operation of up to 6 units on a single phase, three-unit three-phase configuration, and integration with Victron GX devices for system monitoring and VRM remote access. Configuration of parallel and three-phase systems is handled through VEConfigure software — no hardware changes or DIP switches required.
• VRM Remote Monitoring — Free, via GX Device — Install a Cerbo GX or other Victron GX device to access the free VRM portal — real-time monitoring, historical data, remote settings adjustment, and system management from any internet-connected device.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 24V battery banks — lead acid (AGM, flooded, gel) and lithium
• Second battery (engine/generator starter) via independent trickle output

Solar Integration:

• Victron SmartSolar and BlueSolar MPPT charge controllers (DC-coupled, off-grid)
• Grid-tie PV inverters (AC-coupled — note: no built-in anti-islanding; confirm suitability with installer)

GX Devices (for VRM and remote monitoring):

• Victron Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX

Parallel and Three-Phase Expansion:

• Up to 6 × PMP242200000 in parallel (single phase)
• 3 × PMP242200000 for three-phase output

Required Accessories (sold separately):

• MK3-USB Interface — required for VEConfigure on-site configuration
• Multi Control Panel — for PowerControl maximum current setting
• VE.Bus Smart Dongle — optional Bluetooth monitoring

Also Consider:

• PMP242305010 — MultiPlus-II 24/3000/70-32 (higher output with external CT option, anti-islanding, and ESS capability)

---

Frequently Asked Questions

What is the difference between the MultiPlus and the MultiPlus-II?

The MultiPlus-II adds three significant capabilities: an external current transformer option that extends PowerControl to 50A and PowerAssist to 100A; built-in anti-islanding for grid-connected applications; and ESS (Energy Storage System) functionality for grid-tied self-consumption and export. The original MultiPlus is the right choice for off-grid, marine, vehicle, and generator-backed stand-alone systems where these additional features are not required.

Does the MultiPlus have Search Mode and how does it work?

Yes. With Search Mode active, the inverter shuts down when no load is detected and briefly powers up every two seconds to check for demand. If load exceeds the configured threshold, full operation resumes; if not, the inverter shuts down again. This reduces no-load inverter power consumption by approximately 70% — extending battery autonomy during idle periods in off-grid and battery-backed systems.

How many MultiPlus units can I run in parallel?

Up to 6 units of the same model can be operated in parallel on a single phase for higher combined output. Three units configure for three-phase output. Configuration is managed through VEConfigure software via the MK3-USB interface — no hardware changes or DIP switches are required.

Does this inverter work with a Victron GX device for remote monitoring?

Yes. Connect a Victron Cerbo GX or other GX device to the MultiPlus via VE.Bus and connect it to the internet for free remote monitoring and control through the Victron VRM portal — accessible from any internet-connected phone, tablet, or computer.

Can this MultiPlus be used for grid-connected solar ESS applications?

The original MultiPlus does not include built-in anti-islanding or ESS functionality. For grid-connected ESS applications, the MultiPlus-II is the appropriate product. Confirm grid-connection approval status for any Victron inverter with a CEC-accredited installer and the Clean Energy Council approved products list before specifying for grid-connected use in Australia.
