Victron Energy PIN482601000 Inverter RS 48/6000 230V Smart Solar

Victron Energy Inverter RS Smart Solar 48/6000 6kVA Off-Grid Inverter with 4kW 450V MPPT.

---

Product Overview

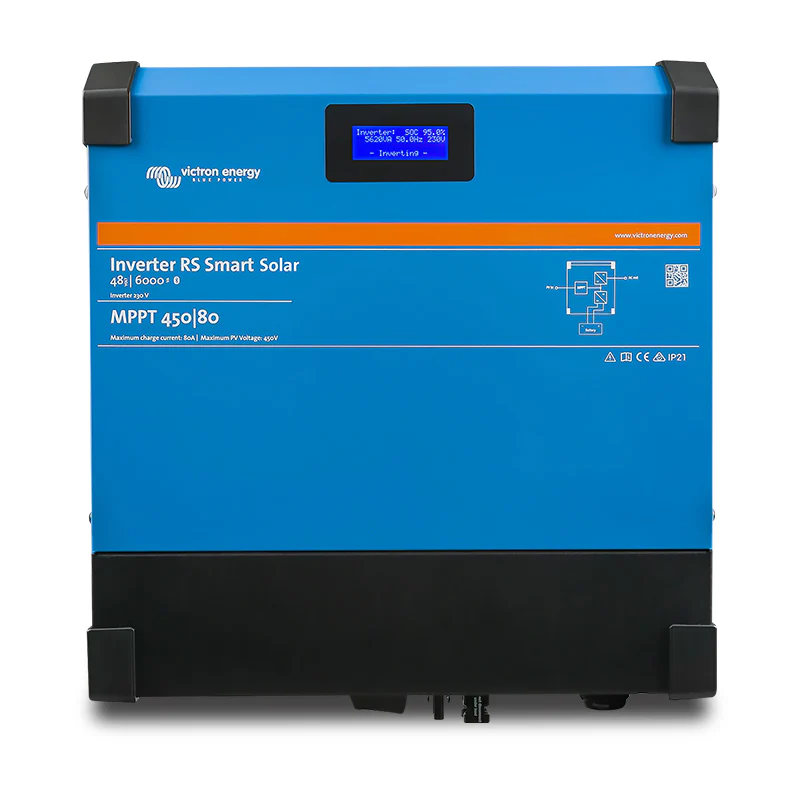

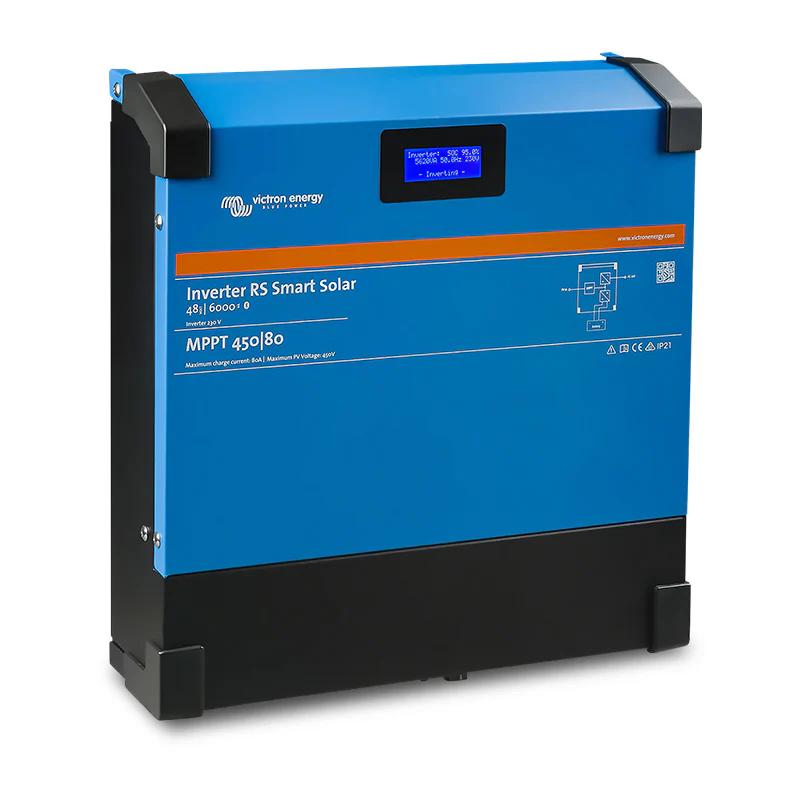

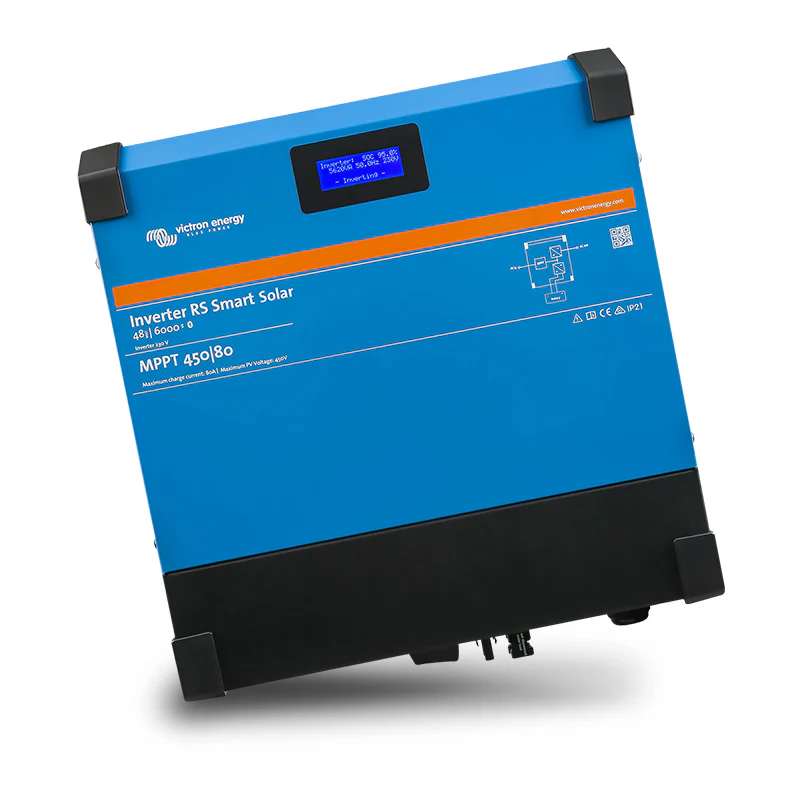

The Victron Energy Inverter RS Smart Solar 48/6000 (PIN482601000) is a high-frequency 48V off-grid inverter integrating a 6kVA sine wave inverter and a 4kWp MPPT solar charge controller with an 80–450VDC MPPT input range and 120VDC PV startup voltage in a single unit. Designed exclusively for off-grid solar applications where AC power is required from a battery-backed solar system, it does not include an AC input charger stage and cannot charge the battery from a generator or mains supply directly. Solar and battery are the system's only energy sources.

The architecture differs from a conventional inverter/charger. The Inverter RS Smart Solar uses a bi-directional DC-DC converter that bridges the MPPT solar and battery DC bus with the inverter stage directing excess solar power to battery charging when generation exceeds load demand, and drawing from the battery to supplement the inverter when needed. The result is a tightly integrated off-grid power unit that manages solar harvest, battery state, and AC output in a single coordinated system.

AC-coupled PV extension is supported up to 6kVA on the AC output, with Frequency Shift Power Control enabled out of the box no configuration required extending total system solar capacity beyond the 4kWp DC-coupled limit. A built-in PV isolator switch safely disconnects both parallel MC4 PV string inputs. Bluetooth, VE.Direct, and VE.Can ports provide monitoring and GX integration, and the remote input accepts the Victron miniBMS for direct lithium battery BMS control.

---

Key Specifications

• Part Number: PIN482601000
• Product: Inverter RS Smart Solar 48/6000 230V
• Battery Voltage: 48V DC
• Inverter Output: 6,000VA (6kVA) — 230V sine wave
• MPPT Solar Charger: 4kWp capacity
• MPPT Input Voltage Range: 80–450V DC
• PV Startup Voltage: 120V DC
• Architecture: Bi-directional DC-DC converter + inverter + MPPT
• Weight: Not specified
• Technology: High-frequency (HF)
• AC Input Charger: None — off-grid solar only
• Generator/Shore Power Charging: Not supported
• Operating Modes: Off-grid solar only
• AC-Coupled PV Support: Yes — up to 6kVA on AC output
• Total Battery Charging (DC + AC coupled): Up to 100A
• Frequency Shift Power Control: Yes — enabled out of the box
• PV Connection: MC4 (dual parallel strings)
• Built-In PV Isolator: Yes — large switch on bottom of unit
• Display: Yes — battery, inverter, solar charger parameters
• Bluetooth: Yes — VictronConnect app (iOS and Android)
• VE.Direct Port: Yes — GX device connection
• VE.Can Port: Yes — GX device connection, data logging, remote firmware updates
• Programmable Relay: Yes
• Temperature Sensor Input: Yes
• Voltage Sensor Input: Yes
• Remote Input: Yes — configurable; accepts Victron miniBMS
• Efficiency: Not specified — confirm with supplier
• Standby Power: Not specified — confirm with supplier
• MPPT Max Charge Current: Not specified — confirm with supplier
• AC Output Frequency: Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Operating Temperature Range: Not specified — confirm with supplier

---

Features & Benefits

• Off-Grid Solar Only — Purpose-Built for Solar Battery Systems — The Inverter RS Smart Solar does not include an AC input charger. It cannot charge the 48V battery from a generator or mains supply. This is a deliberate design choice — the unit is optimised for solar-only off-grid installations where AC generator or grid input is not part of the system design. For hybrid systems requiring generator or grid input charging, the Multi RS Solar (PMR482602020) is the appropriate product.
• 6kVA Sine Wave Inverter Output — High-frequency topology delivers 6kVA of continuous AC output — the same power/weight ratio as the Multi RS Solar. This enables installation in weight-constrained locations — wall mounting, mobile installations, and compact off-grid equipment rooms — without the bulk of equivalent transformer-based inverters.
• 4kWp MPPT at 80–450V — Wide-Range Solar Input — The 80–450V MPPT input range accommodates long PV string designs — multiple panels in series for higher string voltage, reduced DC cable losses, and greater distance between the array and the inverter. The 120V startup voltage means the MPPT begins harvesting at a practical morning irradiance level. The 4kWp capacity at 48V is the rated DC-coupled solar input.
• Bi-Directional DC-DC Converter Architecture — The DC-DC converter bridges the solar/battery DC bus with the high-frequency inverter stage. When solar generation exceeds load demand, the converter directs excess energy to battery charging. When the inverter requires more than the solar can supply, the converter draws from the battery to compensate. This dynamic management happens continuously and automatically — the system self-optimises energy flow between solar, battery, and AC output without manual intervention.
• AC-Coupled PV Support — Extend Beyond 4kWp — The Inverter RS Smart Solar accepts AC-coupled PV inverters on its AC output up to 6kVA in addition to the 4kWp DC-coupled MPPT input — extending total system solar capacity. Frequency Shift Power Control is enabled out of the box, managing AC-coupled PV inverter output automatically to prevent battery overcharge. No configuration is required to activate this feature — connect the AC-coupled inverter and the Inverter RS handles the rest.
• Up to 100A Total Battery Charging — The combined battery charging capacity from DC-coupled MPPT and AC-coupled PV sources is up to 100A total — a substantial charge capacity for a 48V off-grid bank. Confirm exact MPPT charge current from the datasheet for DC-coupled capacity specifically.

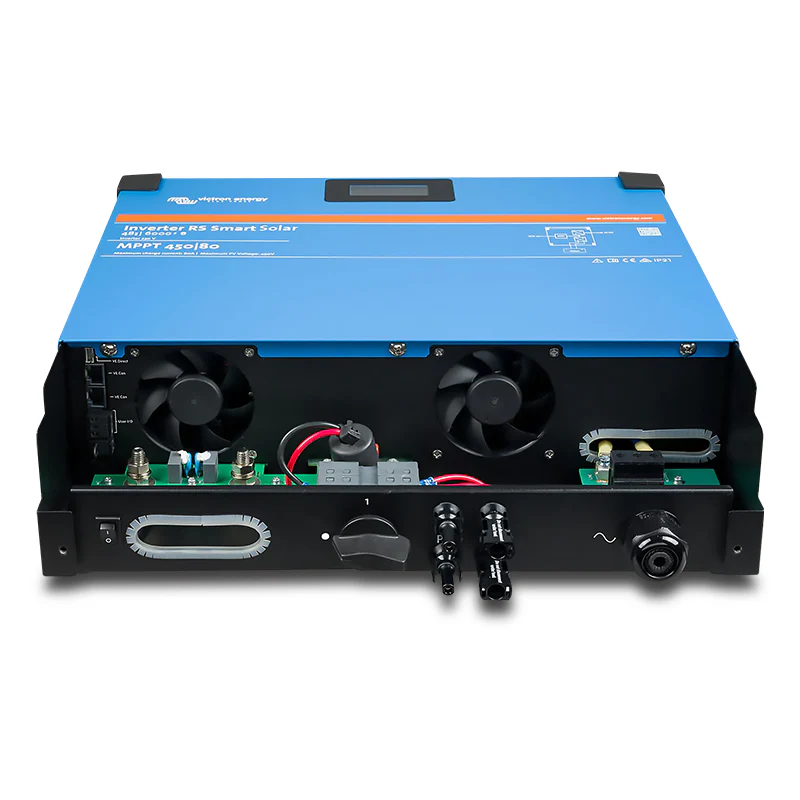

• Built-In PV Isolator — A large switch on the bottom of the unit safely isolates both parallel MC4 PV string inputs simultaneously — a safety feature for installation, maintenance, and emergency disconnection without requiring a separate DC isolator switch for the PV strings.
• Bluetooth — VictronConnect App — Battery, inverter, and MPPT parameters are readable and configurable wirelessly via the VictronConnect app on any iOS or Android device. System setup and settings changes are also handled via Bluetooth — no wired laptop connection required for commissioning.
• Display — On-Unit Parameter Reading — The integrated display shows battery voltage and state, inverter output, and solar charger data at the unit — useful during commissioning and maintenance without a phone or network connection.
• VE.Can and VE.Direct — GX Device Integration — Both VE.Can and VE.Direct ports enable connection to a Victron GX device (Cerbo GX, Color Control GX, or equivalent) for full system monitoring, data logging, and remote firmware updates via the VRM portal. Dual ports provide flexible integration options depending on the GX device and system configuration.
• miniBMS Remote Input — The remote input can be configured to accept signals from the Victron miniBMS — enabling direct BMS charge/discharge control for lithium battery installations without requiring a GX device for BMS integration.
• Programmable Relay + Temperature and Voltage Sensors — The programmable relay integrates with external control systems for alarm, load control, or other event-driven automation. Temperature and voltage sensor inputs extend system monitoring and allow the inverter to adjust operation based on measured conditions.
• Quiet Operation — High-frequency topology and optimised cooling deliver low acoustic output — relevant for installations in living spaces, bedrooms, and residential environments where fan noise would be disruptive.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 48V battery banks — lead acid (AGM, gel, flooded) and lithium
• Victron miniBMS (direct BMS control via remote input)
• Managed lithium batteries via connected GX device (confirm BMS compatibility)

Solar Array (DC-Coupled):

• PV strings up to 450V DC Voc per input — confirm minimum MPPT voltage and string design from datasheet
• Dual parallel MC4 string inputs

AC-Coupled Solar Extension:

• Grid-tie PV inverters connected to AC output — up to 6kVA total AC-coupled
• Frequency Shift Power Control manages output automatically

GX Devices (via VE.Can or VE.Direct):

• Victron Cerbo GX, Color Control GX, Ekrano GX

Remote Monitoring:

• Victron VRM portal (via GX device)
• Victron GlobalLink 520 (via VE.Direct — lightweight monitoring without GX device)

Also Consider:

• PMR482602020 — Multi RS Solar 48/6000 (same 6kVA/11kg, dual 3kWp MPPT trackers, plus AC input charger for generator/grid — for hybrid systems requiring AC input charging)

---

Frequently Asked Questions

What is the key difference between the Inverter RS Smart Solar and the Multi RS Solar?

The Inverter RS Smart Solar is an off-grid-only unit — it has no AC input charger and cannot charge the battery from a generator or mains supply. It is designed purely for solar battery systems. The Multi RS Solar adds an AC input charger with generator and grid input capability, and dual 3kWp independent MPPT trackers (6kWp total vs 4kWp here) — making it the correct choice for hybrid systems requiring generator backup or grid interaction.

Can I extend the solar capacity beyond 4kWp on this unit?

Yes. AC-coupled PV inverters can be connected to the Inverter RS Smart Solar's AC output for up to an additional 6kVA of AC-coupled solar. Frequency Shift Power Control is enabled out of the box — no configuration needed. The combined total battery charging capacity from DC and AC coupled sources is up to 100A.

What does the bi-directional DC-DC converter do?

It bridges the solar/battery DC bus with the inverter. When solar generation exceeds AC load demand, the converter routes excess energy into battery charging. When the inverter needs more than solar can supply, the converter draws from the battery to supplement it. This dynamic management is continuous and automatic — the system optimises energy flow between solar, battery, and AC output in real time.

What is the built-in PV isolator and when do I use it?

The PV isolator is a large switch on the bottom of the unit that safely disconnects both MC4 PV string inputs simultaneously. It is used during installation, maintenance, fault diagnosis, and emergency situations where the solar input needs to be safely isolated without removing panel wiring. Having it built in eliminates the need for a separate DC isolator switch for the PV strings.

Does this inverter need a Victron GX device for monitoring?

No — basic local monitoring and full configuration are available via the built-in display and Bluetooth VictronConnect app without a GX device. For remote monitoring via the VRM portal and advanced system integration, a Victron GX device connected via VE.Can or VE.Direct is required. A GlobalLink 520 connected via VE.Direct provides lightweight remote monitoring without a full GX device.
