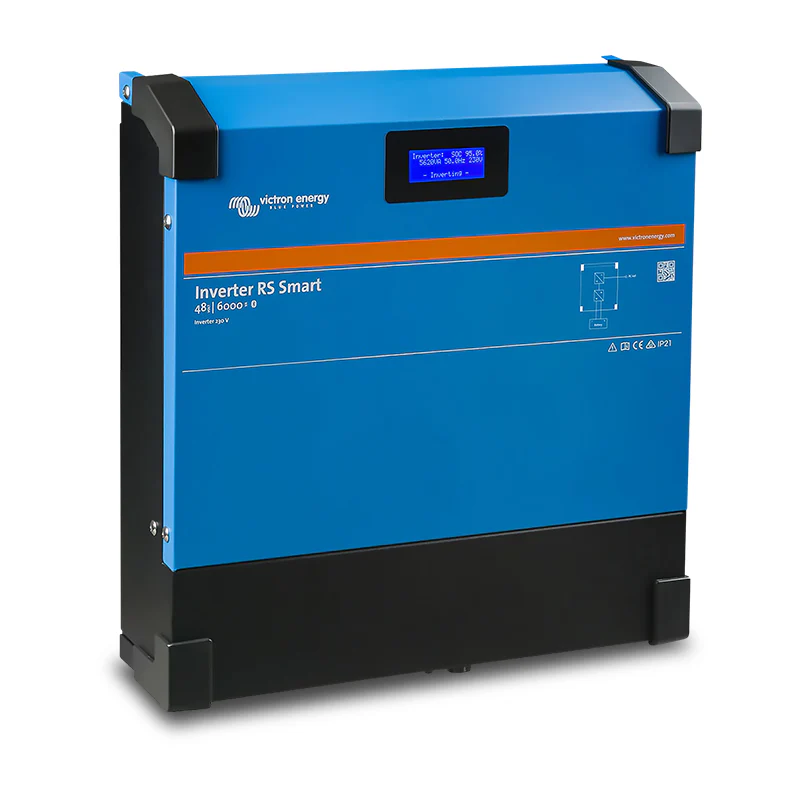

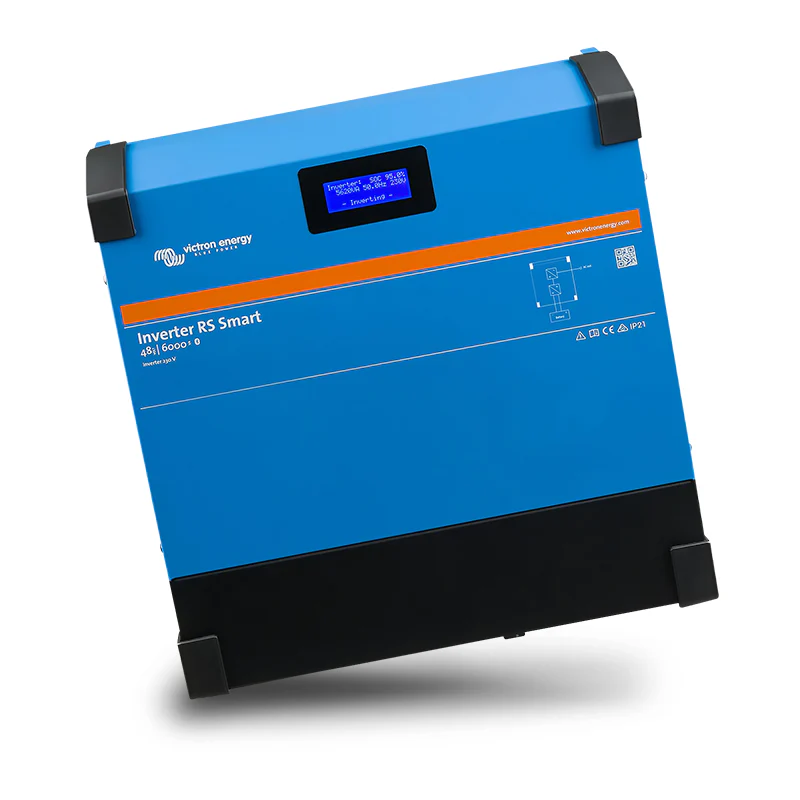

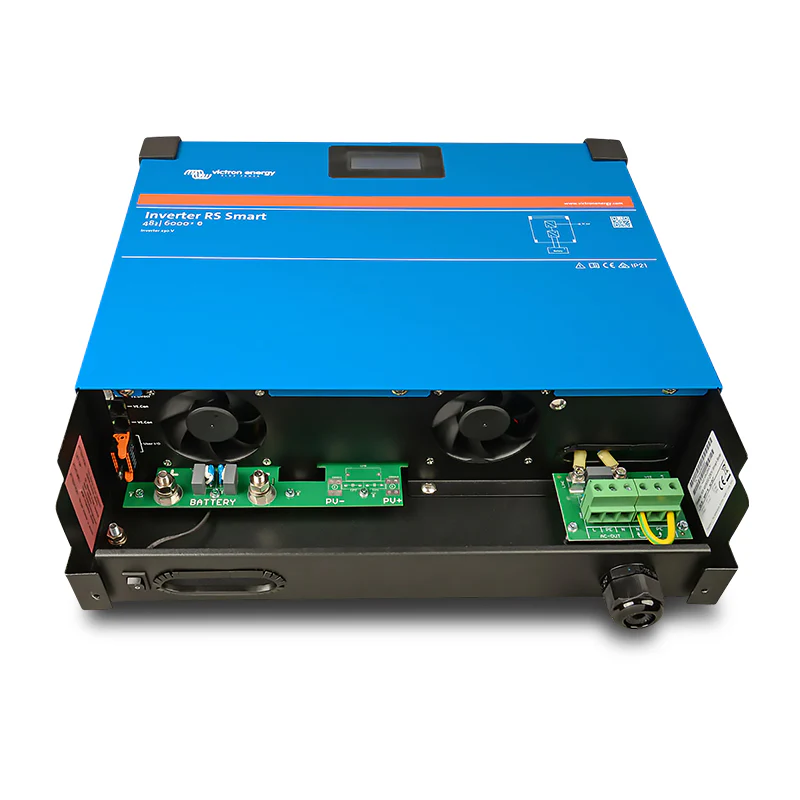

Victron Energy PIN482600000 Inverter RS 48/6000 230V Smart

Victron Energy Inverter RS 48/6000 Smart 6kVA 48V Inverter. High-Frequency. Bluetooth.

---

Product Overview

The Victron Energy Inverter RS 48/6000 Smart (PIN482600000) is a powerful 48V pure inverter delivering 6,000VA of continuous 230V AC output using high-frequency technology achieving serious output in a chassis. With no integrated solar charger and no AC input charger, it is a purpose-built DC-to-AC inverter for 48V battery systems where solar charging is managed separately or no solar integration at the inverter level is required.

Built-in Bluetooth via the VictronConnect app provides wireless monitoring and configuration from any iOS or Android device. The integrated display reads battery and inverter parameters on-unit. VE.Can connects to a Victron GX device for full system monitoring, data logging, and remote firmware updates; VE.Direct provides an additional monitoring and integration port. Low standby power and quiet operation make the Inverter RS Smart well suited to residential, marine, and off-grid installations where efficiency and acoustic performance matter as much as output power.

---

Key Specifications

• Part Number: PIN482600000
• Product: Inverter RS 48/6000 230V Smart
• Battery Voltage: 48V DC
• Inverter Output: 6,000VA (6kVA) — 230V
• Solar Charger: None — inverter only
• AC Input Charger: None — inverter only
• Weight: Not specified
• Technology: High-frequency
• Display: Yes — battery and inverter parameters
• Bluetooth: Built-in Smart Bluetooth — VictronConnect app (iOS and Android)
• VE.Can Port: Yes — GX device monitoring, data logging, remote firmware updates
• VE.Direct Port: Yes — GX device connection and monitoring
• Programmable Relay: Yes
• Temperature Sensor Input: Yes
• Voltage Sensor Input: Yes
• BMS Compatibility: Victron smallBMS (via remote input)
• Efficiency: Not specified — confirm with supplier
• Standby Power: Not specified — confirm with supplier
• AC Output Frequency: Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Operating Temperature Range: Not specified — confirm with supplier

---

Features & Benefits

• Inverter Only — No Solar, No AC Input Charger — The Inverter RS Smart is a dedicated DC-to-AC inverter. There is no integrated MPPT solar charger and no AC input battery charger. It is the correct RS model for systems where solar charging is handled by separate MPPT controllers, or where a standalone 48V inverter is needed without additional charging hardware. For integrated solar, see the Inverter RS Smart Solar (PIN482601000). For solar plus AC input charging, see the Multi RS Solar (PMR482602020).
• 6kVA at 11kg — High-Frequency Efficiency — High-frequency technology delivers 6,000VA of continuous inverter output — significantly lighter than transformer-based equivalents at the same power rating. Excellent conversion efficiency minimises energy loss and heat generation at rated output; low standby power preserves battery capacity during light-load or idle periods.
• Quiet Operation — Optimised cooling and high-frequency design deliver low acoustic output — relevant for installation in living spaces, cabins, and residential environments where inverter fan noise would be disruptive.
• Built-In Smart Bluetooth — VictronConnect App — Battery voltage, inverter output, operational state, and alarms are readable and adjustable wirelessly from any Bluetooth-enabled iOS or Android device. System setup and configuration changes are handled via the app — no wired laptop connection required for commissioning or field adjustment.
• Display — On-Unit Parameter Reading — The integrated display provides immediate battery and inverter status at the unit — useful during commissioning, routine checks, and maintenance without requiring a phone or network connection.
• VE.Can Port — GX Device Integration — VE.Can connects the Inverter RS Smart to a Victron GX device (Cerbo GX, Color Control GX, Ekrano GX) for system-level monitoring, data logging, and remote firmware updates via the free VRM portal. Integrates the inverter into a broader Victron energy management system.
• VE.Direct Port — Additional Monitoring and Integration — VE.Direct provides a second wired connectivity option for GX device connection, GlobalLink 520 remote monitoring, or computer-based configuration and monitoring via VictronConnect.
• Programmable Relay — External Control Integration — The programmable relay provides an output for alarm signalling, load switching, generator start/stop, or other event-driven automation — the standard integration point across the Victron RS and MultiPlus product families.
• Temperature and Voltage Sensor Inputs — Accept external sensors for extended system monitoring — battery temperature for safe operation in high-ambient environments, and remote voltage sensing for accurate battery state assessment beyond the inverter's own terminals.
• smallBMS Compatible Remote Input — The remote input can be configured to accept signals from the Victron smallBMS, enabling direct BMS charge/discharge control for lithium battery installations.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 48V battery banks — lead acid (AGM, gel, flooded) and lithium
• Victron smallBMS (direct BMS control via remote input)

External Solar Charging (separate components):

• Victron SmartSolar MPPT charge controllers
• Victron BlueSolar MPPT charge controllers

GX Devices (via VE.Can or VE.Direct):

• Victron Cerbo GX, Color Control GX, Ekrano GX

Remote Monitoring (via VE.Direct):

• Victron GlobalLink 520

RS Range Alternatives:

• PIN482601000 — Inverter RS Smart Solar (adds 4kWp MPPT solar charger)
• PMR482602020 — Multi RS Solar (adds dual 6kWp MPPT + 100A AC input charger)

---

Frequently Asked Questions

Is this unit a full inverter/charger or just an inverter?

This is a pure inverter only. It converts 48V DC battery power to 230V AC — it does not charge the battery from solar panels or an AC source. For a model with an integrated solar charger, see the Inverter RS Smart Solar (PIN482601000). For solar plus AC input charging, see the Multi RS Solar (PMR482602020).

Can I configure and monitor this inverter without a GX device?

Yes. Built-in Bluetooth and the VictronConnect app provide full local monitoring and configuration wirelessly from any iOS or Android device. A GX device (VE.Can) adds VRM remote monitoring, data logging, and remote firmware updates. A GlobalLink 520 (VE.Direct) provides lightweight remote monitoring without a full GX device.

What does the programmable relay do?

The relay can be configured to activate on a defined event — alarm condition, low battery, or other triggers — enabling integration with external alarm systems, generator auto-start circuits, or load-switching equipment.

Is there a safety notice I need to be aware of for this product?

Yes. Victron Energy has issued a safety update applicable to the RS inverter range including this unit. Confirm the current notice directly on the Victron Energy website before installing or operating the Inverter RS Smart.

What installer qualifications are required for this unit?

This unit requires installation by a licensed electrician who also holds current Victron installation training. Standard electrical licensing alone does not meet the installation requirement. Confirm your installer's Victron training credentials before engaging them — using an unqualified installer may void warranty and create a safety and liability risk.

What is the smallBMS remote input used for?

The remote input can be configured to accept signals from the Victron smallBMS — a compact lithium battery BMS. When connected, the smallBMS can signal the inverter to shut down during battery over-discharge or protection events, protecting the lithium battery bank without requiring a GX device for BMS integration.
